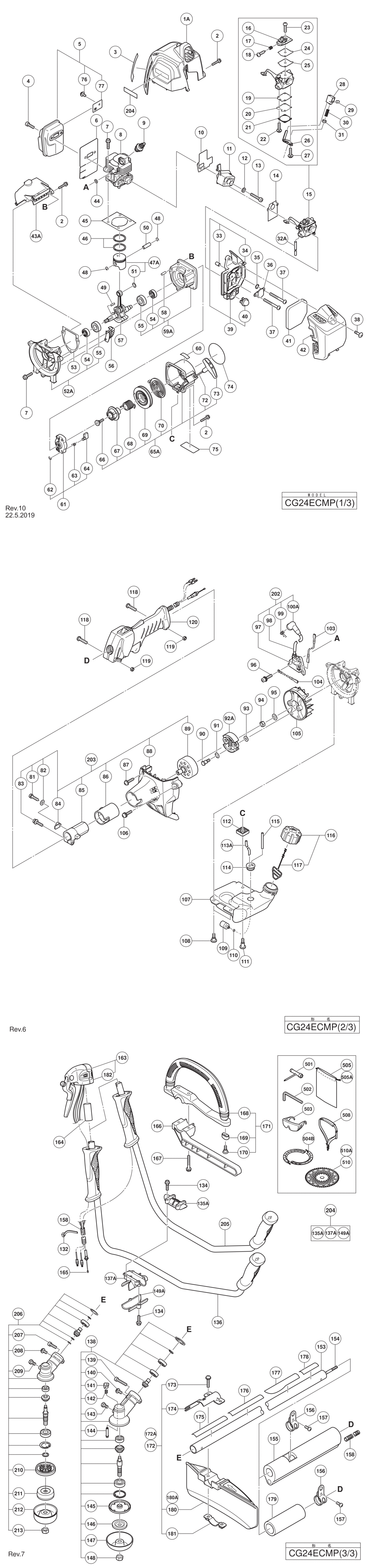

1A - CYLINDER COVER
HIT-6600546.A2
6600546
|
-
|
|
|
|
2 - SEAL LOCK HEX. SOCKET HD. BOLT M4
HIT-6600918.A11
6600918
|
-
|
|
|
|
3 - IDENTIFICATION LABEL
HIT-000000.A1040
000000
|
-
|
|
|
|
4 - SEAL LOCK HEX. SOCKET HD. BOLT M6X16
HIT-6600518.A7
6600518
|
-
|
|
|
|
5 - MUFFLER INCLUD.76
HIT-6600908.A0
6600908
|
£38.68
|
£46.42
|
|
|
6 - HEAT PROTECTION PANEL
HIT-6600517.A10
6600517
|
-
|
|
|
|
7 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X22
HIT-6601339.A2
6601339
|
-
|
|
|
|
8 - CYLINDER N24
HIT-6600902.A0
6600902
|
-
|
|
|
|
9 - IGNITION PLUG (TORCH L7RTC)
HIT-6600542.A21
6600542
|
-
|
|
|
|
10 - INTAKE PACKING
HIT-6600524.A2
6600524
|
-
|
|
|
|
11 - CARBURETOR INSULATOR (ECM)
HIT-6600533.A0
6600533
|
-
|
|
|
|
12 - SPRING WASHER D6
HIT-6600910.A6
6600910
|
-
|
|
|
|
13 - SEAL LOCK HEX. SOCKET HD. BOLT M6X27
HIT-6601358.A8
6601358
|
-
|
|
|
|
14 - CARBURETOR PACKING (ECM)
HIT-6600534.A3
6600534
|
-
|
|
|
|
15 - CARBURETOR ASS'Y WT-1147 INCLUD.16-27
HIT-6600535.A0
6600535
|
-
|
|
|
|
16 - PUMP BODY
HIT-6601350.A2
6601350
|
-
|
|
|
|
17 - IDLE ADJUST SPRING
HIT-6690766.A32
6690766
|
-
|
|
|
|
18 - IDLE ADJUST SCREW
HIT-6690736.A24
6690736
|
-
|
|
|
|
19 - DIAPHRAGM PACKING-METERING
HIT-6685220.A41
6685220
|
£2.81
|
£3.37
|
|
|
20 - METERING DIAPHRAGM
HIT-6684690.A92
6684690
|
£24.05
|
£28.86
|
|
|
21 - DIAPHRAGM COVER-METERING
HIT-6685222.A138
6685222
|
£5.70
|
£6.84
|
|
|
22 - SET SCREW
HIT-6685223.A18
6685223
|
-
|
|
|
|
23 - SCREW
HIT-6685210.A74
6685210
|
-
|
|
|
|
24 - PUMP GASKET
HIT-6685212.A57
6685212
|
£3.29
|
£3.95
|
|
|
25 - PUMP DIAPHRAGM
HIT-6685213.A0
6685213
|
£8.44
|
£10.13
|
|
|
26 - BRACKET
HIT-6601352.A3
6601352
|
-
|
|
|
|
27 - SCREW M3
HIT-6601351.A0
6601351
|
-
|
|
|
|
28 - STOPPER SLIDER
HIT-6600537.A1
6600537
|
-
|
|
|
|
29 - SET SCREW M3
HIT-6600915.A3
6600915
|
-
|
|
|
|
30 - RETURN SPRING
HIT-6600914.A0
6600914
|
-
|
|
|
|
31 - LOCK NUT M6 (10 PCS.)
HIT-949567.A19
949567
|
£1.67
|
£2.00
|
|
|
32A - FUEL PIPE
HIT-6601443.A4
6601443
|
-
|
|
|
|
33 - COLLAR M5
HIT-6601340.A18
6601340
|
-
|
|
|
|
34 - CHOKE VALVE
HIT-6601342.A3
6601342
|
-
|
|
|
|
35 - WAVE WASHER 8
HIT-334242.A2
334242
|
-
|
|
|
|
36 - SPIT BACK SHIELD
HIT-6600913.A3
6600913
|
-
|
|
|
|
37 - SCREW M5X55
HIT-6694914.A3
6694914
|
-
|
|
|
|
38 - SPECIAL SCREW M5
HIT-6600532.A10
6600532
|
-
|
|
|
|
39 - AIR CLEANER BASE ASS'Y INCLUD.33
HIT-6600912.A0
6600912
|
-
|
|
|
|
40 - PRIMING PUMP COMP.
HIT-6685139.A132
6685139
|
£10.67
|
£12.80
|
|
|
41 - AIR CLEANER ELEMENT
HIT-6600529.A4
6600529
|
-
|
|
|
|
42 - AIR CLEANER COVER
HIT-6600531.A0
6600531
|
-
|
|
|
|
43A - MUFFLER TANK PARTITION
HIT-6601430.A1
6601430
|
£4.28
|
£5.13
|
|
|
44 - GLASS WASHER
HIT-6698700.A39
6698700
|
£1.67
|
£2.00
|
|
|
45 - CYLINDER PACKING
HIT-6600510.A14
6600510
|
-
|
|
|
|
46 - PISTON RING
HIT-6698404.A12
6698404
|
£7.03
|
£8.44
|
|
|
47A - PISTON SET INCLUD.51
HIT-6601476.A0
6601476
|
-
|
|
|
|
48 - CIR CLIP
HIT-6684590.A87
6684590
|
£1.67
|
£2.00
|
|
|
49 - WOODRUFF KEY 3X13X4.5
HIT-6601343.A0
6601343
|
-
|
|
|
|
50 - PISTON PIN
HIT-6601344.A27
6601344
|
-
|
|
|
|
51 - SHIM
HIT-6600909.A16
6600909
|
-
|
|
|
|
52A - CRANK CASE (F) ASS'Y INCLUD.54
HIT-6601619.A9
6601619
|
-
|
|
|
|
53 - CRANK CASE PACKING
HIT-6600514.A13
6600514
|
-
|
|
|
|
54 - OIL SEAL TB 12227
HIT-6684607.A183
6684607
|
£4.07
|
£4.88
|
|
|
55 - BALL BEARING 6001 C3
HIT-6684608.A24
6684608
|
£5.70
|
£6.84
|
|
|
56 - CRANK CASE GUARD
HIT-6600924.A6
6600924
|
-
|
|
|
|
57 - CRANK SHAFT
HIT-6600511.A1
6600511
|
-
|
|
|
|
58 - KNOCK PIN 4X12
HIT-6696947.A67
6696947
|
-
|
|
|
|
59A - CRANK CASE (R) ASS'Y INCLUD.54
HIT-6600906.A11
6600906
|
-
|
|
|
|
60 - TANK MARK LABEL (50:1)
HIT-6698921.A38
6698921
|
-
|
|
|
|
61 - STARTER PULLEY ASS'Y INCLUD.62-64
HIT-6684681.A75
6684681
|
£18.16
|
£21.79
|
|
|
62 - D4E RETAINING RING
HIT-6685101.A141
6685101
|
-
|
|
|
|
63 - STARTER PAWL SPRING
HIT-6684684.A42
6684684
|
£3.29
|
£3.95
|
|
|
64 - STARTER PAWL
HIT-6684685.A69
6684685
|
£5.07
|
£6.08
|
|
|
65A - RECOIL STARTER BODY ASS'Y INCLUD.66-70
HIT-6601570.A19
6601570
|
£23.15
|
£27.78
|
|
|
66 - SET SCREW
HIT-6684679.A106
6684679
|
£2.98
|
£3.57
|
|
|
67 - CAM PLATE
HIT-6699996.A62
6699996
|
£4.28
|
£5.13
|
|
|
68 - DAMPER SPRING
HIT-6684677.A87
6684677
|
£6.66
|
£7.99
|
|
|
69 - STARTER ROPE REEL
HIT-6699997.A27
6699997
|
-
|
|
|
|
70 - RECOIL SPRING
HIT-6684675.A41
6684675
|
£8.82
|
£10.58
|
|
|
72 - STARTER ROPE 3.5X860
HIT-6684674.A69
6684674
|
£5.70
|
£6.84
|
|
|
73 - STARTER HANDLE
HIT-6684680.A43
6684680
|
£5.87
|
£7.04
|
|
|
74 - NAME PLATE
HIT-000000.A1041
000000
|
-
|
|
|
|
75 - CAUTION LABEL (EU)
HIT-000000.A1042
000000
|
-
|
|
|
|
76 - MACHINE SCREW (W/WASHERS) M4X8 (BLACK)
HIT-6601439.A9
6601439
|
-
|
|
|
|
77 - SPARK ARRESTER
HIT-6601438.A10
6601438
|
-
|
|
|
|
81 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5
HIT-6600919.A1
6600919
|
-
|
|
|
|
82 - BOLT WASHER D5
HIT-6685407.A40
6685407
|
-
|
|
|
|
83 - HEX. SOCKET HD. BOLT (W/WASHERS) M5
HIT-6600372.A5
6600372
|
-
|
|
|
|
84 - METAL FITTING
HIT-6689664.A3
6689664
|
£6.12
|
£7.35
|
|
|
85 - PIPE HOLDER
HIT-6600551.A2
6600551
|
-
|
|
|
|
86 - DAMPER (HOLDER)
HIT-6600552.A9
6600552
|
-
|
|
|
|
87 - TAPPING SCREW D4.5X16
HIT-6698878.A25
6698878
|
£1.67
|
£2.00
|
|
|
88 - FAN CASE
HIT-6600548.A2
6600548
|
-
|
|
|
|
89 - CLUTCH SHAFT
HIT-6600549.A9
6600549
|
-
|
|
|
|
90 - STEP BOLT
HIT-6696469.A41
6696469
|
£2.84
|
£3.41
|
|
|
91 - BENT WASHER 8
HIT-6684648.A79
6684648
|
£1.67
|
£2.00
|
|
|
92 - CLUTCH
HIT-6696948.A3
6696948
|
£15.02
|
£18.03
|
|
|
93 - CLUTCH WASHER (B)
HIT-6696547.A17
6696547
|
£1.67
|
£2.00
|
|
|
94 - FLYWHEEL NUT
HIT-6685337.A34
6685337
|
-
|
|
|
|
95 - BOLT WASHER M8 (BLACK)
HIT-323212.A34
323212
|
£1.67
|
£2.00
|
|
|
96 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18
HIT-6698388.A45
6698388
|
£1.67
|
£2.00
|
|
|
97 - IGNITION COIL
HIT-6600515.A1
6600515
|
-
|
|
|
|
98 - CORD INSULATION TUBE L100
HIT-6600051.A3
6600051
|
-
|
|
|
|
99 - PLUG CAP METAL
HIT-6699186.A34
6699186
|
£1.67
|
£2.00
|
|
|
100A - PLUG CAP
HIT-6601421.A7
6601421
|
£1.67
|
£2.00
|
|
|
101 - BAND
HIT-6698943.A9
6698943
|
-
|
|
|
|
102 - PROTECTION TUBE
HIT-000000.A1043
000000
|
-
|
|
|
|
103 - CORD
HIT-6698495.A6
6698495
|
-
|
|
|
|
104 - EARTH CORD
HIT-6696545.A21
6696545
|
-
|
|
|
|
105 - MAGNETO ROTOR
HIT-6699289.A16
6699289
|
£24.52
|
£29.43
|
|
|
106 - MACHINE SCREW (W/WASHERS) M5X18
HIT-6600920.A12
6600920
|
-
|
|
|
|
107 - TANK
HIT-6600519.A13
6600519
|
-
|
|
|
|
108 - BOLT (W/FLANGE) L17.8
HIT-6696574.A55
6696574
|
£1.67
|
£2.00
|
|
|
109 - PUMP FILTER
HIT-6600351.A19
6600351
|
£4.45
|
£5.34
|
|
|
110 - CLIP
HIT-6696949.A72
6696949
|
£1.67
|
£2.00
|
|
|
111 - BOLT (W/FLANGE) L23.8
HIT-6698512.A23
6698512
|
£1.67
|
£2.00
|
|
|
112 - SPACER
HIT-6699558.A27
6699558
|
-
|
|
|
|
113A - FUEL PIPE L70
HIT-6699014.A2
6699014
|
£2.77
|
£3.32
|
|
|
114 - FUEL GROMMET
HIT-6600358.A11
6600358
|
£1.67
|
£2.00
|
|
|
115 - FUEL PIPE L180
HIT-6600523.A1
6600523
|
-
|
|
|
|
116 - FUEL TANK CAP ASS'Y INCLUD.117
HIT-6698402.A58
6698402
|
-
|
|
|
|
117 - TANK CAP CHAIN
HIT-6698732.A46
6698732
|
-
|
|
|
|
131 - THROTTLE LEVER (D)
HIT-6600917.A0
6600917
|
-
|
|
|
|
132 - BAND
HIT-6698943.A8
6698943
|
-
|
|
|
|
133 - HANDLE COLLAR
HIT-6600503.A7
6600503
|
-
|
|
|
|
134 - HEX. HOLE BOLT M5X25/S
HIT-6684709.A136
6684709
|
£1.67
|
£2.00
|
|
|
135 - HANDLE HOLDER (A)
HIT-6600561.A2
6600561
|
-
|
|
|
|
136 - U-HANDLE
HIT-6600896.A4
6600896
|
-
|
|
|
|
137 - HANDLE HOLDER (B)
HIT-6600562.A7
6600562
|
-
|
|
|
|
138 - GEAR CASE ASS'Y (4BB) INCLUD.139-148
HIT-6699439.A10
6699439
|
£60.67
|
£72.80
|
|
|
139 - HEX. SOCKET HD. BOLT M5X30 (10 PCS.)
HIT-949664.A11
949664
|
£4.33
|
£5.20
|
|
|
140 - SCREW 5X12/W.S
HIT-6695414.A62
6695414
|
£1.67
|
£2.00
|
|
|
141 - CAP
HIT-6600005.A4
6600005
|
-
|
|
|
|
142 - SPRING
HIT-6600006.A15
6600006
|
-
|
|
|
|
143 - BOLT (W/PLUS) M6X8
HIT-6684737.A27
6684737
|
-
|
|
|
|
144 - LOCK PIN
HIT-6600007.A4
6600007
|
-
|
|
|
|
145 - CUTTER HOLDER (A)
HIT-6699441.A8
6699441
|
-
|
|
|
|
146 - CUTTER HOLDER (B)
HIT-6698659.A11
6698659
|
£15.99
|
£19.19
|
|
|
147 - NUT COVER
HIT-6699188.A4
6699188
|
£10.93
|
£13.12
|
|
|
148 - U-NUT (LEFT HAND) M10
HIT-335759.A39
335759
|
£1.67
|
£2.00
|
|
|
149 - HANDLE HOLDER (C)
HIT-6600563.A2
6600563
|
-
|
|
|
|
150 - HEX. HOLE BUTTON BOLT M6X25
HIT-6684714.A30
6684714
|
£1.67
|
£2.00
|
|
|
151 - COVER BRACKET
HIT-6699443.A2
6699443
|
-
|
|
|
|
152 - CAUTION MARK
HIT-6600450.A13
6600450
|
-
|
|
|
|
153 - MAIN PIPE (T1.1)
HIT-6600556.A9
6600556
|
-
|
|
|
|
154 - DRIVE SHAFT (DAMPER)
HIT-6600560.A1
6600560
|
-
|
|
|
|
155 - WAIST PROTECTOR
HIT-6600540.A0
6600540
|
-
|
|
|
|
156 - HANGER
HIT-6600504.A10
6600504
|
£1.67
|
£2.00
|
|
|
157 - MACHINE SCREW M5X10 (10 PCS.)
HIT-949236.A74
949236
|
£1.67
|
£2.00
|
|
|
158 - PROTECTION TUBE L230
HIT-6601346.A3
6601346
|
-
|
|
|
|
159 - GUARD ASS'Y (EU)
HIT-6600528.A10
6600528
|
-
|
|
|
|
160 - COVER GUARD (EU) ASS'Y
HIT-6601356.A9
6601356
|
-
|
|
|
|
161 - TAPPING SCREW 4X14
HIT-6684751.A86
6684751
|
£1.67
|
£2.00
|
|
|
162 - KNIFE
HIT-6684750.A17
6684750
|
£3.64
|
£4.37
|
|
|
202 - IGNITION COIL ASS'Y INCLUD.97-100A
HIT-6601380.A2
6601380
|
£45.18
|
£54.22
|
|
|
203 - FAN CASE (A) ASS'Y INCLUD.81-86
HIT-6601378.A9
6601378
|
-
|
|
|
|
204 - BRAND LABEL
HIT-000000.A1044
000000
|
-
|
|
|
|
501 - BOX WRENCH (HEX. SOCKET 17/19)
HIT-6684764.A45
6684764
|
£7.64
|
£9.17
|
|
|
502 - HEX. BAR WRENCH 4MM
HIT-944458.A122
944458
|
£1.67
|
£2.00
|
|
|
503 - PROTECTIVE GLASSES
HIT-875769.A102
875769
|
-
|
|
|
|
504 - CUTTER COVER
HIT-6684768.A50
6684768
|
-
|
|
|
|
505 - TOOL BAG
HIT-6600923.A5
6600923
|
-
|
|
|
|
506 - SHOULDER BELT ASS'Y W
HIT-6696184.A14
6696184
|
£25.30
|
£30.36
|
|
|
507 - BLADE 3TX255XT1.8
HIT-6698711.A6
6698711
|
-
|
|
|
