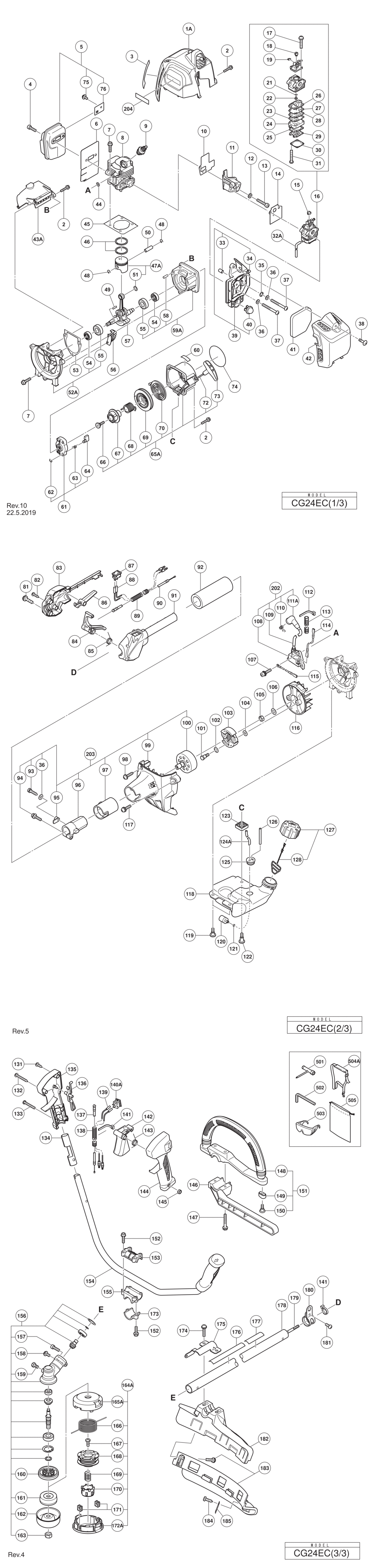

1A - CYLINDER COVER
HIT-6600543.A1
6600543
|
-
|
|
|
|
2 - SEAL LOCK HEX. SOCKET HD. BOLT M4
HIT-6600918.A8
6600918
|
-
|
|
|
|
3 - IDENTIFICATION LABEL
HIT-000000.A3514
000000
|
-
|
|
|
|
4 - SEAL LOCK HEX. SOCKET HD. BOLT M6X16
HIT-6600518.A26
6600518
|
-
|
|
|
|
5 - MUFFLER INCLUD.75
HIT-6600516.A5
6600516
|
-
|
|
|
|
6 - HEAT PROTECTION PANEL
HIT-6600517.A0
6600517
|
-
|
|
|
|
7 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X22
HIT-6601339.A23
6601339
|
-
|
|
|
|
8 - CYLINDER N24
HIT-6600902.A12
6600902
|
-
|
|
|
|
9 - IGNITION PLUG (TORCH L7RTC)
HIT-6600542.A8
6600542
|
-
|
|
|
|
10 - INTAKE PACKING
HIT-6600524.A8
6600524
|
-
|
|
|
|
11 - CARBURETOR INSULATOR
HIT-6600525.A2
6600525
|
-
|
|
|
|
12 - SPRING WASHER D6
HIT-6600910.A19
6600910
|
-
|
|
|
|
13 - SEAL LOCK HEX. SOCKET HD. BOLT M6X27
HIT-6601358.A26
6601358
|
-
|
|
|
|
14 - CARBURETOR PACKING
HIT-6698405.A14
6698405
|
£3.12
|
£3.74
|
|
|
15 - SWIVEL CAP
HIT-6691337.A55
6691337
|
£1.67
|
£2.00
|
|
|
16 - CARBURETOR ASS'Y WYC-43 INCLUD.17-31
HIT-6600526.A5
6600526
|
-
|
|
|
|
17 - THROTTLE SET SCREW
HIT-6684698.A51
6684698
|
-
|
|
|
|
18 - SWIVEL
HIT-6696830.A13
6696830
|
-
|
|
|
|
19 - STOP RING
HIT-6684696.A171
6684696
|
-
|
|
|
|
21 - O-RING
HIT-6684695.A44
6684695
|
£1.67
|
£2.00
|
|
|
22 - MAIN JET
HIT-000000.A3515
000000
|
-
|
|
|
|
23 - CIRCUIT PLATE
HIT-6691234.A59
6691234
|
-
|
|
|
|
24 - PUMP BODY COMP.
HIT-6696828.A15
6696828
|
£13.28
|
£15.93
|
|
|
25 - DIAPHRAGM PACKING-METERING
HIT-6685220.A172
6685220
|
£2.81
|
£3.37
|
|
|
26 - PUMP GASKET
HIT-6684692.A26
6684692
|
£17.28
|
£20.73
|
|
|
27 - PUMP DIAPHRAGM
HIT-6684693.A157
6684693
|
£5.70
|
£6.84
|
|
|
28 - PUMP PLATE
HIT-6691242.A13
6691242
|
-
|
|
|
|
29 - METERING DIAPHRAGM
HIT-6684690.A28
6684690
|
£24.05
|
£28.86
|
|
|
30 - DIAPHRAGM COVER-METERING
HIT-6685222.A2
6685222
|
£5.70
|
£6.84
|
|
|
31 - SET SCREW
HIT-6691312.A18
6691312
|
-
|
|
|
|
32A - FUEL PIPE
HIT-6601444.A14
6601444
|
-
|
|
|
|
33 - COLLAR M5
HIT-6601340.A3
6601340
|
-
|
|
|
|
34 - CHOKE VALVE
HIT-6601341.A11
6601341
|
-
|
|
|
|
35 - WAVE WASHER 8
HIT-334242.A17
334242
|
-
|
|
|
|
36 - BOLT WASHER D5
HIT-6685407.A8
6685407
|
-
|
|
|
|
37 - SCREW M5X55
HIT-6694914.A37
6694914
|
-
|
|
|
|
38 - SPECIAL SCREW M5
HIT-6600532.A8
6600532
|
-
|
|
|
|
39 - AIR CLEANER BASE ASS'Y INCLUD.33
HIT-6600911.A4
6600911
|
-
|
|
|
|
40 - PRIMING PUMP COMP.
HIT-6685139.A61
6685139
|
£10.67
|
£12.80
|
|
|
41 - AIR CLEANER ELEMENT
HIT-6600529.A17
6600529
|
-
|
|
|
|
42 - AIR CLEANER COVER
HIT-6600530.A0
6600530
|
-
|
|
|
|
43A - MUFFLER TANK PARTITION
HIT-6601430.A9
6601430
|
£4.28
|
£5.13
|
|
|
44 - GLASS WASHER
HIT-6698700.A34
6698700
|
£1.67
|
£2.00
|
|
|
45 - CYLINDER PACKING
HIT-6600510.A9
6600510
|
-
|
|
|
|
46 - PISTON RING
HIT-6698404.A24
6698404
|
£7.03
|
£8.44
|
|
|
47A - PISTON SET INCLUD.51
HIT-6601476.A2
6601476
|
-
|
|
|
|
48 - CIR CLIP
HIT-6684590.A66
6684590
|
£1.67
|
£2.00
|
|
|
49 - WOODRUFF KEY 3X13X4.5
HIT-6601343.A27
6601343
|
-
|
|
|
|
50 - PISTON PIN
HIT-6601344.A0
6601344
|
-
|
|
|
|
51 - SHIM
HIT-6600909.A6
6600909
|
-
|
|
|
|
52A - CRANK CASE (F) ASS'Y INCLUD.54
HIT-6601619.A18
6601619
|
-
|
|
|
|
53 - CRANK CASE PACKING
HIT-6600514.A9
6600514
|
-
|
|
|
|
54 - OIL SEAL TB 12227
HIT-6684607.A78
6684607
|
£4.07
|
£4.88
|
|
|
55 - BALL BEARING 6001 C3
HIT-6684608.A124
6684608
|
£5.70
|
£6.84
|
|
|
56 - CRANK CASE GUARD
HIT-6600924.A12
6600924
|
-
|
|
|
|
57 - CRANK SHAFT
HIT-6600511.A4
6600511
|
-
|
|
|
|
58 - KNOCK PIN 4X12
HIT-6696947.A18
6696947
|
-
|
|
|
|
59A - CRANK CASE (R) ASS'Y INCLUD.54
HIT-6600906.A2
6600906
|
-
|
|
|
|
60 - TANK MARK LABEL (50:1)
HIT-6698921.A7
6698921
|
-
|
|
|
|
61 - STARTER PULLEY ASS'Y INCLUD.62-64
HIT-6684681.A47
6684681
|
£18.16
|
£21.79
|
|
|
62 - D4E RETAINING RING
HIT-6685101.A28
6685101
|
-
|
|
|
|
63 - STARTER PAWL SPRING
HIT-6684684.A90
6684684
|
£3.29
|
£3.95
|
|
|
64 - STARTER PAWL
HIT-6684685.A27
6684685
|
£5.07
|
£6.08
|
|
|
65A - RECOIL STARTER BODY ASS'Y INCLUD.66-70
HIT-6601570.A84
6601570
|
£23.15
|
£27.78
|
|
|
66 - SET SCREW
HIT-6684679.A63
6684679
|
£2.98
|
£3.57
|
|
|
67 - CAM PLATE
HIT-6699996.A43
6699996
|
£4.28
|
£5.13
|
|
|
68 - DAMPER SPRING
HIT-6684677.A51
6684677
|
£5.70
|
£6.84
|
|
|
69 - STARTER ROPE REEL
HIT-6699997.A46
6699997
|
-
|
|
|
|
70 - RECOIL SPRING
HIT-6684675.A94
6684675
|
£8.82
|
£10.58
|
|
|
72 - STARTER ROPE 3.5X860
HIT-6684674.A44
6684674
|
£5.70
|
£6.84
|
|
|
73 - STARTER HANDLE
HIT-6684680.A65
6684680
|
£5.87
|
£7.04
|
|
|
74 - NAME PLATE
HIT-000000.A3516
000000
|
-
|
|
|
|
75 - MACHINE SCREW (W/WASHERS) M4X8 (BLACK)
HIT-6601439.A18
6601439
|
-
|
|
|
|
76 - SPARK ARRESTER
HIT-6601438.A0
6601438
|
-
|
|
|
|
81 - MACHINE SCREW (W/WASHERS) M5X20 (BLACK) FOR (SL)
HIT-995096.A0
995096
|
£1.67
|
£2.00
|
|
|
82 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) FOR (SL)
HIT-305812.A100
305812
|
£1.67
|
£2.00
|
|
|
83 - HANDLE (B) FOR (SL)
HIT-6600566.A5
6600566
|
-
|
|
|
|
84 - THROTTLE LEVER FOR (SL)
HIT-6600568.A5
6600568
|
-
|
|
|
|
85 - SPRING (A) FOR (SL)
HIT-6696489.A16
6696489
|
£2.84
|
£3.41
|
|
|
86 - TRIGGER LOCKOUT FOR (SL)
HIT-6600567.A2
6600567
|
-
|
|
|
|
87 - STOP SWITCH FOR (SL)
HIT-6601275.A57
6601275
|
£1.67
|
£2.00
|
|
|
88 - STOP SWITCH CORD FOR (SL)
HIT-6696491.A21
6696491
|
-
|
|
|
|
89 - PROTECTION TUBE FOR (SL)
HIT-6696967.A18
6696967
|
-
|
|
|
|
90 - THROTTLE WIRE COMP FOR (SL)
HIT-6600569.A2
6600569
|
-
|
|
|
|
91 - HANDLE (A) FOR (SL)
HIT-6600565.A2
6600565
|
-
|
|
|
|
92 - GRIP (LOOP) FOR (SL)
HIT-6600538.A6
6600538
|
£7.75
|
£9.30
|
|
|
93 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5
HIT-6600919.A4
6600919
|
-
|
|
|
|
94 - HEX. SOCKET HD. BOLT (W/WASHERS) M5
HIT-6600372.A17
6600372
|
-
|
|
|
|
95 - METAL FITTING
HIT-6689664.A39
6689664
|
£6.12
|
£7.35
|
|
|
96 - PIPE HOLDER
HIT-6600551.A11
6600551
|
-
|
|
|
|
97 - DAMPER (HOLDER)
HIT-6600552.A0
6600552
|
-
|
|
|
|
98 - TAPPING SCREW D4.5X16
HIT-6698878.A4
6698878
|
£1.67
|
£2.00
|
|
|
99 - FAN CASE
HIT-6600548.A11
6600548
|
-
|
|
|
|
100 - CLUTCH SHAFT
HIT-6600549.A0
6600549
|
-
|
|
|
|
101 - STEP BOLT
HIT-6696469.A27
6696469
|
£2.84
|
£3.41
|
|
|
102 - BENT WASHER 8
HIT-6684648.A55
6684648
|
£1.67
|
£2.00
|
|
|
103 - CLUTCH
HIT-6696948.A27
6696948
|
£15.02
|
£18.03
|
|
|
104 - CLUTCH WASHER (B)
HIT-6696547.A25
6696547
|
£1.67
|
£2.00
|
|
|
105 - FLYWHEEL NUT
HIT-6685337.A8
6685337
|
-
|
|
|
|
106 - BOLT WASHER M8 (BLACK)
HIT-323212.A15
323212
|
£1.67
|
£2.00
|
|
|
107 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18
HIT-6698388.A63
6698388
|
£1.67
|
£2.00
|
|
|
108 - IGNITION COIL
HIT-6600515.A4
6600515
|
-
|
|
|
|
109 - CORD INSULATION TUBE L100
HIT-6600051.A13
6600051
|
-
|
|
|
|
110 - PLUG CAP METAL
HIT-6699186.A19
6699186
|
£1.67
|
£2.00
|
|
|
111A - PLUG CAP
HIT-6601421.A58
6601421
|
£1.67
|
£2.00
|
|
|
112 - BAND
HIT-6698943.A17
6698943
|
-
|
|
|
|
113 - PROTECTION TUBE L50
HIT-6601345.A10
6601345
|
-
|
|
|
|
114 - CORD
HIT-6698495.A9
6698495
|
-
|
|
|
|
115 - EARTH CORD
HIT-6696545.A31
6696545
|
-
|
|
|
|
116 - MAGNETO ROTOR
HIT-6699289.A33
6699289
|
£24.52
|
£29.43
|
|
|
117 - MACHINE SCREW (W/WASHERS) M5X18
HIT-6600920.A7
6600920
|
-
|
|
|
|
118 - TANK
HIT-6600519.A0
6600519
|
-
|
|
|
|
119 - BOLT (W/FLANGE) L17.8
HIT-6696574.A5
6696574
|
£1.67
|
£2.00
|
|
|
120 - PUMP FILTER
HIT-6600351.A61
6600351
|
£4.45
|
£5.34
|
|
|
121 - CLIP
HIT-6696949.A16
6696949
|
£1.67
|
£2.00
|
|
|
122 - BOLT (W/FLANGE) L23.8
HIT-6698512.A5
6698512
|
£1.67
|
£2.00
|
|
|
123 - SPACER
HIT-6699558.A2
6699558
|
-
|
|
|
|
124A - FUEL PIPE L70
HIT-6699014.A64
6699014
|
£2.77
|
£3.32
|
|
|
125 - FUEL GROMMET
HIT-6600358.A58
6600358
|
£1.67
|
£2.00
|
|
|
126 - FUEL PIPE L140
HIT-6600521.A6
6600521
|
£1.67
|
£2.00
|
|
|
127 - FUEL TANK CAP ASS'Y INCLUD.128
HIT-6698402.A11
6698402
|
-
|
|
|
|
128 - TANK CAP CHAIN
HIT-6698732.A55
6698732
|
-
|
|
|
|
131 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) FOR (S)
HIT-302086.A27
302086
|
£1.67
|
£2.00
|
|
|
132 - TAPPING SCREW (W/FLANGE) D4X30 FOR (S)
HIT-323837.A11
323837
|
-
|
|
|
|
133 - MACHINE SCREW M5X30 (BLACK) FOR (S)
HIT-323041.A13
323041
|
-
|
|
|
|
134 - HANDLE COLLAR FOR (S)
HIT-6600503.A0
6600503
|
-
|
|
|
|
135 - HANDLE (B) FOR (S)
HIT-6696590.A14
6696590
|
-
|
|
|
|
136 - LOCK LEVER FOR (S)
HIT-6696490.A25
6696490
|
£2.84
|
£3.41
|
|
|
137 - THROTTLE WIRE COMP. FOR (S)
HIT-6600900.A1
6600900
|
£3.56
|
£4.27
|
|
|
138 - PROTECTION TUBE L770 FOR (S)
HIT-6601347.A4
6601347
|
-
|
|
|
|
139 - STOP SWITCH CORD FOR (S)
HIT-6696592.A13
6696592
|
-
|
|
|
|
140A - STOP SWITCH FOR (S)
HIT-6601275.A58
6601275
|
£1.67
|
£2.00
|
|
|
141 - BAND FOR (S)
HIT-6698943.A16
6698943
|
-
|
|
|
|
142 - LEVER FOR (S)
HIT-6696488.A23
6696488
|
£1.67
|
£2.00
|
|
|
143 - SPRING (A) FOR (S)
HIT-6696489.A15
6696489
|
£2.84
|
£3.41
|
|
|
144 - HANDLE (A) FOR (S)
HIT-6696588.A14
6696588
|
-
|
|
|
|
145 - NUT M5 (BLACK) FOR (S)
HIT-302012.A16
302012
|
£1.67
|
£2.00
|
|
|
146 - BARRIER FOR (SL)
HIT-6696973.A17
6696973
|
£8.35
|
£10.02
|
|
|
147 - BOLT (BLACK) M6 FOR (SL)
HIT-6696974.A16
6696974
|
£1.67
|
£2.00
|
|
|
148 - LOOP HANDLE FOR (SL)
HIT-6601348.A2
6601348
|
-
|
|
|
|
149 - CUSHION RUBBER FOR (SL)
HIT-6601349.A5
6601349
|
-
|
|
|
|
150 - BOLT (W/FLANGE) L23.8 FOR (SL)
HIT-6698512.A6
6698512
|
£1.67
|
£2.00
|
|
|
151 - LOOP HANDLE ASS'Y INCLUD.148-150 FOR (SL)
HIT-6600922.A1
6600922
|
-
|
|
|
|
152 - HEX. HOLE BOLT M5X25/S FOR (S)
HIT-6684709.A98
6684709
|
£1.67
|
£2.00
|
|
|
153 - HANDLE HOLDER (A) FOR (S)
HIT-6600561.A8
6600561
|
-
|
|
|
|
154 - U-HANDLE FOR (S)
HIT-6600899.A1
6600899
|
-
|
|
|
|
155 - HANDLE HOLDER (B) FOR (S)
HIT-6600562.A1
6600562
|
-
|
|
|
|
156 - GEAR CASE ASS'Y 3BB (D) INCLUD.157-163
HIT-6600553.A7
6600553
|
-
|
|
|
|
157 - HEX. SOCKET HD. BOLT M5X25 (10 PCS.)
HIT-949662.A1
949662
|
£3.64
|
£4.37
|
|
|
158 - SCREW 5X12/W.S
HIT-6695414.A37
6695414
|
£1.67
|
£2.00
|
|
|
159 - BOLT (W/PLUS) M6X8
HIT-6684737.A33
6684737
|
-
|
|
|
|
160 - CUTTER HOLDER (A)
HIT-6601354.A2
6601354
|
£8.01
|
£9.61
|
|
|
161 - CUTTER HOLDER (B)
HIT-6601355.A5
6601355
|
-
|
|
|
|
162 - NUT COVER
HIT-6699188.A23
6699188
|
£10.93
|
£13.12
|
|
|
163 - U-NUT (LEFT HAND) M10
HIT-335759.A3
335759
|
£1.67
|
£2.00
|
|
|
164A - NYLON HEAD ASS'Y INCLUD.165A
HIT-6601432.A7
6601432
|
-
|
|
|
|
165A - COVER
HIT-000000.A3517
000000
|
-
|
|
|
|
166 - NYLON CORD
HIT-000000.A3518
000000
|
-
|
|
|
|
167 - SET SCREW
HIT-6698795.A30
6698795
|
-
|
|
|
|
168 - REEL
HIT-6698796.A14
6698796
|
£7.12
|
£8.54
|
|
|
169 - RETURN SPRING
HIT-6698797.A23
6698797
|
£1.67
|
£2.00
|
|
|
170 - BUTTON
HIT-6698798.A14
6698798
|
£7.12
|
£8.54
|
|
|
171 - CORD GUIDE
HIT-6698799.A25
6698799
|
£7.12
|
£8.54
|
|
|
172A - CASE
HIT-000000.A3519
000000
|
-
|
|
|
|
173 - HANDLE HOLDER (C) FOR (S)
HIT-6600563.A8
6600563
|
-
|
|
|
|
174 - HEX. HOLE BUTTON BOLT M6X25
HIT-6684714.A99
6684714
|
£1.67
|
£2.00
|
|
|
175 - COVER BRACKET
HIT-6699443.A9
6699443
|
-
|
|
|
|
176 - CAUTION MARK
HIT-6600450.A1
6600450
|
-
|
|
|
|
177 - LEVEL MARK (B) FOR (SL)
HIT-6600446.A10
6600446
|
-
|
|
|
|
178 - MAIN PIPE (T1.1)
HIT-6600556.A5
6600556
|
-
|
|
|
|
179 - DRIVE SHAFT
HIT-6600558.A3
6600558
|
-
|
|
|
|
180 - HANGER
HIT-6600504.A37
6600504
|
£1.67
|
£2.00
|
|
|
181 - MACHINE SCREW M5X10 (10 PCS.)
HIT-949236.A11
949236
|
£1.67
|
£2.00
|
|
|
182 - GUARD ASS'Y (EU)
HIT-6600528.A1
6600528
|
-
|
|
|
|
183 - COVER GUARD (EU) ASS'Y
HIT-6601356.A2
6601356
|
-
|
|
|
|
184 - TAPPING SCREW 4X14
HIT-6684751.A7
6684751
|
£1.67
|
£2.00
|
|
|
185 - KNIFE
HIT-6684750.A84
6684750
|
£3.64
|
£4.37
|
|
|
202 - IGNITION COIL ASS'Y INCLUD.108-111A
HIT-6601380.A5
6601380
|
£45.18
|
£54.22
|
|
|
203 - FAN CASE (A) ASS'Y INCLUD.36
HIT-6601378.A6
6601378
|
-
|
|
|
|
204 - BRAND LABEL
HIT-000000.A3462
000000
|
-
|
|
|
|
501 - BOX WRENCH (HEX. SOCKET 17/19)
HIT-6684764.A72
6684764
|
£7.64
|
£9.17
|
|
|
502 - HEX. BAR WRENCH 4MM
HIT-944458.A51
944458
|
£1.67
|
£2.00
|
|
|
503 - PROTECTIVE GLASSES
HIT-875769.A59
875769
|
-
|
|
|
|
504A - SHOULDER BELT SINGLE
HIT-6601420.A2
6601420
|
-
|
|
|
|
505 - TOOL BAG
HIT-6600923.A3
6600923
|
-
|
|
|
|
601 - AIR CLEANER ELEMENT
HIT-6601389.A2
6601389
|
-
|
|
|
