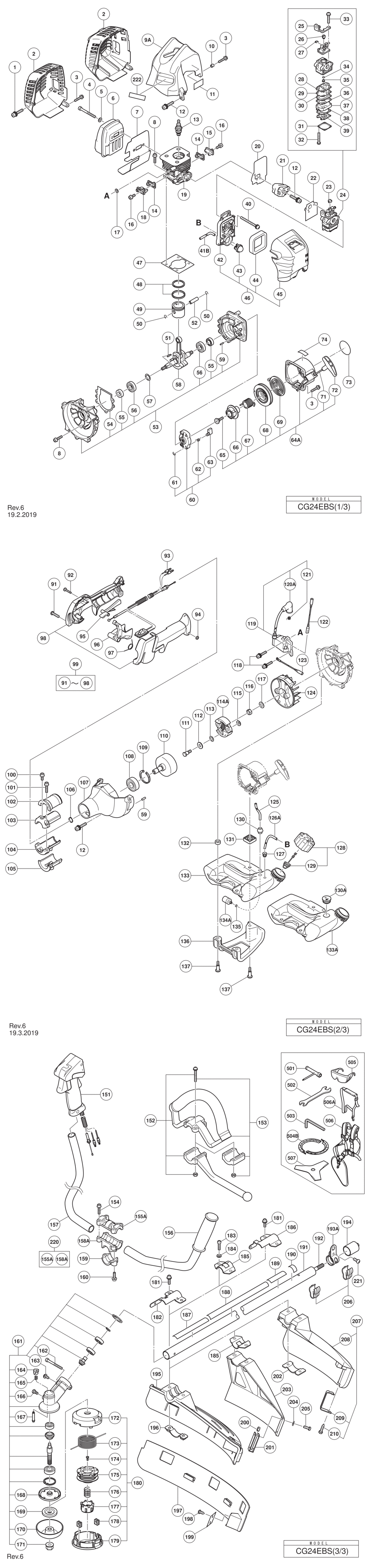

1 - SEAL LOCK HEX. SOCKET HD. BOLT M5X30
HIT-6698950.A9
6698950
|
-
|
|
|
|
2 - MUFFLER COVER
HIT-6698478.A3
6698478
|
£6.50
|
£7.80
|
|
|
*2 - MUFFLER COVER FOR EUROPE
HIT-6600319.A1
6600319
|
-
|
|
|
|
3 - HEX. SOCKET HD. BOLT (W/FLANGE) M4X18
HIT-6696326.A15
6696326
|
-
|
|
|
|
4 - HEX. SOCKET HD. BOLT M6X55
HIT-6696819.A11
6696819
|
-
|
|
|
|
*4 - HEX. SOCKET HD. BOLT M6X65 FOR EUROPE
HIT-6698384.A17
6698384
|
-
|
|
|
|
5 - BOLT WASHER M6 (10 PCS.)
HIT-949432.A74
949432
|
£1.67
|
£2.00
|
|
|
6 - MUFFLER
HIT-6698477.A14
6698477
|
£15.61
|
£18.73
|
|
|
*6 - MUFFLER (B) FOR EUROPE
HIT-6600461.A18
6600461
|
-
|
|
|
|
7 - HEAT PROTECTION PANEL
HIT-6600320.A21
6600320
|
£1.67
|
£2.00
|
|
|
8 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18
HIT-6698386.A46
6698386
|
-
|
|
|
|
9A - CYLINDER COVER
HIT-6699454.A3
6699454
|
-
|
|
|
|
10 - COLLAR (B)
HIT-6600008.A4
6600008
|
-
|
|
|
|
11 - RCM+EAC MARK
HIT-000000.A3080
000000
|
-
|
|
|
|
12 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5
HIT-6698844.A46
6698844
|
£1.67
|
£2.00
|
|
|
*13 - SPARK PLUG ASS'Y CJ6
HIT-6699322.A14
6699322
|
£3.73
|
£4.48
|
|
|
*13 - SPARK PLUG ASS'Y BMR7A FOR RUS
HIT-6699316.A39
6699316
|
£12.43
|
£14.92
|
|
|
14 - COVER PACKING
HIT-6698468.A5
6698468
|
-
|
|
|
|
15 - SCAVENGING COVER (A)
HIT-6698469.A10
6698469
|
-
|
|
|
|
16 - HEX. SOCKET HD. BOLT M4X12
HIT-6698385.A18
6698385
|
-
|
|
|
|
17 - GLASS WASHER
HIT-6698700.A26
6698700
|
£1.67
|
£2.00
|
|
|
18 - SCAVENGING COVER (B)
HIT-6698470.A4
6698470
|
-
|
|
|
|
19 - CYLINDER
HIT-6698465.A11
6698465
|
£40.69
|
£48.83
|
|
|
20 - INTAKE PACKING
HIT-6699437.A18
6699437
|
£1.67
|
£2.00
|
|
|
21 - CARBURETOR INSULATOR
HIT-6698387.A20
6698387
|
£4.72
|
£5.66
|
|
|
22 - CARBURETOR PACKING
HIT-6698405.A2
6698405
|
£3.12
|
£3.74
|
|
|
23 - SWIVEL CAP
HIT-6691337.A41
6691337
|
£1.67
|
£2.00
|
|
|
*24 - CARBURETOR ASS'Y WYC-36 INCLUD.25-39
HIT-6600321.A1
6600321
|
£39.03
|
£46.84
|
|
|
*24 - CARBURETOR ASS'Y WYC-30 INCLUD.25-39 FOR BRA
HIT-6698728.A0
6698728
|
-
|
|
|
|
25 - CABLE ADJUST STAY
HIT-6699287.A13
6699287
|
-
|
|
|
|
26 - SWIVEL
HIT-6696830.A6
6696830
|
-
|
|
|
|
27 - STOP RING
HIT-6684696.A150
6684696
|
-
|
|
|
|
28 - PUMP GASKET
HIT-6684692.A41
6684692
|
£17.28
|
£20.73
|
|
|
29 - PUMP DIAPHRAGM
HIT-6684693.A136
6684693
|
£5.70
|
£6.84
|
|
|
30 - PUMP PLATE
HIT-6691242.A4
6691242
|
-
|
|
|
|
31 - DIAPHRAGM COVER-METERING
HIT-6685222.A9
6685222
|
£5.70
|
£6.84
|
|
|
32 - SET SCREW
HIT-6691312.A7
6691312
|
-
|
|
|
|
33 - SET SCREW M3X12
HIT-6696829.A39
6696829
|
-
|
|
|
|
34 - O-RING
HIT-6684695.A63
6684695
|
£1.67
|
£2.00
|
|
|
35 - MAIN JET
HIT-000000.A3082
000000
|
-
|
|
|
|
36 - CIRCUIT PLATE
HIT-6691234.A54
6691234
|
-
|
|
|
|
37 - PUMP BODY COMP.
HIT-6696828.A6
6696828
|
£13.28
|
£15.93
|
|
|
38 - DIAPHRAGM PACKING-METERING
HIT-6685220.A165
6685220
|
£2.81
|
£3.37
|
|
|
39 - METERING DIAPHRAGM
HIT-6684690.A46
6684690
|
£24.05
|
£28.86
|
|
|
40 - MACHINE SCREW (W/WASHERS) M5X60 (BLACK)
HIT-307224.A23
307224
|
£1.67
|
£2.00
|
|
|
41B - FUEL PIPE
HIT-6601443.A5
6601443
|
-
|
|
|
|
42 - AIR CLEANER HOUSING
HIT-66965549.A2
66965549
|
£15.62
|
£18.74
|
|
|
43 - PRIMING PUMP COMP.
HIT-6685139.A52
6685139
|
£10.67
|
£12.80
|
|
|
44 - CLEANER ELEMENT
HIT-6690347.A15
6690347
|
£7.15
|
£8.58
|
|
|
45 - CLEANER COVER
HIT-6699185.A9
6699185
|
£11.28
|
£13.53
|
|
|
46 - AIR CLEANER (A) ASS'Y INCLUD.42-45
HIT-6699132.A9
6699132
|
£13.52
|
£16.23
|
|
|
47 - CYLINDER GASKET
HIT-6684587.A7
6684587
|
£1.67
|
£2.00
|
|
|
48 - PISTON RING
HIT-6698404.A32
6698404
|
£7.03
|
£8.44
|
|
|
49 - PISTON
HIT-6699456.A4
6699456
|
-
|
|
|
|
50 - CIR CLIP
HIT-6684590.A51
6684590
|
£1.67
|
£2.00
|
|
|
51 - WOODRUFF KEY 3X13X4.5
HIT-6684899.A97
6684899
|
-
|
|
|
|
52 - PISTON PIN
HIT-6684591.A54
6684591
|
£3.29
|
£3.95
|
|
|
53 - CRANK CASE ASS'Y INCLUD.54-56
HIT-6684606.A8
6684606
|
£40.68
|
£48.82
|
|
|
54 - CRANK CASE GASKET
HIT-6684609.A7
6684609
|
-
|
|
|
|
55 - OIL SEAL TB 12227
HIT-6684607.A49
6684607
|
£4.07
|
£4.88
|
|
|
56 - BALL BEARING 6001 C3
HIT-6684608.A150
6684608
|
£5.70
|
£6.84
|
|
|
*57 - SHIM T0.2
HIT-6696946.A29
6696946
|
£1.67
|
£2.00
|
|
|
*57 - SHIM T0.3
HIT-6696945.A10
6696945
|
£1.67
|
£2.00
|
|
|
58 - CRANK SHAFT COMP.
HIT-6696533.A14
6696533
|
£42.11
|
£50.53
|
|
|
59 - KNOCK PIN 4X12
HIT-6696947.A12
6696947
|
-
|
|
|
|
60 - STARTER PULLEY ASS'Y INCLUD.61-63
HIT-6684681.A36
6684681
|
£18.16
|
£21.79
|
|
|
61 - D4E RETAINING RING
HIT-6685101.A16
6685101
|
-
|
|
|
|
62 - STARTER PAWL SPRING
HIT-6684684.A77
6684684
|
£3.29
|
£3.95
|
|
|
63 - STARTER PAWL
HIT-6684685.A38
6684685
|
£5.07
|
£6.08
|
|
|
64A - RECOIL STARTER BODY ASS'Y INCLUD.65-69
HIT-6601570.A78
6601570
|
£23.15
|
£27.78
|
|
|
65 - SET SCREW
HIT-6684679.A50
6684679
|
£2.98
|
£3.57
|
|
|
66 - CAM PLATE
HIT-6699996.A35
6699996
|
£4.28
|
£5.13
|
|
|
67 - DAMPER SPRING
HIT-6684677.A45
6684677
|
£6.66
|
£7.99
|
|
|
68 - STARTER ROPE REEL
HIT-6699997.A54
6699997
|
-
|
|
|
|
69 - RECOIL SPRING
HIT-6684675.A100
6684675
|
£8.82
|
£10.58
|
|
|
71 - STARTER ROPE 3.5X860
HIT-6684674.A38
6684674
|
£5.70
|
£6.84
|
|
|
72 - STARTER HANDLE
HIT-6684680.A78
6684680
|
£5.87
|
£7.04
|
|
|
73 - NAME PLATE
HIT-000000.A3083
000000
|
-
|
|
|
|
*74 - TANK MARK LABEL (50:1)
HIT-6698921.A3
6698921
|
-
|
|
|
|
*74 - TANK MARK LABEL (25:1) FOR TPE
HIT-6698922.A25
6698922
|
-
|
|
|
|
91 - MACHINE SCREW M5X20 (BLACK) FOR (SL)
HIT-6699195.A6
6699195
|
-
|
|
|
|
92 - P TITE SCREW D4X20 (BLACK) FOR (SL)
HIT-6699194.A11
6699194
|
-
|
|
|
|
93 - SWITCH WIRE SET FOR (SL)
HIT-6699197.A6
6699197
|
-
|
|
|
|
94 - NUT M5 FOR (SL)
HIT-6699196.A11
6699196
|
-
|
|
|
|
95 - STOP LEVER FOR (SL)
HIT-6699192.A11
6699192
|
-
|
|
|
|
96 - LONG LEVER FOR (SL)
HIT-6699191.A6
6699191
|
-
|
|
|
|
97 - RETURN SPRING FOR (SL)
HIT-6699193.A6
6699193
|
-
|
|
|
|
98 - STAY SET FOR (SL)
HIT-6699190.A11
6699190
|
-
|
|
|
|
99 - THROTTLE LEVER (A) ASS'Y INCLUD.91-98 FOR (SL)
HIT-6699133.A8
6699133
|
-
|
|
|
|
100 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X12
HIT-6699176.A11
6699176
|
£1.67
|
£2.00
|
|
|
101 - HEX. HOLE BOLT 5X22/S
HIT-6695492.A54
6695492
|
-
|
|
|
|
102 - ANTI VIBE RUBBER (A)
HIT-6696963.A17
6696963
|
£3.12
|
£3.74
|
|
|
103 - PIPE HOLDER (A)
HIT-6698643.A29
6698643
|
£3.56
|
£4.27
|
|
|
104 - PIPE HOLDER (B)
HIT-6698644.A18
6698644
|
£3.56
|
£4.27
|
|
|
105 - ANTI VIBE RUBBER (B)
HIT-6696964.A23
6696964
|
£3.02
|
£3.63
|
|
|
106 - RETAINING RING FOR D12 SHAFT (10 PCS.)
HIT-939542.A82
939542
|
£2.98
|
£3.57
|
|
|
107 - FAN CASE (A)
HIT-6699457.A3
6699457
|
-
|
|
|
|
108 - BALL BEARING 6301ZZC3
HIT-6699435.A9
6699435
|
£4.28
|
£5.13
|
|
|
109 - RETAINING RING 37MM
HIT-322813.A18
322813
|
£1.67
|
£2.00
|
|
|
110 - CLUTCH SHAFT
HIT-6699434.A6
6699434
|
£11.28
|
£13.53
|
|
|
111 - STEP BOLT
HIT-6696469.A21
6696469
|
£2.84
|
£3.41
|
|
|
112 - BENT WASHER 8
HIT-6684648.A44
6684648
|
£1.67
|
£2.00
|
|
|
113 - CLUTCH PLATE (A)
HIT-6696546.A12
6696546
|
£1.67
|
£2.00
|
|
|
114A - CLUTCH
HIT-6601431.A0
6601431
|
-
|
|
|
|
115 - CLUTCH WASHER (B)
HIT-6699131.A8
6699131
|
-
|
|
|
|
116 - FLYWHEEL NUT
HIT-6685337.A3
6685337
|
-
|
|
|
|
117 - BOLT WASHER M8 (BLACK)
HIT-323212.A21
323212
|
£1.67
|
£2.00
|
|
|
118 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18
HIT-6698388.A54
6698388
|
£1.67
|
£2.00
|
|
|
119 - IGNITION COIL ASS'Y INCLUD.120A
HIT-6699458.A4
6699458
|
£37.28
|
£44.74
|
|
|
120A - PLUG CAP
HIT-6601421.A55
6601421
|
£1.67
|
£2.00
|
|
|
121 - METAL FITTING OF PLUG CAP
HIT-6699933.A16
6699933
|
-
|
|
|
|
122 - CORD
HIT-6696544.A15
6696544
|
-
|
|
|
|
123 - EARTH CORD
HIT-6696545.A30
6696545
|
-
|
|
|
|
124 - MAGNETO ROTOR
HIT-6699289.A27
6699289
|
£24.52
|
£29.43
|
|
|
125 - FUEL PIPE
HIT-6698716.A28
6698716
|
£5.61
|
£6.73
|
|
|
126A - FUEL PIPE L70
HIT-6699014.A60
6699014
|
£2.77
|
£3.32
|
|
|
127 - RETURN GROMMET TILL 7.2015
HIT-6697846.A17
6697846
|
£2.08
|
£2.50
|
|
|
128 - FUEL TANK CAP ASS'Y INCLUD.129
HIT-6698402.A1
6698402
|
-
|
|
|
|
129 - TANK CAP CHAIN
HIT-6698732.A57
6698732
|
-
|
|
|
|
130 - FUEL GROMMET TILL 7.2015
HIT-6688156.A33
6688156
|
-
|
|
|
|
130A - FUEL GROMMET SINCE 8.2015
HIT-6600358.A46
6600358
|
£1.67
|
£2.00
|
|
|
131 - SPACER
HIT-6699558.A6
6699558
|
-
|
|
|
|
132 - SPACER (B)
HIT-6699459.A3
6699459
|
-
|
|
|
|
133 - TANK (B) TILL 7.2015
HIT-6600317.A5
6600317
|
£12.36
|
£14.83
|
|
|
133A - TANK (C) SINCE 8.2015
HIT-6600354.A16
6600354
|
-
|
|
|
|
134A - PUMP FILTER BODY COMP
HIT-66A3864.A13
66A3864
|
-
|
|
|
|
134A - PUMP FILTER
HIT-6600351.A49
6600351
|
£4.45
|
£5.34
|
|
|
135 - CLIP
HIT-6696949.A12
6696949
|
£1.67
|
£2.00
|
|
|
136 - STAND
HIT-6694787.A22
6694787
|
£3.56
|
£4.27
|
|
|
137 - BOLT (W/FLANGE) L27.8
HIT-6698991.A29
6698991
|
-
|
|
|
|
151 - THROTTLE LEVER (B) FOR (S)
HIT-6699446.A1
6699446
|
-
|
|
|
|
152 - LOOP HANDLE (W/BARRIER) FOR AUS
HIT-6699448.A2
6699448
|
-
|
|
|
|
153 - LOOP HANDLE EXCEPT FOR AUS
HIT-6699449.A11
6699449
|
-
|
|
|
|
154 - HEX. HOLE BOLT M5X25/S FOR (S)
HIT-6684709.A81
6684709
|
£1.67
|
£2.00
|
|
|
155A - HANDLE HOLDER (A) SINCE 7.2015 FOR (S)
HIT-6600500.A6
6600500
|
-
|
|
|
|
156 - HANDLE (LEFT) FOR (S)
HIT-6698638.A20
6698638
|
-
|
|
|
|
157 - HANDLE (RIGHT) FOR (S)
HIT-6699447.A6
6699447
|
-
|
|
|
|
158A - HANDLE HOLDER (B) SINCE 7.2015 FOR (S)
HIT-6600501.A25
6600501
|
-
|
|
|
|
159 - HANDLE HOLDER (C) FOR (S)
HIT-6696578.A28
6696578
|
-
|
|
|
|
160 - HEX. HOLE BUTTON BOLT M6X25 FOR (S)
HIT-6684714.A85
6684714
|
£1.67
|
£2.00
|
|
|
161 - GEAR CASE ASS'Y (4BB) INCLUD.162-171
HIT-6699439.A15
6699439
|
£60.67
|
£72.80
|
|
|
162 - HEX. SOCKET HD. BOLT M5X30 (10 PCS.)
HIT-949664.A36
949664
|
£4.33
|
£5.20
|
|
|
163 - SCREW 5X12/W.S
HIT-6695414.A25
6695414
|
£1.67
|
£2.00
|
|
|
164 - CAP
HIT-6600005.A13
6600005
|
-
|
|
|
|
165 - SPRING
HIT-6600006.A6
6600006
|
-
|
|
|
|
166 - BOLT (W/PLUS) M6X8
HIT-6684737.A35
6684737
|
-
|
|
|
|
167 - LOCK PIN
HIT-6600007.A13
6600007
|
-
|
|
|
|
168 - CUTTER HOLDER (A)
HIT-6699441.A22
6699441
|
-
|
|
|
|
169 - CUTTER HOLDER (B)
HIT-6698659.A42
6698659
|
£15.99
|
£19.19
|
|
|
170 - NUT COVER
HIT-6699188.A31
6699188
|
£10.93
|
£13.12
|
|
|
171 - U-NUT (LEFT HAND) M10
HIT-335759.A4
335759
|
£1.67
|
£2.00
|
|
|
172 - COVER
HIT-6698794.A13
6698794
|
£17.58
|
£21.09
|
|
|
173 - NYLON CORD
HIT-000000.A3084
000000
|
-
|
|
|
|
174 - SET SCREW
HIT-6698795.A23
6698795
|
-
|
|
|
|
175 - REEL
HIT-6698796.A21
6698796
|
£7.12
|
£8.54
|
|
|
176 - RETURN SPRING
HIT-6698797.A16
6698797
|
£1.67
|
£2.00
|
|
|
177 - BUTTON
HIT-6698798.A21
6698798
|
£7.12
|
£8.54
|
|
|
178 - CORD GUIDE
HIT-6698799.A18
6698799
|
£7.12
|
£8.54
|
|
|
179 - CASE
HIT-6698800.A14
6698800
|
£14.11
|
£16.93
|
|
|
180 - NYLON HEAD ASS'Y INCLUD.172-179
HIT-6696454.A12
6696454
|
£48.12
|
£57.75
|
|
|
181 - HEX. HOLE BUTTON BOLT M6X25 FOR RUS
HIT-6684714.A86
6684714
|
£1.67
|
£2.00
|
|
|
182 - COVER BRACKET FOR RUS
HIT-6699442.A0
6699442
|
-
|
|
|
|
183 - HEX. SOCKET HD. BOLT (W/BUTTON) M6X20 EXCEPT FOR RUS
HIT-6685064.A5
6685064
|
-
|
|
|
|
184 - SPRING WASHER M6 (10 PCS.) EXCEPT FOR RUS
HIT-949455.A70
949455
|
£1.67
|
£2.00
|
|
|
185 - COVER BRACKET EXCEPT FOR RUS
HIT-6696978.A19
6696978
|
-
|
|
|
|
186 - COVER BRACKET FOR AUS
HIT-6699444.A0
6699444
|
-
|
|
|
|
188 - CAUTION MARK
HIT-6697625.A1
6697625
|
-
|
|
|
|
189 - LEVEL MARK FOR AUS
HIT-6684852.A11
6684852
|
-
|
|
|
|
190 - LEVEL MARK EXCEPT FOR AUS
HIT-6684851.A40
6684851
|
-
|
|
|
|
191 - MAIN PIPE
HIT-6699445.A8
6699445
|
-
|
|
|
|
192 - DRIVE SHAFT
HIT-6698514.A21
6698514
|
£19.46
|
£23.35
|
|
|
193A - HANGER
HIT-6600504.A44
6600504
|
£1.67
|
£2.00
|
|
|
194 - CAP (A) EXCEPT FOR AUS
HIT-6698515.A7
6698515
|
-
|
|
|
|
195 - GUARD FOR RUS
HIT-6696980.A16
6696980
|
£27.49
|
£32.99
|
|
|
196 - GUARD HOLDER FOR RUS
HIT-6696951.A9
6696951
|
£3.02
|
£3.63
|
|
|
197 - COVER GUARD FOR RUS
HIT-6696950.A27
6696950
|
£11.18
|
£13.42
|
|
|
198 - TAPPING SCREW 4X14 FOR RUS
HIT-6684751.A10
6684751
|
£1.67
|
£2.00
|
|
|
199 - KNIFE FOR RUS
HIT-6684750.A83
6684750
|
£3.64
|
£4.37
|
|
|
200 - NUT M4 (10 PCS.) EXCEPT FOR RUS
HIT-949554.A22
949554
|
£1.67
|
£2.00
|
|
|
201 - KNIFE EXCEPT FOR RUS
HIT-6696584.A22
6696584
|
-
|
|
|
|
202 - COVER HOLDER FOR AUS
HIT-6698813.A2
6698813
|
-
|
|
|
|
203 - GUARD EXCEPT FOR RUS
HIT-6696981.A14
6696981
|
-
|
|
|
|
204 - BOLT WASHER M4 (BLACK) EXCEPT FOR RUS
HIT-323210.A23
323210
|
-
|
|
|
|
205 - MACHINE SCREW (W/SP. WASHER) M4X12 EXCEPT FOR RUS
HIT-6685068.A5
6685068
|
-
|
|
|
|
206 - WIRE CLAMP FOR (S)
HIT-6699450.A0
6699450
|
-
|
|
|
|
207 - COVER ASS'Y INCLUD.208-210 FOR AUS
HIT-6697880.A20
6697880
|
-
|
|
|
|
208 - GUARD 24 DIA. FOR AUS
HIT-6690272.A15
6690272
|
-
|
|
|
|
209 - KNIFE FOR AUS
HIT-6693388.A18
6693388
|
-
|
|
|
|
210 - TAPPING SCREW 5X20 FOR AUS
HIT-6684753.A20
6684753
|
£1.67
|
£2.00
|
|
|
220 - HANDLE HOLDER (A).(B) SET INCLUD.155A
HIT-6600499.A30
6600499
|
-
|
|
|
|
221 - MACHINE SCREW M5X10 (10 PCS.)
HIT-949236.A20
949236
|
£1.67
|
£2.00
|
|
|
222 - BRAND LABEL
HIT-000000.A3085
000000
|
-
|
|
|
|
501 - BOX WRENCH (HEX. SOCKET 17/19)
HIT-6684764.A63
6684764
|
£7.64
|
£9.17
|
|
|
502 - WRENCH 8X10 EXCEPT FOR AUS
HIT-6696596.A19
6696596
|
-
|
|
|
|
503 - HEX. BAR WRENCH 4MM
HIT-944458.A61
944458
|
£1.67
|
£2.00
|
|
|
504B - CUTTER COVER FOR RUS
HIT-6684768.A29
6684768
|
-
|
|
|
|
505 - PROTECTIVE GLASSES
HIT-875769.A65
875769
|
-
|
|
|
|
*506 - SHOULDER STRAP S FOR AUS
HIT-6695795.A2
6695795
|
-
|
|
|
|
*506 - SHOULDER HARNESS D3X FOR (S)
HIT-6695796.A22
6695796
|
£25.30
|
£30.36
|
|
|
506A - SHOULDER BELT SINGLE
HIT-6601420.A5
6601420
|
-
|
|
|
|
507 - BLADE 3TX255XT1.8 FOR RUS
HIT-6698711.A20
6698711
|
-
|
|
|
