Hitachi / Hikoki CG24EASP Attachment Spare Parts

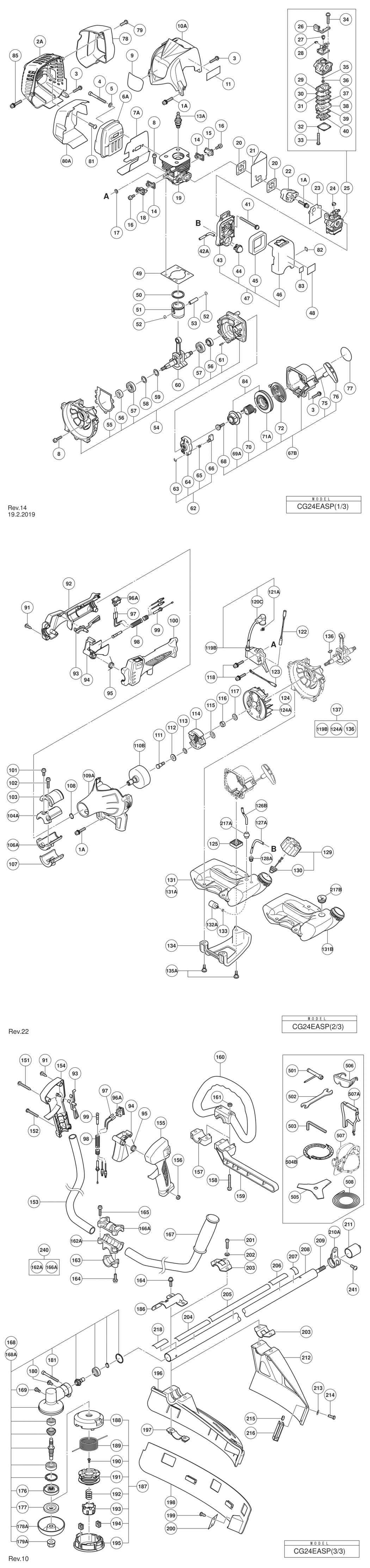

An exploded diagram and spare parts listing for the Hitachi / Hikoki CG24EASP Attachment

	Ex VAT	Inc VAT
1A - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A42 6698844	£1.67	£2.00
2A - MUFFLER COVER SINCE 11.2013 HIT-6600334.A3 6600334	£9.10	£10.92
3 - MACHINE SCREW (W/WASHERS) M4X20 (BLACK) HIT-307606.A11 307606	£1.67	£2.00
4 - HEX. SOCKET HD. BOLT M6X65 HIT-6698384.A20 6698384	-
5 - BOLT WASHER M6 (10 PCS.) HIT-949432.A73 949432	£1.67	£2.00
6A - MUFFLER (B) HIT-6600004.A10 6600004	-
7A - HEAT PROTECTION PANEL SINCE 11.2013 HIT-6600320.A19 6600320	£1.67	£2.00
8 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18 HIT-6698386.A49 6698386	-
9 - BRAND LABEL HIT-000000.A3149 000000	-
*10A - CYLINDER COVER HIT-6699128.A5 6699128	-
*10A - CYLINDER COVER FOR USA HIT-6699162.A0 6699162	-
11 - CAUTION LABEL HIT-000000.A3150 000000	-
*13A - SPARK PLUG ASS'Y BMR7A HIT-6699316.A45 6699316	£12.43	£14.92
*13A - SPARK PLUG ASS'Y CJ6 FOR USA HIT-6699322.A16 6699322	£3.73	£4.48
14 - COVER PACKING HIT-6698468.A7 6698468	-
15 - SCAVENGING COVER (A) HIT-6698469.A8 6698469	-
16 - HEX. SOCKET HD. BOLT M4X12 HIT-6698385.A14 6698385	-
17 - WASHER T1.6 HIT-6684600.A48 6684600	-
18 - SCAVENGING COVER (B) HIT-6698470.A6 6698470	-
19 - CYLINDER HIT-6698465.A9 6698465	£40.69	£48.83
20 - INSULATOR GASKET HIT-6684865.A14 6684865	£1.67	£2.00
21 - FLASH PAN HIT-6698516.A1 6698516	-
22 - CARBURETOR INSULATOR HIT-6698387.A16 6698387	£4.72	£5.66
23 - CARBURETOR PACKING HIT-6698405.A5 6698405	£3.12	£3.74
25 - CARBURETOR ASS'Y WYC-28 INCLUD.26-40 HIT-6698474.A5 6698474	£63.80	£76.56
26 - CABLE ADJUST STAY HIT-6699287.A19 6699287	-
27 - SWIVEL HIT-6696830.A1 6696830	-
28 - STOP RING HIT-6684696.A147 6684696	-
29 - PUMP GASKET HIT-6684692.A43 6684692	£17.28	£20.73
30 - PUMP DIAPHRAGM HIT-6684693.A134 6684693	£5.70	£6.84
31 - PUMP PLATE HIT-6691242.A8 6691242	-
32 - DIAPHRAGM COVER-METERING HIT-6685222.A12 6685222	£5.70	£6.84
33 - SET SCREW HIT-6691312.A3 6691312	-
34 - SET SCREW M3X12 HIT-6696829.A44 6696829	-
35 - O-RING HIT-000000.A3151 000000	-
36 - O-RING HIT-6684695.A66 6684695	£1.67	£2.00
37 - CIRCUIT PLATE HIT-6691234.A50 6691234	-
38 - PUMP BODY COMP. HIT-6696828.A3 6696828	£13.28	£15.93
39 - DIAPHRAGM PACKING-METERING HIT-6685220.A162 6685220	£2.81	£3.37
40 - METERING DIAPHRAGM HIT-6684690.A50 6684690	£24.05	£28.86
41 - MACHINE SCREW (W/WASHERS) M5X60 (BLACK) HIT-307224.A18 307224	£1.67	£2.00
42A - FUEL PIPE HIT-6698720.A2 6698720	£4.72	£5.66
43 - AIR CLEANER HOUSING HIT-000000.A3152 000000	-
44 - PRIMING PUMP COMP. HIT-6685139.A54 6685139	£10.67	£12.80
45 - CLEANER ELEMENT HIT-6690347.A16 6690347	£7.15	£8.58
46 - CLEANER COVER HIT-000000.A3153 000000	-
47 - AIR CLEANER ASS'Y INCLUD.43-46 HIT-6696549.A13 6696549	£13.36	£16.03
48 - START LABEL (A) HIT-000000.A3154 000000	-
49 - CYLINDER GASKET HIT-6684587.A10 6684587	£1.67	£2.00
50 - PISTON RING HIT-6698404.A30 6698404	£7.03	£8.44
51 - PISTON HIT-6698368.A1 6698368	£11.35	£13.62
52 - CIR CLIP HIT-6684590.A54 6684590	£1.67	£2.00
53 - PISTON PIN HIT-6684591.A52 6684591	£3.29	£3.95
54 - CRANK CASE ASS'Y INCLUD.55-57 HIT-6684606.A10 6684606	£40.68	£48.82
55 - CRANK CASE GASKET HIT-6684609.A5 6684609	-
56 - OIL SEAL TB 12227 HIT-6684607.A45 6684607	£4.07	£4.88
57 - BALL BEARING 6001 C3 HIT-6695535.A6 6695535	£5.70	£6.84
58 - SHIM T0.2 HIT-6696946.A31 6696946	£1.67	£2.00
59 - SHIM T0.3 HIT-6696945.A8 6696945	£1.67	£2.00
60 - CRANK SHAFT COMP. HIT-6696533.A12 6696533	£42.11	£50.53
61 - KNOCK PIN 4X12 HIT-6696947.A9 6696947	-
62 - STARTER PULLEY ASS'Y INCLUD.63-66 HIT-6684681.A39 6684681	£18.16	£21.79
63 - D4E RETAINING RING HIT-6685101.A22 6685101	-
64 - STARTER PULLEY HIT-000000.A3156 000000	-
65 - STARTER PAWL SPRING HIT-6684684.A74 6684684	£3.29	£3.95
66 - STARTER PAWL HIT-6684685.A41 6684685	£5.07	£6.08
67B - RECOIL STARTER BODY ASS'Y INCLUD.68-72 HIT-6601570.A71 6601570	£23.15	£27.78
68 - SET SCREW HIT-6684679.A53 6684679	£2.98	£3.57
69A - CAM PLATE SINCE 9.2013 HIT-6699996.A32 6699996	£4.28	£5.13
70 - DAMPER SPRING HIT-6684677.A42 6684677	£6.66	£7.99
71A - STARTER ROPE REEL SINCE 9.2013 HIT-6699997.A57 6699997	-
72 - RECOIL SPRING HIT-6684675.A104 6684675	£8.82	£10.58
75 - STARTER ROPE 3.5X860 HIT-6684674.A35 6684674	£5.70	£6.84
76 - STARTER HANDLE HIT-6684680.A75 6684680	£5.87	£7.04
77 - NAME PLATE HIT-000000.A3157 000000	-
78 - MUFFLER REAR COVER SINCE 11.2013 HIT-6600335.A1 6600335	£13.36	£16.03
79 - TAPPING SCREW D4 SINCE 11.2013 HIT-6600332.A7 6600332	£1.67	£2.00
80A - MUFFLER HEAT COVER SINCE 11.2013 HIT-6600422.A7 6600422	-
81 - TAPPING SCREW D4X10 SINCE 11.2013 HIT-6600325.A26 6600325	-
82 - MARK PLATE (T) SINCE 11.2013 FOR EUROPE HIT-6600327.A27 6600327	-
83 - PRIMER LABEL SINCE 11.2013 FOR EUROPE HIT-6699000.A17 6699000	-
84 - CAMPLATE ASS'Y INCLUD.69A HIT-6699691.A24 6699691	£7.75	£9.30
85 - SEAL LOCK HEX. SOCKET HD. BOLT M5X30 HIT-6698950.A4 6698950	-
*91 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) SINCE 11.2013 HIT-305812.A113 305812	£1.67	£2.00
*91 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) FOR EUROPE (S) HIT-305812.A114 305812	£1.67	£2.00
*92 - HANDLE (B) FOR EUROPE (SL) HIT-6696487.A18 6696487	£5.88	£7.06
*92 - HANDLE (B) FOR USA HIT-6696942.A2 6696942	-
93 - LOCK LEVER FOR EUROPE HIT-6696490.A21 6696490	£2.84	£3.41
94 - LEVER HIT-6696488.A19 6696488	£1.67	£2.00
95 - SPRING (A) HIT-6696489.A20 6696489	£2.84	£3.41
96A - STOP SWITCH HIT-6601275.A49 6601275	£1.67	£2.00
*97 - STOP SWITCH CORD FOR (SL) HIT-6696491.A25 6696491	-
*97 - STOP SWITCH CORD FOR (S) HIT-6696592.A8 6696592	-
*98 - PROTECTION TUBE FOR (SL) HIT-6696967.A14 6696967	-
*98 - PROTECTION TUBE FOR (S) HIT-6696594.A7 6696594	-
*99 - THROTTLE WIRE COMP. FOR (SL) HIT-6696560.A20 6696560	£8.35	£10.02
*99 - THROTTLE WIRE COMP. FOR (S) HIT-6696593.A9 6696593	£7.12	£8.54
*100 - HANDLE (A) FOR EUROPE (SL) HIT-6696486.A15 6696486	£5.88	£7.06
*100 - HANDLE (A) FOR USA HIT-6696941.A20 6696941	-
101 - HEX.HOLE BOLT M5X12/S HIT-6684667.A103 6684667	£1.67	£2.00
102 - HEX. HOLE BOLT 5X22/S HIT-6695492.A53 6695492	-
103 - ANTI VIBE RUBBER (A) HIT-6696963.A15 6696963	£3.12	£3.74
104A - PIPE HOLDER (A) HIT-6698643.A26 6698643	£3.56	£4.27
106A - PIPE HOLDER (B) HIT-6698644.A21 6698644	£3.56	£4.27
107 - ANTI VIBE RUBBER (B) HIT-6696964.A26 6696964	£3.02	£3.63
108 - RETAINING RING FOR D12 SHAFT (10 PCS.) HIT-939542.A81 939542	£2.98	£3.57
*109A - FAN CASE HIT-6699129.A2 6699129	£13.52	£16.23
*109A - FAN CASE FOR USA HIT-6699164.A1 6699164	-
110B - CLUTCH SHAFT HIT-6699400.A9 6699400	£14.52	£17.43
111 - STEP BOLT HIT-6696469.A19 6696469	£2.84	£3.41
112 - BENT WASHER 8 HIT-6684648.A47 6684648	£1.67	£2.00
113 - CLUTCH PLATE (A) HIT-6696546.A14 6696546	£1.67	£2.00
114 - CLUTCH HIT-6696948.A31 6696948	£15.02	£18.03
115 - CLUTCH WASHER (B) HIT-6696547.A21 6696547	£1.67	£2.00
116 - FLYWHEEL NUT HIT-6685337.A6 6685337	-
117 - BOLT WASHER M8 (BLACK) HIT-323212.A25 323212	£1.67	£2.00
118 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18 HIT-6698388.A58 6698388	£1.67	£2.00
119B - IGNITION COIL ASS'Y INCLUD.120C HIT-6699464.A9 6699464	£27.08	£32.49
120C - PLUG CAP HIT-6601421.A52 6601421	£1.67	£2.00
121A - PLUG CAP METAL HIT-6699186.A16 6699186	£1.67	£2.00
122 - CORD HIT-6696544.A16 6696544	-
122A - BOLT (W/FLANGE) L27.8 HIT-6698991.A34 6698991	-
123 - EARTH CORD HIT-6696545.A28 6696545	-
124 - MAGNETO ROTOR COMP. TILL 7.2013 HIT-6696928.A6 6696928	£50.30	£60.36
124A - MAGNETO ROTOR SINCE 8.2013 HIT-6699289.A23 6699289	£24.52	£29.43
125 - SPACER HIT-6698496.A7 6698496	-
126B - FUEL PIPE HIT-6601525.A12 6601525	-
127A - FUEL PIPE L70 HIT-6699014.A56 6699014	£2.77	£3.32
128A - RETURN GROMMET TILL 7.2015 (SINCE 8.2015 FOR USA CAN) HIT-6697846.A23 6697846	£2.08	£2.50
129 - FUEL TANK CAP ASS'Y INCLUD.130 HIT-6698402.A3 6698402	-
130 - TANK CAP CHAIN HIT-000000.A3158 000000	-
131A - TANK (B) TILL 7.2015 HIT-6600317.A1 6600317	£12.36	£14.83
131A - TANK FOR USA HIT-6699719.A6 6699719	£23.15	£27.78
131B - TANK (C) SINCE 8.2015 HIT-6600354.A13 6600354	-
132A - PUMP FILTER HIT-6600351.A52 6600351	£4.45	£5.34
133 - CLIP HIT-6696949.A7 6696949	£1.67	£2.00
134 - STAND HIT-6694787.A19 6694787	£3.56	£4.27
135A - BOLT (W/FLANGE) L27.8 HIT-6698991.A33 6698991	-
136 - WOODRUFF KEY 3X13X4.5 SINCE 8.2013 HIT-6684899.A100 6684899	-
137 - MAGNETO KEY SET INCLUD.119B HIT-6699463.A3 6699463	£34.78	£41.74
151 - TAPPING SCREW (W/FLANGE) D4X30 FOR EUROPE (S) HIT-323837.A15 323837	-
152 - MACHINE SCREW M5X30 (BLACK) FOR EUROPE (S) HIT-323041.A15 323041	-
153 - HANDLE RIGHT FOR EUROPE (S) HIT-6698637.A2 6698637	-
154 - HANDLE (B) FOR EUROPE (S) HIT-6696590.A10 6696590	-
155 - HANDLE (A) FOR EUROPE (S) HIT-6696588.A11 6696588	-
156 - NUT M5 (BLACK) FOR EUROPE (S) HIT-302012.A21 302012	£1.67	£2.00
157 - HANDLE HOLDER (A) FOR USA HIT-6696972.A10 6696972	-
158 - BOLT (BLACK) M6 FOR EUROPE (SL) HIT-6696974.A24 6696974	£1.67	£2.00
159 - BARRIER FOR EUROPE (SL) HIT-6696973.A11 6696973	£8.35	£10.02
160 - LOOP HANDLE FOR EUROPE (SL) HIT-6696975.A14 6696975	£13.36	£16.03
161 - NUT M6 (10 PCS.) FOR EUROPE (SL) HIT-949556.A25 949556	£1.67	£2.00
162A - HANDLE HOLDER (B) SINCE 7.2015 FOR EUROPE (S) HIT-6600501.A27 6600501	-
163 - HANDLE HOLDER (C) FOR EUROPE (S) HIT-6696578.A30 6696578	-
*164 - HEX. HOLE BUTTON BOLT M6X25 FOR EUROPE (S) HIT-6684714.A88 6684714	£1.67	£2.00
*164 - HEX. HOLE BUTTON BOLT M6X25 FOR EUROPE (SL) HIT-6684714.A89 6684714	£1.67	£2.00
165 - HEX. HOLE BOLT M5X25/S FOR EUROPE (S) HIT-6684709.A80 6684709	£1.67	£2.00
166A - HANDLE HOLDER (A) SINCE 7.2015 FOR EUROPE (S) HIT-6600500.A4 6600500	-
167 - HANDLE (LEFT) FOR EUROPE (S) HIT-6698638.A17 6698638	-
*168 - GEAR CASE ASS'Y 3BB (B) INCLUD.169 HIT-6696976.A11 6696976	£60.73	£72.88
168A - GEAR CASE ASS'Y 3BB (A) INCLUD.169 HIT-6699402.A8 6699402	-
169 - BOLT (BLACK) M6 HIT-6696974.A25 6696974	£1.67	£2.00
176 - CUTTER HOLDER (A) HIT-6696977.A13 6696977	£18.01	£21.61
177 - CUTTER HOLDER (B) FOR EUROPE HIT-6698659.A37 6698659	£15.99	£19.19
178A - NUT COVER FOR EUROPE HIT-6699188.A26 6699188	£10.93	£13.12
179A - U-NUT (LEFT HAND) M10 FOR EUROPE HIT-335759.A7 335759	£1.67	£2.00
180 - SCREW 5X12/W.S HIT-6695414.A28 6695414	£1.67	£2.00
181 - HEX. SOCKET HD. BOLT M5X30 (10 PCS.) HIT-949664.A32 949664	£4.33	£5.20
186 - COVER BRACKET FOR EUROPE HIT-6696494.A10 6696494	£3.02	£3.63
*187 - NYLON HEAD ASS'Y INCLUD.188-195 HIT-6696454.A14 6696454	£48.12	£57.75
*187 - NYLON HEAD ASS'Y INCLUD.188-195 FOR USA HIT-6698639.A1 6698639	£31.92	£38.31
188 - COVER HIT-6698794.A11 6698794	£17.58	£21.09
*188 - COVER FOR USA HIT-6698937.A13 6698937	£22.42	£26.91
189 - NYLON CORD HIT-000000.A3159 000000	-
190 - SET SCREW HIT-6698795.A26 6698795	-
191 - REEL HIT-6698796.A18 6698796	£7.12	£8.54
*191 - REEL FOR USA HIT-6698939.A12 6698939	-
192 - RETURN SPRING HIT-6698797.A19 6698797	£1.67	£2.00
*192 - RETURN SPRING FOR USA HIT-6698941.A12 6698941	-
193 - BUTTON HIT-6698798.A18 6698798	£7.12	£8.54
*193 - BUTTON FOR USA HIT-6698940.A6 6698940	-
194 - CORD GUIDE HIT-6698799.A21 6698799	£7.12	£8.54
*194 - CORD GUIDE FOR USA HIT-6698942.A6 6698942	-
195 - CASE HIT-6698800.A11 6698800	£14.11	£16.93
*195 - CASE FOR USA HIT-6698938.A6 6698938	-
196 - GUARD FOR EUROPE HIT-6696980.A18 6696980	£27.49	£32.99
197 - GUARD HOLDER FOR EUROPE HIT-6696951.A5 6696951	£3.02	£3.63
198 - COVER GUARD FOR EUROPE HIT-6696950.A31 6696950	£11.18	£13.42
199 - TAPPING SCREW 4X14 FOR EUROPE HIT-6684751.A11 6684751	£1.67	£2.00
200 - KNIFE FOR EUROPE HIT-6684750.A82 6684750	£3.64	£4.37
201 - HEX. SOCKET HD. BOLT (W/BUTTON) M6X20 FOR USA HIT-6685064.A7 6685064	-
202 - SPRING WASHER M6 (10 PCS.) FOR USA HIT-949455.A73 949455	£1.67	£2.00
203 - COVER BRACKET FOR USA HIT-6696978.A16 6696978	-
205 - CAUTION MARK USA HIT-000000.A3160 000000	-
206 - LEVEL MARK FOR EUROPE (SL) HIT-6684852.A13 6684852	-
207 - LEVEL MARK FOR EUROPE HIT-6684851.A38 6684851	-
208 - MAIN PIPE COMP. HIT-6696558.A1 6696558	£22.07	£26.48
209 - DRIVE SHAFT HIT-6698514.A22 6698514	£19.46	£23.35
210A - HANGER FOR EUROPE HIT-6600504.A42 6600504	£1.67	£2.00
211 - CAP (A) FOR EUROPE HIT-6698515.A6 6698515	-
212 - GUARD FOR USA HIT-6696583.A1 6696583	-
213 - BOLT WASHER M4 (BLACK) FOR USA HIT-323210.A20 323210	-
214 - MACHINE SCREW (W/SP. WASHER) M4X12 FOR USA HIT-6685068.A4 6685068	-
215 - NUT M4 (10 PCS.) FOR USA HIT-949554.A19 949554	£1.67	£2.00
216 - KNIFE FOR USA HIT-6696584.A20 6696584	-
217A - FUEL GROMMET TILL 7.2015 (SINCE 8.2015 FOR USA CAN) HIT-6688156.A37 6688156	-
217B - FUEL GROMMET SINCE 8.2015 (EXCEPT FOR USA CAN) HIT-6600358.A49 6600358	£1.67	£2.00
218 - CAUTION LABEL (HEDGE) SINCE 11.2013 FOR EUROPE HIT-6600328.A3 6600328	-
240 - HANDLE HOLDER (A).(B) SET INCLUD.162A HIT-6600499.A32 6600499	-
241 - MACHINE SCREW M5X10 (10 PCS.) FOR EUROPE HIT-949236.A19 949236	£1.67	£2.00
501 - BOX WRENCH (HEX. SOCKET 17/19) HIT-6684764.A65 6684764	£7.64	£9.17
502 - WRENCH 8X10 FOR EUROPE HIT-6696596.A17 6696596	-
503 - HEX. BAR WRENCH 4MM HIT-944458.A62 944458	£1.67	£2.00
504B - CUTTER COVER FOR EUROPE (S) HIT-6684768.A31 6684768	-
505 - BLADE 3TX255XT1.8 FOR EUROPE (S) HIT-6698711.A17 6698711	-
506 - PROTECTIVE GLASSES HIT-875769.A68 875769	-
*507 - SHOULDER BELT ASS'Y W FOR EUROPE (S) HIT-6696184.A7 6696184	£25.30	£30.36
507A - SHOULDER BELT SINGLE FOR EUROPE (SL) HIT-6601420.A9 6601420	-
508 - MEGA TWIST CORD FOR USA HIT-6698640.A10 6698640	-
*601 - REPAIR KIT (B-1) TILL 10.2013 FOR W.EUROPE HIT-6600028.A0 6600028	-
*601 - REPAIR KIT (B-2) TILL 10.2013 FOR N.EUROPE HIT-6600029.A0 6600029	-
*601 - REPAIR KIT (B-3) TILL 10.2013 FOR E.EUROPE HIT-6600030.A0 6600030	-
*601 - REPAIR KIT (C) TILL 10.2013 FOR USA HIT-6600032.A1 6600032	-

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki CG24EASP Attachment Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Hitachi / Hikoki CG24EASP Attachment Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Hitachi / Hikoki CG24EASP Attachment Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
