Hitachi / Hikoki CG24EAS Engine Brush Cutter Spare Parts

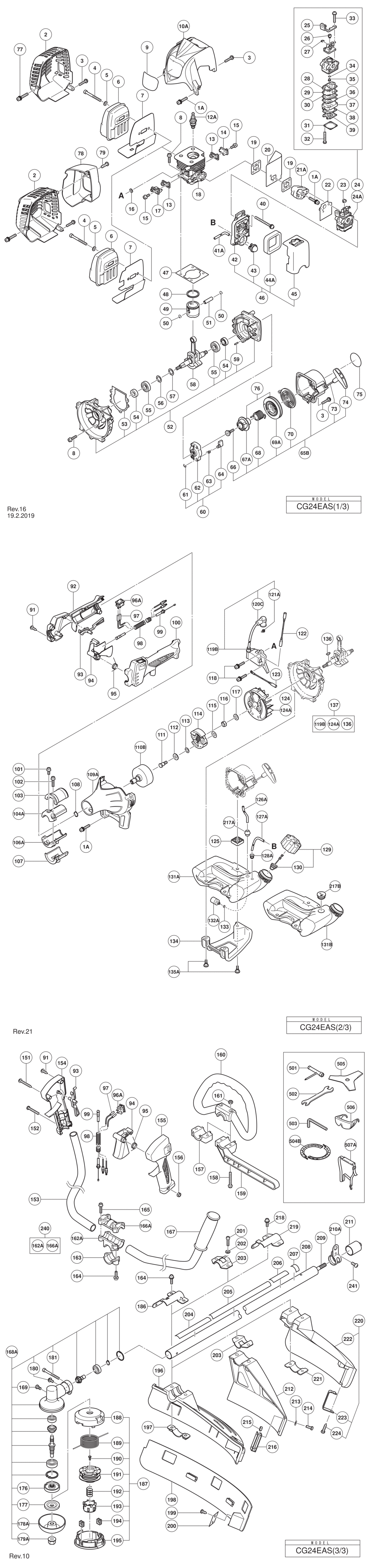

An exploded diagram and spare parts listing for the Hitachi / Hikoki CG24EAS Engine Brush Cutter

	Ex VAT	Inc VAT
1A - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A59 6698844	£1.67	£2.00
2 - MUFFLER COVER HIT-6698478.A1 6698478	£6.50	£7.80
*2 - MUFFLER COVER FOR EUROPE HIT-6600334.A0 6600334	£9.10	£10.92
3 - MACHINE SCREW (W/WASHERS) M4X20 (BLACK) HIT-307606.A5 307606	£1.67	£2.00
4 - HEX. HOLE BOLT M6X55 HIT-6684638.A1 6684638	£1.67	£2.00
*4 - HEX. SOCKET HD. BOLT M6X65 FOR EUROPE HIT-6698384.A33 6698384	-
5 - BOLT WASHER M6 (10 PCS.) HIT-949432.A102 949432	£1.67	£2.00
6 - MUFFLER HIT-6698477.A19 6698477	£15.61	£18.73
*6 - MUFFLER (B) FOR EUROPE HIT-6600461.A13 6600461	-
7 - HEAT PROTECTION PANEL HIT-6696553.A3 6696553	£3.02	£3.63
*7 - HEAT PROTECTION PANEL FOR EUROPE HIT-6600320.A13 6600320	£1.67	£2.00
8 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18 HIT-6698386.A73 6698386	-
9 - BRAND LABEL HIT-000000.A5513 000000	-
10A - CYLINDER COVER HIT-6699128.A3 6699128	-
*12A - SPARK PLUG ASS'Y BMR7A HIT-6699316.A58 6699316	£12.43	£14.92
*12A - SPARK PLUG ASS'Y CJ6 EXCEPT FOR RUS HIT-6699322.A9 6699322	£3.73	£4.48
13 - COVER PACKING HIT-6698468.A0 6698468	-
14 - SCAVENGING COVER (A) HIT-6698469.A15 6698469	-
15 - HEX. SOCKET HD. BOLT M4X12 HIT-6698385.A0 6698385	-
16 - WASHER T1.6 HIT-6684600.A63 6684600	-
17 - SCAVENGING COVER (B) HIT-6698470.A0 6698470	-
18 - CYLINDER HIT-6698465.A15 6698465	£40.69	£48.83
19 - INSULATOR GASKET HIT-6684865.A11 6684865	£1.67	£2.00
20 - FLASH PAN HIT-6698516.A0 6698516	-
21A - CARBURETOR INSULATOR HIT-6698387.A0 6698387	£4.72	£5.66
22 - CARBURETOR PACKING HIT-6684616.A8 6684616	£1.67	£2.00
24 - CARBURETOR ASS'Y WYC-28 INCLUD.25-39 HIT-6698474.A2 6698474	£63.80	£76.56
24A - CARBURETOR ASS'Y WYC-30 INCLUD.25-39 FOR UAE HIT-6698728.A2 6698728	-
25 - CABLE ADJUST STAY HIT-6699287.A8 6699287	-
26 - SWIVEL HIT-6696830.A24 6696830	-
27 - STOP RING HIT-6684696.A178 6684696	-
28 - PUMP GASKET HIT-6684692.A22 6684692	£17.28	£20.73
29 - PUMP DIAPHRAGM HIT-6684693.A164 6684693	£5.70	£6.84
30 - PUMP PLATE HIT-6691242.A30 6691242	-
31 - DIAPHRAGM COVER-METERING HIT-6685222.A77 6685222	£5.70	£6.84
32 - SET SCREW HIT-6691312.A29 6691312	-
33 - SET SCREW M3X12 HIT-6696829.A24 6696829	-
34 - O-RING HIT-6684695.A39 6684695	£1.67	£2.00
35 - JET HIT-000000.A5514 000000	-
36 - CIRCUIT PLATE HIT-6691234.A33 6691234	-
37 - PUMP BODY COMP. HIT-6696828.A24 6696828	£13.28	£15.93
38 - DIAPHRAGM PACKING-METERING HIT-6685220.A102 6685220	£2.81	£3.37
39 - METERING DIAPHRAGM HIT-6684690.A25 6684690	£24.05	£28.86
40 - MACHINE SCREW (W/WASHERS) M5X60 (BLACK) HIT-307224.A6 307224	£1.67	£2.00
41A - FUEL PIPE HIT-6698720.A6 6698720	£4.72	£5.66
42 - AIR CLEANER HOUSING HIT-000000.A5515 000000	-
43 - PRIMING PUMP COMP. HIT-6685139.A14 6685139	£10.67	£12.80
44A - CLEANER SPONGE HIT-6600704.A16 6600704	£5.61	£6.73
45 - CLEANER COVER HIT-000000.A5516 000000	-
46 - AIR CLEANER ASS'Y INCLUD.42-45 HIT-6696549.A22 6696549	£13.36	£16.03
47 - CYLINDER GASKET HIT-6684587.A0 6684587	£1.67	£2.00
48 - PISTON RING HIT-6684588.A20 6684588	£6.38	£7.66
49 - PISTON HIT-6698368.A6 6698368	£11.35	£13.62
50 - CIR CLIP HIT-6684590.A12 6684590	£1.67	£2.00
51 - PISTON PIN HIT-6684591.A76 6684591	£3.29	£3.95
52 - CRANK CASE ASS'Y INCLUD.53-55 HIT-6684606.A14 6684606	£40.68	£48.82
53 - CRANK CASE GASKET HIT-6684609.A1 6684609	-
54 - OIL SEAL TB 12227 HIT-6684607.A1 6684607	£4.07	£4.88
55 - BALL BEARING 6001 C3 HIT-6684608.A195 6684608	£5.70	£6.84
56 - SHIM T0.2 HIT-6696946.A25 6696946	£1.67	£2.00
57 - SHIM T0.3 HIT-6696945.A14 6696945	£1.67	£2.00
58 - CRANK SHAFT COMP. HIT-6696533.A2 6696533	£42.11	£50.53
59 - KNOCK PIN 4X12 HIT-6696947.A24 6696947	-
60 - STARTER PULLEY ASS'Y INCLUD.61-64 HIT-6684681.A21 6684681	£18.16	£21.79
61 - D4E RETAINING RING HIT-6685101.A59 6685101	-
62 - STARTER PULLEY HIT-000000.A5517 000000	-
63 - STARTER PAWL SPRING HIT-6684684.A93 6684684	£3.29	£3.95
64 - STARTER PAWL HIT-6684685.A24 6684685	£5.07	£6.08
65B - RECOIL STARTER BODY ASS'Y INCLUD.66-70 HIT-6601570.A54 6601570	£23.15	£27.78
66 - SET SCREW HIT-6684679.A29 6684679	£2.98	£3.57
67A - CAM PLATE SINCE 9.2013 HIT-6699996.A8 6699996	£4.28	£5.13
68 - DAMPER SPRING HIT-6684677.A14 6684677	£5.70	£6.84
69A - STARTER ROPE REEL SINCE 9.2013 HIT-6699997.A81 6699997	-
70 - RECOIL SPRING HIT-6684675.A132 6684675	£8.82	£10.58
73 - STARTER ROPE 3.5X860 HIT-6684674.A9 6684674	£5.70	£6.84
74 - STARTER HANDLE HIT-6684680.A93 6684680	£5.87	£7.04
75 - NAME PLATE HIT-000000.A5518 000000	-
76 - CAMPLATE ASS'Y INCLUD.67A HIT-6699691.A7 6699691	£7.75	£9.30
77 - SEAL LOCK HEX. SOCKET HD. BOLT M5X30 HIT-6698950.A18 6698950	-
78 - MUFFLER REAR COVER FOR EUROPE HIT-6600335.A5 6600335	£13.36	£16.03
79 - TAPPING SCREW D4 FOR EUROPE HIT-6600332.A1 6600332	£1.67	£2.00
*91 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A160 305812	£1.67	£2.00
*91 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) FOR MEX (SL) HIT-305812.A161 305812	£1.67	£2.00
*92 - HANDLE (B) FOR MEX (SL) HIT-6696942.A12 6696942	-
*92 - HANDLE (B) FOR AUS (SL) HIT-6696487.A29 6696487	£5.88	£7.06
93 - LOCK LEVER FOR AUS (S SL) HIT-6696490.A5 6696490	£2.84	£3.41
*93 - LOCK LEVER RUS (S) HIT-6696490.A6 6696490	£2.84	£3.41
94 - LEVER HIT-6696488.A5 6696488	£1.67	£2.00
95 - SPRING (A) HIT-6696489.A32 6696489	£2.84	£3.41
96A - STOP SWITCH HIT-6601275.A65 6601275	£1.67	£2.00
*97 - STOP SWITCH CORD FOR (SL) HIT-6696491.A35 6696491	-
*97 - STOP SWITCH CORD FOR (S) HIT-6696592.A17 6696592	-
*98 - PROTECTION TUBE FOR (SL) HIT-6696967.A7 6696967	-
*98 - PROTECTION TUBE FOR (S) HIT-6696594.A14 6696594	-
*99 - THROTTLE WIRE COMP. FOR (SL) HIT-6696560.A10 6696560	£8.35	£10.02
*99 - THROTTLE WIRE COMP. FOR (S) HIT-6696593.A3 6696593	£7.12	£8.54
*100 - HANDLE (A) FOR MEX (SL) HIT-6696941.A11 6696941	-
*100 - HANDLE (A) FOR AUS (SL) HIT-6696486.A5 6696486	£5.88	£7.06
101 - HEX.HOLE BOLT M5X12/S HIT-6684667.A87 6684667	£1.67	£2.00
102 - HEX. HOLE BOLT 5X22/S HIT-6695492.A32 6695492	-
103 - ANTI VIBE RUBBER (A) HIT-6696963.A10 6696963	£3.12	£3.74
104A - PIPE HOLDER (A) HIT-6698643.A40 6698643	£3.56	£4.27
106A - PIPE HOLDER (B) HIT-6698644.A7 6698644	£3.56	£4.27
107 - ANTI VIBE RUBBER (B) HIT-6696964.A30 6696964	£3.02	£3.63
108 - RETAINING RING FOR D12 SHAFT (10 PCS.) HIT-939542.A44 939542	£2.98	£3.57
109A - FAN CASE HIT-6699129.A5 6699129	£13.52	£16.23
110B - CLUTCH SHAFT HIT-6699400.A11 6699400	£14.52	£17.43
111 - STEP BOLT HIT-6696469.A10 6696469	£2.84	£3.41
112 - BENT WASHER 8 HIT-6684648.A8 6684648	£1.67	£2.00
113 - CLUTCH PLATE (A) HIT-6696546.A5 6696546	£1.67	£2.00
114 - CLUTCH HIT-6696948.A24 6696948	£15.02	£18.03
115 - CLUTCH WASHER (B) HIT-6696547.A31 6696547	£1.67	£2.00
116 - FLYWHEEL NUT HIT-6685337.A24 6685337	-
117 - BOLT WASHER M8 (BLACK) HIT-323212.A9 323212	£1.67	£2.00
118 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18 HIT-6698388.A80 6698388	£1.67	£2.00
119B - IGNITION COIL ASS'Y INCLUD.120C HIT-6699464.A11 6699464	£27.08	£32.49
120C - PLUG CAP HIT-6601421.A30 6601421	£1.67	£2.00
121A - PLUG CAP METAL HIT-6699186.A4 6699186	£1.67	£2.00
122 - CORD HIT-6696544.A5 6696544	-
123 - EARTH CORD HIT-6696545.A45 6696545	-
124 - MAGNETO ROTOR COMP. TILL 7.2013 HIT-6696928.A1 6696928	£50.30	£60.36
124A - MAGNETO ROTOR SINCE 8.2013 HIT-6699289.A34 6699289	£24.52	£29.43
125 - SPACER HIT-6698496.A5 6698496	-
126A - FUEL PIPE HIT-6698716.A42 6698716	£5.61	£6.73
127A - FUEL PIPE L70 HIT-6699014.A37 6699014	£2.77	£3.32
128A - RETURN GROMMET TILL 7.2015 HIT-6697846.A66 6697846	£1.68	£2.01
129 - FUEL TANK CAP ASS'Y INCLUD.130 HIT-6698402.A34 6698402	-
130 - TANK CAP CHAIN HIT-000000.A5522 000000	-
131A - TANK (B) TILL 7.2015 HIT-6600317.A16 6600317	£12.36	£14.83
131B - TANK (C) SINCE 8.2015 HIT-6600354.A2 6600354	-
132A - PUMP FILTER HIT-6600351.A75 6600351	£4.45	£5.34
133 - CLIP HIT-6696949.A21 6696949	£1.67	£2.00
134 - STAND HIT-6694787.A3 6694787	£3.56	£4.27
135A - BOLT (W/FLANGE) L27.8 HIT-6698991.A25 6698991	-
136 - WOODRUFF KEY 3X13X4.5 SINCE 8.2013 HIT-6684899.A50 6684899	-
137 - MAGNETO KEY SET INCLUD.119B HIT-6699463.A2 6699463	£34.78	£41.74
*151 - TAPPING SCREW (W/FLANGE) D4X30 FOR UAE (S) HIT-323837.A23 323837	-
*152 - MACHINE SCREW M5X30 (BLACK) FOR UAE (S) HIT-323041.A24 323041	-
*153 - HANDLE RIGHT FOR UAE (S) HIT-6696585.A0 6696585	-
*153 - HANDLE RIGHT FOR RUS (S) HIT-6698637.A7 6698637	-
*154 - HANDLE (B) FOR AUS (S) HIT-6696590.A17 6696590	-
*154 - HANDLE (B) FOR UAE (S) HIT-6696591.A0 6696591	-
*154 - HANDLE (B) KOR (S) HIT-6696591.A1 6696591	-
*155 - HANDLE (A) FOR AUS (S) HIT-6696588.A17 6696588	-
*155 - HANDLE (A) FOR UAE (S) HIT-6696589.A0 6696589	-
*155 - HANDLE (A) KOR (S) HIT-6696589.A1 6696589	-
*156 - NUT M5 (BLACK) FOR UAE (S) HIT-302012.A14 302012	£1.67	£2.00
*157 - HANDLE HOLDER (A) FOR MEX (SL) HIT-6696972.A2 6696972	-
*158 - BOLT (BLACK) M6 FOR PAN (SL) HIT-6696974.A8 6696974	£1.67	£2.00
159 - BARRIER FOR AUS (SL) HIT-6696973.A24 6696973	£8.35	£10.02
*160 - LOOP HANDLE FOR PAN (SL) HIT-6696975.A24 6696975	£13.36	£16.03
*161 - NUT M6 (10 PCS.) FOR PAN (SL) HIT-949556.A19 949556	£1.67	£2.00
161 - VIE (SL) TPE (SL) HIT-000000.A5530 000000	-
*162A - HANDLE HOLDER (B) SINCE 7.2015 FOR UAE (S) HIT-6600501.A21 6600501	-
*163 - HANDLE HOLDER (C) FOR UAE (S) HIT-6696578.A19 6696578	-
*164 - HEX. HOLE BUTTON BOLT M6X25 HIT-6684714.A132 6684714	£1.67	£2.00
*164 - HEX. HOLE BUTTON BOLT M6X25 FOR UAE (S) HIT-6684714.A133 6684714	£1.67	£2.00
*165 - HEX. HOLE BOLT M5X25/S FOR UAE (S) HIT-6684709.A20 6684709	£1.67	£2.00
*166A - HANDLE HOLDER (A) SINCE 7.2015 FOR UAE (S) HIT-6600500.A10 6600500	-
*167 - HANDLE LEFT FOR UAE (S) HIT-6696595.A0 6696595	-
*167 - HANDLE (LEFT) FOR RUS (S) HIT-6698638.A10 6698638	-
*168 - GEAR CASE ASS'Y 3BB (B) INCLUD.169 HIT-6696976.A2 6696976	£60.73	£72.88
168A - GEAR CASE ASS'Y 3BB (A) INCLUD.169 HIT-6699402.A4 6699402	-
169 - BOLT (BLACK) M6 HIT-6696974.A9 6696974	£1.67	£2.00
176 - CUTTER HOLDER (A) HIT-6696977.A21 6696977	£18.01	£21.61
177 - CUTTER HOLDER (B) HIT-6698659.A28 6698659	£15.99	£19.19
178A - NUT COVER HIT-6699188.A41 6699188	£10.93	£13.12
179A - U-NUT (LEFT HAND) M10 HIT-335759.A30 335759	£1.67	£2.00
180 - SCREW 5X12/W.S HIT-6695414.A5 6695414	£1.67	£2.00
181 - HEX. SOCKET HD. BOLT M5X30 (10 PCS.) HIT-949664.A25 949664	£4.33	£5.20
*186 - COVER BRACKET FOR AUS (S) HIT-6696494.A4 6696494	£3.02	£3.63
187 - NYLON HEAD ASS'Y INCLUD.188-195 HIT-6696454.A4 6696454	£48.12	£57.75
188 - COVER HIT-6698794.A4 6698794	£17.58	£21.09
189 - NYLON CORD HIT-000000.A5540 000000	-
190 - SET SCREW HIT-6698795.A39 6698795	-
191 - REEL HIT-6698796.A8 6698796	£7.12	£8.54
192 - RETURN SPRING HIT-6698797.A29 6698797	£1.67	£2.00
193 - BUTTON HIT-6698798.A8 6698798	£7.12	£8.54
194 - CORD GUIDE HIT-6698799.A31 6698799	£7.12	£8.54
195 - CASE HIT-6698800.A4 6698800	£14.11	£16.93
*196 - GUARD FOR AUS (S) HIT-6696980.A32 6696980	£27.49	£32.99
*197 - GUARD HOLDER FOR AUS (S) HIT-6696951.A16 6696951	£3.02	£3.63
*198 - COVER GUARD FOR AUS (S) HIT-6696950.A21 6696950	£11.18	£13.42
*199 - TAPPING SCREW 4X14 FOR AUS (S) HIT-6684751.A44 6684751	£1.67	£2.00
*200 - KNIFE FOR AUS (S) HIT-6684750.A55 6684750	£3.64	£4.37
201 - HEX. SOCKET HD. BOLT (W/BUTTON) M6X20 FOR UAE (S) HIT-6685064.A16 6685064	-
*202 - SPRING WASHER M6 (10 PCS.) FOR UAE (S) HIT-949455.A8 949455	£1.67	£2.00
*203 - COVER BRACKET FOR UAE (S) HIT-6696978.A3 6696978	-
204 - LEVEL MARK HIT-000000.A5549 000000	-
206 - LEVEL MARK FOR AUS (SL) HIT-6684852.A5 6684852	-
207 - LEVEL MARK HIT-6684851.A47 6684851	-
208 - MAIN PIPE COMP. HIT-6696558.A11 6696558	£22.07	£26.48
209 - DRIVE SHAFT HIT-6698514.A12 6698514	£19.46	£23.35
210A - HANGER HIT-6600504.A25 6600504	£1.67	£2.00
211 - CAP (A) HIT-6698515.A20 6698515	-
*212 - GUARD FOR UAE (S) HIT-6696981.A1 6696981	-
*213 - BOLT WASHER M4 (BLACK) FOR UAE (S) HIT-323210.A8 323210	-
*214 - MACHINE SCREW (W/SP. WASHER) M4X12 FOR UAE (S) HIT-6685068.A20 6685068	-
*215 - NUT M4 (10 PCS.) FOR UAE (S) HIT-949554.A10 949554	£1.67	£2.00
*216 - KNIFE FOR UAE (S) HIT-6696584.A33 6696584	-
217A - FUEL GROMMET TILL 7.2015 HIT-6688156.A31 6688156	-
217B - FUEL GROMMET SINCE 8.2015 HIT-6600358.A70 6600358	£1.67	£2.00
218 - HEX. HOLE BUTTON BOLT M6X25 SINCE 7.2012 FOR AUS (SL) HIT-6684714.A134 6684714	£1.67	£2.00
219 - COVER BRACKET SINCE 7.2012 FOR AUS (SL) HIT-6699011.A4 6699011	-
220 - COVER ASS'Y INCLUD.222-224 SINCE 7.2012 FOR AUS (SL) HIT-6697880.A14 6697880	-
*220 - COVER ASSY NZL (SL) HIT-6697880.A15 6697880	-
221 - COVER HOLDER SINCE 7.2012 FOR AUS (SL) HIT-6698813.A9 6698813	-
222 - GUARD 24 DIA. SINCE 7.2012 FOR AUS (SL) HIT-6690272.A8 6690272	-
223 - KNIFE SINCE 7.2012 FOR AUS (SL) HIT-6693388.A12 6693388	-
224 - TAPPING SCREW 5X20 SINCE 7.2012 FOR AUS (SL) HIT-6684753.A42 6684753	£1.67	£2.00
*240 - HANDLE HOLDER (A).(B) SET INCLUD.162A HIT-6600499.A28 6600499	-
241 - MACHINE SCREW M5X10 (10 PCS.) HIT-949236.A41 949236	£1.67	£2.00
501 - BOX WRENCH (HEX. SOCKET 17/19) HIT-6684764.A94 6684764	£7.64	£9.17
502 - WRENCH 8X10 EXCEPT FOR AUS (SL S) HIT-6696596.A25 6696596	-
503 - HEX. BAR WRENCH 4MM HIT-944458.A42 944458	£1.67	£2.00
504B - CUTTER COVER FOR AUS (S) HIT-6684768.A12 6684768	-
505 - BLADE 3TX255XT1.8 FOR AUS (S) HIT-6698711.A26 6698711	-
506 - PROTECTIVE GLASSES HIT-875769.A25 875769	-
507A - SHOULDER BELT SINGLE FOR UAE (S) HIT-6601420.A26 6601420	-

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki CG24EAS Engine Brush Cutter Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
