Hitachi / Hikoki CG24EAP2 Attachment Spare Parts

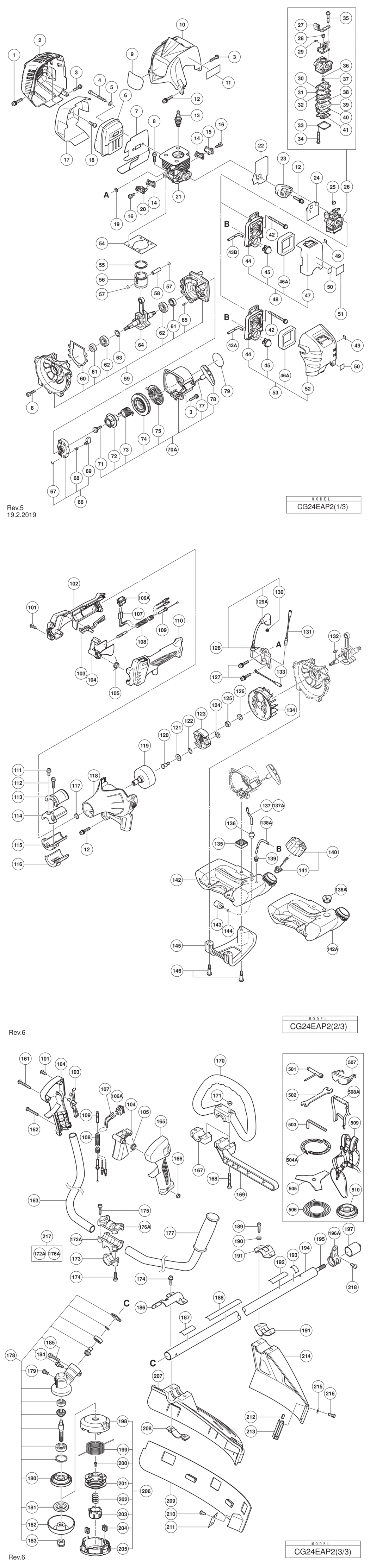

An exploded diagram and spare parts listing for the Hitachi / Hikoki CG24EAP2 Attachment

	Ex VAT	Inc VAT
1 - SEAL LOCK HEX. SOCKET HD. BOLT M5X30 HIT-6698950.A20 6698950	-
2 - MUFFLER COVER HIT-6600319.A6 6600319	-
3 - MACHINE SCREW (W/WASHERS) M4X20 (BLACK) HIT-307606.A8 307606	£1.67	£2.00
4 - HEX. SOCKET HD. BOLT M6X65 HIT-6698384.A27 6698384	-
5 - BOLT WASHER M6 (10 PCS.) HIT-949432.A104 949432	£1.67	£2.00
6 - MUFFLER (B) HIT-6600004.A2 6600004	-
7 - HEAT PROTECTION PANEL HIT-6600320.A11 6600320	£1.67	£2.00
8 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18 HIT-6698386.A67 6698386	-
9 - BRAND LABEL HIT-000000.A5765 000000	-
10 - CYLINDER COVER HIT-6699128.A0 6699128	-
*10 - CYLINDER COVER FOR USA HIT-6699162.A1 6699162	-
11 - CAUTION LABEL HIT-000000.A5764 000000	-
12 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A66 6698844	£1.67	£2.00
13 - SPARK PLUG ASS'Y BMR7A HIT-6699316.A54 6699316	£12.43	£14.92
*13 - SPARK PLUG ASS'Y CJ6 FOR USA HIT-6699322.A1 6699322	£3.73	£4.48
14 - COVER PACKING HIT-6698468.A4 6698468	-
15 - SCAVENGING COVER (A) HIT-6698469.A11 6698469	-
16 - HEX. SOCKET HD. BOLT M4X12 HIT-6698385.A6 6698385	-
17 - MUFFLER HEAT COVER HIT-6600422.A1 6600422	-
18 - TAPPING SCREW D4X10 HIT-6600325.A21 6600325	-
19 - GLASS WASHER HIT-6698700.A6 6698700	£1.67	£2.00
20 - SCAVENGING COVER (B) HIT-6698470.A3 6698470	-
21 - CYLINDER HIT-6698465.A12 6698465	£40.69	£48.83
22 - INTAKE PACKING HIT-6699437.A10 6699437	£1.67	£2.00
23 - CARBURETOR INSULATOR HIT-6698387.A7 6698387	£4.72	£5.66
24 - CARBURETOR PACKING HIT-6698405.A26 6698405	£3.12	£3.74
25 - SWIVEL CAP HIT-6691337.A73 6691337	£1.67	£2.00
26 - CARBURETOR ASS'Y WYC-28 INCLUD.27-41 HIT-6698474.A0 6698474	£63.80	£76.56
27 - CABLE ADJUST STAY HIT-6699287.A1 6699287	-
28 - SWIVEL HIT-6696830.A18 6696830	-
29 - STOP RING HIT-6684696.A191 6684696	-
30 - PUMP GASKET HIT-6684692.A15 6684692	£17.28	£20.73
31 - PUMP DIAPHRAGM HIT-6684693.A178 6684693	£5.70	£6.84
32 - PUMP PLATE HIT-6691242.A23 6691242	-
33 - DIAPHRAGM COVER-METERING HIT-6685222.A64 6685222	£5.70	£6.84
34 - SET SCREW HIT-6691312.A38 6691312	-
35 - SET SCREW M3X12 HIT-6696829.A30 6696829	-
36 - O-RING HIT-6684695.A26 6684695	£1.67	£2.00
37 - MAIN JET #32.5 HIT-6697842.A2 6697842	-
38 - CIRCUIT PLATE HIT-6691234.A35 6691234	-
39 - PUMP BODY COMP. HIT-6696828.A18 6696828	£13.28	£15.93
40 - DIAPHRAGM PACKING-METERING HIT-6685220.A112 6685220	£2.81	£3.37
41 - METERING DIAPHRAGM HIT-6684690.A15 6684690	£24.05	£28.86
42 - MACHINE SCREW (W/WASHERS) M5X60 (BLACK) HIT-307224.A3 307224	£1.67	£2.00
43B - FUEL PIPE HIT-6601444.A8 6601444	-
44 - AIR CLEANER HOUSING HIT-66965549.A9 66965549	£15.62	£18.74
45 - PRIMING PUMP COMP. HIT-6685139.A10 6685139	£10.67	£12.80
46A - CLEANER SPONGE HIT-6600704.A13 6600704	-
47 - AIR CLEANER COVER HIT-6696831.A14 6696831	£9.68	£11.62
48 - AIR CLEANER ASS'Y INCLUD.44-47 HIT-6696549.A24 6696549	£13.36	£16.03
49 - MARK PLATE (T) EXCEPT FOR USA HIT-6600327.A19 6600327	-
50 - PRIMER LABEL EXCEPT FOR USA HIT-6699000.A30 6699000	-
51 - START LABEL (A) HIT-000000.A5766 000000	-
52 - CLEANER COVER FOR HORNBACH HIT-6699185.A17 6699185	£11.28	£13.53
53 - AIR CLEANER (A) ASS'Y INCLUD.44-46 HIT-6699132.A18 6699132	£13.52	£16.23
54 - CYLINDER GASKET HIT-6684587.A3 6684587	£1.67	£2.00
55 - PISTON RING HIT-6698404.A19 6698404	£7.03	£8.44
56 - PISTON HIT-6698368.A4 6698368	£11.35	£13.62
57 - CIR CLIP HIT-6684590.A22 6684590	£1.67	£2.00
58 - PISTON PIN HIT-6684591.A70 6684591	£3.29	£3.95
59 - CRANK CASE ASS'Y INCLUD.60-62 HIT-6684606.A13 6684606	£40.68	£48.82
60 - CRANK CASE GASKET HIT-6684609.A2 6684609	-
61 - OIL SEAL TB 12227 HIT-6684607.A10 6684607	£4.07	£4.88
62 - BALL BEARING 6001 C3 HIT-6684608.A185 6684608	£5.70	£6.84
63 - SHIM T0.2 HIT-6696946.A22 6696946	£1.67	£2.00
*63 - SHIM T0.3 HIT-6696945.A17 6696945	£1.67	£2.00
64 - CRANK SHAFT COMP. HIT-6696533.A4 6696533	£42.11	£50.53
65 - KNOCK PIN 4X12 HIT-6696947.A27 6696947	-
66 - STARTER PULLEY ASS'Y INCLUD.67-69 HIT-6684681.A14 6684681	£18.16	£21.79
67 - STOP RING E-5 HIT-6684683.A1 6684683	-
68 - STARTER PAWL SPRING HIT-6684684.A100 6684684	£3.29	£3.95
69 - STARTER PAWL HIT-6684685.A17 6684685	£5.07	£6.08
70A - RECOIL STARTER BODY ASS'Y INCLUD.71-75 HIT-6601570.A57 6601570	£23.15	£27.78
71 - SET SCREW HIT-6684679.A19 6684679	£2.98	£3.57
72 - CAM PLATE HIT-6699996.A12 6699996	£4.28	£5.13
73 - DAMPER SPRING HIT-6684677.A21 6684677	£5.70	£6.84
74 - STARTER ROPE REEL HIT-6699997.A77 6699997	-
75 - RECOIL SPRING HIT-6684675.A125 6684675	£8.82	£10.58
77 - STARTER ROPE 3.5X860 HIT-6684674.A16 6684674	£5.70	£6.84
78 - STARTER HANDLE HIT-6684680.A101 6684680	£5.87	£7.04
79 - NAME PLATE HIT-000000.A5768 000000	-
101 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A166 305812	£1.67	£2.00
*101 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) FOR (S) HIT-302086.A5 302086	£1.67	£2.00
102 - HANDLE (B) FOR EUROPE (SL) HIT-6696487.A32 6696487	£5.88	£7.06
*102 - HANDLE (B) FOR USA HIT-6696942.A7 6696942	-
103 - LOCK LEVER EXCEPT FOR USA HIT-6696490.A2 6696490	£2.84	£3.41
104 - LEVER HIT-6696488.A2 6696488	£1.67	£2.00
105 - SPRING (A) HIT-6696489.A35 6696489	£2.84	£3.41
106A - STOP SWITCH HIT-6601275.A70 6601275	£1.67	£2.00
107 - STOP SWITCH CORD HIT-6696491.A38 6696491	-
*107 - STOP SWITCH CORD FOR (S) HIT-6696592.A18 6696592	-
108 - PROTECTION TUBE HIT-6696967.A4 6696967	-
*108 - PROTECTION TUBE FOR (S) HIT-6696594.A15 6696594	-
109 - THROTTLE WIRE COMP. HIT-6696560.A14 6696560	£8.35	£10.02
*109 - THROTTLE WIRE COMP. FOR (S) HIT-6696593.A2 6696593	£7.12	£8.54
110 - HANDLE (A) FOR EUROPE (SL) HIT-6696486.A2 6696486	£5.88	£7.06
*110 - HANDLE (A) FOR USA HIT-6696941.A16 6696941	-
111 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X12 HIT-6699176.A3 6699176	£1.67	£2.00
112 - HEX. HOLE BOLT 5X22/S HIT-6695492.A30 6695492	-
113 - ANTI VIBE RUBBER (A) HIT-6696963.A4 6696963	£3.12	£3.74
114 - PIPE HOLDER (A) HIT-6698643.A31 6698643	£3.56	£4.27
115 - PIPE HOLDER (B) HIT-6698644.A16 6698644	£3.56	£4.27
116 - ANTI VIBE RUBBER (B) HIT-6696964.A36 6696964	£3.02	£3.63
117 - RETAINING RING FOR D12 SHAFT (10 PCS.) HIT-939542.A49 939542	£2.98	£3.57
118 - FAN CASE HIT-6699129.A7 6699129	£13.52	£16.23
*118 - FAN CASE FOR USA HIT-6699164.A0 6699164	-
119 - CLUTCH SHAFT HIT-6699400.A12 6699400	£14.52	£17.43
120 - STEP BOLT HIT-6696469.A2 6696469	£2.84	£3.41
121 - BENT WASHER 8 HIT-6684648.A5 6684648	£1.67	£2.00
122 - CLUTCH PLATE (A) HIT-6696546.A7 6696546	£1.67	£2.00
123 - CLUTCH HIT-6696948.A21 6696948	£15.02	£18.03
124 - CLUTCH WASHER (B) HIT-6696547.A29 6696547	£1.67	£2.00
125 - FLYWHEEL NUT HIT-6685337.A18 6685337	-
126 - BOLT WASHER M8 (BLACK) HIT-323212.A12 323212	£1.67	£2.00
127 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18 HIT-6698388.A75 6698388	£1.67	£2.00
128 - IGNITION COIL ASS'Y INCLUD.129A HIT-6699464.A14 6699464	£27.08	£32.49
129A - PLUG CAP HIT-6601421.A36 6601421	£1.67	£2.00
130 - PLUG CAP METAL HIT-6699186.A0 6699186	£1.67	£2.00
131 - CORD HIT-6696544.A7 6696544	-
132 - WOODRUFF KEY 3X13X4.5 HIT-6684899.A61 6684899	-
133 - EARTH CORD HIT-6696545.A43 6696545	-
134 - MAGNETO ROTOR HIT-6699289.A39 6699289	£24.52	£29.43
135 - SPACER HIT-6699558.A13 6699558	-
136 - FUEL GROMMET TILL 7.2015 (SINCE 8.2015 FOR USA) HIT-6688156.A70 6688156	-
136A - FUEL GROMMET SINCE 8.2015 (EXCEPT FOR USA) HIT-6600358.A66 6600358	£1.67	£2.00
137 - FUEL PIPE HIT-6698716.A36 6698716	£5.61	£6.73
137A - FUEL PIPE FOR USA HIT-6601525.A8 6601525	-
138A - FUEL PIPE L70 HIT-6699014.A48 6699014	£2.77	£3.32
139 - RETURN GROMMET TILL 7.2015 (SINCE 8.2015 FOR USA) HIT-6697846.A50 6697846	£2.08	£2.50
140 - FUEL TANK CAP ASS'Y INCLUD.141 HIT-6698402.A28 6698402	-
141 - TANK CAP CHAIN HIT-6698732.A69 6698732	-
142 - TANK (B) TILL 7.2015 HIT-6600317.A11 6600317	£12.36	£14.83
*142 - TANK FOR USA HIT-6699719.A8 6699719	£23.15	£27.78
142A - TANK (C) SINCE 8.2015 HIT-6600354.A5 6600354	-
143 - PUMP FILTER HIT-6600351.A70 6600351	£4.45	£5.34
144 - CLIP HIT-6696949.A24 6696949	£1.67	£2.00
145 - STAND HIT-6694787.A5 6694787	£3.56	£4.27
146 - BOLT (W/FLANGE) L27.8 HIT-6698991.A21 6698991	-
161 - TAPPING SCREW (W/FLANGE) D4X30 FOR (S) HIT-323837.A21 323837	-
162 - MACHINE SCREW M5X30 (BLACK) FOR (S) HIT-323041.A26 323041	-
163 - HANDLE RIGHT FOR (S) HIT-6698637.A5 6698637	-
164 - HANDLE (B) FOR (S) HIT-6696590.A20 6696590	-
165 - HANDLE (A) FOR (S) HIT-6696588.A18 6696588	-
166 - NUT M5 (BLACK) FOR (S) HIT-302012.A10 302012	£1.67	£2.00
167 - HANDLE HOLDER (A) FOR USA HIT-6696972.A1 6696972	-
168 - BOLT (BLACK) M6 FOR USA HIT-6696974.A7 6696974	£1.67	£2.00
169 - BARRIER FOR EUROPE (SL) HIT-6696973.A25 6696973	£8.35	£10.02
170 - LOOP HANDLE FOR USA HIT-6696975.A25 6696975	£13.36	£16.03
171 - NUT M6 (10 PCS.) FOR USA HIT-949556.A16 949556	£1.67	£2.00
172A - HANDLE HOLDER (B) SINCE 7.2015 FOR (S) HIT-6600501.A18 6600501	-
173 - HANDLE HOLDER (C) FOR (S) HIT-6696578.A15 6696578	-
174 - HEX. HOLE BUTTON BOLT M6X25 FOR EUROPE (SL) HIT-6684714.A144 6684714	£1.67	£2.00
*174 - HEX. HOLE BUTTON BOLT M6X25 FOR (S) HIT-6684714.A145 6684714	£1.67	£2.00
175 - HEX. HOLE BOLT M5X25/S FOR (S) HIT-6684709.A42 6684709	£1.67	£2.00
176A - HANDLE HOLDER (A) SINCE 7.2015 FOR (S) HIT-6600500.A13 6600500	-
177 - HANDLE (LEFT) FOR (S) HIT-6698638.A13 6698638	-
178 - GEAR CASE ASS'Y 3BB (A) INCLUD.179-185 HIT-6699402.A3 6699402	-
*178 - GEAR CASE ASS'Y 3BB (B) INCLUD.179 HIT-6696976.A1 6696976	£60.73	£72.88
179 - BOLT (W/PLUS) M6X8 HIT-6684737.A47 6684737	-
180 - CUTTER HOLDER (A) EXCEPT FOR USA HIT-6696977.A22 6696977	£18.01	£21.61
181 - CUTTER HOLDER (B) EXCEPT FOR USA HIT-6698659.A29 6698659	£15.99	£19.19
182 - NUT COVER EXCEPT FOR USA HIT-6699188.A49 6699188	£10.93	£13.12
183 - U-NUT (LEFT HAND) M10 EXCEPT FOR USA HIT-335759.A23 335759	£1.67	£2.00
184 - SCREW 5X12/W.S HIT-6695414.A17 6695414	£1.67	£2.00
185 - HEX. SOCKET HD. BOLT M5X30 (10 PCS.) HIT-949664.A23 949664	£4.33	£5.20
186 - COVER BRACKET EXCEPT FOR USA HIT-6696494.A3 6696494	£3.02	£3.63
187 - CAUTION LABEL (HEDGE) HIT-6600328.A6 6600328	-
188 - CAUTION MARK HIT-6600450.A6 6600450	-
*188 - CAUTION MARK (USA) FOR USA HIT-6600447.A7 6600447	-
189 - HEX. SOCKET HD. BOLT (W/BUTTON) M6X20 FOR USA HIT-6685064.A22 6685064	-
190 - SPRING WASHER M6 (10 PCS.) FOR USA HIT-949455.A11 949455	£1.67	£2.00
191 - COVER BRACKET FOR USA HIT-6696978.A1 6696978	-
192 - LEVEL MARK (B) FOR USA HIT-6600446.A0 6600446	-
193 - LEVEL MARK EXCEPT FOR USA HIT-6684851.A56 6684851	-
194 - MAIN PIPE COMP. HIT-6696558.A7 6696558	£22.07	£26.48
*194 - MAIN PIPE FOR HORNBACH HIT-6699445.A7 6699445	-
195 - DRIVE SHAFT HIT-6698514.A17 6698514	£19.46	£23.35
196A - HANGER EXCEPT FOR USA HIT-6600504.A29 6600504	£1.67	£2.00
197 - CAP (A) EXCEPT FOR USA HIT-6698515.A16 6698515	-
198 - COVER HIT-6698794.A3 6698794	£17.58	£21.09
*198 - COVER FOR USA HIT-6698937.A16 6698937	£22.42	£26.91
199 - NYLON CORD HIT-000000.A5769 000000	-
200 - SET SCREW HIT-6698795.A40 6698795	-
201 - REEL HIT-6698796.A7 6698796	£7.12	£8.54
*201 - REEL FOR USA HIT-6698939.A16 6698939	-
202 - RETURN SPRING HIT-6698797.A30 6698797	£1.67	£2.00
*202 - RETURN SPRING FOR USA HIT-6698941.A16 6698941	-
203 - BUTTON HIT-6698798.A7 6698798	£7.12	£8.54
*203 - BUTTON FOR USA HIT-6698940.A2 6698940	-
204 - CORD GUIDE HIT-6698799.A32 6698799	£7.12	£8.54
*204 - CORD GUIDE FOR USA HIT-6698942.A2 6698942	-
205 - CASE HIT-6698800.A3 6698800	£14.11	£16.93
*205 - CASE FOR USA HIT-6698938.A2 6698938	-
206 - NYLON HEAD ASS'Y INCLUD.198-205 HIT-6696454.A0 6696454	£48.12	£57.75
*206 - NYLON HEAD ASS'Y INCLUD.198-205 FOR USA HIT-6698639.A4 6698639	£31.92	£38.31
207 - GUARD EXCEPT FOR USA HIT-6696980.A33 6696980	£27.49	£32.99
208 - GUARD HOLDER EXCEPT FOR USA HIT-6696951.A20 6696951	£3.02	£3.63
209 - COVER GUARD EXCEPT FOR USA HIT-6696950.A17 6696950	£11.18	£13.42
210 - TAPPING SCREW 4X14 EXCEPT FOR USA HIT-6684751.A36 6684751	£1.67	£2.00
211 - KNIFE EXCEPT FOR USA HIT-6684750.A62 6684750	£3.64	£4.37
212 - NUT M4 (10 PCS.) FOR USA HIT-949554.A9 949554	£1.67	£2.00
213 - KNIFE FOR USA HIT-6696584.A26 6696584	-
214 - GUARD FOR USA HIT-6696583.A0 6696583	-
215 - BOLT WASHER M4 (BLACK) FOR USA HIT-323210.A4 323210	-
216 - MACHINE SCREW (W/SP. WASHER) M4X12 FOR USA HIT-6685068.A22 6685068	-
217 - HANDLE HOLDER (A).(B) SET INCLUD.172A HIT-6600499.A21 6600499	-
218 - MACHINE SCREW M5X10 (10 PCS.) EXCEPT FOR USA HIT-949236.A43 949236	£1.67	£2.00
501 - BOX WRENCH (HEX. SOCKET 17/19) HIT-6684764.A95 6684764	£7.64	£9.17
502 - WRENCH 8X10 EXCEPT FOR USA HIT-6696596.A28 6696596	-
503 - HEX. BAR WRENCH 4MM HIT-944458.A40 944458	£1.67	£2.00
504A - CUTTER COVER FOR (S) HIT-6684768.A1 6684768	-
505 - BLADE 3TX255XT1.8 FOR (S) HIT-6698711.A28 6698711	-
506 - MEGA TWIST CORD FOR USA HIT-6698640.A9 6698640	-
507 - PROTECTIVE GLASSES HIT-875769.A17 875769	-
508A - SHOULDER BELT SINGLE FOR EUROPE (SL) HIT-6601420.A20 6601420	-
509 - SHOULDER BELT ASS'Y W FOR (S) HIT-6696184.A4 6696184	£25.30	£30.36
510 - CUTTER HOLDER (A) FOR USA HIT-6696977.A23 6696977	£18.01	£21.61

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki CG24EAP2 Attachment Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Hitachi / Hikoki CG24EAP2 Attachment Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Hitachi / Hikoki CG24EAP2 Attachment Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
