Hitachi / Hikoki CG24EA2 Engine Grass Trimmer Spare Parts

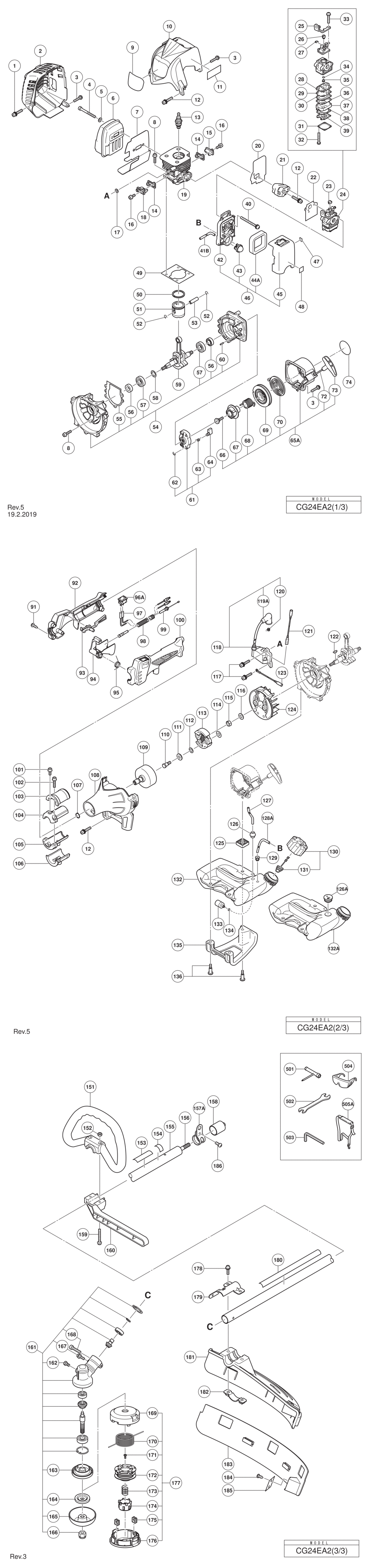

An exploded diagram and spare parts listing for the Hitachi / Hikoki CG24EA2 Engine Grass Trimmer

	Ex VAT	Inc VAT
1 - SEAL LOCK HEX. SOCKET HD. BOLT M5X30 HIT-6698950.A22 6698950	-
2 - MUFFLER COVER HIT-6600319.A5 6600319	-
3 - MACHINE SCREW (W/WASHERS) M4X20 (BLACK) HIT-307606.A6 307606	£1.67	£2.00
4 - HEX. SOCKET HD. BOLT M6X65 HIT-6698384.A28 6698384	-
5 - BOLT WASHER M6 (10 PCS.) HIT-949432.A103 949432	£1.67	£2.00
6 - MUFFLER (B) HIT-6600461.A9 6600461	-
7 - HEAT PROTECTION PANEL HIT-6600320.A12 6600320	£1.67	£2.00
8 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18 HIT-6698386.A68 6698386	-
9 - BRAND LABEL HIT-000000.A5715 000000	-
10 - CYLINDER COVER HIT-6699128.A1 6699128	-
11 - CAUTION LABEL (EU) HIT-000000.A5716 000000	-
12 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A68 6698844	£1.67	£2.00
13 - SPARK PLUG ASS'Y BMR7A HIT-6699316.A53 6699316	£12.43	£14.92
14 - COVER PACKING HIT-6698468.A3 6698468	-
15 - SCAVENGING COVER (A) HIT-6698469.A12 6698469	-
16 - HEX. SOCKET HD. BOLT M4X12 HIT-6698385.A5 6698385	-
17 - GLASS WASHER HIT-6698700.A4 6698700	£1.67	£2.00
18 - SCAVENGING COVER (B) HIT-6698470.A2 6698470	-
19 - CYLINDER HIT-6698465.A13 6698465	£40.69	£48.83
20 - INTAKE PACKING HIT-6699437.A11 6699437	£1.67	£2.00
21 - CARBURETOR INSULATOR HIT-6698387.A6 6698387	£4.72	£5.66
22 - CARBURETOR PACKING HIT-6698405.A25 6698405	£3.12	£3.74
23 - SWIVEL CAP HIT-6691337.A72 6691337	£1.67	£2.00
24 - CARBURETOR ASS'Y WYC-28 INCLUD.25-39 HIT-6698474.A1 6698474	£63.80	£76.56
25 - CABLE ADJUST STAY HIT-6699287.A2 6699287	-
26 - SWIVEL HIT-6696830.A20 6696830	-
27 - STOP RING HIT-6684696.A193 6684696	-
28 - PUMP GASKET HIT-6684692.A13 6684692	£17.28	£20.73
29 - PUMP DIAPHRAGM HIT-6684693.A180 6684693	£5.70	£6.84
30 - PUMP PLATE HIT-6691242.A22 6691242	-
31 - DIAPHRAGM COVER-METERING HIT-6685222.A66 6685222	£5.70	£6.84
32 - SET SCREW HIT-6691312.A39 6691312	-
33 - SET SCREW M3X12 HIT-6696829.A28 6696829	-
34 - O-RING HIT-6684695.A24 6684695	£1.67	£2.00
35 - MAIN JET #32.5 HIT-6697842.A1 6697842	-
36 - CIRCUIT PLATE HIT-6691234.A36 6691234	-
37 - PUMP BODY COMP. HIT-6696828.A20 6696828	£13.28	£15.93
38 - DIAPHRAGM PACKING-METERING HIT-6685220.A110 6685220	£2.81	£3.37
39 - METERING DIAPHRAGM HIT-6684690.A17 6684690	£24.05	£28.86
40 - MACHINE SCREW (W/WASHERS) M5X60 (BLACK) HIT-307224.A5 307224	£1.67	£2.00
41B - FUEL PIPE HIT-6601444.A7 6601444	-
42 - AIR CLEANER HOUSING HIT-66965549.A11 66965549	£15.62	£18.74
43 - PRIMING PUMP COMP. HIT-6685139.A8 6685139	£10.67	£12.80
44A - CLEANER SPONGE HIT-6600704.A11 6600704	£5.61	£6.73
45 - AIR CLEANER COVER HIT-6696831.A12 6696831	£9.68	£11.62
46 - AIR CLEANER ASS'Y INCLUD.42-45 HIT-6696549.A23 6696549	£13.36	£16.03
47 - MARK PLATE (T) HIT-6600327.A22 6600327	-
48 - PRIMER LABEL HIT-6699000.A34 6699000	-
49 - CYLINDER GASKET HIT-6684587.A2 6684587	£1.67	£2.00
50 - PISTON RING HIT-6698404.A20 6698404	£7.03	£8.44
51 - PISTON HIT-6698368.A5 6698368	£11.35	£13.62
52 - CIR CLIP HIT-6684590.A25 6684590	£1.67	£2.00
53 - PISTON PIN HIT-6684591.A67 6684591	£3.29	£3.95
54 - CRANK CASE ASS'Y INCLUD.55-57 HIT-6684606.A12 6684606	£40.68	£48.82
55 - CRANK CASE GASKET HIT-6684609.A3 6684609	-
56 - OIL SEAL TB 12227 HIT-6684607.A13 6684607	£4.07	£4.88
57 - BALL BEARING 6001 C3 HIT-6684608.A182 6684608	£5.70	£6.84
*58 - SHIM T0.2 HIT-6696946.A23 6696946	£1.67	£2.00
*58 - SHIM T0.3 HIT-6696945.A16 6696945	£1.67	£2.00
59 - CRANK SHAFT COMP. HIT-6696533.A5 6696533	£42.11	£50.53
60 - KNOCK PIN 4X12 HIT-6696947.A26 6696947	-
61 - STARTER PULLEY ASS'Y INCLUD.62-64 HIT-6684681.A16 6684681	£18.16	£21.79
62 - D4E RETAINING RING HIT-6685101.A46 6685101	-
63 - STARTER PAWL SPRING HIT-6684684.A102 6684684	£3.29	£3.95
64 - STARTER PAWL HIT-6684685.A15 6684685	£5.07	£6.08
65A - RECOIL STARTER BODY ASS'Y INCLUD.66-70 HIT-6601570.A59 6601570	£23.15	£27.78
66 - SET SCREW HIT-6684679.A21 6684679	£2.98	£3.57
67 - CAM PLATE HIT-6699996.A14 6699996	£4.28	£5.13
68 - DAMPER SPRING HIT-6684677.A19 6684677	£5.70	£6.84
69 - STARTER ROPE REEL HIT-6699997.A75 6699997	-
70 - RECOIL SPRING HIT-6684675.A127 6684675	£8.82	£10.58
72 - STARTER ROPE 3.5X860 HIT-6684674.A14 6684674	£5.70	£6.84
73 - STARTER HANDLE HIT-6684680.A99 6684680	£5.87	£7.04
74 - NAME PLATE HIT-000000.A5717 000000	-
91 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A163 305812	£1.67	£2.00
92 - HANDLE (B) HIT-6696487.A30 6696487	£5.88	£7.06
93 - LOCK LEVER HIT-6696490.A4 6696490	£2.84	£3.41
94 - LEVER HIT-6696488.A4 6696488	£1.67	£2.00
95 - SPRING (A) HIT-6696489.A33 6696489	£2.84	£3.41
96A - STOP SWITCH HIT-6601275.A68 6601275	£1.67	£2.00
97 - STOP SWITCH CORD HIT-6696491.A36 6696491	-
98 - PROTECTION TUBE HIT-6696967.A1 6696967	-
99 - THROTTLE WIRE COMP. HIT-6696560.A13 6696560	£8.35	£10.02
100 - HANDLE (A) HIT-6696486.A4 6696486	£5.88	£7.06
101 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X12 HIT-6699176.A4 6699176	£1.67	£2.00
102 - HEX. HOLE BOLT 5X22/S HIT-6695492.A31 6695492	-
103 - ANTI VIBE RUBBER (A) HIT-6696963.A1 6696963	£3.12	£3.74
104 - PIPE HOLDER (A) HIT-6698643.A35 6698643	£3.56	£4.27
105 - PIPE HOLDER (B) HIT-6698644.A12 6698644	£3.56	£4.27
106 - ANTI VIBE RUBBER (B) HIT-6696964.A39 6696964	£3.02	£3.63
107 - RETAINING RING FOR D12 SHAFT (10 PCS.) HIT-939542.A51 939542	£2.98	£3.57
108 - FAN CASE HIT-6699129.A6 6699129	£13.52	£16.23
109 - CLUTCH SHAFT HIT-6699400.A14 6699400	£14.52	£17.43
110 - STEP BOLT HIT-6696469.A4 6696469	£2.84	£3.41
111 - BENT WASHER 8 HIT-6684648.A2 6684648	£1.67	£2.00
112 - CLUTCH PLATE (A) HIT-6696546.A6 6696546	£1.67	£2.00
113 - CLUTCH HIT-6696948.A22 6696948	£15.02	£18.03
114 - CLUTCH WASHER (B) HIT-6696547.A30 6696547	£1.67	£2.00
115 - FLYWHEEL NUT HIT-6685337.A16 6685337	-
116 - BOLT WASHER M8 (BLACK) HIT-323212.A13 323212	£1.67	£2.00
117 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18 HIT-6698388.A76 6698388	£1.67	£2.00
118 - IGNITION COIL ASS'Y INCLUD.119A HIT-6699464.A15 6699464	£27.08	£32.49
119A - PLUG CAP HIT-6601421.A37 6601421	£1.67	£2.00
120 - PLUG CAP METAL HIT-6699186.A1 6699186	£1.67	£2.00
121 - CORD HIT-6696544.A6 6696544	-
122 - WOODRUFF KEY 3X13X4.5 HIT-6684899.A60 6684899	-
123 - EARTH CORD HIT-6696545.A44 6696545	-
124 - MAGNETO ROTOR HIT-6699289.A38 6699289	£24.52	£29.43
125 - SPACER HIT-6699558.A12 6699558	-
126 - FUEL GROMMET TILL 7.2015 HIT-6688156.A66 6688156	-
126A - FUEL GROMMET SINCE 8.2015 HIT-6600358.A65 6600358	£1.67	£2.00
127 - FUEL PIPE HIT-6698716.A37 6698716	£5.61	£6.73
128A - FUEL PIPE L70 HIT-6699014.A44 6699014	£2.77	£3.32
129 - RETURN GROMMET TILL 7.2015 HIT-6697846.A52 6697846	£1.68	£2.01
130 - FUEL TANK CAP ASS'Y INCLUD.131 HIT-6698402.A27 6698402	-
131 - TANK CAP CHAIN HIT-6698732.A68 6698732	-
132 - TANK (B) TILL 7.2015 HIT-6600317.A12 6600317	£12.36	£14.83
132A - TANK (C) SINCE 8.2015 HIT-6600354.A6 6600354	-
133 - PUMP FILTER HIT-6600351.A69 6600351	£4.45	£5.34
134 - CLIP HIT-6696949.A23 6696949	£1.67	£2.00
135 - STAND HIT-6694787.A4 6694787	£3.56	£4.27
136 - BOLT (W/FLANGE) L27.8 HIT-6698991.A20 6698991	-
151 - LOOP HANDLE HIT-6696975.A28 6696975	£13.36	£16.03
152 - NUT M6 (10 PCS.) HIT-949556.A15 949556	£1.67	£2.00
153 - LEVEL MARK (B) HIT-6600446.A2 6600446	-
154 - LEVEL MARK HIT-6684851.A55 6684851	-
155 - MAIN PIPE COMP. HIT-6696558.A8 6696558	£22.07	£26.48
156 - DRIVE SHAFT HIT-6698514.A19 6698514	£19.46	£23.35
157A - HANGER HIT-6600504.A32 6600504	£1.67	£2.00
158 - CAP (A) HIT-6698515.A15 6698515	-
159 - BOLT (BLACK) M6 HIT-6696974.A4 6696974	£1.67	£2.00
160 - BARRIER HIT-6696973.A28 6696973	£8.35	£10.02
161 - GEAR CASE ASS'Y 3BB (A) INCLUD.162-168 HIT-6699402.A0 6699402	-
162 - BOLT (W/PLUS) M6X8 HIT-6684737.A44 6684737	-
163 - CUTTER HOLDER (A) HIT-6696977.A26 6696977	£18.01	£21.61
164 - CUTTER HOLDER (B) HIT-6698659.A31 6698659	£15.99	£19.19
165 - NUT COVER HIT-6699188.A47 6699188	£10.93	£13.12
166 - U-NUT (LEFT HAND) M10 HIT-335759.A25 335759	£1.67	£2.00
167 - SCREW 5X12/W.S HIT-6695414.A16 6695414	£1.67	£2.00
168 - HEX. SOCKET HD. BOLT M5X30 (10 PCS.) HIT-949664.A21 949664	£4.33	£5.20
169 - COVER HIT-6698794.A1 6698794	£17.58	£21.09
170 - NYLON CORD HIT-000000.A5718 000000	-
171 - SET SCREW HIT-6698795.A42 6698795	-
172 - REEL HIT-6698796.A5 6698796	£7.12	£8.54
173 - RETURN SPRING HIT-6698797.A32 6698797	£1.67	£2.00
174 - BUTTON HIT-6698798.A5 6698798	£7.12	£8.54
175 - CORD GUIDE HIT-6698799.A34 6698799	£7.12	£8.54
176 - CASE HIT-6698800.A1 6698800	£14.11	£16.93
177 - NYLON HEAD ASS'Y INCLUD.169-176 HIT-6696454.A2 6696454	£48.12	£57.75
178 - HEX. HOLE BUTTON BOLT M6X25 HIT-6684714.A151 6684714	£1.67	£2.00
179 - COVER BRACKET HIT-6696494.A1 6696494	£3.02	£3.63
180 - CAUTION MARK (USA) HIT-6600447.A5 6600447	-
181 - GUARD HIT-6696980.A36 6696980	£27.49	£32.99
182 - GUARD HOLDER HIT-6696951.A18 6696951	£3.02	£3.63
183 - COVER GUARD HIT-6696950.A19 6696950	£11.18	£13.42
184 - TAPPING SCREW 4X14 HIT-6684751.A32 6684751	£1.67	£2.00
185 - KNIFE HIT-6684750.A65 6684750	£3.64	£4.37
186 - MACHINE SCREW M5X10 (10 PCS.) HIT-949236.A44 949236	£1.67	£2.00
501 - BOX WRENCH (HEX. SOCKET 17/19) HIT-6684764.A97 6684764	£7.64	£9.17
502 - WRENCH 8X10 HIT-6696596.A29 6696596	-
503 - HEX. BAR WRENCH 4MM HIT-944458.A38 944458	£1.67	£2.00
504 - PROTECTIVE GLASSES HIT-875769.A15 875769	-
505A - SHOULDER BELT SINGLE HIT-6601420.A17 6601420	-
