Hitachi / Hikoki CG23EC Engine Grass Trimmer Spare Parts

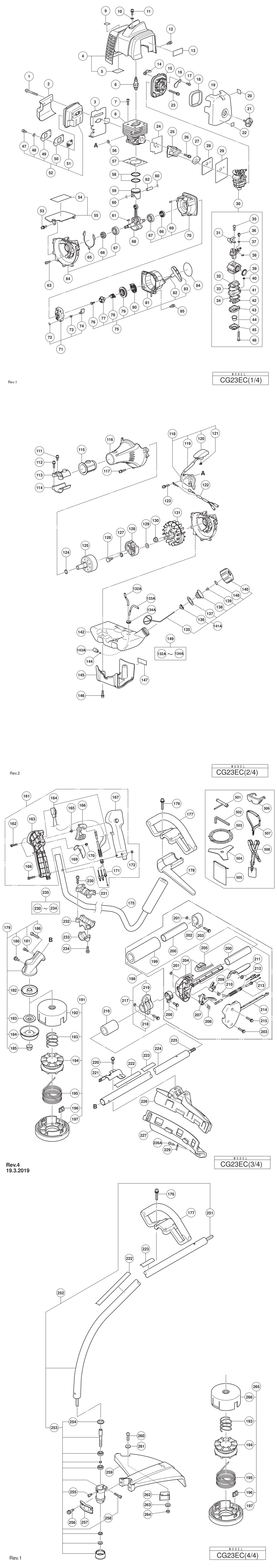

An exploded diagram and spare parts listing for the Hitachi / Hikoki CG23EC Engine Grass Trimmer

	Ex VAT	Inc VAT
1 - HEX.SOCKET BOLT M5X55 HIT-6600706.A1 6600706	-
2 - HEAT SHIELD HIT-6600707.A2 6600707	-
3 - MUFFLER PACKING HIT-6600710.A3 6600710	-
4 - TOP COVER ASS'Y (VERMILION) INCLUD.5 HIT-6601288.A1 6601288	-
5 - ALUMINUM TAPE HIT-6600714.A3 6600714	-
6 - IGNITION PLUG (AC6AR) HIT-6600713.A0 6600713	-
7 - HEX. SOCKET HD. BOLT M5X16 HIT-6600712.A6 6600712	-
8 - CYLINDER HIT-6600711.A0 6600711	-
9 - CAUTION LABEL (HOT) HIT-6698864.A5 6698864	-
10 - SPACER HIT-6600715.A0 6600715	-
11 - HEX. SOCKET HD. BOLT (W/WASHERS) M5X18 HIT-6600716.A9 6600716	-
12 - HEX. SOCKET HD. BOLT (W/WASHERS) M5X16 HIT-6600720.A1 6600720	-
13 - CAUTION MARK HIT-000000.A3402 000000	-
14 - CHOKE LEVER HIT-6600721.A3 6600721	-
15 - CLEANER BASE HIT-6600722.A0 6600722	-
16 - CHOKE PLATE HIT-6600723.A3 6600723	-
17 - TAPPING SCREW ST 4.2X9.5 HIT-6600724.A0 6600724	-
18 - AIR FILTER ELEMENT HIT-6600725.A3 6600725	-
19 - CLEANER COVER HIT-6600726.A0 6600726	-
20 - PRIMER LABEL HIT-6699000.A23 6699000	-
21 - CLEANER KNOB HIT-6600727.A3 6600727	-
22 - MARK PLATE (T) HIT-6600327.A32 6600327	-
23 - HEX. SOCKET HD. BOLT (W/WASHERS) M5X60 HIT-6600728.A0 6600728	-
24 - INTAKE PACKING HIT-6600729.A3 6600729	-
25 - CARBURETOR INSULATOR HIT-6600730.A0 6600730	-
26 - HEX. SOCKET HD. BOLT (W/WASHERS) M5X25 HIT-6600731.A6 6600731	-
27 - CARBURETOR PACKING (A) HIT-6600732.A0 6600732	-
28 - HEAT INSULATION PLATE HIT-6600733.A3 6600733	-
29 - CARBURETOR PACKING (B) HIT-6600734.A0 6600734	-
30 - CARBURETOR ASS'Y (WYK-483) INCLUD.31-46 HIT-6600735.A3 6600735	£102.91	£123.49
31 - CABLE ADJUST STAY HIT-6601292.A2 6601292	-
32 - PUMP GASKET HIT-6684692.A34 6684692	£17.28	£20.73
33 - PUMP DIAPHRAGM HIT-6684693.A144 6684693	£5.70	£6.84
34 - DIAPHRAGM GASKET HIT-6684691.A69 6684691	£5.70	£6.84
35 - THROTTLE SET SCREW HIT-6684870.A27 6684870	-
36 - SWIVEL HIT-6601293.A1 6601293	-
37 - THRUST WASHER HIT-6684874.A29 6684874	-
38 - STOP RING HIT-6684696.A158 6684696	-
39 - CLEANER PACKING HIT-6684875.A49 6684875	-
40 - INLET SCREEN HIT-6684700.A168 6684700	-
41 - PUMP BODY HIT-6601294.A2 6601294	-
42 - METERING DIAPHRAGM HIT-6684690.A38 6684690	£24.05	£28.86
43 - PRIMING PUMP COMP. HIT-6684687.A71 6684687	£9.27	£11.12
44 - PRIMING BODY HIT-6684689.A71 6684689	£5.87	£7.04
45 - DIAPHRAGM COVER HIT-6684688.A28 6684688	£5.70	£6.84
46 - SET SCREW HIT-6684699.A28 6684699	-
47 - HEX. SOCKET HD. BOLT M4X10 HIT-6600755.A2 6600755	-
48 - BOLT WASHER D4 HIT-6600756.A1 6600756	-
49 - EXHAUST PIPE HIT-6600757.A2 6600757	-
50 - EXHAUST PACKING HIT-6600758.A1 6600758	-
51 - SPARK ARRESTER HIT-6600759.A2 6600759	-
52 - MUFFLER ASS'Y INCLUD.47-51 HIT-6600709.A0 6600709	-
53 - HEX. SOCKET HD. BOLT (W/WASHERS) M5X14 HIT-6600742.A2 6600742	-
54 - ALUMINUM TAPE HIT-6600744.A1 6600744	-
55 - INSULATION PLATE ASS'Y INCLUD.54 HIT-6601291.A3 6601291	-
56 - IGNITION COIL SPACER HIT-6600660.A4 6600660	-
57 - CYLINDER PACKING HIT-6600738.A2 6600738	-
58 - PISTON RING HIT-6600739.A1 6600739	-
59 - PISTON HIT-6600740.A2 6600740	£16.45	£19.74
60 - CIRCLIP HIT-6600736.A2 6600736	-
61 - WOODRUFF KEY HIT-6600741.A1 6600741	-
62 - PISTON PIN HIT-6600737.A1 6600737	£1.67	£2.00
63 - HEX. SOCKET HD. BOLT M5X16 HIT-6600712.A7 6600712	-
64 - CRANK CASE (A) ASS'Y INCLUD.66 HIT-6600745.A2 6600745	-
65 - CRANK CASE PACKING HIT-6600746.A1 6600746	-
66 - OIL SEAL HIT-6600747.A2 6600747	-
67 - BALL BEARING HIT-6600594.A4 6600594	-
68 - CRANK SHAFT HIT-6600748.A1 6600748	£55.54	£66.65
69 - KNOCK PIN HIT-6600749.A2 6600749	-
70 - CRANK CASE (B) ASS'Y INCLUD.66 HIT-6600750.A1 6600750	-
71 - PULLEY ASS'Y INCLUD.72-74 HIT-6600752.A2 6600752	-
72 - RETAINING RING HIT-6601321.A2 6601321	-
73 - STARTER PAWL SPRING HIT-6601322.A1 6601322	-
74 - STARTER PAWL HIT-6601323.A2 6601323	-
75 - RECOIL STARTER ASS'Y (S) INCLUD.76-83 HIT-6600753.A1 6600753	-
76 - SET SCREW HIT-6601307.A2 6601307	-
77 - CAM (S) HIT-6601309.A2 6601309	-
78 - DAMPER SPRING (S) HIT-6601311.A2 6601311	-
79 - REEL (S) HIT-6601313.A2 6601313	-
80 - SPIRAL SPRING (S) HIT-6601315.A2 6601315	-
81 - STARTER CASE (S) HIT-6601317.A2 6601317	-
82 - STATER ROPE (S) HIT-6601319.A2 6601319	-
83 - STARTER HANDLE HIT-6601320.A1 6601320	-
84 - NAME PLATE HIT-000000.A5713 000000	-
85 - HEX. SOCKET HD. BOLT (W/WASHERS) M5X16 HIT-6600720.A0 6600720	-
111 - HEX. SOCKET HD. BOLT (W/WASHERS) M5X12 HIT-6600760.A3 6600760	-
112 - HEX. SOCKET HD. BOLT (W/WASHERS) M5X25 HIT-6600731.A7 6600731	-
113 - HOLDER (A) HIT-6600761.A0 6600761	-
114 - HOLDER (B) HIT-6600762.A3 6600762	-
115 - ANTI VIBRATION RUBBER HIT-6600763.A0 6600763	-
116 - FAN CASE HIT-6600764.A3 6600764	-
117 - HEX. SOCKET HD. BOLT (W/WASHERS) M5X18 HIT-6600716.A10 6600716	-
118 - IGNITION COIL ASS'Y INCLUD.119-121 HIT-6600765.A0 6600765	-
119 - CORD INSULATION TUBE HIT-6600766.A3 6600766	-
120 - PLUG CAP HIT-6600767.A0 6600767	-
121 - PLUG CAP METAL HIT-6600768.A3 6600768	-
122 - CORD HIT-6601296.A0 6601296	-
123 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X20 HIT-6600775.A3 6600775	-
124 - RETAINING RING HIT-6600770.A0 6600770	-
125 - CLUTCH SHAFT (S) FOR (S) HIT-6600771.A3 6600771	-
*125 - CLUTCH SHAFT (F) FOR (SLB) HIT-6600772.A0 6600772	-
126 - STEP BOLT HIT-6600661.A0 6600661	-
127 - BENT WASHER 8 HIT-6600662.A4 6600662	-
128 - CLUTCH HIT-6600773.A3 6600773	£3.66	£4.39
129 - CLUTCH WASHER (B) HIT-6600664.A2 6600664	-
130 - FLY WHEEL NUT HIT-6600658.A2 6600658	-
131 - MAGNETO ROTOR HIT-6600774.A0 6600774	-
132A - FUEL PIPE SINCE 9.2016 HIT-6601401.A2 6601401	-
133A - FUEL PIPE SINCE 9.2016 HIT-6601400.A1 6601400	-
134A - FUEL GROMMET SINCE 9.2016 HIT-6600671.A4 6600671	-
135 - TANK CAP RETAINER HIT-6600782.A0 6600782	-
136 - TANK CAP RETAINER HOLDER HIT-6600781.A3 6600781	-
137 - TANK CAP PACKING HIT-6600780.A0 6600780	-
138 - VALVE HOLDER HIT-6600779.A3 6600779	-
139 - VALVE HIT-6600778.A0 6600778	-
140 - TANK CAP HIT-6600777.A3 6600777	-
141A - TANK CAP ASS'Y INCLUD.135-140 HIT-6600776.A0 6600776	-
142 - FUEL TANK HIT-6600788.A3 6600788	-
143A - PUMP FILTER BODY HIT-6685199.A25 6685199	£6.38	£7.66
144 - CLIP HIT-6601295.A3 6601295	-
145 - STAND HIT-6600791.A2 6600791	-
146 - HEX. SOCKET HD. BOLT (W/WASHERS) M5X18 HIT-6600716.A11 6600716	-
*147 - TANK MARK LABEL (25:1) HIT-6698922.A23 6698922	-
*147 - TANK MARK LABEL (50:1) FOR RUS HIT-6698921.A13 6698921	-
148 - FILTER ELEMENT HIT-6601396.A1 6601396	-
149 - FUEL PIPE SET INCLUD.132A-134A TILL 8.2016 HIT-6601403.A1 6601403	-
161 - THROTTLE LEVER ASS'Y INCLUD.162-172 FOR (S) HIT-6600824.A1 6600824	-
162 - TAPPING SCREW ST2.9X18 FOR (S) HIT-6600832.A1 6600832	-
163 - HANDLE (B) FOR (S) HIT-6600831.A1 6600831	-
164 - STOP SWITCH FOR (S) HIT-6600833.A1 6600833	-
165 - SPRING (B) FOR (S) HIT-6600830.A1 6600830	-
166 - THROTTLE LEVER FOR (S) HIT-6600829.A1 6600829	-
167 - HANDLE (A) FOR (S) HIT-6600826.A1 6600826	-
168 - HEX. SOCKET HD. BOLT M5X30 FOR (S) HIT-6600834.A1 6600834	-
169 - TRIGGER LOCKOUT FOR (S) HIT-6600828.A1 6600828	-
170 - SPRING (A) FOR (S) HIT-6600827.A1 6600827	-
171 - THROTTLE WIRE COMP. FOR (S) HIT-6600835.A1 6600835	-
172 - NUT M5 FOR (S) HIT-6600825.A3 6600825	-
175 - BIKE HANDLE FOR (S) HIT-6600836.A1 6600836	-
176 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X35 FOR (SL) HIT-6600873.A2 6600873	-
177 - LOOP HANDLE FOR (SL) HIT-6600800.A2 6600800	-
178 - BARRIER FOR (SL) HIT-6600802.A4 6600802	-
179 - GEAR CASE ASS'Y (S) INCLUD.180-186 HIT-6600803.A0 6600803	-
180 - BOLT (W/BOLT WASHER) M6X8 HIT-6600856.A2 6600856	-
181 - HEX. SOCKET HD. BOLT M5X12 HIT-6600855.A2 6600855	-
182 - HOLDER (A) HIT-6600857.A2 6600857	-
183 - HOLDER (B) HIT-6600858.A2 6600858	-
184 - NUT COVER HIT-6600859.A2 6600859	-
185 - U-NUT (LEFT HAND) M10 HIT-6600860.A2 6600860	-
186 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X30 HIT-6600854.A2 6600854	-
191 - NYLON HEAD INCLUD.192-197 FOR (SL) HIT-6600570.A2 6600570	-
192 - NYLON HEAD COVER FOR (SL) HIT-6600806.A2 6600806	-
193 - RETURN SPRING FOR (SL) HIT-6600809.A2 6600809	-
194 - REEL FOR (SL) HIT-6600808.A2 6600808	-
195 - NYLON CORD FOR (SL) HIT-6600807.A2 6600807	-
196 - CORD GUIDE FOR (SL) HIT-6600810.A2 6600810	-
197 - NYLON HEAD CAP FOR (SL) HIT-6600811.A2 6600811	-
198 - THROTTLE LEVER ASS'Y INCLUD.199-215 FOR (SL) HIT-6600822.A2 6600822	-
199 - GRIP FOR (SL) HIT-6600852.A2 6600852	-
200 - THROTTLE COLLAR FOR (SL) HIT-6601306.A2 6601306	-
201 - NUT M5 FOR (SL) HIT-6600825.A4 6600825	-
202 - HANDLE CLAMP FOR (SL) HIT-6600853.A2 6600853	-
203 - SCREW (W/WASHERS) M5X25 FOR (SL) HIT-6600839.A2 6600839	-
204 - HANDLE (B) FOR (SL) HIT-6600850.A2 6600850	-
205 - STOP SWITCH COMP. FOR (SL) HIT-6600851.A2 6600851	-
206 - HANDLE CLAMP FOR (SL) HIT-6600843.A2 6600843	-
207 - THROTTLE LEVER FOR (SL) HIT-6600841.A2 6600841	£1.67	£2.00
208 - SPRING (C) FOR (SL) HIT-6600842.A2 6600842	-
209 - CONNECTION LEVER FOR (SL) HIT-6600849.A2 6600849	-
210 - SPRING (D) FOR (SL) HIT-6600847.A2 6600847	-
211 - TRIGGER LOCKOUT FOR (SL) HIT-6600846.A2 6600846	-
212 - SPRING (E) FOR (SL) HIT-6600848.A2 6600848	-
213 - THROTTLE WIRE COMP. FOR (SL) HIT-6600840.A2 6600840	-
214 - HANDLE (A) FOR (SL) HIT-6600845.A2 6600845	-
215 - SCREW (W/WASHERS) M5X30 FOR (SL) HIT-6600844.A2 6600844	-
216 - LOOP HANDLE RUBBER FOR (SL) HIT-6600821.A2 6600821	-
217 - HANGER ASS'Y INCLUD.218 HIT-6600818.A2 6600818	-
218 - HANGER CLAMP HIT-6600838.A3 6600838	-
219 - HANGER HIT-6600837.A1 6600837	-
220 - HEX. HOLE BUTTON BOLT M6X25 HIT-6600813.A3 6600813	-
221 - COVER BRACKET HIT-6600812.A1 6600812	-
222 - CAUTION MARK HIT-6600450.A8 6600450	-
223 - LEVEL MARK (A) FOR (SL) HIT-6601305.A1 6601305	-
224 - MAIN PIPE HIT-6600816.A2 6600816	-
225 - DRIVE SHAFT HIT-6600817.A2 6600817	£13.86	£16.63
226 - GUARD HIT-6601299.A1 6601299	-
227 - COVER GUARD (EU) HIT-6601333.A2 6601333	-
228A - TAPPING SCREW 4X14 HIT-6684751.A34 6684751	£1.67	£2.00
229 - KNIFE HIT-6601302.A3 6601302	-
230 - HEX. HOLE BOLT M5X25/S FOR (S) HIT-6684709.A39 6684709	£1.67	£2.00
231 - HANDLE HOLDER (A) FOR (S) HIT-6600500.A16 6600500	-
232 - HANDLE HOLDER (B) FOR (S) HIT-6600501.A15 6600501	-
233 - HANDLE HOLDER (C) FOR (S) HIT-6696578.A16 6696578	-
234 - HEX. HOLE BUTTON BOLT M6X25 FOR (S) HIT-6684714.A148 6684714	£1.67	£2.00
235 - HANDLE HOLDER SET INCLUD.230-234 FOR (S) HIT-6601521.A1 6601521	-
251 - FLEXIBLE SHAFT FOR (SLB) HIT-6698325.A5 6698325	£18.52	£22.23
252 - MAIN PIPE ASS'Y INCLUD.251 HIT-6601405.A1 6601405	-
253 - CUTTER CASE INCLUD.254 HIT-6600494.A3 6600494	-
254 - BEARING WASHER FOR (SLB) HIT-6698331.A6 6698331	-
255 - HEX. SOCKET HD. BOLT M5X10 (10 PCS.) FOR (SLB) HIT-949819.A5 949819	£2.98	£3.57
256 - BOLT M6 FOR (SLB) HIT-6698334.A6 6698334	£4.45	£5.34
257 - GUARD BRACKET FOR (SLB) HIT-6698335.A1 6698335	£4.45	£5.34
258 - HEX. SOCKET HD. BOLT M5X25 (10 PCS.) FOR (SLB) HIT-949662.A13 949662	£3.64	£4.37
259 - GUARD FOR (SLB) HIT-6698809.A1 6698809	£20.26	£24.31
260 - MACHINE SCREW M5X14 (10 PCS.) FOR (SLB) HIT-949238.A8 949238	£1.67	£2.00
261 - WASHER M5 (10 PCS.) FOR (SLB) HIT-949424.A3 949424	£1.67	£2.00
262 - KNIFE FOR (SLB) HIT-6698333.A0 6698333	£10.10	£12.12
263 - SPRING WASHER M5 (10 PCS.) FOR (SLB) HIT-949454.A139 949454	£1.67	£2.00
264 - NUT M5 (10 PCS.) FOR (SLB) HIT-949555.A19 949555	£1.67	£2.00
265 - NYLON HEAD (B) INCLUD.193-197 HIT-6601376.A3 6601376	-
266 - NYLON HEAD COVER (B) FOR (SLB) HIT-6601375.A0 6601375	-
501 - BOX SPANNER 16X17MM HIT-6600574.A1 6600574	-
502 - HEX. BAR WRENCH 4MM HIT-944458.A37 944458	£1.67	£2.00
503 - CUTTER COVER FOR (S) HIT-6600578.A1 6600578	-
504 - BLADE 255X3T FOR (S) HIT-6600577.A1 6600577	-
505 - TOOL BAG (N) HIT-6600863.A1 6600863	-
506 - SAFETY GLASSES HIT-6600576.A3 6600576	-
507 - HANGING STRAP (S) FOR (SL) HIT-6600579.A1 6600579	-
508 - HANGING STRAP (DE) FOR (S) HIT-6600580.A1 6600580	-

Attribute Name	Value
Brand	Hikoki

There are currently no reviews of this product.

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
