Hitachi / Hikoki CG22EAP2 Attachment Spare Parts

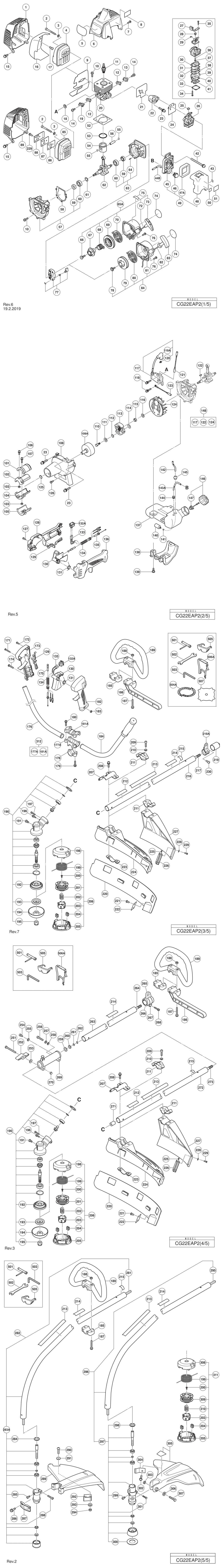

An exploded diagram and spare parts listing for the Hitachi / Hikoki CG22EAP2 Attachment

	Ex VAT	Inc VAT
1 - MUFFLER PROTECTOR EXCEPT FOR USA (SL SLD SLB) HIT-6600423.A1 6600423	£14.45	£17.34
2 - HEX. SOCKET HD. BOLT M6X55 HIT-6696819.A13 6696819	-
3 - BOLT WASHER M6 (10 PCS.) HIT-949432.A55 949432	£1.67	£2.00
4 - MUFFLER EXCEPT FOR USA (SL SLD SLB) HIT-6696554.A7 6696554	£31.92	£38.31
5 - BRAND LABEL HIT-000000.A3962 000000	-
*6 - CYLINDER COVER HIT-6600424.A0 6600424	-
*6 - CYLINDER COVER FOR USA HIT-6600425.A3 6600425	-
7 - MACHINE SCREW (W/WASHERS) M4X20 (BLACK) HIT-307606.A14 307606	£1.67	£2.00
8 - CAUTION LABEL HIT-000000.A3963 000000	-
9 - HEAT PROTECTION PANEL HIT-6600320.A24 6600320	£1.67	£2.00
10 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18 HIT-6698386.A41 6698386	-
*11 - SPARK PLUG ASS'Y BMR7A HIT-6699316.A49 6699316	£12.43	£14.92
*11 - SPARK PLUG ASS'Y CJ6 FOR USA HIT-6699322.A21 6699322	£3.73	£4.48
12 - COVER PACKING HIT-6696534.A13 6696534	£1.67	£2.00
13 - INTAKE COVER (A) HIT-6696535.A7 6696535	£1.67	£2.00
14 - HEX. SOCKET HD. BOLT M4X12 HIT-6698385.A21 6698385	-
15 - SCREW (W/WASHERS) M5X16 (BLACK) HIT-791045.A1 791045	£2.71	£3.25
16 - MUFFER HEAT COVER EXCEPT FOR USA (SL SLD SLB) HIT-6600340.A8 6600340	£8.42	£10.11
17 - TAPPING SCREW D4X10 EXCEPT FOR USA (SL SLD SLB) HIT-6600325.A28 6600325	-
18 - GLASS WASHER HIT-6698700.A35 6698700	£1.67	£2.00
19 - INTAKE COVER (B) HIT-6696536.A15 6696536	-
20 - CYLINDER HIT-6696527.A2 6696527	£35.00	£42.00
21 - INTAKE PACKING HIT-6696548.A2 6696548	£1.67	£2.00
22 - CARBURETOR INSULATOR HIT-6698387.A26 6698387	£4.72	£5.66
23 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A40 6698844	£1.67	£2.00
24 - CARBURETOR PACKING HIT-6698405.A18 6698405	£3.12	£3.74
25 - SWIVEL CAP HIT-6691337.A58 6691337	£1.67	£2.00
26 - CARBURETOR ASS'Y WYC-22 INCLUD.27-41 HIT-6696550.A2 6696550	£61.22	£73.46
27 - CABLE ADJUST STAY HIT-6699287.A21 6699287	-
28 - SWIVEL HIT-6696830.A16 6696830	-
29 - STOP RING HIT-6684696.A111 6684696	-
30 - PUMP GASKET HIT-6684692.A56 6684692	£17.28	£20.73
31 - PUMP DIAPHRAGM HIT-6684693.A100 6684693	£5.70	£6.84
32 - PUMP PLATE HIT-6691242.A16 6691242	-
33 - DIAPHRAGM COVER-METERING HIT-6685222.A38 6685222	£5.70	£6.84
34 - SET SCREW HIT-6691312.A24 6691312	-
35 - SET SCREW M3X12 HIT-6696829.A32 6696829	-
36 - O-RING HIT-6684695.A98 6684695	£1.67	£2.00
37 - MAIN JET HIT-6697947.A1 6697947	-
38 - CIRCUIT PLATE HIT-6691234.A42 6691234	-
39 - PUMP BODY COMP. HIT-6696828.A16 6696828	£13.28	£15.93
40 - DIAPHRAGM PACKING-METERING HIT-6685220.A137 6685220	£2.81	£3.37
41 - METERING DIAPHRAGM HIT-6684690.A59 6684690	£24.05	£28.86
42 - MACHINE SCREW (W/WASHERS) M5X60 (BLACK) HIT-307224.A12 307224	£1.67	£2.00
43 - MARK PLATE (T) EXCEPT FOR USA HIT-6600327.A36 6600327	-
44B - FUEL PIPE L70 HIT-6699014.A67 6699014	£2.77	£3.32
45 - AIR CLEANER HOUSING HIT-66965549.A8 66965549	£15.62	£18.74
46 - PRIMING PUMP COMP. HIT-6685139.A68 6685139	£10.67	£12.80
47A - CLEANER SPONGE HIT-6600704.A21 6600704	£5.61	£6.73
48 - AIR CLEANER COVER HIT-6696831.A15 6696831	£9.68	£11.62
49 - AIR CLEANER ASS'Y INCLUD.45-48 HIT-6696549.A12 6696549	£13.36	£16.03
50 - PRIMER LABEL EXCEPT FOR USA HIT-6699000.A26 6699000	-
51 - START LABEL (A) FOR USA HIT-002093.A0 002093	-
52 - CYLINDER PACKING HIT-6696530.A13 6696530	£1.67	£2.00
53 - PISTON RING HIT-6696532.A13 6696532	£3.56	£4.27
54 - PISTON HIT-6696531.A6 6696531	£10.77	£12.92
55 - CIR CLIP HIT-6684590.A40 6684590	£1.67	£2.00
56 - PISTON PIN HIT-6696944.A42 6696944	£5.61	£6.73
57 - CRANK CASE (B) COMP INCLUD.59 HIT-6696538.A5 6696538	£15.19	£18.23
58 - CRANK CASE PACKING HIT-6696539.A4 6696539	£1.67	£2.00
59 - OIL SEAL TB 12227 HIT-6684607.A83 6684607	£4.07	£4.88
60 - BALL BEARING 6001 C3 HIT-6684608.A118 6684608	£5.70	£6.84
*61 - SHIM T0.2 HIT-6696946.A36 6696946	£1.67	£2.00
*61 - SHIM T0.3 HIT-6696945.A3 6696945	£1.67	£2.00
62 - CRANK SHAFT COMP. HIT-6696533.A6 6696533	£42.11	£50.53
63 - CRANK CASE (A) ASS'Y INCLUD.59 HIT-6696537.A2 6696537	£15.66	£18.79
64 - KNOCK PIN 4X12 HIT-6696947.A3 6696947	-
65A - RECOIL STARTER BODY ASS'Y INCLUD.66-70 HIT-6601570.A88 6601570	£23.15	£27.78
66 - SET SCREW EXCEPT FOR EUROPE (LB) HIT-6684679.A76 6684679	£2.98	£3.57
67 - CAM PLATE EXCEPT FOR EUROPE (LB) HIT-6699996.A48 6699996	£4.28	£5.13
68 - DAMPER SPRING EXCEPT FOR EUROPE (LB) HIT-6684677.A59 6684677	£5.70	£6.84
69 - STARTER ROPE REEL EXCEPT FOR EUROPE (LB) HIT-6699997.A41 6699997	-
70 - RECOIL SPRING EXCEPT FOR EUROPE (LB) HIT-6684675.A79 6684675	£8.82	£10.58
72 - STARTER ROPE 3.5X860 EXCEPT FOR EUROPE (LB) HIT-6684674.A47 6684674	£5.70	£6.84
73 - STARTER HANDLE EXCEPT FOR EUROPE (LB) HIT-6684680.A60 6684680	£5.87	£7.04
74 - NAME PLATE HIT-000000.A3965 000000	-
75 - TANK MARK LABEL (50:1) FOR GBR (SL) HIT-6698921.A10 6698921	-
76 - SCREW (W/WASHERS) M4X16 HIT-6698398.A5 6698398	-
*77 - STARTER PULLEY ASS'Y HIT-6684681.A52 6684681	£18.16	£21.79
*77 - STARTER PULLEY ASS'Y FOR EUROPE (LB) HIT-6696471.A2 6696471	£8.35	£10.02
78 - SET SCREW FOR EUROPE (LB) HIT-6693633.A28 6693633	£1.67	£2.00
79 - RELL HIT-000000.A3966 000000	-
80 - RECOIL SPRING FOR EUROPE (LB) HIT-6684675.A80 6684675	£8.82	£10.58
81 - STARTER CASE HIT-000000.A3968 000000	-
82 - ROPE FOR EUROPE (LB) HIT-6693168.A11 6693168	£2.82	£3.39
83 - STARTER HANDLE FOR EUROPE (LB) HIT-6693227.A3 6693227	-
84 - RECOIL STARTER BODY ASS'Y INCLUD.78-83 FOR EUROPE (LB) HIT-6696572.A9 6696572	£13.43	£16.12
85 - MUFFLER ASS'Y FOR USA (SL SLD SLB) HIT-6600488.A0 6600488	-
86 - SPARK ARRESTER FOR USA (SL SLD SLB) HIT-6600489.A3 6600489	-
87 - EXHAUST PIPE GASKET FOR USA (SL SLD SLB) HIT-6600490.A2 6600490	-
88 - EXHAUST PIPE FOR USA (SL SLD SLB) HIT-6600491.A3 6600491	-
89 - MUFFLER COVER FOR USA (SL SLD SLB) HIT-6600492.A0 6600492	-
101 - ANTI VIBE RUBBER (A) HIT-6696963.A21 6696963	£3.12	£3.74
*102 - PIPE HOLDER (A) HIT-6696542.A2 6696542	£1.67	£2.00
*102 - PIPE HOLDER (A) FOR GBR (SL) HIT-6698643.A30 6698643	£3.56	£4.27
103 - NUT M5 (BLACK) EXCEPT FOR GBR (SL) HIT-302012.A23 302012	£1.67	£2.00
*104 - PIPE HOLDER (B) HIT-6696543.A5 6696543	£1.67	£2.00
*104 - PIPE HOLDER (B) FOR GBR (SL) HIT-6698644.A17 6698644	£3.56	£4.27
105 - ANTI VIBE RUBBER (B) HIT-6696964.A19 6696964	£3.02	£3.63
106 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X12 HIT-6699176.A15 6699176	£1.67	£2.00
107 - HEX. HOLE BOLT 5X22/S HIT-6695492.A56 6695492	-
*108 - FAN CASE (VERMILION) HIT-6699159.A0 6699159	£14.29	£17.15
*108 - FAN CASE (LIGHT GREEN) FOR USA HIT-6699160.A3 6699160	-
*109 - CLUTCH SHAFT FOR NOR HIT-6698790.A0 6698790	£14.47	£17.36
109A - CLUTCH SHAFT COMP HIT-6696541.A3 6696541	£14.95	£17.94
110 - STEP BOLT HIT-6696469.A28 6696469	£2.84	£3.41
111 - BENT WASHER 8 HIT-6684648.A34 6684648	£1.67	£2.00
112 - CLUTCH PLATE (A) HIT-6696546.A11 6696546	£1.67	£2.00
113 - CLUTCH HIT-6696948.A34 6696948	£15.02	£18.03
114 - CLUTCH WASHER (B) HIT-6696547.A26 6696547	£1.67	£2.00
115 - FLYWHEEL NUT HIT-6685337.A12 6685337	-
116 - BOLT WASHER M8 (BLACK) HIT-323212.A31 323212	£1.67	£2.00
117 - IGNITION COIL ASS'Y INCLUD.119A HIT-6699464.A10 6699464	£27.08	£32.49
118 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18 HIT-6698388.A47 6698388	£1.67	£2.00
119A - PLUG CAP HIT-6601421.A60 6601421	£1.67	£2.00
120 - PLUG CAP METAL HIT-6699186.A20 6699186	£1.67	£2.00
121 - CORD HIT-6696544.A14 6696544	-
122 - WOODRUFF KEY 3X13X4.5 HIT-6684899.A109 6684899	-
123 - EARTH CORD HIT-6696545.A34 6696545	-
124 - MAGNETO ROTOR HIT-6699289.A22 6699289	£24.52	£29.43
125 - RETAINING RING FOR D12 SHAFT (10 PCS.) EXCEPT FOR EUROPE (LB) HIT-939542.A76 939542	£2.98	£3.57
126 - TAPPING SCREW D4.5X16 HIT-6698878.A3 6698878	£1.67	£2.00
127 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) EXCEPT FOR EUROPE (S) HIT-305812.A82 305812	£1.67	£2.00
*128 - HANDLE (B) FOR USA HIT-6696942.A0 6696942	-
*128 - HANDLE (B) EXCEPT FOR USA HIT-6696487.A14 6696487	£5.88	£7.06
129 - LOCK LEVER EXCEPT FOR USA HIT-6696490.A29 6696490	£2.84	£3.41
130 - LEVER HIT-6696488.A25 6696488	£1.67	£2.00
131 - SPRING (A) HIT-6696489.A11 6696489	£2.84	£3.41
132A - STOP SWITCH HIT-6601275.A64 6601275	£1.67	£2.00
*133 - STOP SWITCH CORD HIT-6696491.A18 6696491	-
*133 - STOP SWITCH CORD FOR EUROPE (S) HIT-6696592.A15 6696592	-
*134 - PROTECTION TUBE HIT-6696967.A21 6696967	-
*134 - PROTECTION TUBE FOR EUROPE (S) HIT-6696594.A12 6696594	-
135 - THROTTLE WIRE COMP. EXCEPT FOR EUROPE (S) HIT-6696560.A16 6696560	£8.35	£10.02
*136 - HANDLE (A) FOR USA HIT-6696941.A22 6696941	-
*136 - HANDLE (A) EXCEPT FOR USA HIT-6696486.A19 6696486	£5.88	£7.06
*137 - TANK HIT-6696569.A6 6696569	£7.75	£9.30
*137 - TANK FOR USA HIT-6696552.A6 6696552	-
138 - STAND FOR USA HIT-6696556.A0 6696556	-
*139 - BOLT (W/FLANGE) L17.8 HIT-6696574.A9 6696574	£1.67	£2.00
*139 - FLANGE BOLT FOR USA HIT-6696557.A31 6696557	£1.67	£2.00
140 - PUMP FILTER HIT-6600351.A64 6600351	£4.45	£5.34
141 - CLIP HIT-6696949.A1 6696949	£1.67	£2.00
*142 - FUEL PIPE HIT-6698716.A26 6698716	£5.61	£6.73
*142 - FUEL PIPE L180 FOR USA HIT-6698932.A11 6698932	-
143A - FUEL PIPE L70 HIT-6699014.A68 6699014	£2.77	£3.32
144 - RETURN GROMMET HIT-6697846.A35 6697846	£1.68	£2.01
145 - FUEL GROMMET HIT-6688156.A69 6688156	-
146 - FUEL TANK CAP ASS'Y INCLUD.147 HIT-6698402.A12 6698402	-
147 - TANK CAP CHAIN HIT-6698732.A52 6698732	-
171 - TAPPING SCREW (W/FLANGE) D4X30 FOR EUROPE (S) HIT-323837.A9 323837	-
172 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) FOR EUROPE (S) HIT-302086.A19 302086	£1.67	£2.00
173 - HANDLE (B) FOR EUROPE (S) HIT-6696590.A15 6696590	-
174 - MACHINE SCREW M5X30 (BLACK) FOR EUROPE (S) HIT-323041.A9 323041	-
175 - THROTTLE WIRE COMP. FOR EUROPE (S) HIT-6696593.A5 6696593	£7.12	£8.54
176 - HANDLE RIGHT FOR EUROPE (S) HIT-6696585.A5 6696585	-
177A - HANDLE HOLDER (B) SINCE 7.2015 FOR EUROPE (S) HIT-6600501.A22 6600501	-
178 - HANDLE HOLDER (C) FOR EUROPE (S) HIT-6696578.A22 6696578	-
179 - HEX. HOLE BUTTON BOLT M6X25 FOR EUROPE (S) HIT-6684714.A108 6684714	£1.67	£2.00
180 - HEX. HOLE BOLT M5X25/S FOR EUROPE (S) HIT-6684709.A52 6684709	£1.67	£2.00
181A - HANDLE HOLDER (A) SINCE 7.2015 FOR EUROPE (S) HIT-6600500.A9 6600500	-
182 - HANDLE (A) FOR EUROPE (S) HIT-6696588.A9 6696588	-
183 - NUT M5 (BLACK) FOR EUROPE (S) HIT-302012.A24 302012	£1.67	£2.00
184 - HANDLE LEFT FOR EUROPE (S) HIT-6696595.A2 6696595	-
185 - HANDLE HOLDER (A) FOR USA HIT-6696972.A6 6696972	-
186 - BARRIER FOR EUROPE (SL SLD) HIT-6696973.A19 6696973	£8.35	£10.02
187 - BOLT (BLACK) M6 HIT-6696974.A14 6696974	£1.67	£2.00
188 - NUT M6 (10 PCS.) HIT-949556.A33 949556	£1.67	£2.00
189 - LOOP HANDLE HIT-6696975.A19 6696975	£13.36	£16.03
*190 - GEAR CASE ASS'Y 3BB (A) INCLUD.191-197 FOR EUROPE (S HIT-6699402.A13 6699402	-
*190 - GEAR CASE ASS'Y 3BB (B) INCLUD.191 HIT-6696976.A8 6696976	£60.73	£72.88
191 - BOLT (W/PLUS) M6X8 FOR EUROPE (S HIT-6684737.A41 6684737	-
192 - CUTTER HOLDER (A) FOR EUROPE (S HIT-6696977.A16 6696977	£18.01	£21.61
193 - CUTTER HOLDER (B) FOR EUROPE (S HIT-6698659.A44 6698659	£15.99	£19.19
194 - NUT COVER FOR EUROPE (S SL SLD) HIT-6699188.A22 6699188	£10.93	£13.12
195 - U-NUT (LEFT HAND) M10 FOR EUROPE (S HIT-335759.A13 335759	£1.67	£2.00
*196 - SCREW 5X12/W.S FOR EUROPE (S SL SLD) HIT-6695414.A39 6695414	£1.67	£2.00
*197 - HEX. SOCKET HD. BOLT M5X30 (10 PCS.) FOR EUROPE (S HIT-949664.A42 949664	£4.33	£5.20
198 - COVER FOR EUROPE (S SL SLD) HIT-6698794.A17 6698794	£17.58	£21.09
199 - NYLON CORD HIT-000000.A3974 000000	-
200 - SET SCREW HIT-6698795.A20 6698795	-
201 - REEL EXCEPT FOR NOR (LB) HIT-6698796.A24 6698796	£7.12	£8.54
202 - RETURN SPRING EXCEPT FOR NOR (LB) HIT-6698797.A13 6698797	£1.67	£2.00
203 - BUTTON HIT-6698798.A24 6698798	£7.12	£8.54
204 - CORD GUIDE HIT-6698799.A15 6698799	£7.12	£8.54
205 - CASE HIT-6698800.A17 6698800	£14.11	£16.93
*206 - NYLON HEAD ASS'Y INCLUD.198-205 EXCEPT FOR NOR (LB) HIT-6696454.A18 6696454	£48.12	£57.75
207 - COVER BRACKET FOR EUROPE (S SL SLD) HIT-6696494.A14 6696494	£3.02	£3.63
208 - HEX. HOLE BUTTON BOLT M6X25 FOR EUROPE (S SL SLD) HIT-6684714.A109 6684714	£1.67	£2.00
209 - HEX. SOCKET HD. BOLT (W/BUTTON) M6X20 FOR USA (SL HIT-6685064.A9 6685064	-
210 - SPRING WASHER M6 (10 PCS.) FOR USA (SL HIT-949455.A60 949455	£1.67	£2.00
211 - COVER BRACKET FOR USA (SL SLD) HIT-6696978.A13 6696978	-
*213 - CAUTION MARK HIT-6600450.A2 6600450	-
*213 - CAUTION MARK (USA) HIT-6600447.A2 6600447	-
214 - LEVEL MARK (B) EXCEPT FOR EUROPE (S) HIT-6600446.A11 6600446	-
*215 - LEVEL MARK FOR EUROPE (S SL SLD LB) HIT-6684851.A29 6684851	-
216 - MAIN PIPE COMP. FOR EUROPE (S SL) HIT-6696558.A5 6696558	£22.07	£26.48
217 - DRIVE SHAFT FOR EUROPE (S SL) HIT-6698514.A28 6698514	£19.46	£23.35
218A - HANGER FOR EUROPE (S SL) HIT-6600504.A47 6600504	£1.67	£2.00
219 - CAP (A) FOR EUROPE (S HIT-6698515.A0 6698515	-
220 - COVER GUARD FOR EUROPE (S SL SLD) HIT-6696950.A35 6696950	£11.18	£13.42
221 - TAPPING SCREW 4X14 FOR EUROPE (S SL SLD) HIT-6684751.A0 6684751	£1.67	£2.00
222 - KNIFE FOR EUROPE (S SL SLD) HIT-6684750.A89 6684750	£3.64	£4.37
223 - GUARD HOLDER FOR EUROPE (S SL SLD) HIT-6696951.A1 6696951	£3.02	£3.63
224 - GUARD FOR EUROPE (S SL SLD) HIT-6696980.A24 6696980	£27.49	£32.99
225 - NUT M4 (10 PCS.) FOR USA (SL HIT-949554.A27 949554	£1.67	£2.00
226 - KNIFE FOR USA (SL SLD) HIT-6696584.A18 6696584	-
227 - GUARD FOR USA (SL SLD) HIT-6696583.A3 6696583	-
228 - BOLT WASHER M4 (BLACK) FOR USA (SL HIT-323210.A30 323210	-
229 - MACHINE SCREW (W/SP. WASHER) M4X12 EXCEPT FOR USA (SL HIT-6685068.A9 6685068	-
*229 - MACHINE SCREW (W/SP. WASHER) M4X12 FOR USA (SL HIT-6685068.A10 6685068	-
230 - MACHINE SCREW M5X10 (10 PCS.) FOR EUROPE (S HIT-949236.A9 949236	£1.67	£2.00
251 - HEX. BOLT 6X50 FOR EUROPE (SLD) HIT-6684824.A6 6684824	£1.67	£2.00
252 - HANDLE KNOB FOR EUROPE (SLD) HIT-6684823.A17 6684823	£3.51	£4.21
253 - SPECIAL WASHER B FOR EUROPE (SLD) HIT-6684822.A17 6684822	£1.67	£2.00
254 - HEX. SOCKET HD. BOLT M5X12 FOR EUROPE (SLD) HIT-6684829.A29 6684829	-
255 - SPRING WASHER M5 FOR EUROPE (SLD) HIT-6698884.A22 6698884	-
256 - HEX. SOCKET HD. BOLT (W/BUTTON) M6 FOR EUROPE (SLD) HIT-6684825.A15 6684825	£1.67	£2.00
257 - SPRING WASHER M6 (10 PCS.) FOR EUROPE (SLD) HIT-949455.A59 949455	£1.67	£2.00
258 - WASHER M6 (10 PCS.) FOR EUROPE (SLD) HIT-949425.A41 949425	£1.67	£2.00
259 - SPACER 1.6 FOR EUROPE (SLD) HIT-6689139.A6 6689139	£2.84	£3.41
260 - SPACER FOR EUROPE (SLD) HIT-6684819.A9 6684819	-
261 - PULLEY WASHER FOR EUROPE (SLD) HIT-6684820.A7 6684820	-
262 - RETAINING RING FOR D10 SHAFT (10 PCS.) FOR EUROPE (SLD) HIT-939540.A7 939540	£1.67	£2.00
263 - MAIN PIPE COMP. FOR EUROPE (SLD) HIT-6684815.A2 6684815	£64.29	£77.15
264 - DRIVE SHAFT A FOR EUROPE (SLD) HIT-6684814.A1 6684814	£38.90	£46.68
265 - HANGER FOR EUROPE (SLD) HIT-6684705.A5 6684705	-
266 - HANGER COLLAR FOR EUROPE (SLD) HIT-6684704.A1 6684704	-
267 - HANGER FIXING BRACKET FOR EUROPE (SLD) HIT-6684706.A1 6684706	-
268 - HEX. HOLE BOLT M5X25/S FOR EUROPE (SLD) HIT-6684709.A36 6684709	£1.67	£2.00
269 - JOINT CASE FOR EUROPE (SLD) HIT-6684817.A2 6684817	£35.67	£42.80
270 - CAP NUT 6 FOR EUROPE (SLD) HIT-6684828.A7 6684828	£1.67	£2.00
271 - BUSHING FOR EUROPE (SLD) HIT-6684833.A21 6684833	£3.85	£4.62
272 - DRIVE SHAFT COMP FOR EUROPE (SLD) HIT-6697838.A3 6697838	£25.30	£30.36
273 - DRIVE SHAFT B 783L FOR EUROPE (SLD) HIT-6684832.A3 6684832	£35.25	£42.30
281 - FLEXIBLE SHAFT FOR EUROPE (LB) HIT-6698325.A4 6698325	£18.52	£22.23
282 - MAIN PIPE ASS'Y INCLUD.281 HIT-6696580.A0 6696580	£56.58	£67.89
*283A - CUTTER CASE INCLUD.284 HIT-6600494.A4 6600494	-
284 - BEARING WASHER FOR EUROPE (LB) HIT-6698331.A7 6698331	-
285 - HEX. SOCKET HD. BOLT M5X10 (10 PCS.) FOR EUROPE (LB) HIT-949819.A4 949819	£2.98	£3.57
286 - BOLT M6 FOR EUROPE (LB) HIT-6698334.A7 6698334	£4.45	£5.34
287 - GUARD BRACKET FOR EUROPE (LB) HIT-6698335.A0 6698335	£4.45	£5.34
288 - HEX. SOCKET HD. BOLT M5X25 (10 PCS.) FOR EUROPE (LB) HIT-949662.A12 949662	£3.64	£4.37
289 - GUARD FOR EUROPE (LB) HIT-6698809.A0 6698809	£20.26	£24.31
290 - MACHINE SCREW M5X14 (10 PCS.) FOR EUROPE (LB) HIT-949238.A9 949238	£1.67	£2.00
291 - WASHER M5 (10 PCS.) FOR EUROPE (LB) HIT-949424.A2 949424	£1.67	£2.00
292 - KNIFE FOR EUROPE (LB) HIT-6698333.A1 6698333	£10.10	£12.12
293 - SPRING WASHER M5 (10 PCS.) FOR EUROPE (LB) HIT-949454.A138 949454	£1.67	£2.00
294 - NUT M5 (10 PCS.) FOR EUROPE (LB) HIT-949555.A18 949555	£1.67	£2.00
295 - FLEXIBLE SHAFT (A) FOR USA (SLB) HIT-6685038.A2 6685038	£13.02	£15.62
296 - MAIN PIPE (A) ASS'Y INCLUD.295 HIT-6696582.A3 6696582	-
297 - CUTTER CASE (A) INCLUD.298-301 FOR USA (SLB) HIT-6698811.A1 6698811	-
298 - BEARING WASHER (A) FOR USA (SLB) HIT-6698340.A3 6698340	-
299 - BOLT M5X10 (10 PCS.) FOR USA (SLB) HIT-949707.A0 949707	-
300 - WASHER FOR USA (SLB) HIT-6685001.A4 6685001	-
301 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X28 HIT-000000.A5760 000000	-
302 - TAPPING SCREW D5X16 FOR USA (SLB) HIT-6685074.A14 6685074	-
303 - NUT M6 FOR USA (SLB) HIT-6684792.A19 6684792	-
304 - KNIFE FOR USA (SLB) HIT-6685015.A6 6685015	£2.81	£3.37
305 - GUARD (W/CAUTION LABEL) FOR USA (SLB) HIT-6699075.A1 6699075	-
306 - BOLT WASHER 6 FOR USA (SLB) HIT-6684639.A193 6684639	£1.67	£2.00
307 - PLUS BOLT M6X45 FOR USA (SLB) HIT-6684995.A6 6684995	-
308 - COVER FOR EUROPE (LB) HIT-6698801.A3 6698801	£17.65	£21.18
309 - REEL FOR EUROPE (LB) HIT-6698802.A0 6698802	£8.85	£10.62
310 - RETURN SPRING FOR EUROPE (LB) HIT-6698803.A3 6698803	£1.67	£2.00
*311 - NYLON HEAD (R) INCLUD.199 HIT-6696597.A0 6696597	£21.85	£26.22
312 - HANDLE HOLDER (A).(B) SET INCLUD.177A HIT-6600499.A22 6600499	-
*312 - HANDLE HOLDER (A).(B) SET FOR EUROPE (S) HIT-6600499.A23 6600499	-
501 - BOX WRENCH (HEX. SOCKET 17/19) HIT-6684764.A96 6684764	£7.64	£9.17
502 - WRENCH 8X10 FOR EUROPE (S SL LB) HIT-6696596.A27 6696596	-
503 - HEX. BAR WRENCH 4MM HIT-944458.A39 944458	£1.67	£2.00
504A - CUTTER COVER FOR EUROPE (S) HIT-6684768.A0 6684768	-
505 - PROTECTIVE GLASSES HIT-875769.A16 875769	-
506A - SHOULDER BELT SINGLE FOR EUROPE (S SL SLD) HIT-6601420.A19 6601420	-
507 - CUTTING BLADE 4X230 1 HIT-6684767.A5 6684767	£15.17	£18.20

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki CG22EAP2 Attachment Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
