Hitachi / Hikoki CG22EAD Engine Brush Cutter Spare Parts

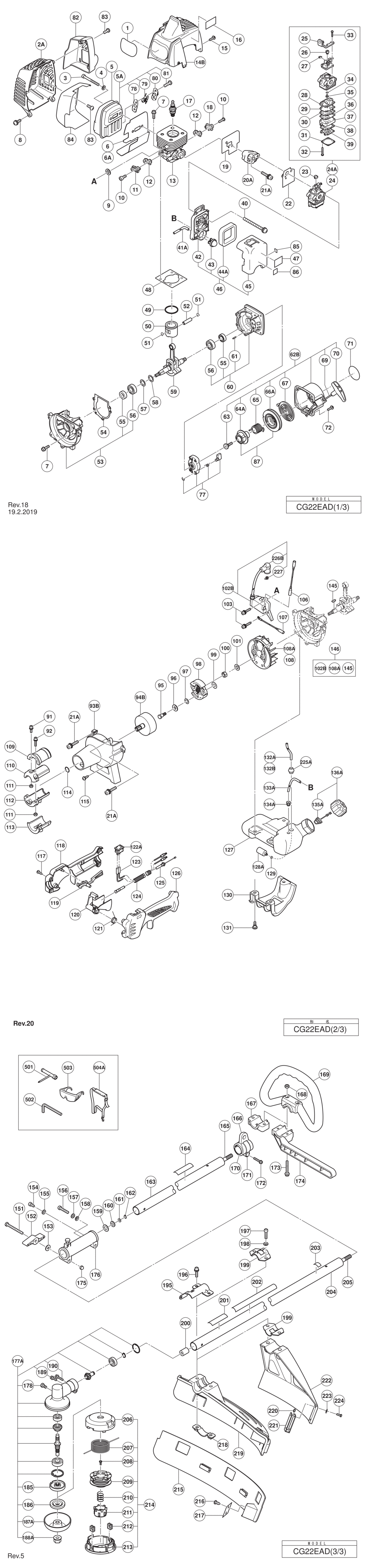

An exploded diagram and spare parts listing for the Hitachi / Hikoki CG22EAD Engine Brush Cutter

	Ex VAT	Inc VAT
1 - BRAND LABEL HIT-000000.A598 000000	-
2A - MUFFLER PROTECTOR HIT-6600338.A2 6600338	£8.35	£10.02
*2A - MUFFLER PROTECTOR SINCE 11.2013 FOR EUROPE HIT-6600423.A2 6600423	£14.45	£17.34
3 - HEX. HOLE BOLT M6X55 HIT-6684638.A19 6684638	£1.67	£2.00
4 - BOLT WASHER M6 (10 PCS.) HIT-949432.A3 949432	£1.67	£2.00
*5 - MUFFLER HIT-6696570.A4 6696570	£9.68	£11.62
*5 - MUFFLER FOR EUROPE (SLP) HIT-6696554.A3 6696554	£31.92	£38.31
5A - MUFFLER INCLUD.78-81 FOR AUS (SL S) HIT-6698477.A8 6698477	£15.61	£18.73
6 - HEAT PROTECTION PANEL HIT-6696553.A6 6696553	£3.02	£3.63
6A - HEAT PROTECTION PANEL SINCE 11.2013 FOR EUROPE HIT-6600320.A10 6600320	£1.67	£2.00
7 - HEX.HOLE BOLT M5X18/S HIT-6684586.A30 6684586	-
8 - SCREW (W/WASHERS) M5X16 (BLACK) HIT-791045.A31 791045	£2.71	£3.25
9 - WASHER T1.6 FOR EUROPE (SLP) HIT-6684600.A33 6684600	-
10 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12 HIT-6684595.A28 6684595	£1.67	£2.00
11 - INTAKE COVER (B) HIT-6696536.A13 6696536	-
12 - COVER PACKING HIT-6696534.A11 6696534	£1.67	£2.00
13 - CYLINDER HIT-6696527.A4 6696527	£35.00	£42.00
*14B - CYLINDER COVER HIT-6600424.A5 6600424	-
*14B - CYLINDER COVER FOR USA (SLP) HIT-6600425.A2 6600425	-
15 - MACHINE SCREW (W/WASHERS) M4X20 (BLACK) HIT-307606.A23 307606	£1.67	£2.00
16 - CAUTION LABEL (EU) HIT-000000.A599 000000	-
*17A - SPARK PLUG ASS'Y BMR7A HIT-6699316.A15 6699316	£12.43	£14.92
*17A - SPARK PLUG ASS'Y CJ6 FOR USA (SLP) HIT-6699322.A41 6699322	£3.73	£4.48
*17A - SPARK PLUG ASS'Y CJ6 UAE (SL) HIT-6699322.A42 6699322	£3.73	£4.48
18 - INTAKE COVER (A) HIT-6696535.A9 6696535	£1.67	£2.00
19 - INTAKE PACKING HIT-6696548.A4 6696548	£1.67	£2.00
20A - CARBURETOR INSULATOR HIT-6698387.A34 6698387	£4.72	£5.66
21A - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A32 6698844	£1.67	£2.00
22 - CARBURETOR PACKING HIT-6684616.A33 6684616	£1.67	£2.00
24 - CARBURETOR ASS'Y WYC-22 INCLUD.25-39 HIT-6696550.A4 6696550	£61.22	£73.46
24A - CARBURETOR ASS'Y WYC-28 INCLUD.25-39 FOR AUS HIT-6698474.A8 6698474	£63.80	£76.56
25 - BRACKET CABLE HIT-000000.A600 000000	-
26 - SWIVEL HIT-000000.A601 000000	-
27 - STOP RING HIT-6684696.A76 6684696	-
28 - PUMP GASKET HIT-6684692.A76 6684692	£17.28	£20.73
29 - PUMP DIAPHRAGM HIT-6684693.A73 6684693	£5.70	£6.84
30 - PUMP PLATE HIT-6691242.A39 6691242	-
31 - DIAPHRAGM COVER-METERING HIT-6685222.A146 6685222	£5.70	£6.84
32 - SET SCREW HIT-6691312.A91 6691312	-
33 - SCREW HIT-000000.A602 000000	-
34 - O-RING HIT-6684695.A122 6684695	£1.67	£2.00
35 - JET HIT-000000.A603 000000	-
36 - CIRCUIT PLATE HIT-6691234.A22 6691234	-
37 - BODY ASS'Y PUMP HIT-000000.A604 000000	-
38 - DIAPHRAGM PACKING-METERING HIT-6685220.A32 6685220	£2.81	£3.37
39 - METERING DIAPHRAGM HIT-6684690.A78 6684690	£24.05	£28.86
40 - MACHINE SCREW (W/WASHERS) M5X60 (BLACK) HIT-307224.A30 307224	£1.67	£2.00
41A - FUEL PIPE HIT-6698720.A11 6698720	£4.72	£5.66
42 - AIR CLEANER HOUSING HIT-66965549.A28 66965549	£15.62	£18.74
43 - PRIMING PUMP COMP. HIT-6685139.A129 6685139	£10.67	£12.80
44A - CLEANER SPONGE HIT-6600704.A0 6600704	-
45 - AIR CLEANER COVER HIT-6696831.A4 6696831	£9.68	£11.62
46 - AIR CLEANER ASS'Y INCLUD.42-45 HIT-6696549.A6 6696549	£13.36	£16.03
47 - START LABEL (A) HIT-000000.A605 000000	-
48 - CYLINDER PACKING HIT-6696530.A11 6696530	£1.67	£2.00
49 - PISTON RING HIT-6696532.A11 6696532	£3.56	£4.27
50 - PISTON HIT-6696531.A8 6696531	£10.77	£12.92
51 - CIR CLIP HIT-6684590.A76 6684590	£1.67	£2.00
52 - PISTON PIN HIT-6696944.A15 6696944	£5.61	£6.73
53 - CRANK CASE (B) COMP INCLUD.55 HIT-6696538.A3 6696538	£15.19	£18.23
54 - CRANK CASE PACKING HIT-6696539.A9 6696539	£1.67	£2.00
55 - OIL SEAL TB 12227 HIT-6684607.A163 6684607	£4.07	£4.88
56 - BALL BEARING 6001 C3 HIT-6684608.A42 6684608	£5.70	£6.84
57 - SHIM T0.2 HIT-6696946.A8 6696946	£1.67	£2.00
58 - SHIM T0.3 HIT-6696945.A27 6696945	£1.67	£2.00
59 - CRANK SHAFT COMP. HIT-6696533.A16 6696533	£42.11	£50.53
60 - CRANK CASE (A) ASS'Y INCLUD.55 HIT-6696537.A4 6696537	£15.66	£18.79
61 - KNOCK PIN 4X12 HIT-6695521.A2 6695521	-
62B - RECOIL STARTER BODY ASS'Y INCLUD.63-67 HIT-6601570.A17 6601570	£23.15	£27.78
63 - SET SCREW HIT-6684679.A123 6684679	£2.98	£3.57
64A - CAM PLATE SINCE 9.2013 HIT-6699996.A57 6699996	£4.28	£5.13
65 - DAMPER SPRING HIT-6684677.A74 6684677	£6.66	£7.99
66A - STARTER ROPE REEL SINCE 9.2013 HIT-6699997.A32 6699997	-
67 - RECOIL SPRING HIT-6684675.A55 6684675	£8.82	£10.58
69 - STARTER ROPE 3.5X860 HIT-6684674.A56 6684674	£5.70	£6.84
70 - STARTER HANDLE HIT-6684680.A28 6684680	£5.87	£7.04
71 - NAME PLATE HIT-000000.A607 000000	-
72 - MACHINE SCREW (W/WASHERS) M4X16 HIT-993539.A19 993539	£1.67	£2.00
77 - STARTER PULLEY ASS'Y HIT-6684681.A89 6684681	£18.16	£21.79
78 - MUFFLER SPECIAL GASKET FOR AUS (SL S) HIT-6684650.A2 6684650	£1.67	£2.00
79 - SPARK ARRESTOR FOR AUS (SL S) HIT-6684652.A1 6684652	£2.81	£3.37
80 - EXHAUST PIPE FOR AUS (SL S) HIT-6685047.A4 6685047	-
81 - MACHINE SCREW (W/SP. WASHER) M4X12 FOR AUS (SL HIT-6685068.A43 6685068	-
82 - MUFFLER REAR COVER SINCE 11.2013 HIT-6600339.A3 6600339	£8.11	£9.73
83 - TAPPING SCREW D4X10 SINCE 11.2013 HIT-6600325.A12 6600325	-
84 - MUFFER HEAT COVER SINCE 11.2013 HIT-6600340.A3 6600340	£8.42	£10.11
85 - MARK PLATE (T) SINCE 11.2013 FOR EUROPE HIT-6600327.A9 6600327	-
86 - PRIMER LABEL SINCE 11.2013 FOR EUROPE HIT-6699000.A4 6699000	-
87 - CAMPLATE ASS'Y INCLUD.64A HIT-6699691.A57 6699691	£7.75	£9.30
91 - HEX.HOLE BOLT M5X12/S HIT-6684667.A44 6684667	£1.67	£2.00
92 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X20 HIT-305583.A7 305583	£1.67	£2.00
*93B - FAN CASE (VERMILION) HIT-6699159.A4 6699159	£14.29	£17.15
*93B - FAN CASE (LIGHT GREEN) FOR USA (SLP) HIT-6699160.A2 6699160	-
94B - CLUTCH SHAFT COMP HIT-6696541.A1 6696541	£14.95	£17.94
95 - STEP BOLT HIT-6696469.A34 6696469	£2.84	£3.41
96 - BENT WASHER 8 HIT-6684648.A73 6684648	£1.67	£2.00
97 - CLUTCH PLATE (A) HIT-6696546.A21 6696546	£1.67	£2.00
98 - CLUTCH HIT-6696948.A7 6696948	£15.02	£18.03
99 - CLUTCH WASHER (B) HIT-6696547.A13 6696547	£1.67	£2.00
100 - FLYWHEEL NUT HIT-6685337.A41 6685337	-
101 - BOLT WASHER M8 (BLACK) HIT-323212.A43 323212	£1.67	£2.00
102B - IGNITION COIL ASS'Y INCLUD.226B HIT-6699464.A5 6699464	£27.08	£32.49
103 - HEX. HOLE BOLT M4X18/WS HIT-6684599.A41 6684599	-
106 - CORD HIT-6696544.A23 6696544	-
107 - EARTH CORD HIT-6696545.A18 6696545	-
108 - MAGNETO ROTOR COMP. TILL 7.2013 HIT-6696928.A19 6696928	£50.30	£60.36
108A - MAGNETO ROTOR SINCE 8.2013 HIT-6699289.A15 6699289	£24.52	£29.43
109 - ANTI VIBE RUBBER (A) HIT-6696963.A37 6696963	£3.12	£3.74
110 - PIPE HOLDER (A) HIT-6696542.A4 6696542	£1.67	£2.00
111 - NUT M5 (BLACK) HIT-302012.A30 302012	£1.67	£2.00
112 - PIPE HOLDER (B) HIT-6696543.A3 6696543	£1.67	£2.00
113 - ANTI VIBE RUBBER (B) HIT-6696964.A3 6696964	£3.02	£3.63
114 - RETAINING RING FOR D12 SHAFT (10 PCS.) HIT-939542.A30 939542	£2.98	£3.57
115 - TAPPING SCREW D4.5X16 HIT-6684636.A29 6684636	£1.67	£2.00
117 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A48 305812	£1.67	£2.00
*118 - HANDLE (B) HIT-6696487.A9 6696487	£5.88	£7.06
*118 - HANDLE (B) FOR USA (SLP) HIT-6696942.A19 6696942	-
*119 - LOCK LEVER FOR EUROPE (SLP) HIT-6696490.A34 6696490	£2.84	£3.41
120 - LEVER HIT-6696488.A30 6696488	£1.67	£2.00
121 - SPRING (A) HIT-6696489.A8 6696489	£2.84	£3.41
122A - STOP SWITCH HIT-6601275.A12 6601275	£1.67	£2.00
123 - STOP SWITCH CORD HIT-6696491.A11 6696491	-
124 - PROTECTION TUBE HIT-6696967.A27 6696967	-
125 - THROTTLE WIRE COMP. HIT-6696560.A6 6696560	£8.35	£10.02
*126 - HANDLE (A) HIT-6696486.A25 6696486	£5.88	£7.06
*126 - HANDLE (A) FOR USA (SLP) HIT-6696941.A5 6696941	-
*127 - TANK HIT-6696569.A3 6696569	£7.75	£9.30
*127 - TANK FOR USA (SLP) HIT-6696552.A4 6696552	-
128A - PUMP FILTER HIT-6600351.A4 6600351	£4.45	£5.34
129 - CLIP HIT-6696949.A61 6696949	£1.67	£2.00
130 - STAND FOR USA (SLP) HIT-6696556.A5 6696556	-
*131 - BOLT (W/FLANGE) L17.8 HIT-6696574.A52 6696574	£1.67	£2.00
*131 - FLANGE BOLT FOR USA (SLP) HIT-6696557.A11 6696557	£1.67	£2.00
132A - FUEL PIPE HIT-6698716.A6 6698716	£5.61	£6.73
132B - FUEL PIPE L180 FOR USA HIT-6698932.A7 6698932	-
133A - FUEL PIPE L70 HIT-6699014.A12 6699014	£2.77	£3.32
134A - RETURN GROMMET HIT-6697846.A102 6697846	£2.08	£2.50
*135A - TANK CAP CHAIN FOR EUROPE (SLP) HIT-6698732.A39 6698732	-
*135A - TANK CAP CHAIN CAN (SLP) HIT-6698732.A40 6698732	-
*136A - FUEL TANK CAP ASS'Y INCLUD.135A FOR EUROPE (SLP) HIT-6698402.A50 6698402	-
*136A - FUEL TANK CAP ASS'Y USA (SLP) HIT-6698402.A51 6698402	-
*136A - FUEL TANK CAP ASS'Y CHN (SL) HIT-6698402.A52 6698402	-
145 - WOODRUFF KEY 3X13X4.5 SINCE 8.2013 HIT-6684899.A35 6684899	-
146 - MAGNETO KEY SET INCLUD.102B HIT-6699463.A7 6699463	£34.78	£41.74
151 - HEX. BOLT 6X50 HIT-6684824.A14 6684824	£1.67	£2.00
152 - HANDLE KNOB HIT-6684823.A9 6684823	£3.51	£4.21
153 - SPECIAL WASHER B HIT-6684822.A40 6684822	£1.67	£2.00
154 - HEX. SOCKET HD. BOLT M5X12 HIT-6684829.A13 6684829	-
155 - SPRING WASHER M5 (10 PCS.) HIT-949454.A24 949454	£1.67	£2.00
156 - HEX. SOCKET HD. BOLT (W/BUTTON) M6 HIT-6684825.A10 6684825	£1.67	£2.00
157 - SPRING WASHER M6 (10 PCS.) HIT-949455.A129 949455	£1.67	£2.00
158 - WASHER M6 (10 PCS.) HIT-949425.A11 949425	£1.67	£2.00
160 - SPACER HIT-6684819.A8 6684819	-
161 - PULLEY WASHER HIT-6684820.A8 6684820	-
162 - RETAINING RING FOR D10 SHAFT (10 PCS.) HIT-939540.A30 939540	£1.67	£2.00
163 - MAIN PIPE COMP. HIT-6684815.A1 6684815	£64.29	£77.15
164 - LEVEL MARK HIT-000000.A611 000000	-
165 - DRIVE SHAFT A HIT-6684814.A4 6684814	£38.90	£46.68
166 - HANGER HIT-6684705.A2 6684705	-
*167 - HANDLE HOLDER (A) FUR USA (SLP) HIT-6696972.A17 6696972	-
168 - NUT M6 (10 PCS.) HIT-949556.A62 949556	£1.67	£2.00
169 - LOOP HANDLE HIT-6696975.A7 6696975	£13.36	£16.03
170 - HANGER COLLAR HIT-6684704.A4 6684704	-
171 - HANGER FIXING BRACKET HIT-6684706.A4 6684706	-
172 - HEX. HOLE BOLT M5X25/S HIT-6684709.A131 6684709	£1.67	£2.00
173 - BOLT (BLACK) M6 HIT-6696974.A34 6696974	£1.67	£2.00
*174 - BARRIER FOR EUROPE (SLP) HIT-6696973.A6 6696973	£8.35	£10.02
175 - CAP NUT 6 HIT-6684828.A16 6684828	£1.67	£2.00
176 - JOINT CASE HIT-6684817.A8 6684817	£35.67	£42.80
*177 - GEAR CASE ASS'Y 3BB (B) INCLUD.178 HIT-6696976.A15 6696976	£60.73	£72.88
*177 - GEAR CASE ASS'Y 3BB (B) CAN (SLP) HIT-6696976.A16 6696976	£60.73	£72.88
177A - GEAR CASE ASS'Y 3BB (A) INCLUD.178 HIT-6699402.A21 6699402	-
178 - BOLT (W/PLUS) M6X8 HIT-6684737.A22 6684737	-
185 - CUTTER HOLDER (A) HIT-6696977.A7 6696977	£18.01	£21.61
186 - CUTTER HOLDER (B) EXCEPT FOR USA (SLP) HIT-6698659.A2 6698659	£15.99	£19.19
187A - NUT COVER EXCEPT FOR USA (SLP) HIT-6699188.A6 6699188	£10.93	£13.12
188A - U-NUT (LEFT HAND) M10 EXCEPT FOR USA (SLP) HIT-335759.A43 335759	£1.67	£2.00
189 - SCREW 5X12/W.S HIT-6695414.A52 6695414	£1.67	£2.00
190 - HEX. SOCKET HD. BOLT M5X30 (10 PCS.) HIT-949664.A13 949664	£4.33	£5.20
*195 - COVER BRACKET FOR EUROPE (SLP) HIT-6696494.A17 6696494	£3.02	£3.63
*196 - HEX. HOLE BUTTON BOLT M6X25 FOR EUROPE (SLP) HIT-6684714.A29 6684714	£1.67	£2.00
*197 - HEX. SOCKET HD. BOLT (W/BUTTON) M6X20 FOR USA HIT-6685064.A31 6685064	-
*198 - SPRING WASHER M6 (10 PCS.) FOR USA (SLP) HIT-949455.A130 949455	£1.67	£2.00
*199 - COVER BRACKET FOR USA (SLP) HIT-6696978.A22 6696978	-
200 - BUSHING HIT-6684833.A12 6684833	£3.85	£4.62
201 - LEVEL MARK HIT-6684851.A24 6684851	-
202 - CAUTION MARK HIT-000000.A619 000000	-
203 - LEVEL MARK HIT-6684851.A25 6684851	-
205 - DRIVE SHAFT B 783L HIT-6684832.A11 6684832	£35.25	£42.30
206 - COVER HIT-6698794.A22 6698794	£17.58	£21.09
207 - NYLON CORD HIT-000000.A620 000000	-
208 - SET SCREW HIT-6698795.A14 6698795	-
209 - REEL HIT-6698796.A30 6698796	£7.12	£8.54
210 - RETURN SPRING HIT-6698797.A7 6698797	£1.67	£2.00
211 - BUTTON HIT-6698798.A30 6698798	£7.12	£8.54
212 - CORD GUIDE HIT-6698799.A9 6698799	£7.12	£8.54
213 - CASE HIT-6698800.A22 6698800	£14.11	£16.93
214 - NYLON HEAD ASS'Y INCLUD.206-213 HIT-6696454.A28 6696454	£48.12	£57.75
*215 - COVER GUARD FOR EUROPE (SLP) HIT-6696950.A5 6696950	£11.18	£13.42
*216 - TAPPING SCREW 4X14 FOR EUROPE (SLP) HIT-6684751.A92 6684751	£1.67	£2.00
*217 - KNIFE FOR EUROPE (SLP) HIT-6684750.A11 6684750	£3.64	£4.37
*218 - GUARD HOLDER FOR EUROPE (SLP) HIT-6696951.A33 6696951	£3.02	£3.63
*219 - GUARD FOR EUROPE (SLP) HIT-6696980.A14 6696980	£27.49	£32.99
*220 - NUT M4 (10 PCS.) FOR USA (SLP) HIT-949554.A50 949554	£1.67	£2.00
*221 - KNIFE FOR USA (SLP) HIT-6696584.A11 6696584	-
*222 - GUARD FOR USA (SLP) HIT-6696583.A6 6696583	-
*222 - GUARD FOR MEX (SL) HIT-6696981.A17 6696981	-
*223 - BOLT WASHER M4 (BLACK) FOR USA (SLP) HIT-323210.A31 323210	-
*224 - MACHINE SCREW (W/SP. WASHER) M4X12 FOR USA (SLP) HIT-6685068.A41 6685068	-
225A - FUEL GROMMET HIT-6688156.A29 6688156	-
226B - PLUG CAP HIT-6601421.A3 6601421	£1.67	£2.00
227 - PLUG CAP METAL HIT-6699186.A33 6699186	£1.67	£2.00
501 - BOX WRENCH (HEX. SOCKET 17/19) HIT-6684764.A35 6684764	£7.64	£9.17
502 - HEX. BAR WRENCH 4MM HIT-944458.A123 944458	£1.67	£2.00
503 - PROTECTIVE GLASSES HIT-875769.A116 875769	-
504A - SHOULDER BELT SINGLE HIT-6601420.A42 6601420	-
601 - CUTTER HOLDER (B) HIT-6698659.A0 6698659	£15.99	£19.19
602 - NUT COVER HIT-6698660.A3 6698660	-
603 - LEFT HAND NYLON NUT M10 HIT-6698658.A15 6698658	£8.59	£10.31
*604 - REPAIR KIT (A) TILL 10.2013 FOR EUROPE HIT-6600027.A4 6600027	-
*604 - REPAIR KIT (A-1) TILL 10.2013 FOR USA HIT-6600043.A3 6600043	-

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki CG22EAD Engine Brush Cutter Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
