Hitachi / Hikoki CG22EAB Engine Grass Trimmer Spare Parts

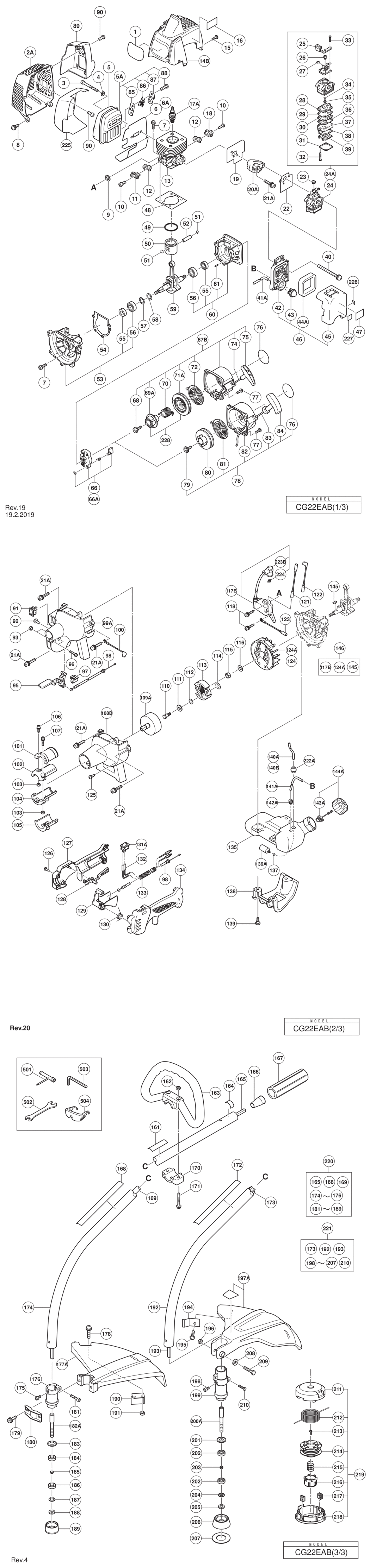

An exploded diagram and spare parts listing for the Hitachi / Hikoki CG22EAB Engine Grass Trimmer

	Ex VAT	Inc VAT
1 - BRAND LABEL HIT-000000.A2509 000000	-
2A - MUFFLER PROTECTOR HIT-6600338.A0 6600338	£8.35	£10.02
*2A - MUFFLER PROTECTOR SINCE 11.2013 FOR EUROPE HIT-6600423.A6 6600423	£14.45	£17.34
3 - HEX. HOLE BOLT M6X55 HIT-6684638.A35 6684638	£1.67	£2.00
4 - BOLT WASHER M6 (10 PCS.) HIT-949432.A31 949432	£1.67	£2.00
*5 - MUFFLER HIT-6696570.A2 6696570	£9.68	£11.62
*5 - MUFFLER FOR EUROPE (LP) HIT-6696554.A0 6696554	£31.92	£38.31
5A - MUFFLER INCLUD.85-88 HIT-6698477.A2 6698477	£15.61	£18.73
6 - HEAT PROTECTION PANEL TILL 10.2013 (SINCE 11.2013 EXCEPT FOR HIT-6696553.A10 6696553	£3.02	£3.63
*6 - HEAT PROTECTION PANEL EUROPE HIT-6696553.A11 6696553	£3.02	£3.63
6A - HEAT PROTECTION PANEL SINCE 11.2013 FOR EUROPE HIT-6600320.A3 6600320	£1.67	£2.00
7 - HEX.HOLE BOLT M5X18/S HIT-6684586.A13 6684586	-
8 - SCREW (W/WASHERS) M5X16 (BLACK) HIT-791045.A32 791045	£2.71	£3.25
9 - WASHER T1.6 FOR EUROPE (LP) HIT-6684600.A9 6684600	-
10 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12 HIT-6684595.A53 6684595	£1.67	£2.00
11 - INTAKE COVER (B) HIT-6696536.A2 6696536	-
12 - COVER PACKING HIT-6696534.A0 6696534	£1.67	£2.00
13 - CYLINDER HIT-6696527.A7 6696527	£35.00	£42.00
*14B - CYLINDER COVER HIT-6600424.A7 6600424	-
*14B - CYLINDER COVER FOR USA (SLP) HIT-6600425.A0 6600425	-
15 - MACHINE SCREW (W/WASHERS) M4X20 (BLACK) HIT-307606.A16 307606	£1.67	£2.00
16 - CAUTION LABEL HIT-000000.A2510 000000	-
*17A - SPARK PLUG ASS'Y BMR7A HIT-6699316.A29 6699316	£12.43	£14.92
*17A - SPARK PLUG ASS'Y CJ6 FOR USA (SLP) HIT-6699322.A26 6699322	£3.73	£4.48
*17A - SPARK PLUG ASS'Y CJ6 TPE (L) HIT-6699322.A27 6699322	£3.73	£4.48
18 - INTAKE COVER (A) HIT-6696535.A22 6696535	£1.67	£2.00
19 - INTAKE PACKING HIT-6696548.A7 6696548	£1.67	£2.00
20A - CARBURETOR INSULATOR HIT-6698387.A47 6698387	£4.72	£5.66
21A - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A4 6698844	£1.67	£2.00
22 - CARBURETOR PACKING HIT-6684616.A39 6684616	£1.67	£2.00
24 - CARBURETOR ASS'Y WYC-22 INCLUD.25-39 HIT-6696550.A7 6696550	£61.22	£73.46
24A - CARBURETOR ASS'Y WYC-28 INCLUD.25-39 FOR AUS HIT-6698474.A13 6698474	£63.80	£76.56
25 - BRACKET CABLE HIT-000000.A2511 000000	-
26 - SWIVEL HIT-000000.A2512 000000	-
27 - STOP RING HIT-6684696.A4 6684696	-
28 - PUMP GASKET HIT-6684692.A110 6684692	£17.28	£20.73
29 - PUMP DIAPHRAGM HIT-6684693.A4 6684693	£5.70	£6.84
30 - PUMP PLATE HIT-6691242.A50 6691242	-
31 - DIAPHRAGM COVER-METERING HIT-6685222.A133 6685222	£5.70	£6.84
32 - SET SCREW HIT-6691312.A75 6691312	-
33 - SCREW HIT-000000.A2513 000000	-
34 - O-RING HIT-6684695.A190 6684695	£1.67	£2.00
35 - JET HIT-000000.A2514 000000	-
36 - CIRCUIT PLATE HIT-6691234.A9 6691234	-
37 - BODY PUMP HIT-000000.A2515 000000	-
38 - DIAPHRAGM PACKING-METERING HIT-6685220.A46 6685220	£2.81	£3.37
39 - METERING DIAPHRAGM HIT-6684690.A116 6684690	£24.05	£28.86
40 - MACHINE SCREW (W/WASHERS) M5X60 (BLACK) HIT-307224.A46 307224	£1.67	£2.00
41A - FUEL PIPE HIT-6698720.A14 6698720	£4.72	£5.66
42 - AIR CLEANER HOUSING HIT-66965549.A23 66965549	£15.62	£18.74
43 - PRIMING PUMP COMP. HIT-6685139.A97 6685139	£10.67	£12.80
44A - CLEANER SPONGE HIT-6600704.A10 6600704	-
45 - AIR CLEANER COVER HIT-6696831.A8 6696831	£9.68	£11.62
46 - AIR CLEANER ASS'Y INCLUD.42-45 HIT-6696549.A0 6696549	£13.36	£16.03
47 - START LABEL (A) HIT-000000.A2516 000000	-
48 - CYLINDER PACKING HIT-6696530.A1 6696530	£1.67	£2.00
49 - PISTON RING HIT-6696532.A0 6696532	£3.56	£4.27
50 - PISTON HIT-6696531.A19 6696531	£10.77	£12.92
51 - CIR CLIP HIT-6684590.A129 6684590	£1.67	£2.00
52 - PISTON PIN HIT-6696944.A18 6696944	£5.61	£6.73
53 - CRANK CASE (B) COMP INCLUD.55 HIT-6696538.A0 6696538	£15.19	£18.23
54 - CRANK CASE PACKING HIT-6696539.A17 6696539	£1.67	£2.00
55 - OIL SEAL TB 12227 HIT-6684607.A102 6684607	£4.07	£4.88
56 - BALL BEARING 6001 C3 HIT-6684608.A98 6684608	£5.70	£6.84
57 - SHIM T0.2 HIT-6696946.A14 6696946	£1.67	£2.00
58 - SHIM T0.3 HIT-6696945.A23 6696945	£1.67	£2.00
59 - CRANK SHAFT COMP. HIT-6696533.A22 6696533	£42.11	£50.53
60 - CRANK CASE (A) ASS'Y INCLUD.55 HIT-6696537.A7 6696537	£15.66	£18.79
61 - KNOCK PIN 4X12 HIT-6695521.A11 6695521	-
*66 - STARTER PULLEY ASS'Y FOR USA (SLP) HIT-6684681.A115 6684681	£18.16	£21.79
66A - STARTER PULLEY ASS'Y HIT-6696471.A6 6696471	£8.35	£10.02
67B - RECOIL STARTER BODY ASS'Y INCLUD.68-72 HIT-6601570.A25 6601570	£23.15	£27.78
68 - SET SCREW HIT-6684679.A160 6684679	£2.98	£3.57
69A - CAM PLATE SINCE 9.2013 HIT-6699996.A86 6699996	£4.28	£5.13
70 - DAMPER SPRING HIT-6684677.A112 6684677	£6.66	£7.99
71A - STARTER ROPE REEL SINCE 9.2013 HIT-6699997.A3 6699997	-
72 - RECOIL SPRING HIT-6684675.A5 6684675	£8.82	£10.58
74 - STARTER ROPE 3.5X860 HIT-6684674.A91 6684674	£5.70	£6.84
75 - STARTER HANDLE HIT-6684680.A0 6684680	£5.87	£7.04
77 - MACHINE SCREW (W/WASHERS) M4X16 HIT-993539.A15 993539	£1.67	£2.00
78 - RECOIL STARTER BODY ASS'Y INCLUD.79-84 EXCEPT FOR USA (SLP) HIT-6696572.A8 6696572	£13.43	£16.12
79 - SET SCREW HIT-6693633.A14 6693633	£1.67	£2.00
80 - REEL HIT-000000.A2519 000000	-
81 - RECOIL SPRING HIT-6684675.A4 6684675	£8.82	£10.58
82 - STARTER CASE HIT-000000.A2520 000000	-
83 - ROPE HIT-6693168.A47 6693168	£2.82	£3.39
84 - STARTER HANDLE HIT-6693227.A18 6693227	-
85 - MUFFLER SPECIAL GASKET FOR AUS (SL S) HIT-6684650.A0 6684650	£1.67	£2.00
86 - SPARK ARRESTOR FOR AUS (SL S) HIT-6684652.A0 6684652	£2.81	£3.37
87 - EXHAUST PIPE FOR AUS (SL S) HIT-6685047.A2 6685047	-
88 - MACHINE SCREW (W/SP. WASHER) M4X12 FOR AUS (SL HIT-6685068.A57 6685068	-
89 - MUFFLER REAR COVER SINCE 11.2013 HIT-6600339.A6 6600339	£8.11	£9.73
90 - TAPPING SCREW D4X10 SINCE 11.2013 HIT-6600325.A6 6600325	-
91 - STOP SWITCH FOR MEX (L) HIT-6696565.A1 6696565	-
92 - TAPPING SCREW D4X10 FOR MEX (L) HIT-331683.A1 331683	-
93 - NUT M5 (BLACK) FOR MEX (L) HIT-302012.A52 302012	£1.67	£2.00
95 - THROTTLE LEVER FOR MEX (L) HIT-6696563.A1 6696563	-
96 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X20 FOR MEX (L) HIT-305583.A2 305583	£1.67	£2.00
97 - WIRE HOLDER FOR MEX (L) HIT-6696568.A0 6696568	-
*98 - THROTTLE WIRE COMP. HIT-6696560.A1 6696560	£8.35	£10.02
*98 - THROTTLE WIRE COMP. FOR MEX (L) HIT-6696564.A0 6696564	-
99A - FAN CASE (BENT) FOR MEX (L) HIT-6698727.A0 6698727	-
100 - EARTH CORD FOR MEX (L) HIT-6696567.A5 6696567	£3.56	£4.27
101 - ANTI VIBE RUBBER (A) HIT-6696963.A29 6696963	£3.12	£3.74
102 - PIPE HOLDER (A) HIT-6696542.A7 6696542	£1.67	£2.00
103 - NUT M5 (BLACK) HIT-302012.A53 302012	£1.67	£2.00
104 - PIPE HOLDER (B) HIT-6696543.A0 6696543	£1.67	£2.00
105 - ANTI VIBE RUBBER (B) HIT-6696964.A11 6696964	£3.02	£3.63
106 - HEX.HOLE BOLT M5X12/S HIT-6684667.A6 6684667	£1.67	£2.00
107 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X20 HIT-305583.A1 305583	£1.67	£2.00
*108B - FAN CASE (VERMILION) HIT-6699159.A8 6699159	£14.29	£17.15
*108B - FAN CASE (LIGHT GREEN) FOR USA (SLP) HIT-6699160.A0 6699160	-
109A - CLUTCH SHAFT HIT-6698790.A3 6698790	£14.47	£17.36
110 - STEP BOLT HIT-6696469.A44 6696469	£2.84	£3.41
111 - BENT WASHER 8 HIT-6684648.A88 6684648	£1.67	£2.00
112 - CLUTCH PLATE (A) HIT-6696546.A31 6696546	£1.67	£2.00
113 - CLUTCH HIT-6696948.A12 6696948	£15.02	£18.03
114 - CLUTCH WASHER (B) HIT-6696547.A5 6696547	£1.67	£2.00
115 - FLYWHEEL NUT HIT-6685337.A53 6685337	-
116 - BOLT WASHER M8 (BLACK) HIT-323212.A64 323212	£1.67	£2.00
117B - IGNITION COIL ASS'Y INCLUD.223B HIT-6699464.A0 6699464	£27.08	£32.49
118 - HEX. HOLE BOLT M4X18/WS HIT-6684599.A64 6684599	-
121 - CORD HIT-6696544.A31 6696544	-
122 - CORD (L325) FOR MEX (L) HIT-6696566.A0 6696566	-
123 - EARTH CORD HIT-6696545.A8 6696545	-
124 - MAGNETO ROTOR COMP. TILL 7.2013 HIT-6696928.A12 6696928	£50.30	£60.36
124A - MAGNETO ROTOR SINCE 8.2013 HIT-6699289.A9 6699289	£24.52	£29.43
125 - TAPPING SCREW D4.5X16 HIT-6684636.A40 6684636	£1.67	£2.00
126 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A5 305812	£1.67	£2.00
*127 - HANDLE (B) FOR EUROPE (LP) HIT-6696487.A5 6696487	£5.88	£7.06
*127 - HANDLE (B) FOR USA (SLP) HIT-6696942.A15 6696942	-
128 - LOCK LEVER FOR EUROPE (LP) HIT-6696490.A39 6696490	£2.84	£3.41
129 - LEVER HIT-6696488.A35 6696488	£1.67	£2.00
130 - SPRING (A) HIT-6696489.A2 6696489	£2.84	£3.41
131A - STOP SWITCH HIT-6601275.A37 6601275	£1.67	£2.00
132 - STOP SWITCH CORD HIT-6696491.A2 6696491	-
133 - PROTECTION TUBE HIT-6696967.A23 6696967	-
*134 - HANDLE (A) FOR EUROPE (LP) HIT-6696486.A30 6696486	£5.88	£7.06
*134 - HANDLE (A) FOR USA (SLP) HIT-6696941.A9 6696941	-
*135 - TANK HIT-6696569.A5 6696569	£7.75	£9.30
*135 - TANK FOR USA (SLP) HIT-6696552.A0 6696552	-
136A - PUMP FILTER HIT-6600351.A40 6600351	£4.45	£5.34
137 - CLIP HIT-6696949.A46 6696949	£1.67	£2.00
*138 - STAND FOR EUROPE (LP) HIT-6696556.A10 6696556	-
*139 - FLANGE BOLT HIT-6696557.A0 6696557	£1.67	£2.00
*139 - BOLT (W/FLANGE) L17.8 FOR MEX (L) HIT-6696574.A32 6696574	£1.67	£2.00
140A - FUEL PIPE HIT-6698716.A25 6698716	£5.61	£6.73
140B - FUEL PIPE L180 FOR USA HIT-6698932.A0 6698932	-
141A - FUEL PIPE L70 HIT-6699014.A35 6699014	£2.77	£3.32
142A - RETURN GROMMET HIT-6697846.A125 6697846	£2.08	£2.50
143A - TANK CAP CHAIN HIT-6698732.A5 6698732	-
144A - FUEL TANK CAP ASS'Y INCLUD.143A HIT-6698402.A92 6698402	-
145 - WOODRUFF KEY 3X13X4.5 SINCE 8.2013 HIT-6684899.A22 6684899	-
146 - MAGNETO KEY SET INCLUD.117B HIT-6699463.A9 6699463	£34.78	£41.74
161 - LEVEL MARK HIT-6684852.A38 6684852	-
162 - NUT M6 (10 PCS.) HIT-949556.A45 949556	£1.67	£2.00
163 - LOOP HANDLE HIT-6696975.A1 6696975	£13.36	£16.03
164 - LEVEL MARK HIT-6684851.A2 6684851	-
165 - FLEXIBLE SHAFT HIT-6698325.A0 6698325	£18.52	£22.23
166 - SPACER (E) HIT-6698324.A1 6698324	-
167 - GRIP FOR MEX (L) HIT-6696581.A1 6696581	-
169 - FLEXIBLE LINER HIT-6698323.A0 6698323	£14.68	£17.62
170 - HANDLE HOLDER (A) HIT-6696972.A23 6696972	-
171 - BOLT (BLACK) M6 HIT-6696974.A43 6696974	£1.67	£2.00
172 - CAUTION MARK USA HIT-000000.A2522 000000	-
173 - FLEXIBLE LINER (A) HIT-6698337.A0 6698337	-
*174 - MAIN PIPE FOR EUROPE (LP) HIT-6698322.A1 6698322	-
*174 - MAIN PIPE FOR MEX (L) HIT-6698321.A0 6698321	-
175 - HEX. SOCKET HD. BOLT M5X10 (10 PCS.) HIT-949819.A26 949819	£6.66	£7.99
176 - CUTTER CASE HIT-6698326.A1 6698326	-
177A - GUARD HIT-6698809.A7 6698809	£20.26	£24.31
178 - MACHINE SCREW (W/WASHERS) M5X16 HIT-990541.A13 990541	£1.67	£2.00
179 - BOLT M6 HIT-6698334.A2 6698334	£4.45	£5.34
180 - GUARD BRACKET HIT-6698335.A5 6698335	£4.45	£5.34
181 - HEX. SOCKET HD. BOLT M5X25 (10 PCS.) HIT-949662.A25 949662	£3.64	£4.37
182A - CUTTER SHAFT HIT-6600493.A1 6600493	-
183 - BEARING WASHER HIT-6698331.A2 6698331	-
184 - BALL BEARING 608VVC2PS2L HIT-608VVM.A174 608VVM	£5.70	£6.84
185 - COLLAR HIT-6698328.A0 6698328	-
186 - BALL BEARING 608DD HIT-608DDM.A60 608DDM	£6.35	£7.62
187 - WASHER T1.6 HIT-6698329.A1 6698329	-
188 - SPRING WASHER M8 (10 PCS.) HIT-949457.A19 949457	£1.67	£2.00
189 - CUTTER HOLDER HIT-6698330.A0 6698330	-
190 - KNIFE HIT-6698333.A5 6698333	£10.10	£12.12
191 - NUT M5 (10 PCS.) HIT-949555.A11 949555	£1.67	£2.00
192 - MAIN PIPE (A) HIT-6698336.A1 6698336	-
193 - FLEXIBLE SHAFT (A) HIT-6685038.A4 6685038	£13.02	£15.62
194 - KNIFE HIT-6685015.A0 6685015	£2.81	£3.37
195 - TAPPING SCREW D5X16 HIT-6685074.A0 6685074	-
196 - NUT M6 HIT-6684792.A33 6684792	-
197A - GUARD (W/CAUTION LABEL) FOR USA (SLP) HIT-6699075.A0 6699075	-
198 - BOLT M5X10 (10 PCS.) HIT-949707.A3 949707	-
199 - CUTTER CASE (A) HIT-6698338.A1 6698338	-
200A - CUTTER SHAFT (A) HIT-6600017.A0 6600017	£20.55	£24.66
201 - BEARING WASHER (A) HIT-6698340.A0 6698340	-
202 - BALL BEARING 608DD HIT-608DDM.A59 608DDM	£6.35	£7.62
203 - COLLAR (A) HIT-6685014.A4 6685014	-
204 - WASHER (A) HIT-6685016.A4 6685016	-
205 - SPRING WASHER M8 (10 PCS.) HIT-949457.A18 949457	£1.67	£2.00
206 - CUTTER HOLDER (A) HIT-6685073.A4 6685073	-
207 - WASHER HIT-6685001.A1 6685001	-
208 - BOLT WASHER 6 HIT-6684639.A44 6684639	£1.67	£2.00
209 - PLUS BOLT M6X45 HIT-6684995.A2 6684995	-
210 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5 HIT-000000.A2523 000000	-
211 - COVER HIT-6698801.A0 6698801	£17.65	£21.18
212 - NYLON CORD HIT-000000.A2524 000000	-
213 - SET SCREW HIT-6698795.A1 6698795	-
214 - REEL HIT-6698802.A3 6698802	£8.85	£10.62
215 - RETURN SPRING HIT-6698803.A0 6698803	£1.67	£2.00
216 - BUTTON HIT-6698798.A38 6698798	£7.12	£8.54
217 - CORD GUIDE HIT-6698799.A1 6698799	£7.12	£8.54
218 - CASE HIT-6698800.A30 6698800	£14.11	£16.93
219 - NYLON HEAD (R) INCLUD.211-218 HIT-6696597.A1 6696597	£21.85	£26.22
220 - MAIN PIPE ASS'Y INCLUD.165 HIT-6696580.A1 6696580	£56.58	£67.89
*221 - MAIN PIPE (A) ASS'Y INCLUD.192 HIT-6696582.A0 6696582	-
222A - FUEL GROMMET HIT-6688156.A65 6688156	-
223B - PLUG CAP HIT-6601421.A23 6601421	£1.67	£2.00
224 - PLUG CAP METAL HIT-6699186.A23 6699186	£1.67	£2.00
225 - MUFFER HEAT COVER SINCE 11.2013 HIT-6600340.A0 6600340	£8.42	£10.11
226 - MARK PLATE (T) FOR EUROPE HIT-6600327.A2 6600327	-
227 - PRIMER LABEL FOR EUROPE HIT-6699000.A14 6699000	-
228 - CAMPLATE ASS'Y INCLUD.69A HIT-6699691.A39 6699691	£7.75	£9.30
501 - BOX WRENCH (HEX. SOCKET 17/19) HIT-6684764.A24 6684764	£7.64	£9.17
502 - WRENCH 8X10 HIT-6696596.A12 6696596	-
503 - HEX. BAR WRENCH 4MM HIT-944458.A92 944458	£1.67	£2.00
504 - PROTECTIVE GLASSES HIT-875769.A164 875769	-
*601 - REPAIR KIT (A) TILL 10.2013 FOR EUROPE HIT-6600027.A5 6600027	-
*601 - REPAIR KIT (A-1) TILL 2013.10 FOR USA HIT-6600043.A6 6600043	-

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki CG22EAB Engine Grass Trimmer Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Hitachi / Hikoki CG22EAB Engine Grass Trimmer Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Hitachi / Hikoki CG22EAB Engine Grass Trimmer Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
