Hitachi / Hikoki CG10DL Cordless Hedge Trimmer Spare Parts

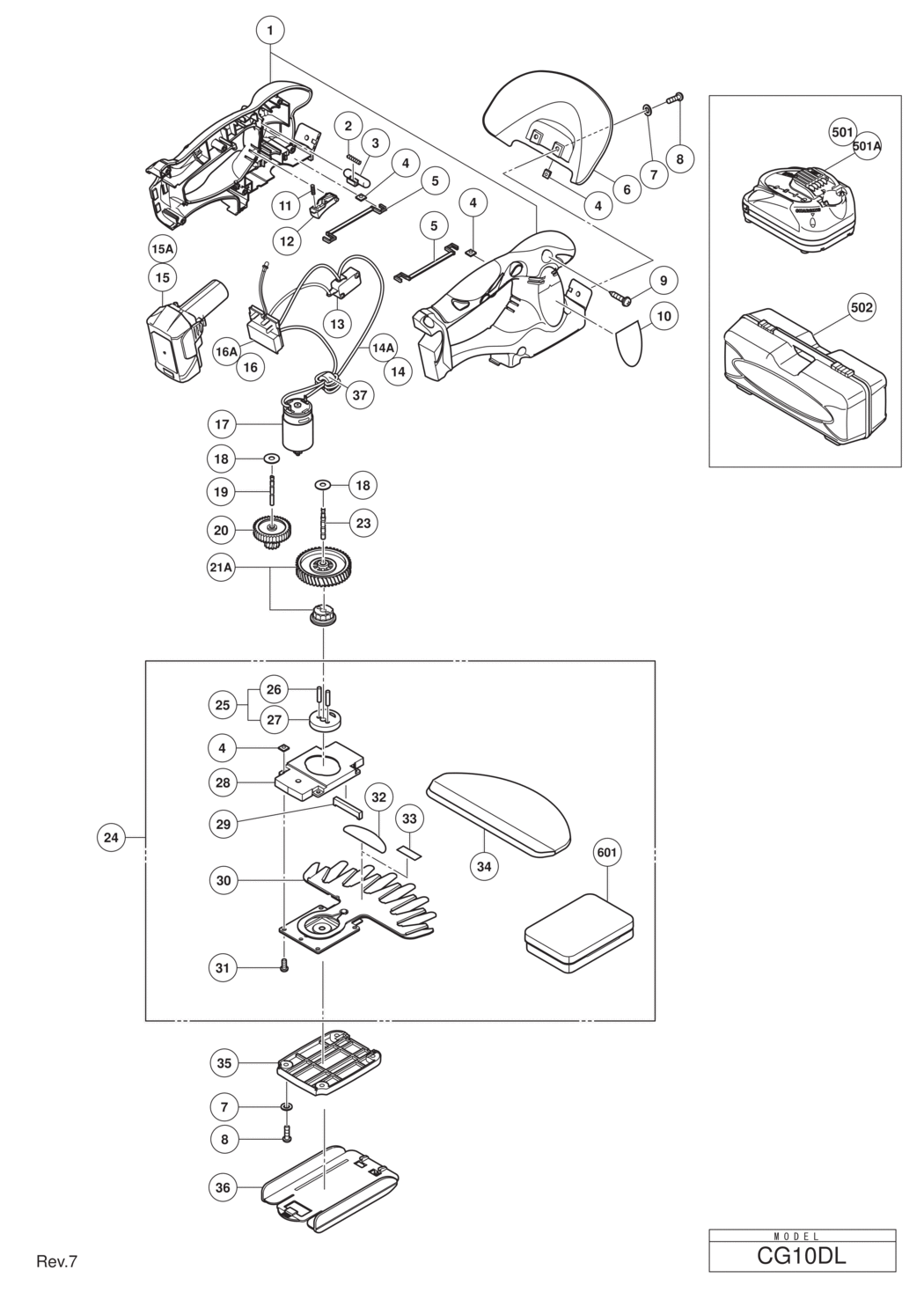

An exploded diagram and spare parts listing for the Hitachi / Hikoki CG10DL Cordless Hedge Trimmer

	Ex VAT	Inc VAT
1 - HOUSING HIT-330882.A1 330882	-
2 - SPRING (A) HIT-324306.A0 324306	-
3 - LOCK-OFF BUTTON HIT-324298.A0 324298	-
4 - NUT M4 HIT-330056.A0 330056	-
5 - NUT HOLDER HIT-329837.A1 329837	-
6 - PROTECTOR HIT-330879.A3 330879	-
7 - WASHER M4 (10 PCS.) HIT-949423.A16 949423	£1.67	£2.00
8 - MACHINE SCREW M4X12 (10 PCS.) HIT-949217.A43 949217	£1.67	£2.00
9 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A243 301653	£1.67	£2.00
10 - NAME PLATE HIT-000000.A2242 000000	-
11 - SPRING (B) HIT-324307.A3 324307	-
12 - TRIGGER HIT-324299.A1 324299	-
13 - SWITCH HIT-320786.A1 320786	-
*14A - INTERNAL WIRE HIT-334608.A1 334608	-
*15A - BATTERY BCL 1015 (EUROPE AUS NZL) HIT-329371.A2 329371	£79.64	£95.57
*16A - CONTROLLER (C) HIT-334609.A0 334609	-
17 - MOTOR DC 10.8V HIT-330880.A0 330880	-
18 - WASHER D15 HIT-329835.A0 329835	-
19 - SHAFT (B) HIT-329832.A3 329832	-
20 - FIRST GEAR HIT-330055.A1 330055	-
21A - FINAL GEAR SET HIT-331755.A0 331755	-
23 - SHAFT (A) HIT-329830.A0 329830	-
*24 - BLADE SET (CG) INCLUD.4 HIT-330887.A1 330887	-
25 - CRANK CAM ASS'Y INCLUD.26 HIT-330886.A0 330886	-
26 - PIN (B) HIT-000000.A2243 000000	-
27 - CRANK CAM (B) HIT-000000.A2244 000000	-
28 - CRANK CASE HIT-331507.A0 331507	-
29 - DUST FELT HIT-331508.A1 331508	-
30 - BLADE (CG) HIT-000000.A2245 000000	-
31 - MACHINE SCREW M4X8 (BLACK) HIT-323211.A0 323211	-
*33 - LABEL (EURO) HIT-000000.A2246 000000	-
34 - BLADE COVER (170) HIT-328030.A0 328030	-
35 - BOTTOM COVER HIT-330883.A0 330883	-
36 - ADJUSTER HIT-328023.A1 328023	-
*37 - FERRITE CORE EXCEPT FOR USA HIT-334379.A19 334379	-
*501A - CHARGER (MODEL UC 10SL2) HIT-000000.A2248 000000	-
502 - CASE HIT-330885.A1 330885	-
601 - BLADE BOX HIT-330057.A2 330057	-
