Hitachi / Hikoki CG-PS Attachment Spare Parts

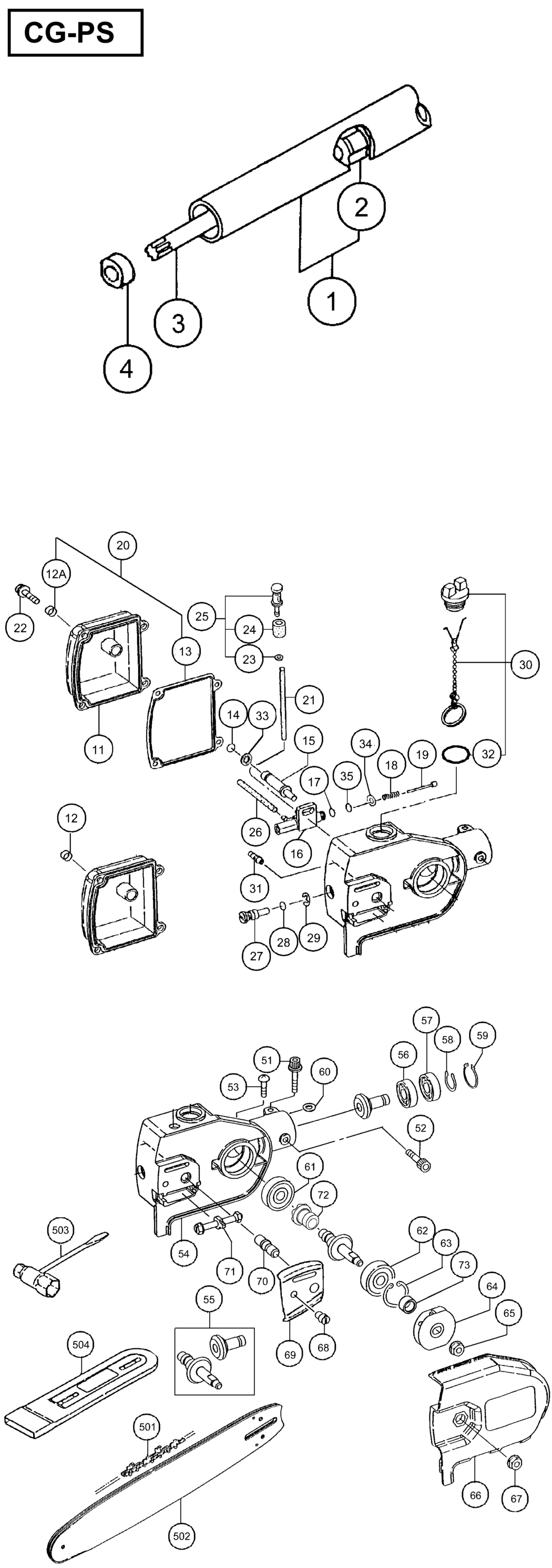

An exploded diagram and spare parts listing for the Hitachi / Hikoki CG-PS Attachment

	Ex VAT	Inc VAT
1 - DRIVE SHAFT COMP 1042L HIT-6689314.A0 6689314	£37.57	£45.08
2 - BUSH ASS'Y HIT-6684831.A12 6684831	-
3 - DRIVE SHAFT B 1085L HIT-6686000.A0 6686000	£63.52	£76.22
4 - BUSHING HIT-6684833.A10 6684833	£3.85	£4.62
11 - OIL TANK COVER HIT-6686138.A8 6686138	£2.81	£3.37
12 - COLLAR 3 TILL EN29999 HIT-6685961.A5 6685961	£1.67	£2.00
12A - COLLAR 3 SINCE ED20001 HIT-6699273.A2 6699273	-
13 - OIL TANK PACKING SINCE ED20001 HIT-6699567.A2 6699567	£2.77	£3.32
14 - O-RING P-5 HIT-6695661.A36 6695661	£1.67	£2.00
15 - STEP BOLT A HIT-6689757.A4 6689757	-
16 - OIL PUMP COMP. HIT-6686487.A11 6686487	£39.35	£47.22
17 - O-RING P-5 HIT-6695661.A35 6695661	£1.67	£2.00
18 - OIL PUMP SPRING HIT-6690381.A9 6690381	-
19 - OIL PUMP PISTON COMP. HIT-6686608.A9 6686608	-
20 - TANK PACKING ASS'Y SINCE ED20001 HIT-6699566.A5 6699566	£3.48	£4.17
21 - FUEL PIPE 3X5X60 HIT-6692414.A9 6692414	-
22 - SMALL SCREW 4X12WS HIT-6695403.A23 6695403	-
23 - WASHER 5 HIT-6684661.A47 6684661	£1.67	£2.00
24 - OIL FILTER HIT-6690917.A7 6690917	£1.67	£2.00
25 - FILTER ASS'Y HIT-6690913.A1 6690913	-
26 - FUEL PIPE 3X5X75 HIT-6692415.A2 6692415	-
27 - OIL PUMP ADJUSTER HIT-6691066.A4 6691066	£8.79	£10.55
28 - O-RING P-5 HIT-6695661.A34 6695661	£1.67	£2.00
29 - STOP RING E-6 HIT-6695311.A16 6695311	£1.67	£2.00
30 - OIL TANK CAP ASS'Y HIT-6692050.A1 6692050	£15.87	£19.04
31 - BANJO 1 HIT-6686637.A2 6686637	-
32 - O-RING P-15 HIT-6698966.A31 6698966	£1.67	£2.00
33 - 8 PUSH NUT HIT-6695239.A5 6695239	-
34 - WASHER 2 HIT-6695187.A3 6695187	-
35 - O-RING 1.4 HIT-6695656.A2 6695656	-
51 - HEX. HOLE BOLT 5X22/S HIT-6695492.A14 6695492	-
52 - HEX. HOLE BOLT 5X10 HIT-6695042.A26 6695042	£1.67	£2.00
53 - SCREW 6X8 HIT-6695458.A6 6695458	-
54 - CASE HIT-6685793.A3 6685793	£12.52	£15.03
55 - GEAR PINION SET SPARE HIT-6688836.A2 6688836	-
56 - BALL BEARING 609 HIT-6684734.A44 6684734	-
57 - BALL BEARING 609Z ST HIT-6684735.A4 6684735	£15.48	£18.57
58 - STOP RING C-9 1 HIT-6695281.A12 6695281	-
59 - STOP RING C-24 1 HIT-6684732.A31 6684732	£1.67	£2.00
61 - BALL BEARING 627 C3 HIT-6695568.A4 6695568	£8.95	£10.74
62 - BALL BEARING 638Z HIT-6697603.A6 6697603	-
63 - STOP RING C-28 1 HIT-6684741.A12 6684741	-
64 - SPROCKET COMP. 1 HIT-6689117.A1 6689117	£47.37	£56.84
65 - FLANGE NUT 6 HIT-6695170.A8 6695170	£1.67	£2.00
66 - SIDE COVER COMP. HIT-6686038.A5 6686038	£9.67	£11.60
67 - CHAIN BAR CLAMP NUT HIT-6687105.A29 6687105	£1.67	£2.00
68 - CHAIN BAR KNOCK PIN HIT-6687130.A3 6687130	-
69 - GUIDE PLATE HIT-6697596.A5 6697596	£4.38	£5.26
70 - CHAIN BAR TIGHTENING BOLT HIT-6686803.A2 6686803	£8.53	£10.24
71 - CHAIN TENSIONER HIT-6687063.A6 6687063	£5.70	£6.84
72 - CAM HIT-6690428.A5 6690428	-
73 - COLLAR HIT-6685962.A1 6685962	-
501 - SAW CHAIN HIT-6699679.A9 6699679	£20.67	£24.80
502 - CHAIN BAR 10 HIT-6686882.A4 6686882	£28.68	£34.41
503 - COMBI. BOX SPANNER 13X19 MINUS HIT-6693809.A23 6693809	-
504 - GUIDE BAR COVER 1 HIT-6694796.A14 6694796	£11.79	£14.15
