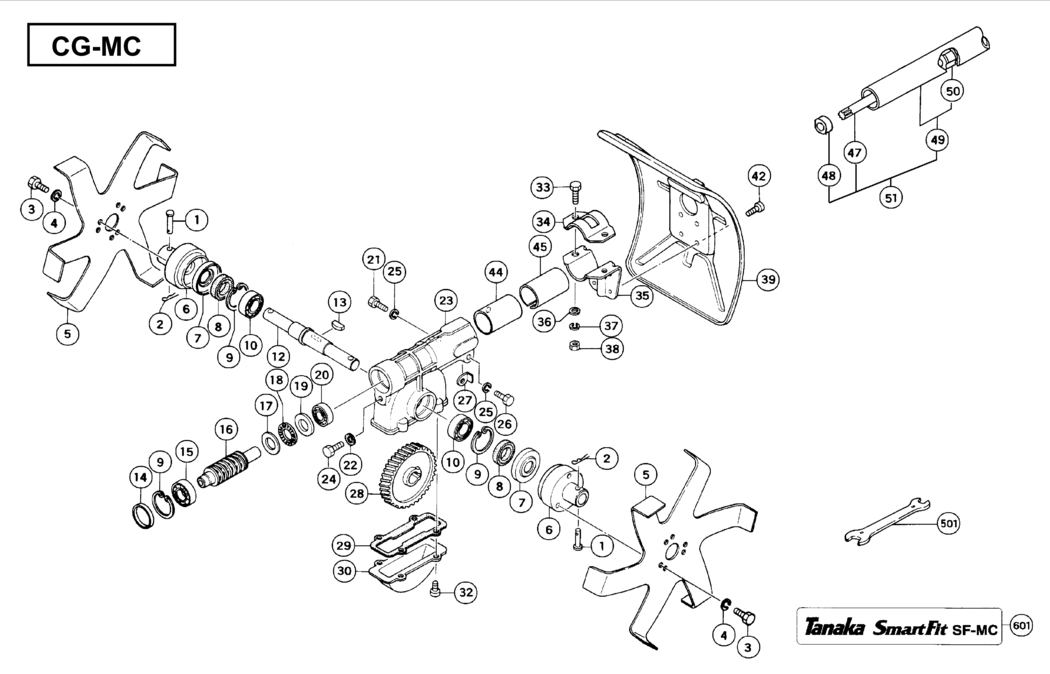

1 - LOCK PIN
HIT-6689818.A3
6689818
|
-
|
|
|
|
2 - SNAP PIN 8
HIT-6693558.A8
6693558
|
-
|
|
|
|
3 - BOLT 6X12
HIT-6694982.A2
6694982
|
-
|
|
|
|
4 - S.WASHER 6
HIT-6695219.A95
6695219
|
£1.67
|
£2.00
|
|
|
5 - CUTTER
HIT-6693557.A0
6693557
|
-
|
|
|
|
6 - CUTTER HOLDER
HIT-6689035.A0
6689035
|
-
|
|
|
|
7 - PROTECTION COVER
HIT-6688987.A3
6688987
|
-
|
|
|
|
8 - OIL SEAL UE15286
HIT-6695638.A3
6695638
|
-
|
|
|
|
9 - STOP RING C-28 3
HIT-6684741.A22
6684741
|
-
|
|
|
|
10 - BALL BEARING 6902 2
HIT-6695583.A3
6695583
|
-
|
|
|
|
12 - DRIVE SHAFT
HIT-6688952.A3
6688952
|
-
|
|
|
|
13 - WOOD-RUFF KEY 5X22X7X14
HIT-6687078.A3
6687078
|
-
|
|
|
|
14 - GEAR CASE CAP
HIT-6689152.A0
6689152
|
-
|
|
|
|
15 - BALL BEARING 6001ZZ 1
HIT-6695531.A0
6695531
|
-
|
|
|
|
16 - WORM SHAFT
HIT-6685586.A0
6685586
|
-
|
|
|
|
17 - THRUST WASHER 1226
HIT-6695614.A0
6695614
|
-
|
|
|
|
18 - THRUST NEEDLE BRG 2X4.5
HIT-6695613.A3
6695613
|
-
|
|
|
|
19 - STEP WASHER
HIT-6689151.A3
6689151
|
-
|
|
|
|
20 - BALL BEARING 6901ZZ 1
HIT-6695582.A2
6695582
|
£15.31
|
£18.37
|
|
|
21 - BOLT 6X12
HIT-6694982.A3
6694982
|
-
|
|
|
|
22 - DRAIN GASKET
HIT-6692685.A7
6692685
|
-
|
|
|
|
23 - GEAR CASE
HIT-6688824.A0
6688824
|
-
|
|
|
|
24 - BOLT 6X12
HIT-6694982.A4
6694982
|
-
|
|
|
|
25 - S.WASHER 6
HIT-6695219.A94
6695219
|
£1.67
|
£2.00
|
|
|
26 - BOLT 6X25
HIT-6694988.A3
6694988
|
-
|
|
|
|
27 - SPACER
HIT-6688309.A3
6688309
|
-
|
|
|
|
28 - GEAR WHEEL
HIT-6688886.A3
6688886
|
-
|
|
|
|
29 - GEAR CASE GASKET
HIT-6689116.A2
6689116
|
-
|
|
|
|
30 - GEAR CASE COVER
HIT-6689153.A0
6689153
|
-
|
|
|
|
32 - SCREW 5X10/S
HIT-6695333.A0
6695333
|
-
|
|
|
|
33 - PLUS BOLT 6X18
HIT-6695020.A10
6695020
|
-
|
|
|
|
34 - COVER BRACKET 1
HIT-6690303.A2
6690303
|
-
|
|
|
|
35 - GUARD HOLDER
HIT-6690337.A1
6690337
|
-
|
|
|
|
36 - SMALL WASHER 6
HIT-6695183.A16
6695183
|
-
|
|
|
|
37 - S.WASHER 6
HIT-6695219.A64
6695219
|
£1.67
|
£2.00
|
|
|
38 - NUT M6
HIT-6684792.A36
6684792
|
-
|
|
|
|
39 - GUARD
HIT-6690279.A2
6690279
|
-
|
|
|
|
42 - SCREW 5X14/PS
HIT-6695384.A3
6695384
|
-
|
|
|
|
44 - COLLAR (B)
HIT-6689530.A7
6689530
|
£7.48
|
£8.97
|
|
|
45 - COLLAR
HIT-6688629.A1
6688629
|
-
|
|
|
|
47 - DRIVE SHAFT B 783L
HIT-6684832.A13
6684832
|
£35.25
|
£42.30
|
|
|
48 - BUSHING
HIT-6684833.A9
6684833
|
£3.85
|
£4.62
|
|
|
49 - DRIVE SHAFT COMP
HIT-6697838.A8
6697838
|
£25.30
|
£30.36
|
|
|
50 - BUSH ASS'Y
HIT-6697839.A0
6697839
|
-
|
|
|
|
51 - MAIN PIPE ASS'Y
HIT-6699353.A0
6699353
|
-
|
|
|
|
501 - WRENCH 8X10
HIT-6684766.A17
6684766
|
-
|
|
|
