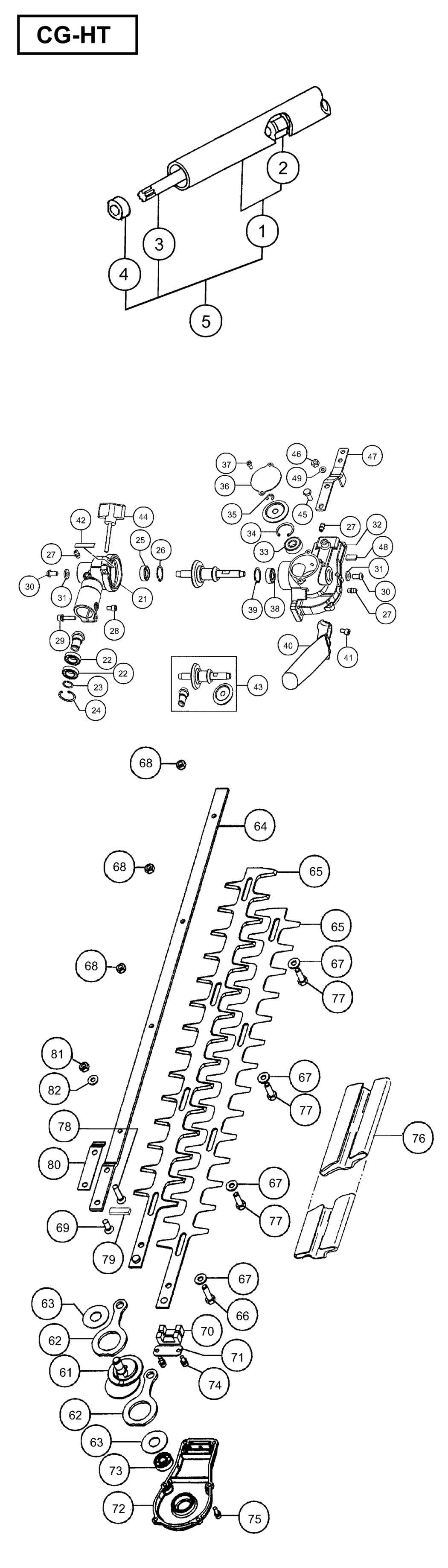

1 - DRIVE SHAFT PIPE COMP 742L
HIT-6689302.A0
6689302
|
-
|
|
|
|
2 - BUSH ASS'Y
HIT-6684831.A27
6684831
|
-
|
|
|
|
3 - DRIVE SHAFT B 783L
HIT-6684832.A4
6684832
|
£35.25
|
£42.30
|
|
|
4 - BUSHING
HIT-6684833.A19
6684833
|
£3.85
|
£4.62
|
|
|
5 - MAIN PIPE ASS'Y
HIT-6699692.A1
6699692
|
£38.61
|
£46.33
|
|
|
21 - GEAR CASE A 1
HIT-6688653.A14
6688653
|
£38.36
|
£46.03
|
|
|
22 - BALL BEARING 6901ZZ 2
HIT-6695582.A1
6695582
|
£15.31
|
£18.37
|
|
|
23 - STOP RING S-12 1
HIT-6695302.A14
6695302
|
£1.67
|
£2.00
|
|
|
24 - STOP RING C-24 1
HIT-6684732.A11
6684732
|
£1.67
|
£2.00
|
|
|
25 - BALL BEARING 608ZZC3
HIT-6698772.A14
6698772
|
£2.84
|
£3.41
|
|
|
26 - RETAINING RING C-TYPE D22
HIT-6695293.A30
6695293
|
£1.67
|
£2.00
|
|
|
27 - GREASE NIPPLE COMP.
HIT-6688643.A1
6688643
|
£1.67
|
£2.00
|
|
|
28 - HEX. HOLE BOLT 5X10
HIT-6695042.A45
6695042
|
£1.67
|
£2.00
|
|
|
29 - HEX. HOLE BOLT M5X25/S
HIT-6684709.A58
6684709
|
£1.67
|
£2.00
|
|
|
30 - HEX. HOLE BOLT 6X12
HIT-6695078.A17
6695078
|
£1.67
|
£2.00
|
|
|
31 - SPECIAL WASHER B
HIT-6684822.A27
6684822
|
£1.67
|
£2.00
|
|
|
32 - GEAR CASE B
HIT-6695981.A9
6695981
|
£40.62
|
£48.75
|
|
|
33 - BALL BEARING #6000DD 1
HIT-6695528.A10
6695528
|
-
|
|
|
|
34 - RETAINING RING C-TYPE D26
HIT-6695294.A7
6695294
|
-
|
|
|
|
35 - RETAINING RING E-TYPE D6
HIT-6695310.A19
6695310
|
£1.67
|
£2.00
|
|
|
36 - GEAR CASE COVER (A)
HIT-6689167.A5
6689167
|
-
|
|
|
|
37 - HEX HOLE BOLT 4X8
HIT-6695035.A2
6695035
|
-
|
|
|
|
38 - BALL BEARING 608ZZC3
HIT-6698772.A13
6698772
|
£2.84
|
£3.41
|
|
|
39 - RETAINING RING C-TYPE D22
HIT-6695293.A29
6695293
|
£1.67
|
£2.00
|
|
|
40 - HANDLE
HIT-6688089.A17
6688089
|
£7.75
|
£9.30
|
|
|
41 - HEX HOLE BUTTON SCREW 6X15
HIT-6695079.A0
6695079
|
£1.67
|
£2.00
|
|
|
42 - GREASE STOP (D)
HIT-6686669.A14
6686669
|
£1.67
|
£2.00
|
|
|
43 - GEAR SET PN
HIT-6696411.A9
6696411
|
£97.03
|
£116.44
|
|
|
44 - HANDLE KNOB A COMP.
HIT-6691200.A4
6691200
|
£12.10
|
£14.52
|
|
|
45 - PLUS BOLT 6X14
HIT-6695016.A4
6695016
|
-
|
|
|
|
46 - LOCK NUT 6 UPS-P
HIT-6695175.A29
6695175
|
£1.67
|
£2.00
|
|
|
47 - SUPPORT PLATE
HIT-6690744.A11
6690744
|
£17.82
|
£21.39
|
|
|
48 - GREASE STOP (B)
HIT-6686659.A14
6686659
|
£1.67
|
£2.00
|
|
|
49 - BOLT WASHER 6
HIT-6684639.A165
6684639
|
£1.67
|
£2.00
|
|
|
61 - CAM SHAFT COMP.
HIT-6686790.A3
6686790
|
£62.78
|
£75.33
|
|
|
62 - CAM ROD
HIT-6686809.A6
6686809
|
£11.92
|
£14.30
|
|
|
63 - CAM-ROD GUIDE PLATE
HIT-6686611.A13
6686611
|
£2.98
|
£3.57
|
|
|
64 - CUTTER GUIDE 625.5MM
HIT-6687125.A3
6687125
|
£37.68
|
£45.21
|
|
|
65 - CUTTER (A)
HIT-6687079.A1
6687079
|
£46.75
|
£56.10
|
|
|
66 - FIXING BOLT A M6
HIT-6687158.A11
6687158
|
£1.67
|
£2.00
|
|
|
67 - WASHER 7 BLACK
HIT-6687187.A11
6687187
|
£1.67
|
£2.00
|
|
|
68 - FLANGE NUT 6
HIT-6695170.A64
6695170
|
£1.67
|
£2.00
|
|
|
69 - HEX HOLE FLUSH SCREW 6X16
HIT-6695073.A20
6695073
|
£1.67
|
£2.00
|
|
|
70 - GREASE STOP (A)
HIT-6686647.A14
6686647
|
£1.67
|
£2.00
|
|
|
71 - CAM ROD PLATE
HIT-6686826.A12
6686826
|
£1.67
|
£2.00
|
|
|
72 - GEAR CASE COVER B
HIT-6689172.A7
6689172
|
£15.41
|
£18.49
|
|
|
73 - BALL BEARING 608 ZZ C3
HIT-6695547.A8
6695547
|
£10.17
|
£12.20
|
|
|
74 - HEX. HOLE BOLT 4X10S
HIT-6695484.A5
6695484
|
£1.67
|
£2.00
|
|
|
75 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12
HIT-6684595.A22
6684595
|
£1.67
|
£2.00
|
|
|
76 - CUTTER COVER
HIT-6687301.A4
6687301
|
-
|
|
|
|
77 - CUTTER FIXING BOLT B
HIT-6687162.A5
6687162
|
£1.67
|
£2.00
|
|
|
78 - HEX. HOLE FLUSH BOLT 6X25
HIT-6695075.A28
6695075
|
£1.67
|
£2.00
|
|
|
79 - GREASE STOP (C)
HIT-6686666.A12
6686666
|
-
|
|
|
|
80 - SPACER
HIT-6688633.A15
6688633
|
-
|
|
|
|
81 - LOCK NUT 6 UPS-P
HIT-6695175.A30
6695175
|
£1.67
|
£2.00
|
|
|
82 - BOLT WASHER 6
HIT-6684639.A164
6684639
|
£1.67
|
£2.00
|
|
