Hitachi / Hikoki CE16SA Hand Shear Spare Parts

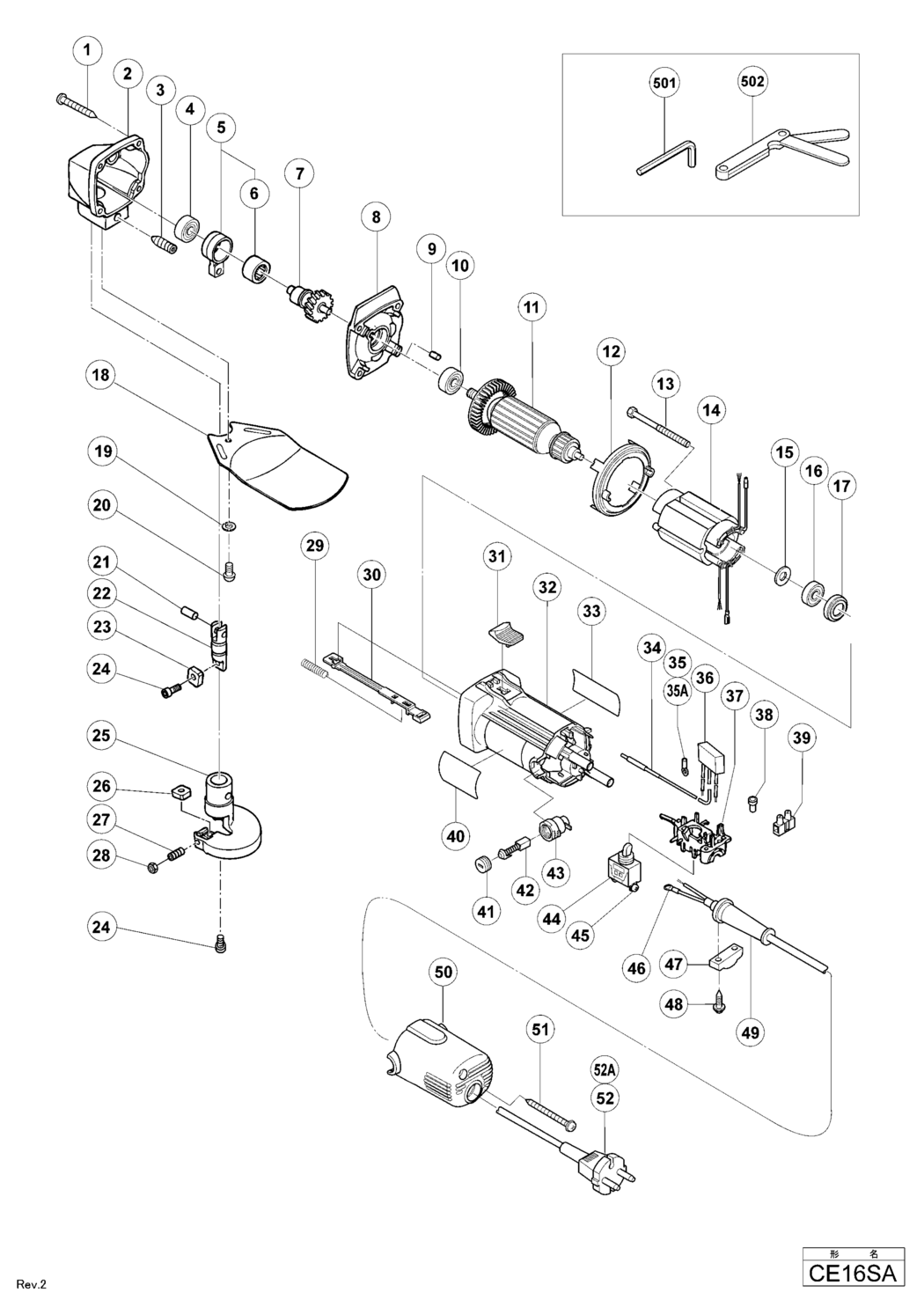

An exploded diagram and spare parts listing for the Hitachi / Hikoki CE16SA Hand Shear

	Ex VAT	Inc VAT
1 - TAPPING SCREW D5X30 HIT-957580.A4 957580	£1.67	£2.00
2 - GEAR COVER HIT-998003.A0 998003	£40.48	£48.58
3 - HEX. SOCKET SET SCREW M8X20 HIT-998008.A3 998008	£1.67	£2.00
4 - BALL BEARING 608VVC2PS2L HIT-608VVM.A158 608VVM	£5.70	£6.84
5 - CONNECTING ROD ASS'Y HIT-998004.A0 998004	£37.22	£44.67
6 - NEEDLE BEARING (M152112) HIT-993163.A3 993163	£8.28	£9.94
7 - SPINDLE AND GEAR SET HIT-998006.A0 998006	£40.02	£48.02
8 - INNER COVER HIT-998002.A0 998002	-
9 - BEARING LOCK HIT-931701.A32 931701	£1.67	£2.00
10 - BALL BEARING 608VVC2PS2L HIT-608VVM.A90 608VVM	£5.70	£6.84
*11 - ARMATURE 110V HIT-360622C.A1 360622C	£67.64	£81.17
*11 - ARMATURE 220V-230V HIT-360622E.A0 360622E	£67.64	£81.17
12 - FAN GUIDE HIT-306840.A0 306840	-
13 - HEX. HD. TAPPING SCREW D4X70 HIT-982021.A19 982021	£1.67	£2.00
*14 - STATOR 110V HIT-340567C.A1 340567C	£55.38	£66.46
*14 - STATOR 220V-230V HIT-340567E.A0 340567E	£55.38	£66.46
15 - WASHER HIT-942204.A0 942204	£1.67	£2.00
16 - BALL BEARING 626VVC2PS2L HIT-626VVM.A48 626VVM	£5.77	£6.92
17 - RUBBER BUSHING HIT-309929.A7 309929	£1.67	£2.00
18 - PROTECTOR HIT-998010.A0 998010	£8.72	£10.47
19 - SPRING WASHER M5 (10 PCS.) HIT-949454.A126 949454	£1.67	£2.00
20 - MACHINE SCREW M5X12 (10 PCS.) HIT-949237.A25 949237	£1.67	£2.00
21 - PIN D6 HIT-993546.A3 993546	£1.67	£2.00
22 - PISTON HIT-998005.A1 998005	-
23 - MOVING BLADE HIT-998000.A0 998000	£14.76	£17.71
24 - HEX. SOCKET HD. BOLT M4X10 (10 PCS.) HIT-949812.A13 949812	£2.98	£3.57
25 - BLADE HOLDER HIT-998007.A0 998007	-
26 - STATIONARY BLADE HIT-998001.A1 998001	£13.65	£16.38
27 - SLOTTED HD. SET SCREW M4X14 HIT-998009.A1 998009	£1.67	£2.00
28 - LOCK NUT M4 (10 PCS.) HIT-949565.A0 949565	£1.67	£2.00
29 - SPRING HIT-314429.A19 314429	£1.67	£2.00
30 - SLIDE BAR HIT-314427.A2 314427	£1.67	£2.00
31 - SLIDE KNOB HIT-314428.A4 314428	£1.67	£2.00
32 - HOUSING ASS'Y INCLUD.17 HIT-314438.A1 314438	£11.86	£14.23
33 - NAME PLATE HIT-000000.A4533 000000	-
34 - EARTH TERMINAL FOR NOISE SUPPRESSOR HIT-314854.A0 314854	£1.67	£2.00
35 - TERMINAL HIT-311741.A21 311741	-
36 - NOISE SUPPRESSOR FOR TPE HIT-994273.A59 994273	£7.30	£8.76
37 - SWITCH HOLDER HIT-314432.A1 314432	£2.81	£3.37
*39 - PILLAR TERMINAL FOR TPE HIT-938307.A83 938307	£3.28	£3.93
40 - BRAND LABEL HIT-000000.A4534 000000	-
41 - BRUSH CAP HIT-936551.A4 936551	£1.67	£2.00
42 - CARBON BRUSH (1 PAIR) HIT-999021.A3 999021	£5.54	£6.65
43 - BRUSH HOLDER HIT-313777.A3 313777	£1.67	£2.00
44 - SWITCH (1P SOLDER TYPE) HIT-314603.A17 314603	£15.38	£18.45
45 - MACHINE SCREW (W/WASHER) M3.5X6 HIT-305499.A12 305499	£1.67	£2.00
*46 - TERMINAL FOR CORD HIT-980063.A118 980063	£1.67	£2.00
47 - CORD CLIP HIT-937631.A130 937631	£1.67	£2.00
48 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A0 984750	£1.67	£2.00
*49 - CORD ARMOR D8.8 HIT-953327.A10 953327	£1.67	£2.00
50 - TAIL COVER HIT-314433.A0 314433	£7.03	£8.44
51 - TAPPING SCREW (W/FLANGE) D4X45 (BLACK) HIT-301815.A17 301815	£1.67	£2.00
*52 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500237Z.A13 500237Z	£14.33	£17.20
*52A - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500450Z.A15 500450Z	£35.67	£42.80
501 - HEX. BAR WRENCH 3MM HIT-943277.A27 943277	£1.67	£2.00
502 - THICKNESS GAUGE HIT-949128.A1 949128	-
601 - PIECE. BOLT SET HIT-302355.A0 302355	-
