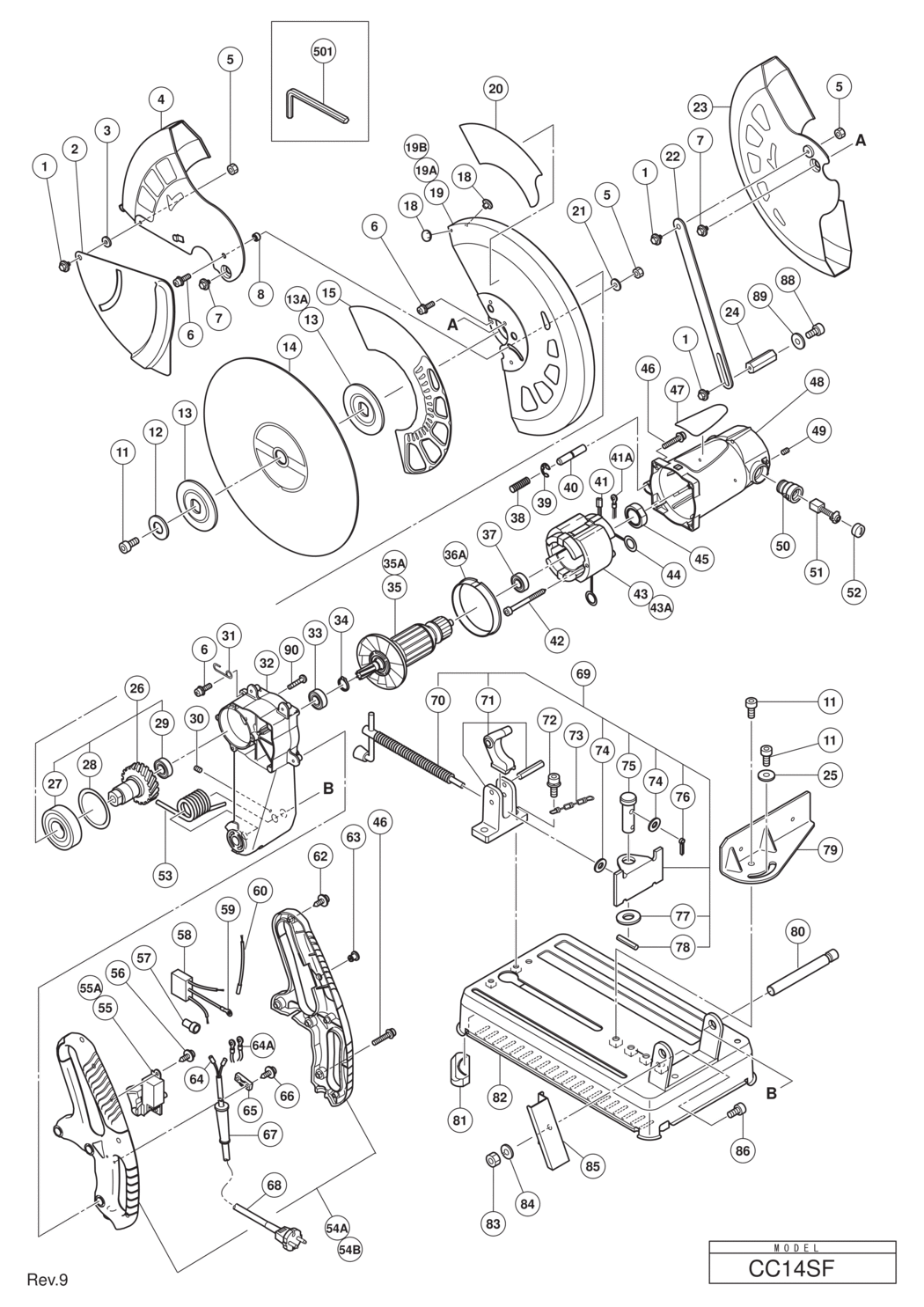

An exploded diagram and spare parts listing for the Hitachi / Hikoki CC14SF Cut-off Machine
Ex VAT Inc VAT
*1 - BOLT (B) (W/FLANGE) FOR EUROPE HIT-325133.A0 325133 £1.67 £2.00
*2 - SUB COVER (B) FOR EUROPE HIT-325132.A0 325132 £13.60 £16.32
*3 - BOLT WASHER M8 (10 PCS.) FOR EUROPE HIT-949433.A2 949433 £1.67 £2.00
*4 - SUB COVER (S) FOR EUROPE HIT-375603.A0 375603 -
*5 - LOCK NUT M5 (10 PCS.) FOR EUROPE HIT-949566.A6 949566 £1.67 £2.00
*6 - MACHINE SCREW (W/WASHERS) M5X16 (BLACK) HIT-307294.A1 307294 £1.67 £2.00
7 - BOLT (A) (W/FLANGE) HIT-325130.A0 325130 £1.67 £2.00
*8 - COVER SPACER EXCEPT FOR SAF HIT-325131.A0 325131 £3.37 £4.04
11 - HEX. SOCKET HD. BOLT M10X20 (10 PCS.) HIT-949844.A1 949844 £7.94 £9.53
12 - WASHER (A) HIT-965724.A1 965724 £1.67 £2.00
*13A - WHEEL WASHER (C) FOR EUROPE HIT-335333.A0 335333 £8.01 £9.61
14 - CUT-OFF WHEEL 355MM HIT-000000.A4905 000000 -
18 - COVER BUSH HIT-325127.A0 325127 £1.67 £2.00
*19A - WHEEL COVER (A) FOR EUROPE HIT-335334.A0 335334 £33.74 £40.49
*20 - BRAND LABEL (A) HIT-000000.A4902 000000 -
*21 - BOLT WASHER M5 (10 PCS.) EXCEPT FOR SAF HIT-949431.A3 949431 £1.67 £2.00
25 - BOLT WASHER M10 (10 PCS.) HIT-949434.A10 949434 £1.67 £2.00
26 - SPINDLE ASS'Y INCLUD.27-29 HIT-325103.A0 325103 £50.02 £60.03
27 - BALL BEARING 6306VVCMPS2L HIT-6306VV.A1 6306VV £3.13 £3.76
28 - STOPPER PIN (B) HIT-325017.A0 325017 £3.37 £4.04
30 - SEAL LOCK HEX. SOCKET SET SCREW M5X16 HIT-318044.A0 318044 -
31 - CHAIN HOOK HIT-321234.A0 321234 £1.67 £2.00
32 - GEAR CASE HIT-325113.A0 325113 £52.44 £62.93
33 - BALL BEARING 6002VVCMPS2L HIT-6002VV.A7 6002VV £9.32 £11.19
34 - RETAINING RING FOR D15 SHAFT (10 PCS.) HIT-939544.A29 939544 £3.64 £4.37
*35 - ARMATURE ASS'Y 100V-110V INCLUD.33 HIT-360731.A0 360731 £89.06 £106.87
*35 - ARMATURE 230V-240V HIT-360732F.A0 360732F £78.44 £94.13
36A - FAN GUIDE (M) HIT-326156.A0 326156 £1.67 £2.00
37 - BALL BEARING 6000VVCMPS2L HIT-6000VV.A65 6000VV £7.62 £9.15
38 - GAUGE SPRING HIT-948363.A0 948363 £1.67 £2.00
39 - RETAINING RING (E-TYPE) FOR D6 SHAFT HIT-955479.A6 955479 £1.67 £2.00
40 - STOPPER PIN HIT-321239.A0 321239 £1.67 £2.00
*41A - TERMINAL M4.0 (10 PCS.) SINCE 11.2010 FOR UAE HIT-930804.A31 930804 £3.64 £4.37
42 - HEX. HD. TAPPING SCREW D5X75 HIT-984271.A12 984271 £1.67 £2.00
*43A - STATOR ASS'Y 110V INCLUD.41A HIT-340643P.A0 340643P -
*43A - STATOR ASS'Y 230V-240V INCLUD.41A HIT-340643Q.A0 340643Q £71.20 £85.44
44 - BRUSH TERMINAL HIT-998744.A0 998744 £1.67 £2.00
45 - BEARING BUSHING HIT-325116.A0 325116 -
46 - MACHINE SCREW (W/WASHERS) M5X35 HIT-312298.A1 312298 £3.04 £3.65
47 - NAME PLATE HIT-000000.A4912 000000 -
48 - HOUSING ASS'Y INCLUD.45 HIT-325125.A0 325125 £42.88 £51.45
49 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A107 938477 £1.67 £2.00
50 - BRUSH HOLDER HIT-980487.A11 980487 £9.03 £10.84
51 - CARBON BRUSH (1 PAIR) HIT-999044.A1 999044 £5.54 £6.65
52 - BRUSH CAP HIT-940540.A19 940540 £1.67 £2.00
*53 - SPRING HIT-321422.A0 321422 £7.38 £8.85
*54B - HANDLE AND HANDLE COVER SET SINCE 11.2010 FOR UAE HIT-333400.A0 333400 £33.60 £40.32
*55A - SWITCH (2P PILLAR TYPE) W/LOCK SINCE 09.2011 FOR EUROPE HIT-334189.A0 334189 £15.04 £18.05
56 - TAPPING SCREW (W/FLANGE) D4X12 HIT-305720.A20 305720 £1.67 £2.00
*57 - CONNECTOR 50092 (10 PCS.) FOR EUROPE HIT-959141.A51 959141 £7.12 £8.54
*58 - NOISE SUPPRESSOR FOR EUROPE HIT-994273.A53 994273 £7.30 £8.76
*58 - NOISE SUPPRESSOR FOR GBR (110V) HIT-930039.A82 930039 £3.85 £4.62
*59 - TERMINAL FOR EUROPE HIT-938108.A9 938108 £1.67 £2.00
*60 - INTERNAL WIRE FOR EUROPE HIT-321423.A0 321423 £1.67 £2.00
62 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A26 301653 £1.67 £2.00
65 - CORD CLIP HIT-937631.A104 937631 £1.67 £2.00
66 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A40 984750 £1.67 £2.00
*67 - CORD ARMOR D8.8 HIT-953327.A41 953327 £1.67 £2.00
*68 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500463Z.A18 500463Z £21.37 £25.64
*68 - CORD (CORD ARMOR D8.8) FOR CHN HIT-500496Z.A0 500496Z -
*68 - CORD (CORD ARMOR D8.8) FOR KUW HIT-500423Z.A20 500423Z -
*69 - VISE ASS'Y INCLUD.70 HIT-325101.A0 325101 £34.54 £41.45
*70 - SCREW HIT-321226.A0 321226 £22.70 £27.24
71 - SCREW HOLDER HIT-325102.A0 325102 £18.02 £21.63
72 - HEX. SOCKET HD. BOLT (W/WASHERS) M8X25 HIT-307357.A0 307357 £1.67 £2.00
*73 - CHAIN (6 LINK) HIT-968520.A0 968520 -
74 - BOLT WASHER M8 (10 PCS.) HIT-949433.A3 949433 £1.67 £2.00
75 - BOLT HIT-321229.A0 321229 £8.74 £10.49
76 - SPLIT PIN D3X15 (10 PCS.) HIT-949537.A1 949537 -
77 - WASHER M16 HIT-321232.A0 321232 -
78 - ROLL PIN D5X25 (10 PCS.) HIT-949681.A2 949681 -
79 - VISE (B) HIT-325100.A0 325100 -
80 - HINGE SHAFT HIT-321237.A0 321237 £4.65 £5.58
81 - BASE RUBBER HIT-321223.A0 321223 £4.65 £5.58
*82 - BASE EXCEPT FOR SAF HIT-325121.A0 325121 £59.59 £71.51
83 - LOCK NUT M8 (10 PCS.) HIT-949568.A3 949568 £1.67 £2.00
84 - SPRING WASHER M8 (10 PCS.) HIT-949457.A79 949457 £1.67 £2.00
*85 - SPARK CHUTE FOR CHN HIT-330712.A0 330712 -
86 - HEX. SOCKET HD. BOLT M8X20 (10 PCS.) HIT-949656.A1 949656 £6.62 £7.95
90 - TRUSS HD. SCREW M5X12 HIT-326157.A0 326157 -
501 - HEX. BAR WRENCH 8MM HIT-955857.A0 955857 £4.96 £5.95
*601 - CUT-OFF WHEEL 355MM (10 PCS.) FOR GBR HIT-978958.A0 978958 -
