Hitachi / Hikoki CB75F Band Saw Spare Parts

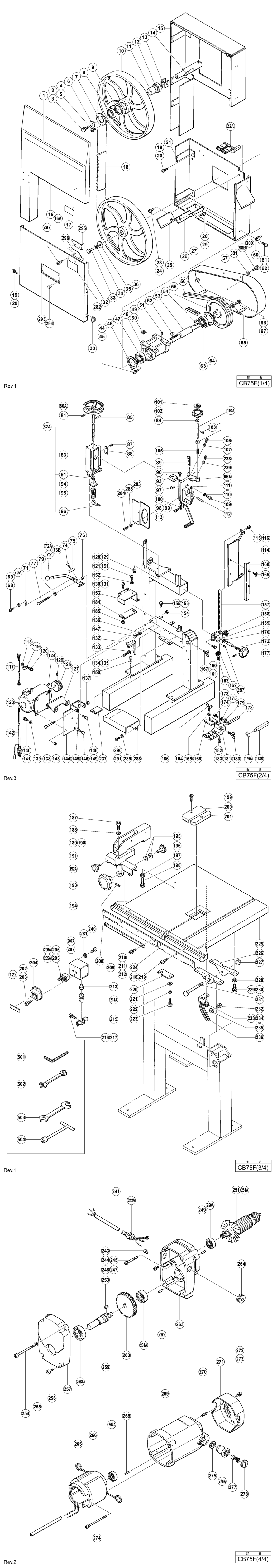

An exploded diagram and spare parts listing for the Hitachi / Hikoki CB75F Band Saw

	Ex VAT	Inc VAT
1 - BRAND LABEL HIT-977693.A0 977693	-
2 - BOLT M12X30 (10 PCS.) HIT-949758.A1 949758	-
3 - SPRING WASHER M12 (10 PCS.) HIT-949463.A8 949463	£1.67	£2.00
4 - MACHINE SCREW M5X16 (10 PCS.) HIT-949239.A11 949239	£1.67	£2.00
5 - SPRING WASHER M5 (10 PCS.) HIT-949454.A105 949454	£1.67	£2.00
6 - WASHER (S) HIT-967138.A1 967138	-
7 - BEARING COVER (B) HIT-948528.A1 948528	-
8 - BALL BEARING 6206VVCMPS2S HIT-6206VV.A1 6206VV	£16.21	£19.45
9 - RETAINING RING FOR D62 HOLE HIT-977717.A0 977717	-
10 - SAW WHEEL (B) HIT-977858.A0 977858	-
11 - SLEEVE HIT-967959.A0 967959	-
12 - BALL BEARING 6206VVCMPS2S HIT-6206VV.A2 6206VV	£16.21	£19.45
13 - SPACER (C) HIT-967673.A0 967673	-
14 - SAW SHAFT (B) HIT-977716.A0 977716	-
15 - UPPER SAW COVER (A) HIT-977690.A0 977690	-
16 - UPPER SAW COVER (B) HIT-977691.A0 977691	-
16A - UPPER SAW COVER (B) FOR USA (UL) HIT-319112.A0 319112	-
17 - CAUTION PLATE (J) HIT-977869.A0 977869	-
18 - BAND SAW BLADE (B) (STELLITE TIP) HIT-939971.A0 939971	£263.22	£315.87
19 - MACHINE SCREW M5X10 (10 PCS.) HIT-949236.A23 949236	£1.67	£2.00
20 - SPRING WASHER M5 (10 PCS.) HIT-949454.A108 949454	£1.67	£2.00
21 - LOWER SAW COVER (A) HIT-977745.A0 977745	-
22A - STABILIZER BASE (A) HIT-320748.A0 320748	-
23 - MACHINE SCREW M5X10 (10 PCS.) HIT-949236.A24 949236	£1.67	£2.00
24 - SPRING WASHER M5 (10 PCS.) HIT-949454.A107 949454	£1.67	£2.00
25 - SAW BLADE HOLDER (A) HIT-977731.A0 977731	-
26 - SAW DUST THROWER HIT-977733.A0 977733	-
27 - SAW DUST PLATE HIT-977734.A0 977734	-
28 - MACHINE SCREW M5X16 (10 PCS.) HIT-949239.A10 949239	£1.67	£2.00
29 - SPRING WASHER M5 (10 PCS.) HIT-949454.A106 949454	£1.67	£2.00
30 - LOCKING LATCH (B) HIT-975933.A0 975933	-
32 - LOWER SAW COVER (B) HIT-977746.A0 977746	-
*32 - LOWER SAW COVER (B) FOR USA HIT-978103.A0 978103	-
33 - SCREW (F) HIT-955797.A0 955797	-
34 - SPRING WASHER M12 (10 PCS.) HIT-949463.A9 949463	£1.67	£2.00
35 - WASHER (S) HIT-967138.A0 967138	-
36 - SAW WHEEL (A) HIT-977700.A0 977700	-
44 - MACHINE SCREW M5X16 (10 PCS.) HIT-949239.A13 949239	£1.67	£2.00
45 - SPRING WASHER M5 (10 PCS.) HIT-949454.A104 949454	£1.67	£2.00
46 - BEARING COVER (A) HIT-948506.A0 948506	-
47 - BALL BEARING 6306VVCMPS2L HIT-6306VV.A0 6306VV	£3.13	£3.76
48 - CASING (A) HIT-977697.A0 977697	-
49 - LINER (A) T0.1 HIT-966511.A1 966511	-
50 - LINER (A) T0.2 HIT-966512.A0 966512	-
51 - ROLL PIN D5X20 (10 PCS.) HIT-949753.A1 949753	-
52 - FEATHER KEY 7X7X30 HIT-967174.A0 967174	-
53 - SAW SHAFT (A) HIT-977698.A0 977698	-
54 - FEATHER KEY 7X7X30 HIT-967174.A1 967174	-
55 - PULLEY (C) HIT-967972.A0 967972	-
56 - V-BELT (A-41) FOR SINGLE-PHASE HIT-977878.A0 977878	-
*56 - V-BELT (A-43) FOR THREE-PHASE HIT-977879.A0 977879	-
57 - BELT COVER FOR SINGLE-PHASE HIT-977752.A0 977752	-
*57 - BELT COVER FOR THREE-PHASE HIT-977707.A0 977707	-
58B - BOLT M8X16 (10 PCS.) HIT-949622.A9 949622	-
60 - LOCKING LATCH (A) HIT-977692.A0 977692	-
61 - MACHINE SCREW M3X10 (10 PCS.) HIT-949204.A3 949204	£1.67	£2.00
62 - SPRING WASHER M3 (10 PCS.) HIT-949451.A7 949451	£1.67	£2.00
63 - BALL BEARING 6305VVCMPS2S HIT-6305VV.A0 6305VV	-
64 - BEARING COVER (B) HIT-948528.A0 948528	-
65 - SPECIAL WASHER M12 HIT-974608.A0 974608	-
66 - BOLT M12X30 (10 PCS.) HIT-949758.A0 949758	-
67 - SPRING WASHER M12 (10 PCS.) HIT-949463.A10 949463	£1.67	£2.00
68 - MACHINE SCREW M5X16 (10 PCS.) HIT-949239.A12 949239	£1.67	£2.00
69 - SPRING WASHER M5 (10 PCS.) HIT-949454.A103 949454	£1.67	£2.00
70A - BOLT WASHER M6 (10 PCS.) HIT-949432.A83 949432	£1.67	£2.00
71 - BRAKE SPRING HIT-977877.A0 977877	-
72 - GRIP (B) TILL 10.1999 HIT-968636.A1 968636	-
72A - GRIP (A) SINCE 11.1999 HIT-932344.A1 932344	-
73B - BRAKE HANDLE ASS'Y INCLUD.72A HIT-318658.A0 318658	-
74 - FLAT HD. SCREW M5X10 (10 PCS.) HIT-949331.A1 949331	£1.67	£2.00
75 - LINING HIT-977737.A0 977737	-
76 - SPACER HIT-977856.A0 977856	-
77 - HIGH TENSION BOLT M8X100 HIT-973567.A0 973567	-
79 - BOLT WASHER M8 (10 PCS.) HIT-949433.A11 949433	£1.67	£2.00
80A - ROUND HANDLE 160MM HIT-977713.A0 977713	-
81 - ROLL PIN D5X25 (10 PCS.) HIT-949681.A10 949681	-
82A - FEED SCREW ASS'Y INCLUD.91 HIT-319114.A0 319114	-
83 - SLIDE FRAME HIT-977710.A0 977710	-
84 - BOLT WASHER M12 (10 PCS.) HIT-949437.A1 949437	£1.67	£2.00
85 - MARK PLATE (B) HIT-968331.A1 968331	-
87 - RIVET D2.5X4.8 (10 PCS.) HIT-949510.A19 949510	£1.67	£2.00
88 - SCALE HIT-977871.A0 977871	-
89 - LINER HIT-977860.A0 977860	-
90 - CUP HIT-973681.A0 973681	-
91 - THRUST BEARING (51100) HIT-977712.A0 977712	-
93 - FEMALE SCREW HIT-977718.A0 977718	-
94 - GAUGE HIT-977714.A0 977714	-
95 - TENSION SPRING HIT-967665.A0 967665	-
96 - ROLL PIN D5X20 (10 PCS.) HIT-949753.A0 949753	-
97 - MACHINE SCREW M6X16 (10 PCS.) HIT-949256.A15 949256	£1.67	£2.00
98 - MACHINE SCREW M5X16 (10 PCS.) HIT-949239.A14 949239	£1.67	£2.00
99 - SPRING WASHER M5 (10 PCS.) HIT-949454.A109 949454	£1.67	£2.00
100 - BOLT WASHER M5 (10 PCS.) HIT-949431.A10 949431	£1.67	£2.00
101 - KNOB MARK HIT-977870.A0 977870	-
102 - KNOB HIT-977721.A0 977721	-
103 - ROLL PIN D4X25 (10 PCS.) HIT-949548.A3 949548	-
104A - KNOB SHAFT ASS'Y INCLUD.103 HIT-320419.A0 320419	-
105 - SPRING (A) HIT-977720.A0 977720	-
106 - SPECIAL BOLT M6 HIT-968959.A0 968959	-
107 - NUT M6 (10 PCS.) HIT-949556.A26 949556	£1.67	£2.00
108A - SLIDER FOR USA HIT-977708.A0 977708	-
108A - SLIDER HIT-977753.A0 977753	-
109 - HEX. SOCKET HD. BOLT M8X25 (10 PCS.) HIT-949760.A8 949760	£6.62	£7.95
110 - SPRING WASHER M8 (10 PCS.) HIT-949457.A35 949457	£1.67	£2.00
111 - HEX. SOCKET SET SCREW M5X12 HIT-966292.A3 966292	£1.67	£2.00
112 - PIN HIT-967671.A0 967671	-
113 - DUSTER (B) HIT-977740.A0 977740	-
114 - SAFETY COVER HIT-977727.A0 977727	-
115 - MACHINE SCREW M6X16 (10 PCS.) HIT-949256.A16 949256	£1.67	£2.00
116 - SPRING WASHER M6 (10 PCS.) HIT-949455.A62 949455	£1.67	£2.00
117 - CORD FOR THREE-PHASE HIT-977867.A0 977867	-
118 - NUT M4 (10 PCS.) FOR THREE-PHASE HIT-949554.A26 949554	£1.67	£2.00
119 - NYLON CLIP FOR THREE-PHASE HIT-967579.A1 967579	-
120 - MACHINE SCREW (W/WASHERS) M4X10 FOR THREE-PHASE HIT-986662.A0 986662	£1.67	£2.00
121 - MACHINE SCREW M5X10 (10 PCS.) HIT-949236.A5 949236	£1.67	£2.00
122 - SWITCH NAME PLATE (E) (TILL 10.1990 FOR USA) HIT-932161.A0 932161	-
123 - MOTOR HIT-000000.A4382 000000	-
124 - FEATHER KEY 8X7X38 HIT-975559.A0 975559	-
125 - PULLEY (A) HIT-977696.A0 977696	-
126 - HEX. SOCKET SET SCREW M6X6 HIT-967469.A4 967469	£1.67	£2.00
127 - MOTOR COVER (THREE-PHASE) HIT-967691.A0 967691	-
128 - BOLT M10X30 (10 PCS.) HIT-949698.A6 949698	-
129 - SPRING WASHER M10 (10 PCS.) HIT-949458.A17 949458	£1.67	£2.00
130 - MACHINE SCREW M5X10 (10 PCS.) HIT-949236.A6 949236	£1.67	£2.00
131 - SPRING WASHER M5 (10 PCS.) HIT-949454.A84 949454	£1.67	£2.00
132 - DUSTER (A) HIT-977735.A0 977735	-
133 - BOLT WASHER M5 (10 PCS.) HIT-949431.A15 949431	£1.67	£2.00
134 - MACHINE SCREW M5X16 (10 PCS.) HIT-949239.A16 949239	£1.67	£2.00
135 - SPRING WASHER M5 (10 PCS.) HIT-949454.A86 949454	£1.67	£2.00
136 - NUT M5 (10 PCS.) HIT-949555.A15 949555	£1.67	£2.00
137 - LOCK NUT M10 (10 PCS.) HIT-949572.A1 949572	-
138 - BOLT M10X100 HIT-977695.A0 977695	-
139 - BOLT WASHER M8 (10 PCS.) FOR THREE-PHASE HIT-949433.A21 949433	£1.67	£2.00
140 - BOLT M8X25 (10 PCS.) FOR THREE-PHASE HIT-949626.A5 949626	-
141 - SPRING WASHER M8 (10 PCS.) FOR THREE-PHASE HIT-949457.A39 949457	£1.67	£2.00
142 - CORD (FOR SINGLE-PHASE) HIT-977777.A0 977777	-
142 - CORD (FOR THREE-PHASE) HIT-977866.A0 977866	-
*142 - CORD (FOR SINGLE-PHASE) FOR USA(UL) HIT-977778.A0 977778	-
*142 - CORD (FOR SINGLE-PHASE) FOR ARG HIT-977779.A0 977779	-
*142 - CORD (FOR SINGLE-PHASE) FOR THREE PIN PLUG HIT-977780.A0 977780	-
*142 - CORD (FOR SINGLE-PHASE) FOR SIN HIT-977781.A0 977781	-
*142 - CORD (FOR SINGLE-PHASE) FOR NZL HIT-977782.A0 977782	-
143 - NUT M8 (10 PCS.) FOR THREE-PHASE HIT-949558.A13 949558	£1.67	£2.00
144 - MOTOR BASE HIT-977694.A0 977694	-
145 - LOCK NUT M10 (10 PCS.) HIT-949572.A0 949572	-
146 - BOLT M10X60 HIT-974638.A0 974638	-
147 - HEX. SOCKET HD. BOLT M5X30 (10 PCS.) HIT-949664.A43 949664	£4.33	£5.20
148 - BOLT M8X20 (10 PCS.) FOR SINGLE-PHASE HIT-949624.A1 949624	-
149 - SPRING WASHER M8 (10 PCS.) FOR SINGLE-PHASE HIT-949457.A36 949457	£1.67	£2.00
150 - SPECIAL SCREW W3/8X75 HIT-973854.A1 973854	-
151 - SPRING WASHER M5 (10 PCS.) HIT-949454.A85 949454	£1.67	£2.00
152 - BOLT WASHER M5 (10 PCS.) HIT-949431.A14 949431	£1.67	£2.00
153 - LOWER SAW COVER (C) HIT-977851.A0 977851	-
154 - LOCK NUT M8 (10 PCS.) HIT-949568.A13 949568	£1.67	£2.00
155 - BOLT M8X30 (10 PCS.) HIT-949628.A0 949628	-
156 - SPRING WASHER M8 (10 PCS.) HIT-949457.A38 949457	£1.67	£2.00
157 - STABILIZER SHAFT HIT-977723.A0 977723	-
158 - KNOB BOLT M8X30 HIT-977875.A0 977875	-
159 - ARM HIT-977722.A0 977722	-
160 - BOLT M8X25 (10 PCS.) HIT-949626.A4 949626	-
161 - SPRING WASHER M8 (10 PCS.) HIT-949457.A37 949457	£1.67	£2.00
162 - PINION HIT-977724.A0 977724	-
163 - HEX. SOCKET SET SCREW M5X10 HIT-952384.A2 952384	-
164 - WING BOLT M6X15 (10 PCS.) HIT-949402.A0 949402	-
165 - WASHER (H) HIT-967329.A4 967329	£1.67	£2.00
166 - STABILIZER HIT-977729.A0 977729	-
167 - WING BOLT M8X25 (10 PCS.) HIT-949413.A3 949413	£12.46	£14.95
168 - SAFETY COVER (B) HIT-948844.A0 948844	-
169 - WING BOLT M5X6 (10 PCS.) HIT-949395.A2 949395	£4.81	£5.77
170 - BOLT WASHER M16 (10 PCS.) HIT-949438.A0 949438	-
172 - SPRING (B) HIT-977853.A0 977853	-
173 - HEX. SOCKET HD. BOLT M10X30 (10 PCS.) TILL 3.1990 HIT-949846.A3 949846	£8.53	£10.24
174 - SPRING WASHER M10 (10 PCS.) TILL 3.1990 HIT-949458.A18 949458	£1.67	£2.00
175 - BOLT WASHER M10 (10 PCS.) TILL 3.1990 HIT-949434.A6 949434	£1.67	£2.00
177 - KNOB HIT-978100.A0 978100	-
178B - BEARING SHAFT (A) ASS'Y INCLUD.179A HIT-978106.A0 978106	-
179 - BALL BEARING 6200VVCMPS2L TILL 3.1990 HIT-6200VV.A0 6200VV	£7.36	£8.83
179A - BALL BEARING 6300VVCMPS2L SINCE 4.1990 HIT-6300VV.A0 6300VV	£8.87	£10.64
180 - WING BOLT M8X30 (10 PCS.) HIT-949689.A0 949689	-
181 - STABILIZER BASE (B) HIT-977728.A0 977728	-
182 - BOLT M10X50 (10 PCS.) HIT-949679.A0 949679	-
183 - SPRING WASHER M10 (10 PCS.) HIT-949458.A19 949458	£1.67	£2.00
184 - SAW DUST THROWER HIT-977733.A1 977733	-
185 - TABLE HOLDER HIT-973237.A0 973237	-
186 - WOODEN STAND HIT-000000.A4383 000000	-
187 - HEX. SOCKET HD. BOLT M10X30 (10 PCS.) HIT-949846.A2 949846	£8.53	£10.24
188 - SPRING WASHER M10 (10 PCS.) HIT-949458.A20 949458	£1.67	£2.00
189 - GUIDE ASS'Y INCLUD.187 HIT-977758.A0 977758	-
190 - GUIDE HIT-977876.A0 977876	-
191 - GUIDE HOLDER HIT-968339.A0 968339	-
192A - KNOB BOLT M10X30 HIT-978905.A0 978905	-
193 - KNOB HIT-974771.A1 974771	-
194 - ROLL PIN D5X25 (10 PCS.) HIT-949681.A0 949681	-
195 - BOLT WASHER M12 (10 PCS.) HIT-949437.A10 949437	£1.67	£2.00
196 - PINION HIT-967953.A0 967953	-
197 - LOCK NUT M10 (10 PCS.) HIT-949572.A2 949572	-
198 - BOLT M10X60 (10 PCS.) HIT-949634.A0 949634	-
199 - FLAT HD. SCREW M5X20 (10 PCS.) HIT-949793.A3 949793	-
200 - TABLE INSERT (B) HIT-977706.A0 977706	-
201 - TABLE INSERT (A) HIT-977852.A0 977852	-
202 - MACHINE SCREW M5X10 (10 PCS.) (TILL 10.1990 FOR USA) HIT-949236.A3 949236	£1.67	£2.00
203 - SPRING WASHER M5 (10 PCS.) (TILL 10.1990 FOR USA) HIT-949454.A82 949454	£1.67	£2.00
204 - SWITCH PROTECTOR (B) (TILL 10.1990 FOR USA) HIT-965580.A0 965580	-
205 - SWITCH (2P SOLDER TYPE) (TILL 10.1990 FOR USA) HIT-947100.A0 947100	-
205A - SWITCH (1P SOLDER TYPE) SINCE 11.1990 FOR USA HIT-972082Z.A0 972082Z	-
206 - SWITCH INSULATOR (TILL 10.1990 FOR USA) HIT-937297.A1 937297	-
206A - RUBBER PLATE SINCE 11.1990 FOR USA HIT-971939Z.A0 971939Z	-
207 - SWITCH COVER (A) (TILL 10.1990 FOR USA) HIT-977857.A0 977857	-
207A - SWITCH COVER (B) SINCE 11.1990 FOR USA HIT-978109.A0 978109	-
208 - RACK HIT-948830.A0 948830	-
209 - SCALE (B) HIT-967976.A0 967976	-
210 - MACHINE SCREW M4X10 (10 PCS.) HIT-949216.A30 949216	£1.67	£2.00
211 - SPRING WASHER M4 (10 PCS.) HIT-949453.A36 949453	£1.67	£2.00
212 - BOLT WASHER M4 (10 PCS.) HIT-949429.A51 949429	£1.67	£2.00
213 - CONNECTOR 50092 (10 PCS.) FOR SINGLE-PHASE HIT-959141.A17 959141	£7.12	£8.54
213S - CONNECTOR 50092 (10 PCS.) FOR THREE-PHASE HIT-959141.A18 959141	£7.12	£8.54
214A - CORD LOCK (SL-13) HIT-319501.A1 319501	-
215 - CORD CLIP HIT-965378.A1 965378	-
216 - MACHINE SCREW M6X16 (10 PCS.) HIT-949256.A17 949256	£1.67	£2.00
217 - SPRING WASHER M6 (10 PCS.) HIT-949455.A63 949455	£1.67	£2.00
218 - MACHINE SCREW M5X10 (10 PCS.) HIT-949236.A4 949236	£1.67	£2.00
219 - SPRING WASHER M5 (10 PCS.) HIT-949454.A83 949454	£1.67	£2.00
220 - TABLE PIECE HIT-974244.A1 974244	-
221 - BOLT WASHER M8 (10 PCS.) HIT-949433.A22 949433	£1.67	£2.00
222 - SPRING WASHER M8 (10 PCS.) HIT-949457.A32 949457	£1.67	£2.00
223 - HIGH TENSION BOLT M8X25 HIT-967594.A3 967594	-
224 - RACK HIT-948831.A0 948831	-
225 - TABLE HIT-977701.A0 977701	-
226 - HINGE HIT-977850.A0 977850	-
227 - TABLE NUT HIT-977704.A0 977704	-
228 - BOLT WASHER M8 (10 PCS.) HIT-949433.A23 949433	£1.67	£2.00
229 - BOLT M8X30 (10 PCS.) HIT-949628.A1 949628	-
230 - SPRING WASHER M8 (10 PCS.) HIT-949457.A33 949457	£1.67	£2.00
231 - TABLE SHAFT HIT-977703.A0 977703	-
232 - HIGH TENSION BOLT M8X16 HIT-934368.A0 934368	-
233 - BOLT M8X20 (10 PCS.) HIT-949624.A0 949624	-
234 - SPRING WASHER M8 (10 PCS.) HIT-949457.A34 949457	£1.67	£2.00
235 - WASHER (D) HIT-948541.A0 948541	-
236 - TILT PLATE HIT-977705.A0 977705	-
237 - RUBBER WASHER HIT-977751.A0 977751	-
238 - MACHINE SCREW M6X8 (10 PCS.) HIT-949253.A0 949253	£1.67	£2.00
239 - SPRING WASHER M6 (10 PCS.) HIT-949455.A65 949455	£1.67	£2.00
240 - MACHINE SCREW M4X10 (10 PCS.) HIT-949216.A29 949216	£1.67	£2.00
241 - CORD (A) HIT-977883.A0 977883	-
242A - CORD LOCK (SL-13) HIT-319501.A0 319501	-
243 - CONNECTOR 50092 (10 PCS.) HIT-959141.A16 959141	£7.12	£8.54
244 - MACHINE SCREW M6X40 (10 PCS.) HIT-949264.A0 949264	-
245 - SPRING WASHER M6 (10 PCS.) HIT-949455.A64 949455	£1.67	£2.00
246 - MACHINE SCREW M4X6 (10 PCS.) HIT-949214.A10 949214	£1.67	£2.00
247 - SPRING WASHER M4 (10 PCS.) HIT-949453.A41 949453	£1.67	£2.00
249 - BEARING LOCK HIT-946362.A15 946362	£1.67	£2.00
250A - BALL BEARING 6202DD HIT-6202DD.A4 6202DD	£7.32	£8.78
*251 - ARMATURE ASS'Y 220V-240V FOR SINGLE-PHASE HIT-974727E.A0 974727E	-
251A - ARMATURE ASS'Y 110V-127V FOR SINGLE-PHASE INCLUD.250 HIT-974727U.A0 974727U	-
253 - FEATHER KEY 4X4X10 HIT-930511.A14 930511	£2.78	£3.34
254 - HEX. SOCKET HD. BOLT M6X85 (10 PCS.) HIT-949835.A0 949835	-
255 - SPRING WASHER M6 (10 PCS.) HIT-949455.A66 949455	£1.67	£2.00
256 - HEX. SOCKET HD. BOLT M6X25 (10 PCS.) HIT-949652.A0 949652	£3.85	£4.62
257 - COVER HIT-974723.A0 974723	-
258A - BALL BEARING 6205DDCMPS2L HIT-6205DD.A4 6205DD	£13.75	£16.50
259 - SPINDLE HIT-974729.A0 974729	-
260 - GEAR HIT-974722.A0 974722	-
261A - BALL BEARING 6202DD HIT-6202DD.A3 6202DD	£7.32	£8.78
262 - BEARING LOCK HIT-946362.A14 946362	£1.67	£2.00
263 - GEAR COVER HIT-977882.A0 977882	-
264 - CORD ARMOR (B) D12.0 HIT-973420.A0 973420	-
265 - BRUSH TERMINAL HIT-998744.A2 998744	£1.67	£2.00
266 - STATOR ASS'Y 110V-115V FOR SINGLE-PHASE INCLUD.265 HIT-968914C.A1 968914C	-
*266 - STATOR ASS'Y 220V-230V FOR SINGLE-PHASE INCLUD.265 HIT-968914E.A1 968914E	-
*266 - STATOR ASS'Y 240V FOR SINGLE-PHASE INCLUD.265 HIT-968914F.A0 968914F	-
267A - BALL BEARING 6200DDCMPS2L HIT-6200DD.A5 6200DD	£8.32	£9.99
268 - BEARING LOCK HIT-946362.A16 946362	£1.67	£2.00
269 - HOUSING ASS'Y INCLUD.270 HIT-951240.A0 951240	-
270 - HEX. SOCKET SET SCREW M5X10 HIT-952384.A1 952384	-
271 - TAIL COVER HIT-951244.A0 951244	-
272 - MACHINE SCREW M5X10 (10 PCS.) HIT-949236.A0 949236	£1.67	£2.00
273 - SPRING WASHER M5 (10 PCS.) HIT-949454.A79 949454	£1.67	£2.00
274 - MACHINE SCREW (W/SP. WASHER) M5X80 HIT-977749.A0 977749	-
275 - STOP PLATE HIT-976307.A1 976307	-
276A - BRUSH HOLDER HIT-956984.A11 956984	£11.55	£13.86
277 - CARBON BRUSH (1 PAIR) HIT-999044.A7 999044	£5.54	£6.65
278 - BRUSH CAP HIT-978445.A0 978445	£1.67	£2.00
281 - SPRING WASHER M4 (10 PCS.) HIT-949453.A42 949453	£1.67	£2.00
282 - CAUTION PLATE (A) HIT-977775.A0 977775	-
283 - UPPER SAW COVER (C) HIT-977776.A0 977776	-
284 - MACHINE SCREW M5X10 (10 PCS.) HIT-949236.A1 949236	£1.67	£2.00
285 - SPRING WASHER M5 (10 PCS.) HIT-949454.A81 949454	£1.67	£2.00
287 - HEX. SOCKET SET SCREW M8X12 HIT-967237.A0 967237	-
288 - LOWER SAW WHEEL COVER HIT-977791.A0 977791	-
289 - WASHER (H) HIT-967329.A3 967329	£1.67	£2.00
290 - MACHINE SCREW M5X10 (10 PCS.) HIT-949236.A2 949236	£1.67	£2.00
291 - SPRING WASHER M5 (10 PCS.) HIT-949454.A80 949454	£1.67	£2.00
292 - BOLT M6X16 (10 PCS.) HIT-949613.A9 949613	£1.67	£2.00
293 - NAME PLATE HIT-000000.A4384 000000	-
294 - RIVET D2.5X4.8 (10 PCS.) FOR USA(UL) HIT-949510.A0 949510	£1.67	£2.00
295 - BLADE COVER PLATE FOR USA HIT-978104.A0 978104	-
296 - BLADE COVER FOR USA HIT-978105.A0 978105	-
297 - MACHINE SCREW (W/WASHERS) M5X10 FOR USA HIT-976706.A3 976706	-
298 - CAUTION PLATE (Z) HIT-000000.A4385 000000	-
299 - RIVET D2.5X3.2 (10 PCS.) FOR USA (UL) HIT-949509.A6 949509	-
300 - SPRING WASHER M8 (10 PCS.) HIT-949457.A31 949457	£1.67	£2.00
301 - WASHER M8 HIT-972919.A0 972919	-
501 - HEX. BAR WRENCH 8MM HIT-955857.A2 955857	£4.96	£5.95
502 - WRENCH 10/13MM HIT-972043.A2 972043	£7.22	£8.66
503 - WRENCH 17/19MM HIT-974254.A2 974254	£8.08	£9.69
504 - BOX WRENCH 13MM HIT-966821.A0 966821	-
601 - GUIDE SPRING FOR WORKPIECE GUIDE HIT-967684.A0 967684	-
602 - MITER GAUGE HIT-948583.A0 948583	-
603 - BAND SAW BLADE (A) (STELLITE TIP) HIT-967701.A0 967701	-
605 - BAND SAW BLADE (C) 25MM HIT-967712.A0 967712	-
606 - BAND SAW BLADE (E) 12.5MM HIT-967990.A0 967990	-
607 - BAND SAW BLADE (F) 9.25MM HIT-967991.A0 967991	-
608 - BAND SAW BLADE (G) 6MM HIT-967992.A0 967992	-
609 - SUB ROLLER HIT-977872.A0 977872	-
611 - BAND SAW BLADE GUIDE ASS'Y 12.5MM HIT-977874.A0 977874	-

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki CB75F Band Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
