Hitachi / Hikoki C9U3 Circular Saw Spare Parts

Home Details Reviews Delivery

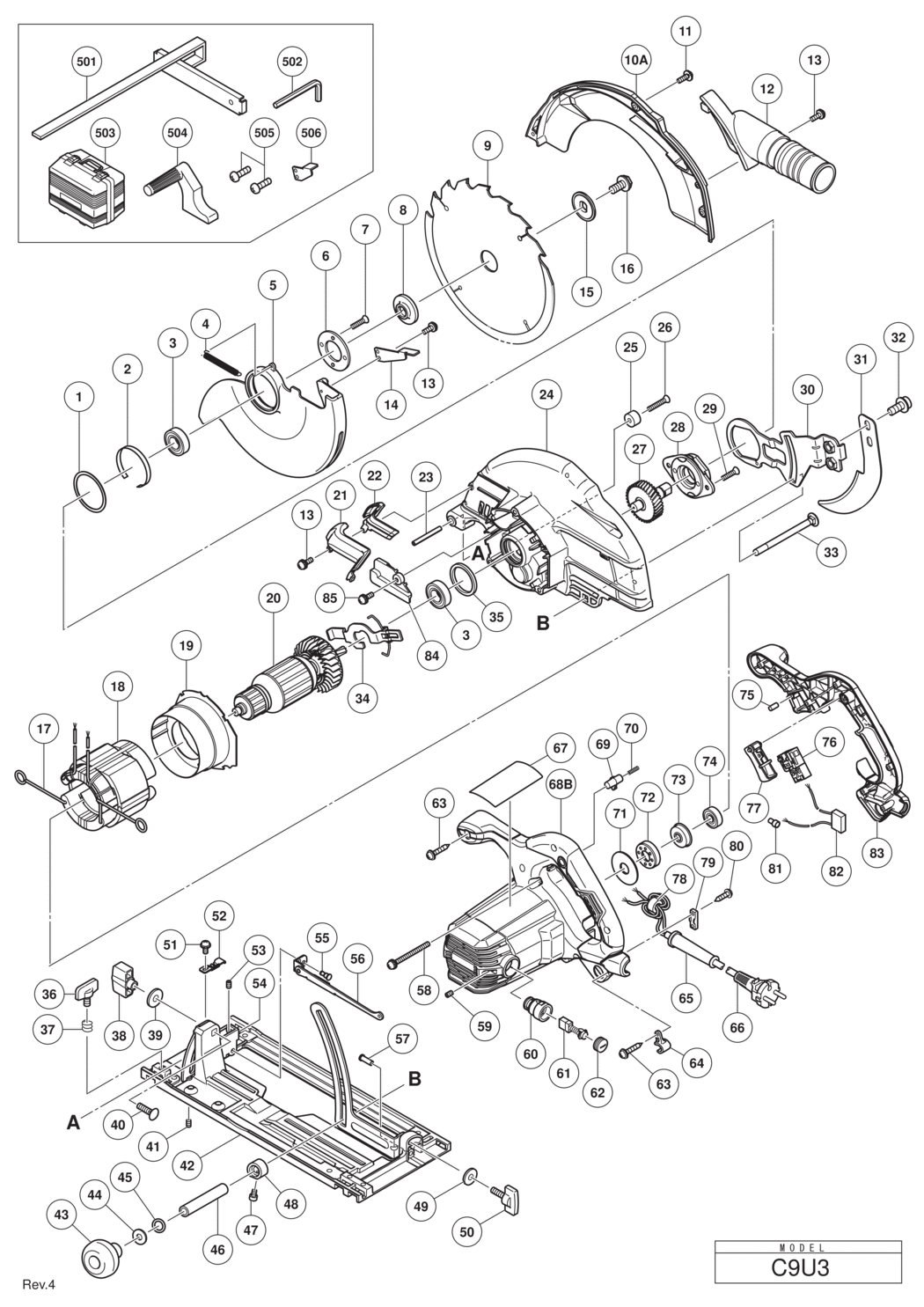

An exploded diagram and spare parts listing for the Hitachi / Hikoki C9U3 Circular Saw

	Ex VAT	Inc VAT
1 - WASHER HIT-370540.A1 370540	-
2 - LINER HIT-998887.A1 998887	£10.39	£12.47
3 - BALL BEARING 6202VVCMPS2L HIT-6202VV.A10 6202VV	£7.02	£8.42
4 - RETURN SPRING HIT-370543.A1 370543	£2.67	£3.20
5 - LOWER GUARD HIT-370283.A1 370283	£19.46	£23.35
6 - BEARING COVER HIT-370277.A1 370277	-
7 - SEAL LOCK FLAT HD. SCREW M5X14 HIT-992013.A23 992013	£1.67	£2.00
*8 - WASHER (A) HIT-370272.A2 370272	£4.01	£4.81
*9 - TCT SAW BLADE 235MM-D30 HOLE-NT20 HIT-303810.A3 303810	-
10A - SAW COVER HIT-370280.A1 370280	£15.56	£18.67
11 - MACHINE SCREW (W/SP. WASHER) M4X12 HIT-951039.A10 951039	£1.67	£2.00
12 - DUST COLLECTOR HIT-997247.A0 997247	£8.28	£9.94
13 - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) HIT-935196.A65 935196	£1.67	£2.00
14 - LEVER HIT-370542.A0 370542	£1.67	£2.00
15 - WASHER (B) HIT-370279.A2 370279	£3.92	£4.70
16 - HEX. SOCKET HD. BOLT M8X15.5 HIT-324662.A8 324662	£3.02	£3.63
17 - BRUSH TERMINAL HIT-937623.A21 937623	£1.67	£2.00
*18 - STATOR ASS'Y 110V INCLUD.17 HIT-340942J.A0 340942J	£38.78	£46.53
*18 - STATOR ASS'Y 220V-230V INCLUD.17 HIT-340942G.A0 340942G	-
19 - FAN GUIDE HIT-370292.A1 370292	£1.67	£2.00
*20 - ARMATURE 110V HIT-361033C.A0 361033C	£48.83	£58.60
*20 - ARMATURE 220V-230V HIT-361033E.A1 361033E	-
21 - FLOW GUIDE (B) HIT-370282.A0 370282	£1.67	£2.00
22 - FLOW GUIDE (A) HIT-370281.A1 370281	£1.67	£2.00
23 - ROLL PIN D8X50 (10 PCS.) HIT-949884.A1 949884	£11.82	£14.18
24 - GEAR COVER HIT-370544.A1 370544	£38.61	£46.33
25 - CUSHION HIT-337080.A3 337080	£1.67	£2.00
26 - FLAT HD. SCREW M6X20 (10 PCS.) HIT-949794.A13 949794	£1.67	£2.00
27 - SPINDLE AND GEAR SET HIT-370276.A0 370276	£16.13	£19.36
28 - BEARING HOLDER HIT-370275.A1 370275	-
29 - SEAL LOCK FLAT HD. SCREW M6X14 HIT-303797.A4 303797	£1.67	£2.00
30 - ARM HIT-370297.A0 370297	-
31 - RIVING KNIFE HIT-370298.A1 370298	£7.39	£8.87
32 - HEX. SOCKET HD. BOLT M8 HIT-370287.A1 370287	£1.67	£2.00
33 - DIAGONAL BOLT M8 HIT-370266.A0 370266	£10.10	£12.12
34 - LOCK LEVER HIT-370291.A1 370291	£4.72	£5.67
35 - RUBBER RING HIT-303792.A5 303792	£1.67	£2.00
36 - WING BOLT M6X15 HIT-301806.A29 301806	£1.67	£2.00
37 - LOCK SPRING HIT-947859.A12 947859	£1.67	£2.00
38 - WING NUT M8 HIT-324658.A6 324658	£4.57	£5.48
39 - BOLT WASHER M8 (10 PCS.) HIT-949433.A37 949433	£1.67	£2.00
40 - BOLT (SQUARE) M8X30 HIT-302457.A9 302457	£1.67	£2.00
41 - SLOTTED HD. SET SCREW (SEAL LOCK) M6X6 HIT-302469.A8 302469	£1.67	£2.00
42 - BASE ASS'Y INCLUD.57 HIT-370294.A1 370294	£36.66	£43.99
43 - KNOB HIT-324660.A7 324660	£6.82	£8.18
44 - BOLT WASHER M8 (10 PCS.) HIT-949433.A38 949433	£1.67	£2.00
45 - O-RING (P-7) HIT-676531.A8 676531	£1.67	£2.00
46 - SLEEVE (A) HIT-370267.A1 370267	-
47 - SEAL LOCK HEX. SOCKET HD. BOLT M4X6 HIT-370278.A1 370278	-
48 - SLEEVE (B) HIT-370268.A2 370268	£5.07	£6.08
49 - WASHER M6 (10 PCS.) HIT-949425.A22 949425	£1.67	£2.00
50 - WING BOLT M6X22 HIT-322959.A1 322959	£1.67	£2.00
51 - MACHINE SCREW (W/SP. WASHER) M4(BLACK) HIT-331003.A6 331003	-
52 - GUIDE PIECE HIT-324659.A7 324659	£3.02	£3.63
53 - SEAL LOCK HEX. SOCKET SET SCREW M5X6 HIT-319541.A13 319541	£1.67	£2.00
54 - BEVEL PLATE HIT-308481.A1 308481	£10.10	£12.12
55 - STEP PIN HIT-370295.A0 370295	£1.67	£2.00
56 - PLATE HIT-370296.A1 370296	£3.02	£3.63
57 - RIVET D6X17 HIT-308480.A9 308480	£1.67	£2.00
58 - MACHINE SCREW (W/WASHERS) M5X50 (BLACK) HIT-997841.A5 997841	£1.67	£2.00
59 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A33 938477	£1.67	£2.00
60 - BRUSH HOLDER HIT-983362.A1 983362	£7.02	£8.42
61 - CARBON BRUSH (1 PAIR) HIT-999038.A14 999038	£5.54	£6.65
62 - BRUSH CAP HIT-961781.A11 961781	£3.15	£3.78
63 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A237 301653	£1.67	£2.00
64 - CORD HOLDER HIT-370269.A1 370269	-
65 - CORD ARMOR D8.8 HIT-953327.A111 953327	£1.67	£2.00
*66 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500440Z.A8 500440Z	£22.75	£27.30
*66 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500517Z.A3 500517Z	-
*67 - NAME PLATE HIT-000000.A2125 000000	-
*68B - HOUSING HIT-373924.A0 373924	-
*69 - OFF LOCK BUTTON EXCEPT FOR SAF HIT-370262.A0 370262	£1.67	£2.00
*70 - SPRING (A) EXCEPT FOR SAF HIT-335465.A3 335465	£1.67	£2.00
71 - SPRING PLATE TILL 5.2018 HIT-992926.A5 992926	£1.67	£2.00
72 - RUBBER BUSHING HIT-370628.A1 370628	-
73 - BEARING BUSHING HIT-325355.A4 325355	£4.57	£5.48
74 - BALL BEARING 6000VVCMPS2L HIT-6000VV.A11 6000VV	£7.62	£9.15
75 - BEARING LOCK HIT-931701.A9 931701	£1.67	£2.00
76 - SWITCH HIT-370260.A0 370260	£16.35	£19.62
77 - TRIGGER HIT-370261.A1 370261	£1.67	£2.00
78 - FERRITE CORE HIT-334379.A21 334379	-
79 - CORD CLIP HIT-937631.A22 937631	£1.67	£2.00
80 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A220 984750	£1.67	£2.00
81 - CONNECTOR 50092 (10 PCS.) HIT-959141.A61 959141	£7.12	£8.54
82 - NOISE SUPPRESSOR HIT-930039.A43 930039	£3.85	£4.62
83 - HANDLE COVER HIT-370290.A0 370290	£16.62	£19.94
84 - PLATE (C) HIT-371211.A1 371211	-
85 - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) HIT-935196.A63 935196	£1.67	£2.00
501 - GUIDE HIT-303888.A4 303888	£15.41	£18.49
502 - HEX. BAR WRENCH 6MM HIT-872422.A6 872422	£1.67	£2.00
*503 - CASE FOR EUROPE HIT-370627.A0 370627	£70.16	£84.19
504 - SIDE HANDLE HIT-303811.A1 303811	£6.61	£7.93
505 - MACHINE SCREW (W/WASHERS) M6X20 (BLACK) HIT-323208.A11 323208	£1.67	£2.00
506 - LEVER HIT-370264.A1 370264	£1.67	£2.00

Attribute Name	Value
Brand	Hikoki
