Hitachi / Hikoki C7BU2 Circular Saw Spare Parts

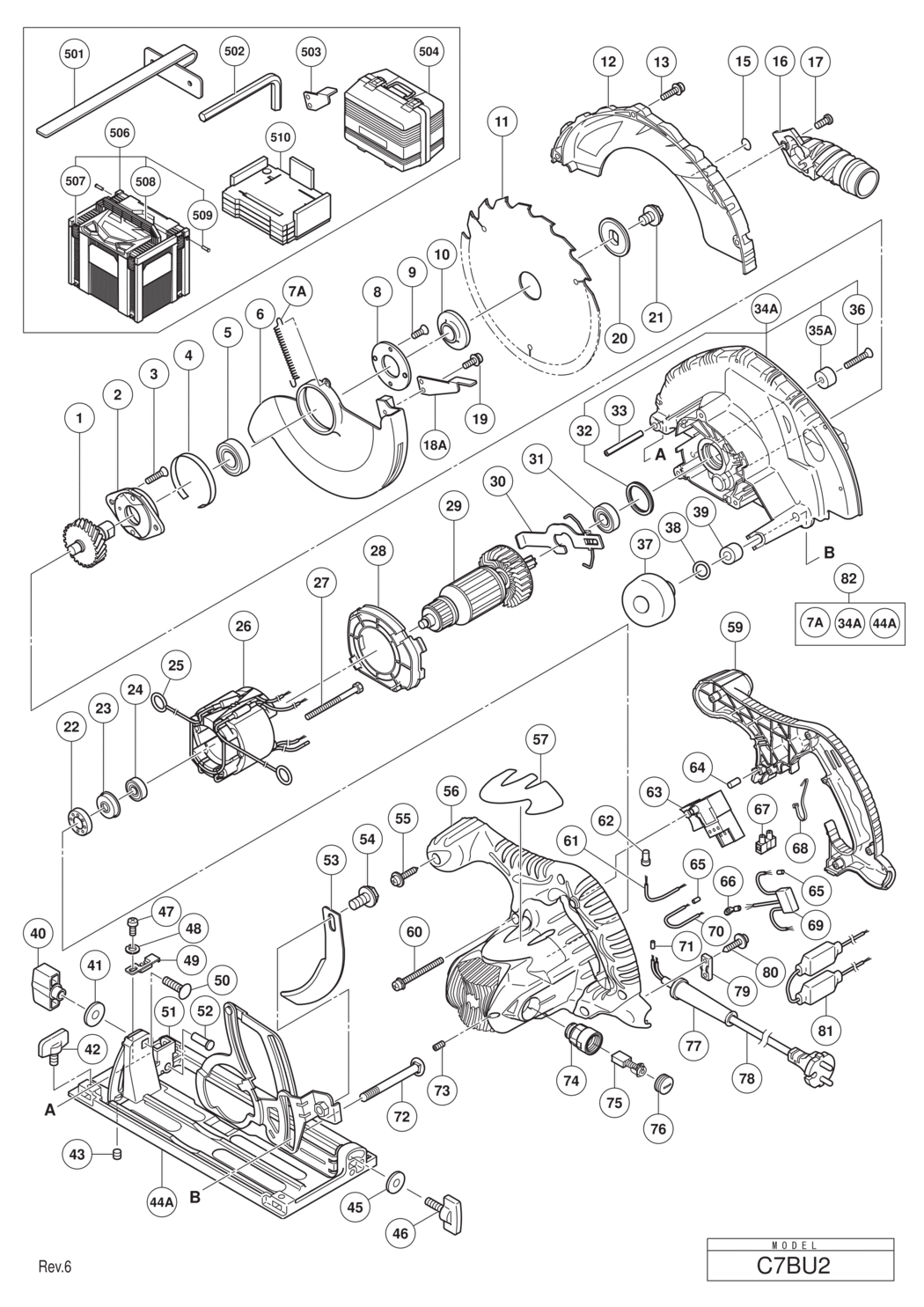

An exploded diagram and spare parts listing for the Hitachi / Hikoki C7BU2 Circular Saw

	Ex VAT	Inc VAT
1 - SPINDLE AND GEAR SET HIT-302988.A0 302988	£20.42	£24.50
2 - BEARING HOLDER HIT-302433.A3 302433	£5.27	£6.32
3 - SEAL LOCK FLAT HD. SCREW M5X14 HIT-992013.A2 992013	£1.67	£2.00
4 - BUSHING HIT-961807.A3 961807	£2.77	£3.32
5 - BALL BEARING 6003VVCMPS2L HIT-6003VV.A3 6003VV	£9.03	£10.84
6 - SAFETY COVER HIT-324661.A0 324661	£14.97	£17.96
7A - RETURN SPRING SINCE 12.2013 HIT-337101.A0 337101	£1.67	£2.00
8 - BEARING COVER HIT-302435.A7 302435	£2.78	£3.34
9 - SEAL LOCK FLAT HD. SCREW M4X10 HIT-990430.A10 990430	£1.67	£2.00
10 - WASHER (A) HIT-302476.A4 302476	£5.09	£6.11
11 - TCT SAW BLADE 190MM-D30 HOLE-NT18 HIT-324668.A2 324668	-
12 - SAW COVER HIT-324654.A1 324654	£8.66	£10.39
13 - MACHINE SCREW (W/WASHERS) M4X14 (BLACK) HIT-305691.A5 305691	£1.67	£2.00
15 - NAME PLATE (BRAKE) HIT-000000.A2067 000000	-
16 - DUST COLLECTOR HIT-324669.A6 324669	£2.89	£3.47
17 - SPECIAL BOLT HIT-324139.A3 324139	£1.67	£2.00
18A - LEVER HIT-370542.A8 370542	£1.67	£2.00
19 - MACHINE SCREW (W/WASHERS) M4X10 (BLACK) HIT-304043.A25 304043	£1.67	£2.00
20 - WASHER (B) HIT-302423.A3 302423	£4.31	£5.17
21 - HEX. SOCKET HD. BOLT M8X15.5 HIT-324662.A3 324662	£3.02	£3.63
22 - RUBBER BUSHING HIT-325060.A1 325060	£1.67	£2.00
23 - BEARING BUSHING HIT-322089.A5 322089	£6.50	£7.80
24 - BALL BEARING 608VVC2PS2L HIT-608VVM.A228 608VVM	£5.70	£6.84
25 - BRUSH TERMINAL HIT-930703.A30 930703	£3.28	£3.93
*26 - STATOR ASS'Y 110V INCLUD.25 HIT-340445G.A0 340445G	£40.99	£49.19
*26 - STATOR ASS'Y 230V INCLUD.25 HIT-340425G.A0 340425G	£37.38	£44.86
27 - HEX. HD. TAPPING SCREW D5X55 HIT-953174.A26 953174	£1.67	£2.00
28 - FAN GUIDE HIT-324656.A0 324656	£3.02	£3.63
*29 - ARMATURE 110V HIT-360726C.A0 360726C	£48.08	£57.69
*29 - ARMATURE 230V HIT-360726E.A0 360726E	£48.08	£57.69
30 - LOCK LEVER HIT-324655.A2 324655	£3.02	£3.63
31 - BALL BEARING 6001VV HIT-6001VV.A5 6001VV	£8.68	£10.42
32 - RUBBER RING HIT-958130.A4 958130	£1.67	£2.00
33 - ROLL PIN D6X40 (10 PCS.) HIT-949686.A9 949686	£8.48	£10.18
34A - GEAR COVER ASS'Y INCLUD.32 HIT-337095.A1 337095	£34.50	£41.40
35A - CUSHION SINCE 12.2013 HIT-337097.A1 337097	£1.67	£2.00
36 - FLAT HD. SCREW M6X20 (10 PCS.) HIT-949794.A8 949794	£1.67	£2.00
37 - KNOB HIT-324660.A3 324660	£6.82	£8.18
38 - O-RING (P-7) HIT-676531.A3 676531	£1.67	£2.00
39 - SLEEVE HIT-303801.A6 303801	£4.28	£5.13
40 - WING NUT M8 HIT-324658.A3 324658	£4.57	£5.48
41 - BOLT WASHER M8 (10 PCS.) HIT-949433.A46 949433	£1.67	£2.00
42 - WING BOLT M6X15 HIT-301806.A19 301806	£1.67	£2.00
43 - SLOTTED HD. SET SCREW (SEAL LOCK) M6X6 HIT-302469.A3 302469	£1.67	£2.00
44A - BASE ASS'Y (FLUORINE) INCLUD.40 HIT-337099.A0 337099	-
45 - WASHER M6 (10 PCS.) HIT-949425.A21 949425	£1.67	£2.00
46 - WING BOLT M6X17 HIT-302459.A14 302459	£1.67	£2.00
47 - MACHINE SCREW M4X6 (10 PCS.) HIT-949214.A5 949214	£1.67	£2.00
48 - SPRING WASHER M4 (10 PCS.) HIT-949453.A52 949453	£1.67	£2.00
49 - GUIDE PIECE HIT-324659.A11 324659	£3.02	£3.63
50 - BOLT (SQUARE) M8X30 HIT-302457.A6 302457	£1.67	£2.00
51 - BEVEL PLATE HIT-308479.A0 308479	£5.59	£6.71
52 - RIVET D6X17 HIT-308480.A4 308480	£1.67	£2.00
53 - RIVING KNIFE HIT-324663.A0 324663	£8.66	£10.39
54 - HEX. SOCKET HD. BOLT M8X10 HIT-324664.A2 324664	£5.52	£6.63
55 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A253 301653	£1.67	£2.00
56 - HOUSING ASS'Y INCLUD.73 HIT-324682.A1 324682	£39.69	£47.63
57 - NAME PLATE HIT-000000.A2068 000000	-
59 - HANDLE COVER HIT-324683.A0 324683	£7.99	£9.59
60 - MACHINE SCREW (W/WASHERS) M5X45 (BLACK) HIT-302434.A6 302434	£1.67	£2.00
61 - INTERNAL WIRE (BLUE) 70L HIT-324680.A2 324680	-
62 - CONNECTOR 50092 (10 PCS.) HIT-959141.A67 959141	£7.12	£8.54
63 - SWITCH (B) (2P PILLAR TYPE)W/SAFETY LOCK HIT-316445.A2 316445	£19.48	£23.38
64 - BEARING LOCK HIT-946362.A23 946362	£1.67	£2.00
*65 - TUBE (D) HIT-981373.A39 981373	£1.67	£2.00
*65 - TUBE (D) FOR GBR (110V) HIT-981373.A40 981373	£1.67	£2.00
66 - TERMINAL FOR GBR (110V) HIT-961419Z.A2 961419Z	-
67 - PILLAR TERMINAL HIT-938307.A11 938307	£3.28	£3.93
68 - WIRE BAND HIT-313505.A9 313505	-
*69 - NOISE SUPPRESSOR HIT-930039.A36 930039	£3.85	£4.62
*69 - NOISE SUPPRESSOR FOR GBR (110V) HIT-994273.A15 994273	£7.30	£8.76
70 - INTERNAL WIRE (BLUE) 100L EXCEPT FOR GBR (110V) HIT-324681.A1 324681	-
71 - TUBE (D) FOR CORD HIT-981373.A41 981373	£1.67	£2.00
72 - DIAGONAL BOLT M8X105 HIT-316444.A0 316444	£4.57	£5.48
73 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A42 938477	£1.67	£2.00
74 - BRUSH HOLDER HIT-960685.A4 960685	£7.59	£9.11
75 - CARBON BRUSH (1 PAIR) HIT-999056.A4 999056	£9.88	£11.85
76 - BRUSH CAP HIT-945161.A13 945161	£1.67	£2.00
77 - CORD ARMOR D8.8 HIT-953327.A109 953327	£1.67	£2.00
*78 - CORD (CORD ARMOR D8.8) HIT-500234Z.A17 500234Z	-
*78 - CORD (CORD ARMOR D8.8) FOR FIN HIT-500247Z.A39 500247Z	-
*78 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500435Z.A41 500435Z	£14.14	£16.97
*78 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500461Z.A34 500461Z	£15.56	£18.67
*78 - CORD (CORD ARMOR D8.8) FOR SUI HIT-500248Z.A4 500248Z	-
*78 - CORD (CORD ARMOR D8.8) FOR ARG HIT-500484Z.A2 500484Z	-
79 - CORD CLIP HIT-937631.A26 937631	£1.67	£2.00
80 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A223 984750	£1.67	£2.00
81 - RESISTOR EXCEPT FOR GBR (110V) HIT-316446.A0 316446	£30.28	£36.34
82 - GEAR COVER SET INCLUD.7A HIT-337104.A0 337104	-
501 - GUIDE HIT-302756.A13 302756	£7.02	£8.42
502 - HEX. BAR WRENCH 6MM HIT-872422.A12 872422	£1.67	£2.00
503 - KNOB HIT-303338.A3 303338	£1.67	£2.00
504 - CASE HIT-325318.A1 325318	£44.46	£53.35
506 - CASE ASS'Y (STACKABLE 4) INCLUD.507-509 HIT-337528.A15 337528	-
507 - LATCH HIT-336472.A31 336472	£1.67	£2.00
508 - HANDLE HIT-336473.A43 336473	£6.43	£7.72
509 - HINGE HIT-336474.A31 336474	£1.67	£2.00
510 - BOTTOM CUSHION HIT-337659.A0 337659	-
601 - GUIDE RAIL ADAPTER ASS'Y INCLUD.602-607 HIT-317848.A2 317848	£66.61	£79.93
602 - RAIL BAR HIT-317849.A0 317849	-
603 - BAR HIT-317850.A2 317850	-
604 - BAR HIT-317851.A0 317851	-
605 - WING BOLT M6X15 HIT-301806.A20 301806	£1.67	£2.00
606 - MACHINE SCREW M5X12 (10 PCS.) HIT-949237.A6 949237	£1.67	£2.00
607 - SPRING WASHER M5 (10 PCS.) HIT-949454.A59 949454	£1.67	£2.00
