Hitachi / Hikoki C3610DRA Cordless Miter Saw Spare Parts

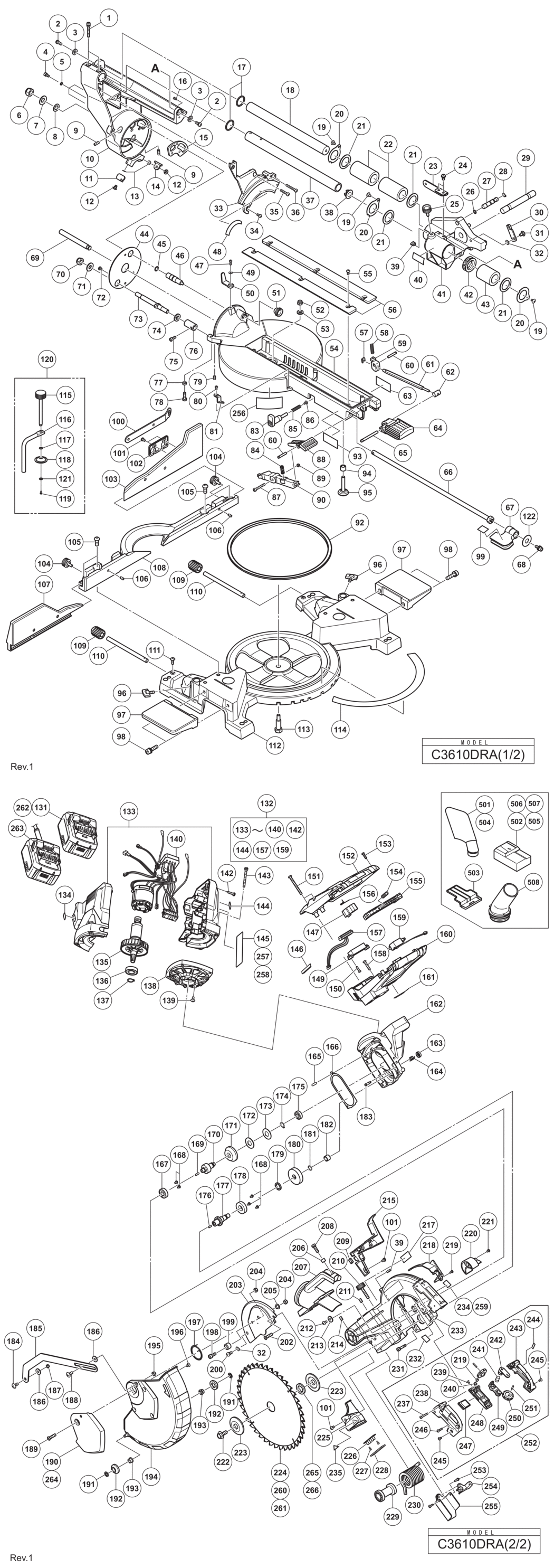

An exploded diagram and spare parts listing for the Hitachi / Hikoki C3610DRA Cordless Miter Saw

	Ex VAT	Inc VAT
1 - HEX. SOCKET HD. CAP SCREW M5X40 HIT-372555.A0 372555	-
2 - HEX.SOCKET TRUSS HEAD&WASHER ASS'Y M6X16 HIT-372556.A0 372556	-
3 - FLAT WASHER M6 HIT-372561.A0 372561	£1.75	£2.10
4 - HEX. SOCKET HD. CAP SCREW M6X14 HIT-372577.A0 372577	-
5 - EXTERNAL TOOTH LOCK WASHER M6 HIT-372450.A0 372450	-
6 - NUT CHUCK M12 HIT-372500.A0 372500	-
7 - DISC SPRING WASHER M12 HIT-372453.A0 372453	-
8 - FLAT WASHER M12 HIT-372559.A0 372559	-
9 - HEX. SOC. SET SCREW M6X16 HIT-372553.A0 372553	-
10 - ARM-MITER HIT-373689.A0 373689	-
11 - PLATE HIT-372623.A0 372623	-
12 - CR. RE. TRUSS HD. ROUND NECK SCREW M5X12 HIT-372625.A0 372625	-
13 - WAVE WASHER HIT-372018.A0 372018	-
14 - PLATE HIT-372622.A0 372622	-
15 - SET PLATE HIT-372524.A0 372524	-
16 - RUBBER PAD HIT-372521.A0 372521	-
17 - O-RING ROD HIT-372458.A0 372458	-
18 - MITER BAR ASS'Y HIT-372515.A0 372515	-
19 - CR. -RE. TRUSS HD. SCREW M5X6 HIT-372543.A0 372543	-
20 - BEARING COVER HIT-372519.A0 372519	-
21 - BLANKET WASHER HIT-372491.A0 372491	-
22 - LINEAR MOTION BEARING HIT-372490.A0 372490	-
23 - SET PLATE HIT-372569.A0 372569	-
24 - HEX.SOCKET TRUSS HEAD&WASHER ASS'Y M6X12 HIT-372503.A0 372503	-
25 - CLAMP HANDLE HIT-372585.A0 372585	-
26 - O-RING HIT-372050.A0 372050	-
27 - CLEVIS PIN HIT-372481.A0 372481	-
28 - C-RING HIT-372454.A0 372454	-
29 - SHAFT HIT-372489.A0 372489	-
30 - ANCHOR PLATE HIT-372566.A0 372566	-
31 - CR. RE. TRUSS HD. ROUND NECK SCREW M6X10 HIT-372567.A1 372567	-
32 - WAVE WASHER HIT-327354.A0 327354	-
33 - ARM MITER COVER HIT-372533.A0 372533	-
34 - CR. RE. PAN HD. TAPPING SCREW D5X12 HIT-372024.A0 372024	-
35 - CR. RE. PAN HD. TAPPING SCREW D5X16 HIT-372059.A0 372059	-
36 - CR. RE. PAN HD. TAPPING SCREW D5X35 HIT-372573.A0 372573	-
37 - MITER BAR HIT-372516.A0 372516	-
38 - FRAME ENDCAP (BLACK PLASTIC) HIT-372511.A0 372511	-
39 - SPACER HIT-372513.A0 372513	-
40 - WARNING LABEL HIT-372617.A0 372617	-
41 - SLIDE-BAR SEAT (FRONT) HIT-373688.A0 373688	-
42 - WASHER BEARING HIT-372512.A1 372512	-
43 - LINEAR MOTION BEARING HIT-372523.A0 372523	-
44 - SET PLATE HIT-372514.A0 372514	-
45 - O-RING HIT-372456.A0 372456	-
46 - LOCATING BAR HIT-372510.A0 372510	-
47 - CR. RE. PAN HD. SCREW M4X12 HIT-372466.A0 372466	-
48 - TILTING SCALE HIT-372628.A0 372628	-
49 - FLAT WASHER M4 HIT-327352.A0 327352	-
50 - NEEDLE POINTER HIT-372536.A0 372536	-
51 - CLAMP BOLT HIT-372583.A0 372583	-
52 - LOCK NUT M8 HIT-339841.A1 339841	-
53 - FLAT WASHER M8 HIT-726478.A1 726478	-
54 - TABLE HIT-372587.A0 372587	-
55 - CR. RE. PAN HD. SCREW M5X10 HIT-372552.A0 372552	-
56 - TABLE INSERT HIT-372610.A0 372610	-
57 - STOP PLATE HIT-372731.A0 372731	-
58 - COMPRESSION SPRING HIT-372478.A0 372478	-
59 - BRACKET STOP HIT-372595.A0 372595	-
60 - ROLL PIN HIT-372474.A0 372474	-
61 - LOCATING BAR HIT-372593.A0 372593	-
62 - SPECIAL NUT HIT-372592.A0 372592	-
63 - CAUTION LABEL HIT-372613.A0 372613	-
64 - CLAMP HANDLE HIT-372589.A0 372589	-
65 - ROLL PIN HIT-372629.A0 372629	-
66 - LOCKING ROD HIT-372594.A0 372594	-
67 - KNOB HIT-372590.A0 372590	-
68 - HEX. SOC. HD. CAP SCREW M6X16 HIT-726539.A0 726539	-
69 - SHAFT-PIVOT HIT-372517.A0 372517	-
70 - NUT CHUCK M10 HIT-339796.A0 339796	-
71 - BOLT WASHER M10 (10 PCS.) HIT-949434.A7 949434	£1.67	£2.00
72 - CR. RE. PAN HD. SCREW M5X6 HIT-372548.A0 372548	-
73 - SPECIAL BOLT HIT-372532.A0 372532	-
74 - FLAT WASHER M10 HIT-339832.A0 339832	-
75 - HEX. SOCKET HD. CAP SCREW M5X20 HIT-372564.A0 372564	-
76 - BUSHING HIT-372497.A0 372497	-
77 - HEX. NUT M6 HIT-372505.A0 372505	-
78 - HEX. HD. BOLT M6X20 HIT-372459.A0 372459	-
79 - HEX. SOCKET SET SCREW M6X10 HIT-968247.A1 968247	-
80 - MACHINE SCREW M5X8 (10 PCS.) HIT-949235.A8 949235	£1.67	£2.00
81 - NEEDLE POINTER HIT-372576.A0 372576	-
83 - PLUNGER HANDLE HIT-372530.A0 372530	-
84 - COMPRESSION SPRING HIT-372504.A0 372504	-
85 - COMPRESSION SPRING HIT-372502.A0 372502	-
86 - CR. -RE. TRUSS HD. SCREW M4X8 HIT-372486.A0 372486	-
87 - ALLEN BOLT M5X35 HIT-372572.A0 372572	-
88 - HANDLE HIT-372588.A0 372588	-
89 - LOCK NUT M5 HIT-726615.A2 726615	-
90 - PLUNGER HANDLE HIT-372591.A0 372591	-
92 - SLIDE PLATE HIT-373962.A0 373962	-
93 - CAUTION LABEL HIT-372614.A0 372614	-
94 - ADJUSTABLE NUT HIT-372529.A0 372529	-
95 - LEVELING PAD HIT-372528.A0 372528	-
96 - CLAMP HANDLE HIT-372586.A0 372586	-
97 - EXTENSION TABLE HIT-373681.A0 373681	-
98 - HEX. SOCKET HD. CAP SCREW M8X30 HIT-373665.A0 373665	-
99 - WARNING LABEL HIT-372618.A0 372618	-
100 - BLADE WRENCH HIT-372446.A0 372446	-
101 - CR. RE. PAN HD. SCREW M5X8 HIT-372549.A2 372549	-
102 - WRENCH SET HIT-372525.A0 372525	-
103 - ASSIST-FENCE (RIGHT) HIT-372582.A0 372582	-
104 - CLAMP BOLT HIT-372584.A0 372584	-
105 - HEX. SOC. TRUSS HD. SCREW M8X20 HIT-726318.A1 726318	-
106 - HEX. SOC. SET SCREW M5X6 HIT-372479.A1 372479	-
107 - ASSIST-FENCE (LEFT) HIT-372581.A0 372581	-
108 - FENCE HIT-372580.A0 372580	£90.90	£109.08
109 - REAR SUPPORT TUBE HIT-372570.A0 372570	£1.83	£2.20
110 - REAR SUPPORT TUBE HIT-372571.A0 372571	£3.52	£4.22
111 - CR. -RE. TRUSS HD. SCREW M5X16 HIT-372464.A0 372464	£2.96	£3.55
112 - BASE HIT-373687.A0 373687	£205.38	£246.45
113 - CENTER BOLT HIT-372442.A0 372442	-
114 - BRACKET-TILT HIT-372612.A0 372612	-
115 - HANDLE BAR ASS'Y HIT-373666.A0 373666	-
116 - VISE BEARING HIT-373668.A0 373668	-
117 - FLAT WASHER M9.6 HIT-373677.A0 373677	-
118 - FLANGE HIT-373667.A1 373667	-
119 - CR. RE. PAN HD. SCREW & WASHER M5X12 HIT-373675.A0 373675	-
120 - VISE ASS'Y HIT-372531.A0 372531	-
121 - FLAT WASHER M5 HIT-373678.A1 373678	-
122 - FLAT WASHER M6.3 HIT-373961.A0 373961	-
132 - MOTOR ASS'Y HIT-373762.A0 373762	-
133 - HOUSING ASS'Y HIT-373763.A0 373763	£25.31	£30.37
134 - MV LABEL (A) HIT-373913.A0 373913	-
135 - ROTOR ASS'Y HIT-361094.A0 361094	-
136 - BALL BEARING HIT-372405.A0 372405	-
137 - RETANING RING HIT-726512.A0 726512	-
138 - FRONT HOUSING HIT-372412.A0 372412	-
139 - SCREW M5X10 HIT-372404.A0 372404	-
140 - WIRING ASS'Y HIT-341011B.A0 341011B	-
142 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A67 301653	£1.67	£2.00
143 - CR. RE. PAN HD. SCREW & WASHER M5X55 HIT-373797.A0 373797	-
144 - MV LABEL (B) HIT-373914.A7 373914	-
146 - SENSORMATIC CHIP HIT-372212.A0 372212	-
147 - BUTTON SWITCH HIT-372537.A0 372537	-
149 - SWITCH MOUNTING HIT-373685.A0 373685	-
150 - CR. RE. PAN HD. TAPPING SCREW D4X12 HIT-373664.A0 373664	-
151 - CR. RE. PAN HD. SCREW M5X55 HIT-372550.A0 372550	-
152 - MOTOR HANDLE (UP) HIT-373683.A0 373683	-
153 - CR. RE. PAN HD. TAPPING SCREW D4X20 HIT-372488.A0 372488	-
154 - COMPRESSION SPRING HIT-372441.A0 372441	-
155 - TRIGGER HIT-373686.A0 373686	-
156 - TORSION SPRING HIT-372538.A0 372538	-
157 - PANEL SWITCH ASS'Y HIT-373949.A0 373949	-
158 - CR. RE. PAN HD. SCREW M5X25 HIT-372551.A0 372551	-
159 - SWITCH HIT-371907.A6 371907	£15.22	£18.27
160 - MOTOR HANDLE (DOWN) HIT-373684.A0 373684	-
162 - GEAR BOX HIT-372415.A0 372415	-
163 - LOCK KNOB HIT-372414.A0 372414	-
164 - COMPRESSION SPRING HIT-372416.A0 372416	-
165 - NEEDLE ROLLER HIT-372422.A0 372422	-
166 - OIL PAPER HIT-372423.A0 372423	-
167 - BALL BEARING HIT-372391.A0 372391	-
168 - HEX.SOC.TRUSS HD.SCREW M4X6 HIT-372429.A1 372429	-
169 - PARALLEL KEY HIT-372396.A0 372396	-
170 - GEAR SHAFT HIT-372411.A0 372411	-
171 - STRAIGHT BEVEL GEAR HIT-372436.A0 372436	-
172 - BUMPER HIT-372435.A0 372435	-
173 - CENTER SHAFT WASHER HIT-372434.A0 372434	-
174 - C-RING HIT-372403.A0 372403	-
175 - BALL BEARING HIT-372389.A0 372389	-
176 - PARALLEL KEY HIT-372433.A0 372433	-
177 - CUTTER SHAFT HIT-372408.A0 372408	-
178 - BALL BEARING HIT-372390.A0 372390	-
179 - COLLAR HIT-372409.A0 372409	-
180 - HELIX GEAR HIT-372410.A0 372410	-
181 - C-RING HIT-317578.A0 317578	-
182 - NEEDLE BEARING HIT-326905.A0 326905	-
183 - CLEVIS PIN HIT-372413.A0 372413	-
184 - CR. RE. TRUSS HD. ROUND NECK SCREW M6X14 HIT-372498.A0 372498	-
185 - LEVER HIT-372596.A0 372596	-
186 - FLAT WASHER HIT-372501.A0 372501	-
187 - NUT M6 HIT-339840.A0 339840	-
188 - CR. RE. TRUSS HD. ROUND NECK SCREW M6X15 HIT-372635.A0 372635	-
189 - CR. RE. COUNT HD. SCREW M6X25 HIT-372465.A0 372465	-
191 - SELF-LOCKING RING HIT-372455.A0 372455	-
192 - ROLLING WHEEL HIT-372444.A0 372444	-
193 - BEARING HIT-372445.A0 372445	-
194 - PC-GUARD HIT-373822.A0 373822	-
195 - NUT CHUCK M6 HIT-314474.A3 314474	£2.54	£3.05
196 - CR. RE. COUNT HD. TAPPING SCREW M5X8 HIT-373680.A0 373680	£1.96	£2.35
197 - SPRING GUARD HIT-372496.A0 372496	£1.59	£1.91
198 - HEX. SOC. HD. CAP BOLT M6X16 HIT-372460.A0 372460	-
199 - ANCHOR BLOCK HIT-372443.A0 372443	-
200 - CR. RE. PAN HD. ROUND NECK SCREW M6X12 HIT-372547.A0 372547	-
202 - CR. -RE. TRUSS HD. SCREW M6X8 HIT-372542.A0 372542	-
203 - CUTTER SHAFT GUARD HIT-373821.A0 373821	-
204 - NUT CHUCK M6 HIT-372499.A0 372499	-
205 - SPACER HIT-372730.A0 372730	-
206 - BUSH HIT-372631.A0 372631	-
207 - SEGMENT HANDLE HIT-372630.A0 372630	-
208 - CR. RE. PAN HD. SCREW & WASHER M6X16 HIT-372485.A0 372485	-
209 - BUSH HIT-373682.A0 373682	-
210 - CLAMP HANDLE HIT-372608.A0 372608	-
211 - HEX. SOC. SET SCREW M6X12 HIT-372562.A0 372562	-
212 - HEX. SOC. HD. CAP BOLT M5X10 HIT-372432.A0 372432	-
213 - FLAT WASHER HIT-372430.A0 372430	-
214 - HEX. SOC. SET SCREW M6X10 HIT-372554.A0 372554	-
215 - CABLE COVER HIT-372600.A0 372600	-
217 - CAUTION LABEL HIT-372634.A0 372634	-
218 - CABLE SHIELD HIT-372620.A0 372620	-
219 - CR. RE. PAN HD. SCREW M4X8 HIT-372487.A0 372487	-
220 - OIL CAP HIT-372417.A0 372417	-
221 - HEX.SOC.TRUSS HD.SCREW M4X6 HIT-372429.A0 372429	-
222 - HEX. WASHER HD. BOLT M8 HIT-372557.A0 372557	-
223 - ARBOR COLLAR HIT-372494.A0 372494	-
225 - LAMP SOCKET HIT-372601.A0 372601	-
226 - LED LIGHT HIT-372605.A0 372605	-
227 - CR. RE. PAN HD. TAPPING SCREW D3X8 HIT-372546.A0 372546	-
228 - INSERT HIT-372606.A0 372606	-
229 - SHAFT SLEEVE HIT-372520.A0 372520	-
230 - TORSION SPRING HIT-372518.A0 372518	-
231 - HEX. SOCKET HD. CAP SCREW M5X25 HIT-372428.A0 372428	-
232 - CAUTION LABEL HIT-372565.A0 372565	-
233 - ARM HIT-373690.A0 373690	-
234 - WARNING LABEL HIT-372627.A0 372627	-
235 - LED LABEL HIT-000000.A3768 000000	-
237 - CR. RE. PAN HD. TAPPING SCREW D4X25 HIT-372545.A0 372545	-
238 - LASER COVER HIT-372526.A0 372526	-
239 - CR. RE. COUNT HD. SCREW M3X6 HIT-373674.A0 373674	-
240 - FLAT WASHER HIT-373676.A0 373676	-
241 - PLUNGER HOUSING HIT-373673.A0 373673	-
242 - LASER PLUNGER HOUSING HIT-373672.A0 373672	-
243 - COVERLASER_COVER HIT-372527.A0 372527	-
244 - LASER STICKER HIT-372626.A0 372626	-
245 - CR. RE. COUNT HD. SCREW M4X8 HIT-372541.A0 372541	-
246 - CR. RE. PAN HD. TAPPING SCREW D4X16 HIT-372544.A0 372544	-
247 - INSERT HIT-372522.A0 372522	-
248 - LASER SET HIT-373670.A0 373670	-
249 - PIVOT-SUPPORT HIT-373671.A0 373671	-
250 - BUTTON HIT-373679.A0 373679	-
251 - PIN HIT-373669.A0 373669	-
252 - LASER ASS'Y HIT-372621.A0 372621	-
253 - CR. RE. PAN HD. TAPPING SCREW D4X12 HIT-373663.A0 373663	-
254 - SUPPORT SEAT HIT-373693.A0 373693	-
255 - RUBBER SLEEVE HIT-373692.A0 373692	-
256 - WARNING LABEL (A) (62841) HIT-373908.A0 373908	-
*258 - LABEL (HiKOKI) (EUROPE) HIT-000000.A3769 000000	-
259 - WARNING LABEL HIT-373911.A0 373911	-
*260 - TCT SAW BLADE 255MM-D30 HOLE-NT40 HIT-373415.A0 373415	-
*262 - BATTERY BSL 36B18 (EUROPE AUS NZL) HIT-372120.A0 372120	£239.38	£287.25
*264 - BRACING PLATE (HIKOKI) HIT-373923.A0 373923	-
*265 - COLLAR (OD30) HIT-373963.A0 373963	-
503 - BATTERY COVER HIT-329897.A69 329897	£1.67	£2.00
*504 - DUST BAG HIT-373912.A1 373912	£7.23	£8.68
*506 - BATTERY CHARGER (230V UK PLUG) HIT-000000.A3771 000000	-
508 - ELBOW HIT-374294.A0 374294	-

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki C3610DRA Cordless Miter Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
