Hitachi / Hikoki C3607DRA Cordless Miter Saw Spare Parts

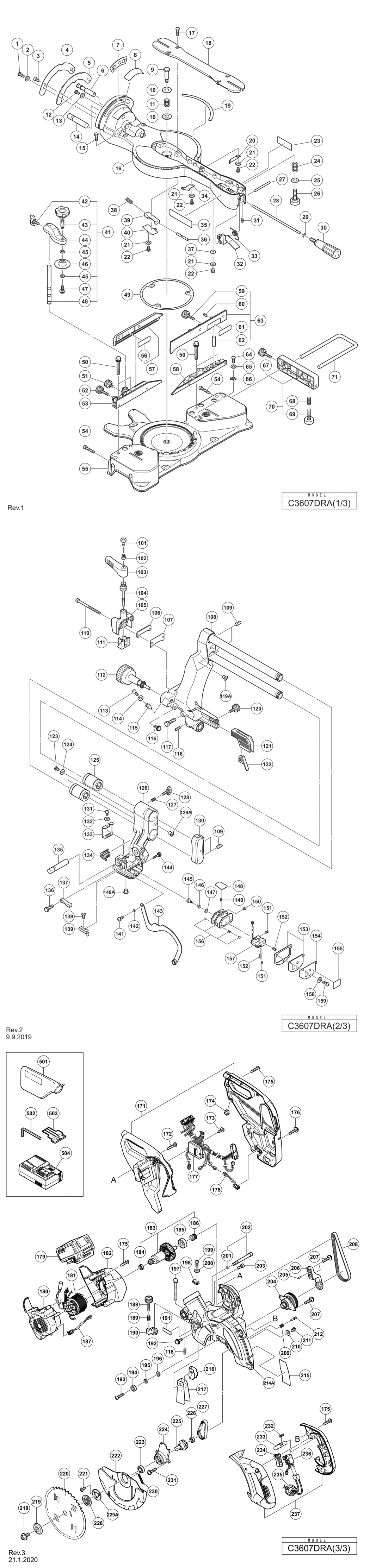

An exploded diagram and spare parts listing for the Hitachi / Hikoki C3607DRA Cordless Miter Saw

	Ex VAT	Inc VAT
1 - MACHINE SCREW M4X12 (10 PCS.) HIT-949217.A38 949217	£1.67	£2.00
2 - BOLT WASHER M4 (10 PCS.) HIT-949429.A19 949429	£1.67	£2.00
3 - FLAT HD. SCREW M4X10 (10 PCS.) HIT-949322.A15 949322	£1.67	£2.00
4 - PLATE (C) HIT-325560.A0 325560	-
5 - GEAR (A) HIT-325559.A0 325559	-
6 - SET PIN (A) HIT-322337.A0 322337	-
7 - LINER (A) HIT-322275.A0 322275	-
8 - SCALE (B) HIT-373559.A0 373559	-
9 - SHAFT (B) HIT-329418.A2 329418	-
10 - BOLT WASHER M12 (10 PCS.) HIT-949437.A15 949437	£1.67	£2.00
11 - SPRING HIT-312481.A4 312481	£4.12	£4.95
12 - MACHINE SCREW M4X8 (10 PCS.) HIT-949215.A41 949215	£1.67	£2.00
13 - BOLT WASHER M4 (10 PCS.) HIT-949429.A20 949429	£1.67	£2.00
14 - SHAFT (C) HIT-312489.A0 312489	-
15 - SEAL LOCK BOLT M6X20 (BLACK) HIT-307724.A1 307724	-
16 - TURN TABLE ASS'Y INCLUD.1-5 HIT-373548.A0 373548	-
17 - MACHINE SCREW M5X16 (BLACK) HIT-302317.A2 302317	£1.67	£2.00
18 - TABLE INSERT HIT-373530.A0 373530	-
19 - SCALE (A) HIT-373558.A0 373558	-
20 - SPACER (A) HIT-321342.A7 321342	£1.67	£2.00
21 - BOLT WASHER M4 (10 PCS.) HIT-949429.A21 949429	£1.67	£2.00
22 - MACHINE SCREW M4X8 (10 PCS.) HIT-949215.A40 949215	£1.67	£2.00
24 - HANDLE SPRING HIT-988540.A1 988540	-
25 - BOLT WASHER M10 (10 PCS.) HIT-949434.A4 949434	£1.67	£2.00
26 - SET SCREW HIT-988891.A1 988891	-
27 - LEVER SHAFT HIT-321339.A2 321339	£1.67	£2.00
28 - SHAFT (A) HIT-334378.A1 334378	£3.19	£3.83
29 - RETAINING RING (E-TYPE) FOR D5 SHAFT HIT-673489.A0 673489	£1.67	£2.00
30 - SIDE HANDLE HIT-376050.A0 376050	£6.20	£7.44
31 - SEAL LOCK HEX. SOCKET SET SCREW M6X6 HIT-987860.A7 987860	£1.67	£2.00
32 - LEVER HIT-321338.A5 321338	£1.67	£2.00
33 - SPRING (D) HIT-321340.A5 321340	£1.67	£2.00
34 - COVER (B) HIT-322279.A0 322279	-
35 - CAUTION LABEL HIT-000000.A1853 000000	-
36 - SHAFT (C) HIT-322281.A0 322281	-
37 - THRUST WASHER HIT-333965.A0 333965	-
38 - SPRING (E) HIT-321417.A2 321417	£5.09	£6.11
39 - STOPPER (A) HIT-322280.A0 322280	£7.26	£8.71
40 - PIN COVER HIT-321336.A7 321336	£1.67	£2.00
41 - VISE ASS'Y INCLUD.42-48 HIT-374636.A0 374636	-
42 - WING BOLT M6X12 HIT-307947.A11 307947	£1.67	£2.00
43 - KNOB BOLT M10 HIT-374637.A0 374637	-
44 - SCREW HOLDER HIT-000000.A1854 000000	-
45 - WASHER HIT-996722.A0 996722	-
46 - VISE PLATE HIT-322047.A11 322047	-
47 - MACHINE SCREW (W/WASHERS) M5X12 (BLACK) HIT-329911.A0 329911	-
48 - VISE SHAFT HIT-322321.A0 322321	-
49 - LINER HIT-312478.A0 312478	-
50 - BOLT (W/WASHERS) M8X35 (BLACK) HIT-307221.A0 307221	£1.67	£2.00
51 - KNOB BOLT M6X11 HIT-998836.A9 998836	-
52 - KNOB BOLT M6X32 HIT-960017.A0 960017	£1.67	£2.00
53 - FENCE (B) HIT-373552.A0 373552	-
54 - HEX. SOCKET HD. BOLT M6X25 (10 PCS.) HIT-949652.A1 949652	£3.85	£4.62
55 - BASE HIT-373554.A0 373554	-
56 - CAUTION LABEL (B) HIT-000000.A1855 000000	-
57 - SUB FENCE (B) ASS'Y INCLUD.56 HIT-373553.A0 373553	-
58 - FENCE (A) HIT-373549.A0 373549	-
59 - KNOB BOLT M6X32 HIT-960017.A1 960017	£1.67	£2.00
60 - HEX. SOCKET SET SCREW M6X6 HIT-991396.A0 991396	-
61 - CAUTION LABEL (A) HIT-000000.A1856 000000	-
62 - PIN HIT-374635.A0 374635	-
63 - SUB FENCE (A) ASS'Y INCLUD.59-62 HIT-373550.A0 373550	-
64 - MACHINE SCREW M4X12 (10 PCS.) HIT-949217.A40 949217	£1.67	£2.00
65 - BOLT WASHER M4 (10 PCS.) HIT-949429.A24 949429	£1.67	£2.00
66 - INDICATOR HIT-322288.A0 322288	-
67 - KNOB BOLT M6X32 HIT-960017.A2 960017	£1.67	£2.00
68 - SPRING HIT-998852.A4 998852	£1.67	£2.00
69 - SET SCREW HIT-374639.A0 374639	-
70 - SUB TABLE (E) ASS'Y INCLUD.67-69 HIT-374638.A0 374638	-
71 - HOLDER HIT-998844.A0 998844	£7.15	£8.58
101 - CLUTCH SCREW HIT-305180.A7 305180	£7.03	£8.44
102 - CLUTCH SPRING HIT-305179.A6 305179	£1.67	£2.00
103 - CLAMP LEVER HIT-312488.A0 312488	£12.02	£14.43
104 - BOLT M8X65 HIT-323903.A1 323903	£9.03	£10.84
105 - STOPPER HOLDER (C) HIT-323904.A1 323904	£12.07	£14.48
106 - PLATE (D) HIT-325561.A0 325561	-
107 - PLATE (E) HIT-325563.A0 325563	-
108 - HOLDER (A) ASS'Y INCLUD.109 HIT-373533.A0 373533	-
109 - HEX. SOCKET SET SCREW M8X10 HIT-961554.A7 961554	£1.67	£2.00
110 - HEX. SOCKET HD. BOLT M6X55 HIT-975807.A0 975807	-
111 - STOPPER (C) HIT-323905.A1 323905	-
112 - KNOB (B) HIT-325562.A0 325562	-
113 - MACHINE SCREW M4X12 (10 PCS.) HIT-949217.A39 949217	£1.67	£2.00
114 - BOLT WASHER M4 (10 PCS.) HIT-949429.A25 949429	£1.67	£2.00
115 - INDICATOR HIT-321329.A13 321329	£1.67	£2.00
116 - MACHINE SCREW (W/WASHERS) M5X12 (BLACK) HIT-996247.A3 996247	£1.67	£2.00
117 - NYLOCK BOLT M8X25 HIT-303409.A12 303409	£1.67	£2.00
118 - SEAL LOCK HEX. SOCKET SET SCREW M6X10 HIT-307956.A9 307956	£1.67	£2.00
119A - BASE RUBBER HIT-323606.A3 323606	£1.67	£2.00
120 - KNOB BOLT HIT-998879.A3 998879	£1.67	£2.00
121 - GUARD HIT-329784.A0 329784	-
122 - GUARD HOLDER HIT-331845.A3 331845	£2.67	£3.20
123 - MACHINE SCREW M4X8 (10 PCS.) HIT-949215.A38 949215	£1.67	£2.00
124 - BOLT WASHER M4 (10 PCS.) HIT-949429.A23 949429	£1.67	£2.00
125 - BALL BUSHING HIT-326140.A0 326140	-
126 - HINGE (A) HIT-373534.A0 373534	-
127 - LOCK SPRING HIT-947859.A14 947859	£1.67	£2.00
128 - WING BOLT M6X17 HIT-302459.A16 302459	£1.67	£2.00
129A - BASE RUBBER HIT-323606.A4 323606	£1.67	£2.00
130 - SUPPORT HIT-329492.A2 329492	£11.39	£13.67
131 - MACHINE SCREW M4X8 (10 PCS.) HIT-949215.A39 949215	£1.67	£2.00
132 - BOLT WASHER M4 (10 PCS.) HIT-949429.A22 949429	£1.67	£2.00
133 - COVER HIT-320183.A3 320183	£4.86	£5.83
134 - SPRING HIT-329785.A0 329785	-
135 - HINGE SHAFT (A) HIT-329786.A0 329786	-
136 - SEAL LOCK BOLT M6X20 (BLACK) HIT-307724.A0 307724	-
137 - STOPPER (B) HIT-322292.A0 322292	-
138 - FLAT HD. SCREW M4X10 (10 PCS.) HIT-949322.A14 949322	£1.67	£2.00
139 - SPACER (D) HIT-322293.A0 322293	-
140A - BASE RUBBER HIT-323606.A2 323606	£1.67	£2.00
141 - MACHINE SCREW M5X12 (10 PCS.) HIT-949237.A9 949237	£1.67	£2.00
142 - SPACER HIT-998980.A0 998980	£1.67	£2.00
143 - LINK HIT-329787.A0 329787	-
144 - ADJUSTER HIT-319270.A0 319270	£14.71	£17.65
145 - CLUTCH SCREW HIT-305180.A6 305180	£7.03	£8.44
146 - CLUTCH SPRING HIT-305179.A5 305179	£1.67	£2.00
147 - ADJUSTING WASHER (B) T0.5 HIT-962614.A3 962614	-
148 - PLATE (B) HIT-319268.A0 319268	-
149 - SPRING HIT-319267.A10 319267	£4.01	£4.81
150 - CLUTCH SPRING HIT-305179.A4 305179	£1.67	£2.00
151 - SPRING HIT-319267.A11 319267	£4.01	£4.81
152 - SEAL LOCK HEX. SOCKET SET SCREW M5X6 HIT-319541.A18 319541	£1.67	£2.00
153 - COVER (A) HIT-319271.A5 319271	£18.55	£22.26
154 - PLATE (A) HIT-322291.A0 322291	£4.86	£5.83
155 - CAUTION LABEL (J) HIT-000000.A1857 000000	-
156 - HOLDER (B) HIT-319269.A5 319269	-
157 - LASER MARKER HIT-329863.A5 329863	£41.65	£49.98
158 - BOLT WASHER M4 (10 PCS.) HIT-949429.A18 949429	£1.67	£2.00
159 - MACHINE SCREW M4X12 (10 PCS.) HIT-949217.A42 949217	£1.67	£2.00
171 - HANDLE (L).(R) SET HIT-373564.A0 373564	-
172 - TAPPING SCREW (W/FLANGE) D5X25 (BLACK) HIT-305558.A2 305558	£1.67	£2.00
173 - TAPPING SCREW (W/FLANGE) D4X12 HIT-305720.A6 305720	£1.67	£2.00
174 - CORD BUSH HIT-319349.A0 319349	£1.67	£2.00
175 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A233 301653	£1.67	£2.00
176 - NYLOCK SCREW M5X20 HIT-374941.A0 374941	-
177 - CONTROLLER HIT-373702.A0 373702	-
178 - LIGHT HIT-373707.A0 373707	-
*179 - BATTERY BSL 36A18 (EUROPE AUS NZL) INCLUD.503 HIT-371750.A17 371750	£173.17	£207.80
180 - HOUSING (B) HIT-373561.A0 373561	-
181 - STATOR FET PCB HIT-341006.A0 341006	-
182 - HOUSING (A) HIT-373560.A0 373560	-
183 - ROTOR ASS'Y INCLUD.184-186 HIT-361089.A0 361089	-
184 - BALL BEARING 606VVMC3E HIT-371919.A0 371919	-
185 - BALL BEARING 6200VVCM HIT-333946.A0 333946	-
186 - PULLEY (A) HIT-373536.A0 373536	-
187 - LIGHT HIT-373706.A0 373706	-
188 - KNOB BOLT M6X37 HIT-961468.A0 961468	£1.67	£2.00
189 - LOCK SPRING HIT-988821.A4 988821	£5.62	£6.75
190 - STOPPER HOLDER HIT-322314.A0 322314	£12.07	£14.48
191 - SPRING PLATE HIT-322313.A2 322313	-
192 - MACHINE SCREW (W/WASHERS) M4X10 (BLACK) HIT-304043.A21 304043	£1.67	£2.00
193 - MACHINE SCREW M6X20 (10 PCS.) HIT-949258.A3 949258	£1.67	£2.00
194 - BALL BEARING 606VV HIT-606ZZM.A28 606ZZM	£14.07	£16.88
195 - SPRING WASHER M6 (10 PCS.) HIT-949455.A87 949455	£1.67	£2.00
196 - WASHER M6 (10 PCS.) HIT-949425.A25 949425	£1.67	£2.00
197 - NYLOCK BOLT M8X40 HIT-303410.A1 303410	-
198 - NYLON CLIP HIT-980523.A5 980523	-
199 - MACHINE SCREW M4X12 (10 PCS.) HIT-949217.A41 949217	£1.67	£2.00
200 - BOLT WASHER M4 (10 PCS.) HIT-949429.A17 949429	£1.67	£2.00
201 - O-RING (P-6) HIT-984528.A4 984528	£1.67	£2.00
202 - STOPPER PIN ASS'Y INCLUD.201 HIT-329815.A0 329815	-
203 - SEAL LOCK HEX. SOCKET HD. BOLT M5X10 HIT-877839.A15 877839	£1.67	£2.00
204 - SECOND SHAFT SET HIT-373545.A0 373545	-
205 - NEEDLE ROLLER HIT-983545.A0 983545	£1.67	£2.00
206 - BEARING HOLDER (B) HIT-373538.A0 373538	-
207 - MACHINE SCREW (W/WASHERS) M5X20 (BLACK) HIT-995096.A3 995096	£1.67	£2.00
208 - BELT HIT-373539.A0 373539	-
209 - LOCK SPRING HIT-329800.A0 329800	-
210 - BOLT WASHER M4 (10 PCS.) HIT-949429.A33 949429	£1.67	£2.00
211 - MACHINE SCREW M4X8 (10 PCS.) HIT-949215.A12 949215	£1.67	£2.00
212 - STOPPER PIN HIT-373540.A0 373540	-
*214A - GEAR CASE HIT-373541.A0 373541	-
215 - NAME PLATE HIT-000000.A3764 000000	-
216 - GUIDE HOLDER HIT-329814.A0 329814	-
217 - DUST GUIDE HIT-329813.A0 329813	-
218 - LEFT HEX. SOCKET BOLT M7 HIT-371730.A0 371730	-
219 - WASHER (B) HIT-329819.A0 329819	-
*220 - TCT SAW BLADE 185MM-D20 HOLE-NT40 HIT-374928.A0 374928	-
221 - SEAL LOCK FLAT HD. SCREW M3X12 HIT-308773.A3 308773	£1.67	£2.00
222 - LOWER GUARD HIT-373551.A0 373551	-
223 - BALL BEARING 6901VV-N HIT-323118.A7 323118	£9.18	£11.02
224 - BEARING HOLDER HIT-373544.A0 373544	-
225 - SPINDLE HIT-373542.A0 373542	-
226 - BALL BEARING 606VV HIT-606ZZM.A14 606ZZM	£14.07	£16.88
227 - TIMING BELT HIT-373543.A0 373543	-
*228 - WASHER (A) HIT-329818.A0 329818	-
229A - COVER (A) HIT-336683.A0 336683	-
230 - RETURN SPRING HIT-315710.A0 315710	£1.67	£2.00
231 - MACHINE SCREW (W/SP. WASHER) M5X16 HIT-987512.A2 987512	£1.67	£2.00
232 - SPRING (F) HIT-301631.A6 301631	£1.67	£2.00
233 - KNOB HIT-373562.A0 373562	-
234 - TRIGGER HIT-338899.A4 338899	-
235 - FERRITE CORE HIT-334379.A28 334379	-
236 - SWITCH HIT-371907.A7 371907	£15.22	£18.27
237 - SWITCH HANDLE (L).(R) SET HIT-373563.A0 373563	-
*501 - DUST BAG (BLACK) HIT-322955.A11 322955	£14.47	£17.36
502 - HEX. BAR WRENCH 5MM HIT-944459.A14 944459	£1.67	£2.00
503 - BATTERY COVER HIT-329897.A68 329897	£1.67	£2.00
504 - CHARGER (MODEL UC 18YSL3) HIT-000000.A3766 000000	-
601 - HOOK ASS'Y HIT-374634.A0 374634	-

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki C3607DRA Cordless Miter Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Hitachi / Hikoki C3607DRA Cordless Miter Saw Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Hitachi / Hikoki C3607DRA Cordless Miter Saw Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
