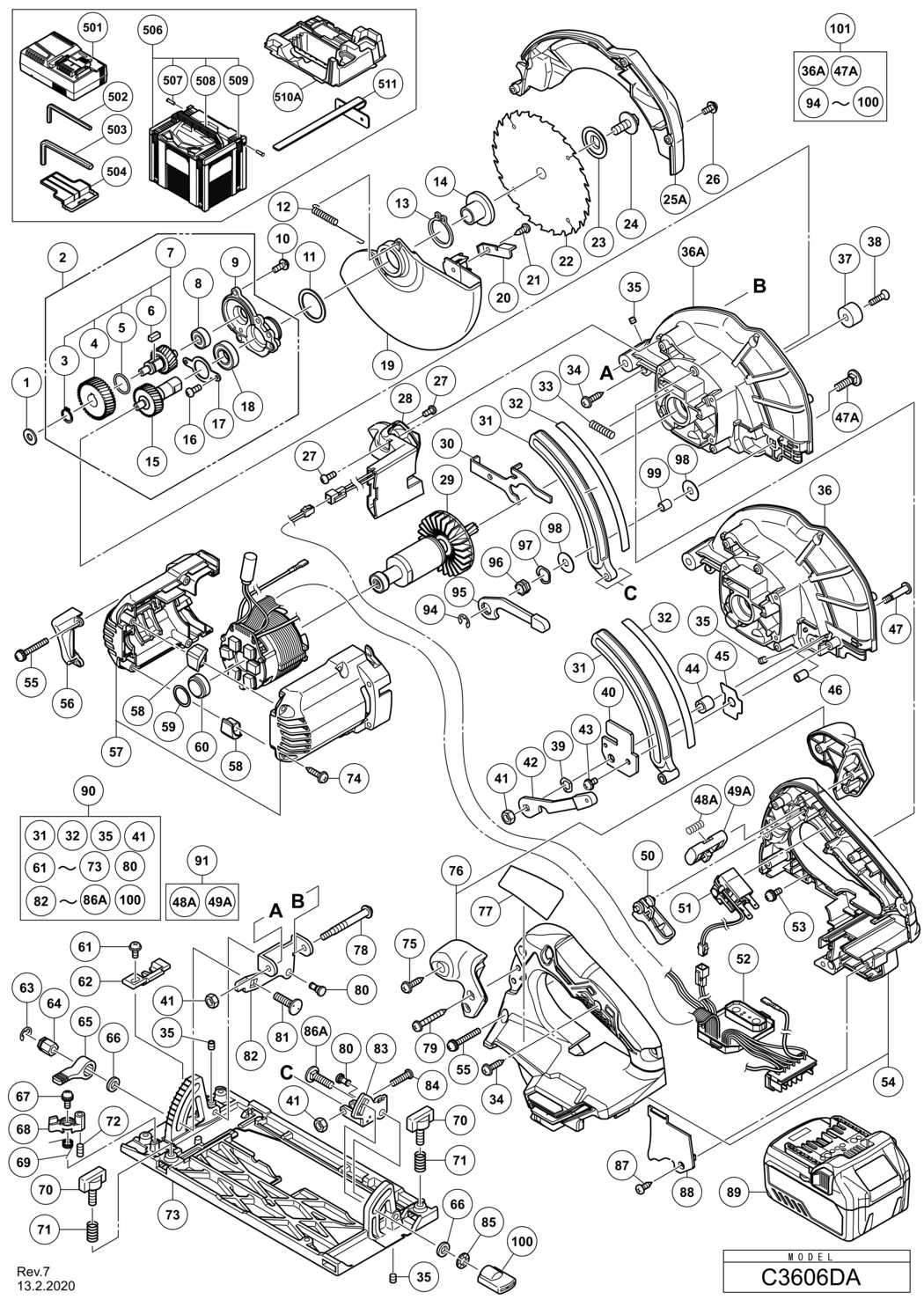

An exploded diagram and spare parts listing for the Hitachi / Hikoki C3606DA Cordless Circular Saw
Ex VAT Inc VAT
1 - WASHER (A) HIT-329975.A5 329975 -
2 - BEARING HOLDER ASS'Y INCLUD.7-9 HIT-338920.A0 338920 £38.72 £46.46
3 - RETAINING RING FOR D11 SHAFT HIT-316487.A18 316487 £1.67 £2.00
4 - FIRST GEAR HIT-338925.A3 338925 -
5 - O-RING (S-15) HIT-319567.A5 319567 £2.91 £3.49
6 - FEATHER KEY 4X4X10 HIT-930511.A16 930511 £2.78 £3.34
7 - SECOND SHAFT ASS'Y INCLUD.3-6 HIT-338924.A0 338924 -
8 - BALL BEARING 606VV HIT-606ZZM.A13 606ZZM £14.07 £16.88
9 - BEARING HOLDER HIT-338921.A1 338921 -
10 - MACHINE SCREW (W/SP. WASHER) M4X12 HIT-951039.A13 951039 £1.67 £2.00
11 - WASHER HIT-339257.A0 339257 -
12 - RETURN SPRING HIT-373078.A0 373078 -
13 - RETAINING RING FOR D22 SHAFT (10 PCS.) HIT-939548.A0 939548 £7.48 £8.97
14 - WASHER (A) HIT-376366.A1 376366 £3.78 £4.54
15 - SPINDLE GEAR SET HIT-338923.A1 338923 -
16 - MACHINE SCREW M3X8 (10 PCS.) HIT-949203.A1 949203 £1.67 £2.00
17 - BEARING COVER HIT-338922.A0 338922 -
18 - BALL BEARING 6901VV HIT-6901VV.A7 6901VV £11.83 £14.20
19 - LOWER GUARD HIT-338905.A1 338905 £5.52 £6.63
20 - KNOB HIT-338927.A1 338927 £1.67 £2.00
21 - TAPPING SCREW D4X10 (BLACK) HIT-302090.A1 302090 £1.67 £2.00
22 - TCT SAW BLADE 165MM-D20 HOLE-NT24 HIT-338935.A0 338935 -
23 - WASHER (B) HIT-338916.A0 338916 £3.21 £3.85
24 - HEX. FLANGE BOLT HIT-338917.A4 338917 £1.67 £2.00
25A - SAW COVER (GREEN) HIT-373650.A0 373650 £11.86 £14.23
26 - MACHINE SCREW (W/WASHER) M4X12 (BLACK) HIT-333781.A5 333781 -
27 - MACHINE SCREW M4X8 (BLACK) HIT-323211.A6 323211 -
28 - LED HIT-339218.A0 339218 -
29 - ROTOR (C) HIT-361078.A0 361078 -
30 - LOCK LEVER HIT-338918.A0 338918 -
31 - LINK HIT-371943.A0 371943 £7.48 £8.97
32 - GAUGE PLATE (A) HIT-339258.A1 339258 £2.77 £3.32
33 - SPRING HIT-334225.A5 334225 -
34 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-307811.A55 307811 £1.67 £2.00
35 - SEAL LOCK HEX. SOCKET SET SCREW M5X6 HIT-319541.A5 319541 £1.67 £2.00
*35 - SEAL LOCK HEX. SOCKET SET SCREW M5X6 TILL 10.2019 HIT-319541.A6 319541 £1.67 £2.00
36 - GEAR COVER TILL 10.2019 HIT-338907.A1 338907 £27.78 £33.34
36A - GEAR COVER SINCE 11.2019 HIT-376033.A1 376033 -
37 - CUSHION HIT-310842.A4 310842 £6.94 £8.33
38 - FLAT HD. SCREW M5X20 (10 PCS.) HIT-949793.A1 949793 -
39 - WAVE WASHER 8 TILL 10.2019 HIT-334242.A16 334242 -
40 - COVER PLATE TILL 10.2019 HIT-371946.A1 371946 -
41 - U-NUT M5 HIT-308387.A0 308387 £1.67 £2.00
*41 - U-NUT M5 TILL 10.2019 HIT-308387.A1 308387 £1.67 £2.00
42 - LEVER (A) TILL 10.2019 HIT-338930.A1 338930 -
43 - SEAL LOCK SCREW (W/SP. WASHER) M4 TILL 10.2019 HIT-372219.A0 372219 -
44 - CAM TILL 10.2019 HIT-333681.A0 333681 -
45 - PLATE TILL 10.2019 HIT-371947.A0 371947 -
46 - LOCK SLEEVE TILL 10.2019 HIT-338932.A0 338932 £14.83 £17.80
47 - CAM SHAFT TILL 10.2019 HIT-333680.A1 333680 -
47A - BOLT (SQUARE) M6X20 SINCE 11.2019 HIT-375031.A3 375031 -
48A - SPRING SINCE 11.2018 HIT-374781.A4 374781 -
49A - KNOB SINCE 11.2018 HIT-374780.A1 374780 -
50 - TRIGGER HIT-338899.A6 338899 -
51 - SWITCH HIT-371907.A5 371907 £15.22 £18.27
52 - STATOR FET PCB ASS'Y INCLUD.28 HIT-340992.A0 340992 £117.37 £140.84
53 - MACHINE SCREW (W/WASHERS) M4X14 (BLACK) HIT-305691.A0 305691 £1.67 £2.00
54 - HANDLE SET (GREEN) HIT-371908.A0 371908 -
55 - MACHINE SCREW (W/WASHERS) M4X35 (BLACK) HIT-334141.A2 334141 -
56 - FLOW GUIDE HIT-338919.A2 338919 -
57 - HOUSING SET HIT-338902.A0 338902 -
58 - CUSHION HIT-336554.A5 336554 -
59 - WASHER (A) HIT-372734.A1 372734 -
60 - RUBBER BUSHING HIT-338928.A1 338928 -
61 - MACHINE SCREW (W/WASHER) M4X8 (BLACK) HIT-315500.A7 315500 £1.67 £2.00
62 - GUIDE PIECE HIT-338913.A1 338913 -
63 - RETAINING RING (E-TYPE) FOR D8 SHAFT HIT-942827.A8 942827 £1.67 £2.00
64 - SPECIAL NUT M6 HIT-333660.A1 333660 -
65 - CLAMP LEVER HIT-333659.A2 333659 -
66 - WASHER M6 (10 PCS.) HIT-949425.A36 949425 £1.67 £2.00
67 - MACHINE SCREW (W/WASHERS) M4X8 (BLACK) HIT-317200.A6 317200 £1.67 £2.00
68 - STOPPER LEVER HIT-333657.A0 333657 -
69 - SPRING (B) HIT-339259.A0 339259 -
70 - WING BOLT M6X18 HIT-307898.A6 307898 £2.71 £3.25
71 - SPRING HIT-324876.A0 324876 -
72 - SEAL LOCK HEX. SOCKET SET SCREW M5X10 HIT-334142.A0 334142 -
73 - BASE HIT-371941.A1 371941 £31.31 £37.57
74 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A97 301653 £1.67 £2.00
75 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A98 301653 £1.67 £2.00
76 - SUB HANDLE INCLUD.75 HIT-338934.A2 338934 -
77 - NAME PLATE HIT-000000.A3411 000000 -
78 - ADJUSTING SCREW (A) HIT-339260.A1 339260 £1.67 £2.00
79 - TAPPING SCREW (W/FLANGE) D4X30 (BLACK) HIT-305490.A10 305490 £1.67 £2.00
80 - STEP PIN D6X13 HIT-320163.A8 320163 £1.67 £2.00
81 - BOLT (SQUARE) M6X22 HIT-314623.A0 314623 -
82 - BEVEL PLATE HIT-338910.A0 338910 £1.67 £2.00
83 - SUB LINK HIT-371944.A1 371944 -
84 - SPECIAL SCREW HIT-371945.A0 371945 -
85 - SUPER LOCK WASHER M6 HIT-948167.A1 948167 £1.67 £2.00
86A - BOLT (SQUARE) M6X22 HIT-314623.A1 314623 -
87 - TAPPING SCREW D3X12 (BLACK) HIT-334333.A3 334333 -
88 - HANDLE COVER (GREEN) HIT-371909.A2 371909 -
89 - BATTERY BSL 36A18 (EUROPE AUS NZL) INCLUD.504 HIT-371750.A8 371750 £173.17 £207.80
*90 - BASE ASS'Y INCLUD.31 HIT-371939.A0 371939 -
91 - KNOB SPRING SET INCLUD.48A HIT-374782.A0 374782 -
94 - RETAINING RING (E-TYPE) FOR D8 SHAFT SINCE 11.2019 HIT-942827.A7 942827 £1.67 £2.00
95 - LEVER SINCE 11.2019 HIT-374246.A4 374246 -
96 - LOCK NUT SINCE 11.2019 HIT-374248.A4 374248 -
97 - WAVE WASHER SINCE 11.2019 HIT-375106.A1 375106 -
98 - WASHER SINCE 11.2019 HIT-320975.A2 320975 £1.67 £2.00
99 - SPACER (A) SINCE 11.2019 HIT-376105.A0 376105 -
100 - WING NUT M6 HIT-375026.A0 375026 -
101 - LEVER SET INCLUD.36A HIT-376031.A0 376031 -
501 - CHARGER (MODEL UC 18YSL3) HIT-000000.A3414 000000 -
502 - HEX. BAR WRENCH 2.5MM HIT-990666.A9 990666 £5.98 £7.18
503 - HEX. BAR WRENCH 5MM HIT-944459.A16 944459 £1.67 £2.00
504 - BATTERY COVER HIT-329897.A63 329897 £1.67 £2.00
506 - CASE ASS'Y (STACKABLE 4) INCLUD.507-509 HIT-337528.A2 337528 -
507 - HINGE HIT-336474.A54 336474 £1.67 £2.00
508 - HANDLE HIT-336473.A20 336473 £6.43 £7.72
509 - LATCH HIT-336472.A54 336472 £1.67 £2.00
510A - INNER TRAY HIT-373651.A0 373651 -
511 - GUIDE FOR EUROPE HIT-302756.A10 302756 £7.02 £8.42
601A - LONG GUIDE (250MM) HIT-375630.A0 375630 -
602A - LONG GUIDE (650MM) HIT-316104.A0 316104 -
603 - DUCT ADAPTER HIT-339383.A0 339383 £5.25 £6.30
604 - GUIDE (A) ASS'Y INCLUD.605 HIT-962175.A0 962175 £11.35 £13.62
605 - WING BOLT M6X18 HIT-307898.A7 307898 £2.71 £3.25
606 - SPRING HIT-941056.A1 941056 £1.67 £2.00
607 - FLUORINE PLATE ASS'Y INCLUD.608 HIT-339188.A1 339188 £34.30 £41.16
608 - SPECIAL BOLT HIT-321996.A8 321996 £1.67 £2.00
