Hitachi / Hikoki C3605DA Cordless Circular Saw Spare Parts

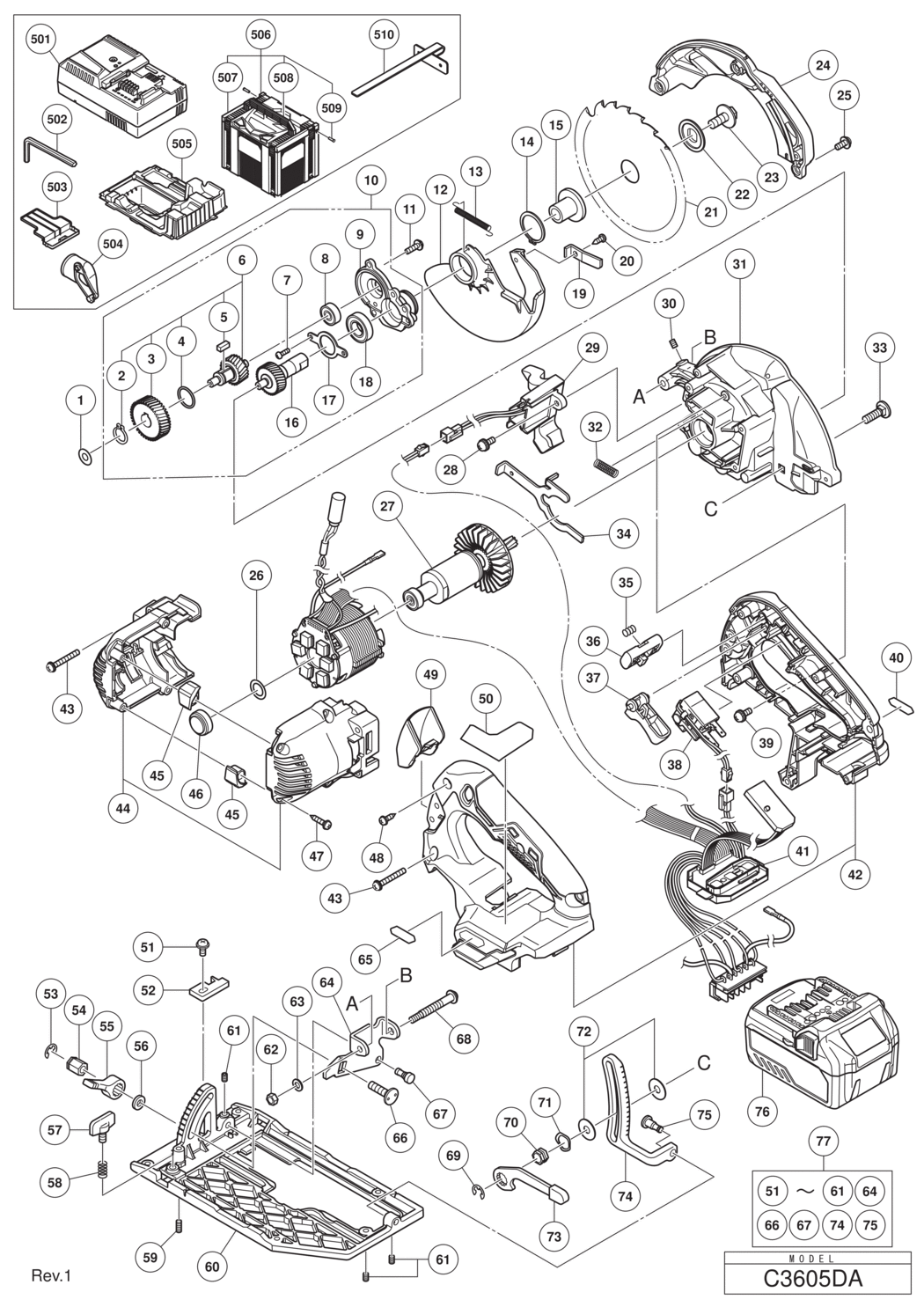

An exploded diagram and spare parts listing for the Hitachi / Hikoki C3605DA Cordless Circular Saw

	Ex VAT	Inc VAT
1 - WASHER (A) HIT-329975.A6 329975	-
2 - RETAINING RING FOR D11 SHAFT HIT-316487.A17 316487	£1.67	£2.00
3 - FIRST GEAR HIT-338925.A4 338925	-
4 - O-RING (S-15) HIT-319567.A4 319567	£2.91	£3.49
5 - FEATHER KEY 4X4X10 HIT-930511.A15 930511	£2.78	£3.34
6 - SECOND SHAFT ASS'Y INCLUD.2-5 HIT-374250.A2 374250	-
7 - MACHINE SCREW M3X8 (10 PCS.) HIT-949203.A2 949203	£1.67	£2.00
8 - BALL BEARING 606VV HIT-606ZZM.A12 606ZZM	£14.07	£16.88
9 - BEARING HOLDER HIT-374239.A2 374239	-
10 - BEARING HOLDER ASS'Y INCLUD.6-9 HIT-374252.A2 374252	-
11 - MACHINE SCREW (W/SP. WASHER) M4X12 HIT-951039.A14 951039	£1.67	£2.00
12 - LOWER GUARD HIT-374244.A0 374244	-
13 - RETURN SPRING HIT-374253.A0 374253	-
14 - RETAINING RING FOR D22 SHAFT (10 PCS.) HIT-939548.A1 939548	£7.48	£8.97
15 - WASHER (A) HIT-374254.A2 374254	-
16 - SPINDLE GEAR SET HIT-374251.A0 374251	-
17 - BEARING COVER HIT-338922.A1 338922	-
18 - BALL BEARING 6901VV HIT-6901VV.A8 6901VV	£11.83	£14.20
19 - KNOB HIT-333894.A0 333894	-
20 - TAPPING SCREW D4X10 (BLACK) HIT-302090.A0 302090	£1.67	£2.00
21 - TCT SAW BLADE 125MM-D20 HOLE-NT24 HIT-374351.A1 374351	-
22 - WASHER (B) HIT-374255.A0 374255	-
23 - HEX. FLANGE BOLT HIT-338917.A5 338917	£1.67	£2.00
24 - SAW COVER HIT-374243.A0 374243	-
25 - MACHINE SCREW (W/WASHER) M4X12 (BLACK) HIT-333781.A6 333781	-
26 - WASHER HIT-375110.A0 375110	-
27 - ROTOR HIT-361100.A2 361100	-
28 - MACHINE SCREW (W/WASHERS) M4X14 (BLACK) HIT-305691.A4 305691	£1.67	£2.00
29 - LED (A) HIT-374241.A2 374241	-
30 - SEAL LOCK HEX. SOCKET SET SCREW M5X6 HIT-319541.A8 319541	£1.67	£2.00
31 - GEAR COVER (A) HIT-374236.A0 374236	-
32 - SPRING HIT-334225.A4 334225	-
33 - BOLT (SQUARE) M6X20 HIT-375031.A4 375031	-
34 - LOCK LEVER HIT-374247.A0 374247	-
35 - SPRING HIT-374781.A5 374781	-
36 - KNOB HIT-374780.A0 374780	-
37 - TRIGGER HIT-338899.A5 338899	-
38 - SWITCH HIT-371907.A4 371907	£15.22	£18.27
39 - MACHINE SCREW (W/WASHERS) M4X14 (BLACK) HIT-305691.A3 305691	£1.67	£2.00
40 - MV LABEL (B) HIT-373914.A6 373914	-
41 - STATOR FET PCB ASS'Y INCLUD.29 HIT-341040.A0 341040	-
*41 - STATOR FET PCB ASS'Y (FOR BLUETOOTH) INCLUD.29 HIT-341041.A1 341041	-
42 - HANDLE SET (GREEN) HIT-374302.A2 374302	-
43 - MACHINE SCREW (W/WASHERS) M4 HIT-375104.A0 375104	-
44 - HOUSING SET HIT-374240.A0 374240	-
45 - CUSHION HIT-336554.A4 336554	-
46 - RUBBER BUSHING HIT-338928.A0 338928	-
47 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A94 301653	£1.67	£2.00
48 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-307811.A54 307811	£1.67	£2.00
49 - COVER HIT-338914.A0 338914	-
50 - NAME PLATE HIT-000000.A3429 000000	-
51 - MACHINE SCREW (W/WASHER) M4X8 (BLACK) HIT-315500.A6 315500	£1.67	£2.00
52 - GUIDE PIECE HIT-374259.A0 374259	-
53 - RETAINING RING (E-TYPE) FOR D8 SHAFT HIT-942827.A9 942827	£1.67	£2.00
54 - SPECIAL NUT M6 HIT-333660.A0 333660	-
55 - CLAMP LEVER HIT-333659.A3 333659	-
56 - WASHER M6 (10 PCS.) HIT-949425.A37 949425	£1.67	£2.00
57 - WING BOLT M6X18 HIT-307898.A4 307898	£2.71	£3.25
58 - SPRING HIT-324876.A1 324876	-
59 - SEAL LOCK HEX. SOCKET SET SCREW M5X10 HIT-334142.A1 334142	-
60 - BASE HIT-374237.A1 374237	-
61 - SEAL LOCK HEX. SOCKET SET SCREW M5X6 HIT-319541.A7 319541	£1.67	£2.00
62 - U-NUT M5 HIT-308387.A2 308387	£1.67	£2.00
63 - WASHER D5 HIT-375105.A1 375105	-
64 - BEVEL PLATE HIT-374245.A0 374245	-
65 - MV LABEL (A) HIT-373913.A1 373913	-
66 - BOLT (SQUARE) M6X22 HIT-314623.A2 314623	-
67 - STEP PIN HIT-333656.A1 333656	-
68 - ADJUSTING SCREW (A) HIT-325236.A0 325236	-
69 - RETAINING RING (E-TYPE) FOR D8 SHAFT HIT-942827.A10 942827	£1.67	£2.00
70 - LOCK NUT HIT-374248.A3 374248	-
71 - WAVE WASHER HIT-375106.A0 375106	-
72 - WASHER HIT-320975.A3 320975	£1.67	£2.00
73 - LEVER HIT-374246.A3 374246	-
74 - LINK HIT-374238.A0 374238	-
75 - SHOULDER PIN (A) HIT-374249.A0 374249	-
76 - BATTERY BSL 36A18 (EUROPE AUS NZL) INCLUD.503 HIT-371750.A9 371750	£173.17	£207.80
77 - BASE ASS'Y (B) INCLUD.51-61 HIT-374257.A1 374257	-
501 - CHARGER (MODEL UC 18YSL3) HIT-000000.A3431 000000	-
502 - HEX. BAR WRENCH 5MM HIT-944459.A17 944459	£1.67	£2.00
503 - BATTERY COVER HIT-329897.A62 329897	£1.67	£2.00
504 - DUCT ADAPTER SET HIT-329063.A1 329063	£13.52	£16.23
505 - INNER TRAY HIT-374354.A1 374354	-
506 - CASE ASS'Y (STACKABLE 4) INCLUD.507-509 HIT-337528.A3 337528	-
507 - LATCH HIT-336472.A55 336472	£1.67	£2.00
508 - HANDLE HIT-336473.A19 336473	£6.43	£7.72
509 - HINGE HIT-336474.A55 336474	£1.67	£2.00
510 - GUIDE HIT-302756.A11 302756	£7.02	£8.42
601 - FLUORINE PLATE ASS'Y INCLUD.602 HIT-374261.A1 374261	-
602 - SPECIAL BOLT HIT-321996.A9 321996	£1.67	£2.00
603 - HOOK SET HIT-339187.A0 339187	-
