Hitachi / Hikoki C12RSH Slide Compound Miter Saw Spare Parts

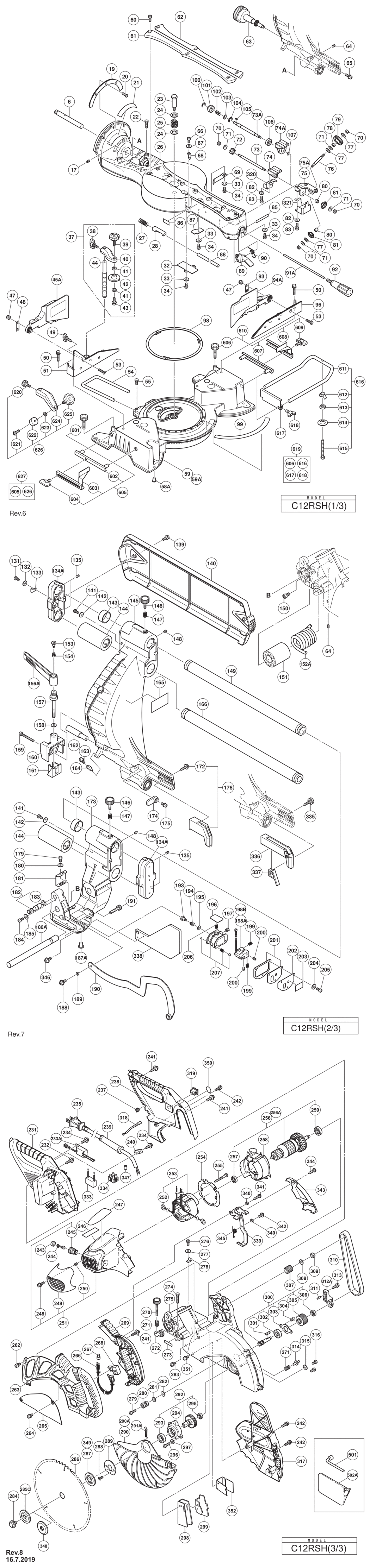

An exploded diagram and spare parts listing for the Hitachi / Hikoki C12RSH Slide Compound Miter Saw

	Ex VAT	Inc VAT
6 - HOLDER SHAFT HIT-324391.A1 324391	£13.11	£15.73
17 - NYLOCK HEX. SOCKET SET SCREW M8X16 HIT-324612.A0 324612	£1.67	£2.00
19 - GEAR (A) HIT-324399.A1 324399	£8.92	£10.70
20 - FLAT HD. SCREW M4X16 (10 PCS.) HIT-949325.A0 949325	£1.67	£2.00
21 - SCALE (B) HIT-324416.A0 324416	-
22 - NYLOCK BOLT M8X25 HIT-303409.A1 303409	£1.67	£2.00
23 - SHAFT (B) HIT-324401.A2 324401	-
24 - BOLT WASHER M16 HIT-955818.A0 955818	-
25 - SPRING (B) HIT-324402.A0 324402	£4.78	£5.73
26 - TURN TABLE HIT-324394.A1 324394	£131.12	£157.35
27 - SPRING (E) HIT-321417.A3 321417	£5.09	£6.11
28 - STOPPER (A) HIT-322280.A5 322280	£7.26	£8.71
32 - PIN COVER HIT-321336.A4 321336	£1.67	£2.00
33 - BOLT WASHER M4 (10 PCS.) HIT-949429.A41 949429	£1.67	£2.00
34 - MACHINE SCREW M4X8 (10 PCS.) HIT-949215.A23 949215	£1.67	£2.00
37 - VISE ASS'Y INCLUD.38-44 HIT-324378.A0 324378	£26.66	£31.99
38 - WING BOLT M6X12 HIT-307947.A6 307947	£1.67	£2.00
39 - KNOB BOLT M10 HIT-308396.A3 308396	-
40 - SCREW HOLDER HIT-000000.A4167 000000	-
41 - WASHER HIT-996722.A5 996722	-
42 - VISE PLATE HIT-322047.A13 322047	-
43 - MACHINE SCREW (W/WASHERS) M5X12 (BLACK) HIT-996247.A10 996247	£1.67	£2.00
44 - VISE SHAFT HIT-324380.A1 324380	£8.41	£10.09
45A - SUB FENCE (B) HIT-324454.A1 324454	£25.45	£30.54
47 - NYLON NUT M6 HIT-311144.A0 311144	£1.67	£2.00
48 - PLATE (B) HIT-324377.A1 324377	£1.67	£2.00
49 - WING BOLT M6X17 HIT-302459.A9 302459	£1.67	£2.00
50 - BOLT (W/WASHERS) M8X35 (BLACK) HIT-307221.A3 307221	£1.67	£2.00
51 - FENCE (B) HIT-324385.A1 324385	£20.10	£24.12
53 - FLAT HD. SCREW M6X25 (10 PCS.) HIT-949342.A9 949342	£1.67	£2.00
54 - HOLDER HIT-998834.A0 998834	£10.37	£12.44
55 - BOLT M6X10 (10 PCS.) HIT-949610.A5 949610	£1.67	£2.00
58A - BASE RUBBER HIT-323606.A11 323606	£1.67	£2.00
59 - BASE ASS'Y INCLUD.58 HIT-324456.A0 324456	£187.94	£225.53
*59 - BASE ASS'Y (TILL 7.2013 FOR USA CAN) HIT-324456.A1 324456	£187.94	£225.53
59A - BASE ASS'Y INCLUD.58 HIT-336253.A0 336253	-
60 - MACHINE SCREW M5X16 (BLACK) HIT-302317.A1 302317	£1.67	£2.00
61 - TABLE INSERT (B) HIT-324411.A2 324411	£4.78	£5.73
62 - TABLE INSERT (A) HIT-324410.A0 324410	£4.78	£5.73
63 - KNOB (B) HIT-324370.A1 324370	£18.89	£22.67
64 - SEAL LOCK HEX. SOCKET SET SCREW M6X10 HIT-307956.A10 307956	£1.67	£2.00
65 - MACHINE SCREW (W/WASHERS) M5X16 (BLACK) HIT-307294.A2 307294	£1.67	£2.00
66 - MACHINE SCREW M4X12 (10 PCS.) HIT-949217.A16 949217	£1.67	£2.00
67 - BOLT WASHER M4 (10 PCS.) HIT-949429.A40 949429	£1.67	£2.00
68 - INDICATOR HIT-321329.A5 321329	£1.67	£2.00
69 - SPACER (A) HIT-321342.A4 321342	£1.67	£2.00
70 - LOCK NUT M6 (10 PCS.) HIT-949567.A0 949567	£1.67	£2.00
71 - SPRING WASHER M6 (10 PCS.) HIT-949455.A58 949455	£1.67	£2.00
72 - GEAR (D) EXCEPT FOR USA HIT-324407.A1 324407	£2.71	£3.25
*72 - GEAR (D) CAN) HIT-324407.A2 324407	£2.71	£3.25
73 - BEVEL SHAFT (B) EXCEPT FOR USA HIT-324405.A1 324405	£6.45	£7.74
*73 - BEVEL SHAFT (B) CAN) HIT-324405.A2 324405	£6.45	£7.74
73A - BEVEL SHAFT (C) SINCE 8.2013 FOR USA HIT-336255.A0 336255	-
74 - SHAFT HOLDER (B) EXCEPT FOR USA HIT-324404.A0 324404	£7.10	£8.52
*74 - SHAFT HOLDER (B) CAN) HIT-324404.A1 324404	£7.10	£8.52
74A - SHAFT HOLDER (B) SINCE 8.2013 FOR USA HIT-336257.A0 336257	-
75 - SHAFT HOLDER (A) EXCEPT FOR USA HIT-324403.A1 324403	£9.65	£11.58
*75 - SHAFT HOLDER (A) CAN) HIT-324403.A2 324403	£9.65	£11.58
75A - SHAFT HOLDER (A) SINCE 8.2013 FOR USA HIT-336258.A0 336258	-
76 - BEVEL SHAFT (A) HIT-324408.A0 324408	£4.86	£5.83
77 - BOLT WASHER M6 (10 PCS.) HIT-949432.A54 949432	£1.67	£2.00
78 - NUT M6 (10 PCS.) HIT-949556.A28 949556	£1.67	£2.00
79 - KNOB (A) HIT-324409.A1 324409	£1.67	£2.00
80 - METAL D8X10 HIT-950817.A0 950817	£1.67	£2.00
81 - BEVEL GEAR HIT-324406.A0 324406	£7.85	£9.42
82 - SPRING WASHER M5 (10 PCS.) HIT-949454.A92 949454	£1.67	£2.00
83 - MACHINE SCREW M5X20 (10 PCS.) HIT-949241.A6 949241	£1.67	£2.00
85 - LEVER SHAFT HIT-321339.A5 321339	£1.67	£2.00
86 - CAUTION LABEL (C) HIT-000000.A4168 000000	-
86 - FOR USA 1 HIT-000000.A4169 000000	-
87 - COVER (B) HIT-324395.A0 324395	£1.67	£2.00
88 - SHAFT (C) D6 HIT-324396.A2 324396	£4.12	£4.94
89 - LEVER HIT-321338.A2 321338	£1.67	£2.00
90 - SPRING (D) HIT-321340.A2 321340	£1.67	£2.00
91A - SHAFT (A) HIT-334378.A0 334378	£3.19	£3.83
92 - SIDE HANDLE HIT-376050.A5 376050	£6.20	£7.44
93 - PLATE (A) HIT-324381.A0 324381	£1.67	£2.00
94A - SUB FENCE (A) HIT-324455.A0 324455	-
96 - FENCE (A) HIT-324384.A0 324384	£17.18	£20.62
98 - LINER HIT-324400.A0 324400	£1.67	£2.00
99 - SCALE (A) HIT-315210.A2 315210	£9.56	£11.47
100 - RETAINING RING (E-TYPE) FOR D5 SHAFT SINCE 8.2013 FOR USA HIT-673489.A25 673489	£1.67	£2.00
101 - ROLLER SINCE 8.2013 FOR USA HIT-336256.A0 336256	-
102 - SPRING (A) SINCE 8.2013 FOR USA HIT-336254.A0 336254	-
103 - WASHER M10 (10 PCS.) SINCE 8.2013 FOR USA HIT-949445.A4 949445	-
104 - RETAINING RING (E-TYPE) FOR D8 SHAFT SINCE 8.2013 FOR USA HIT-942827.A13 942827	£1.67	£2.00
105 - FEATHER KEY 3X3X8 SINCE 8.2013 FOR USA HIT-944109.A18 944109	£3.28	£3.93
106 - BALL BEARING 6000DDCMPS2L SINCE 8.2013 FOR USA HIT-6000DD.A0 6000DD	£6.52	£7.82
107 - WASHER M8 (10 PCS.) SINCE 8.2013 FOR USA HIT-949426.A8 949426	£1.67	£2.00
131 - MACHINE SCREW M4X12 (10 PCS.) HIT-949217.A18 949217	£1.67	£2.00
132 - BOLT WASHER M4 (10 PCS.) HIT-949429.A35 949429	£1.67	£2.00
*133 - NYLON CLIP HIT-948614.A5 948614	£1.67	£2.00
*133 - NYLON CLIP FOR USA HIT-948193.A2 948193	£1.67	£2.00
*133 - NYLON CLIP FOR TPE HIT-967579.A3 967579	-
134A - SUPPORT HIT-334458.A2 334458	£14.19	£17.03
135 - HEX. SOCKET SET SCREW M8X10 HIT-961554.A0 961554	£1.67	£2.00
139 - MACHINE SCREW (W/WASHERS) M5X16 (BLACK) HIT-307294.A3 307294	£1.67	£2.00
140 - SIDE COVER HIT-324383.A1 324383	£14.78	£17.73
141 - MACHINE SCREW M4X8 (10 PCS.) HIT-949215.A20 949215	£1.67	£2.00
142 - BOLT WASHER M4 (10 PCS.) HIT-949429.A36 949429	£1.67	£2.00
143 - BUSHING HIT-324415.A2 324415	£8.50	£10.20
144 - BALL BUSHING HIT-324414.A0 324414	£25.73	£30.88
145 - HOLDER (A) HIT-324413.A1 324413	£82.49	£98.99
146 - KNOB BOLT M6X25 HIT-324418.A2 324418	£4.68	£5.62
147 - LOCK SPRING HIT-947859.A25 947859	£1.67	£2.00
148 - SEAL LOCK HEX. SOCKET SET SCREW M6X10 HIT-307956.A11 307956	£1.67	£2.00
149 - SLIDE PIPE (A) HIT-324465.A1 324465	£21.95	£26.34
150 - SEAL LOCK HEX. SOCKET HD. BOLT M5X10 HIT-877839.A1 877839	£1.67	£2.00
151 - SLEEVE HIT-324388.A0 324388	£7.02	£8.42
152A - SPRING HIT-310898.A2 310898	£18.55	£22.26
153 - CLUTCH SCREW HIT-305180.A1 305180	£7.03	£8.44
154 - CLUTCH SPRING HIT-305179.A12 305179	£1.67	£2.00
156A - CLAMP LEVER HIT-325298.A0 325298	£4.40	£5.28
157 - BOLT M8X65 HIT-323903.A2 323903	£9.03	£10.84
158 - BOLT WASHER M8 (10 PCS.) HIT-949433.A27 949433	£1.67	£2.00
159 - HEX. SOCKET HD. BOLT M6X50 (10 PCS.) HIT-949782.A0 949782	£8.28	£9.94
160 - STOPPER HOLDER (C) HIT-323904.A0 323904	£12.07	£14.48
161 - STOPPER (C) HIT-323905.A2 323905	-
162 - SET PIN (A) HIT-324420.A2 324420	-
163 - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) HIT-935196.A9 935196	£1.67	£2.00
164 - INDICATOR HIT-321329.A4 321329	£1.67	£2.00
165 - CAUTION LABEL (B) HIT-000000.A4170 000000	-
166 - SLIDE PIPE (B) HIT-324466.A0 324466	£39.18	£47.01
172 - TAPPING SCREW (W/FLANGE) D5X25 (BLACK) FOR USA HIT-305558.A42 305558	£1.67	£2.00
173 - HINGE (A) HIT-324467.A2 324467	£66.98	£80.38
174 - GRIP HIT-324421.A0 324421	£1.67	£2.00
175 - MACHINE SCREW (W/WASHERS) M5X16 (BLACK) HIT-307294.A4 307294	£1.67	£2.00
176 - GUARD ASS'Y INCLUD.172 FOR USA HIT-324372.A0 324372	£10.81	£12.97
179 - MACHINE SCREW M4X8 (10 PCS.) HIT-949215.A22 949215	£1.67	£2.00
180 - BOLT WASHER M4 (10 PCS.) HIT-949429.A37 949429	£1.67	£2.00
181 - COVER HIT-320183.A0 320183	£4.86	£5.83
182 - STOPPER PIN ASS'Y INCLUD.183 HIT-324419.A0 324419	-
183 - O-RING (P-9) HIT-872645.A0 872645	£1.67	£2.00
184 - MACHINE SCREW M4X8 (10 PCS.) HIT-949215.A21 949215	£1.67	£2.00
185 - BOLT WASHER M4 (10 PCS.) HIT-949429.A38 949429	£1.67	£2.00
186A - HINGE SHAFT (A) HIT-324387.A2 324387	£3.29	£3.95
187A - BASE RUBBER HIT-323606.A10 323606	£1.67	£2.00
188 - MACHINE SCREW M5X12 (10 PCS.) HIT-949237.A27 949237	£1.67	£2.00
189 - SPACER HIT-303854.A0 303854	£1.67	£2.00
*190 - LINK HIT-381242.A0 381242	£11.61	£13.93
*190 - LINK FOR EUROPE HIT-328522.A1 328522	£16.17	£19.40
191 - ADJUSTER HIT-319270.A4 319270	£14.71	£17.65
193 - CLUTCH SCREW HIT-305180.A2 305180	£7.03	£8.44
194 - CLUTCH SPRING HIT-305179.A10 305179	£1.67	£2.00
195 - ADJUSTING WASHER (B) T0.5 HIT-962614.A0 962614	-
196 - PLATE (B) HIT-319268.A4 319268	-
197 - CLUTCH SPRING HIT-305179.A11 305179	£1.67	£2.00
198B - LASER MARKER FOR EUROPE HIT-329863.A1 329863	£41.65	£49.98
199 - SPRING HIT-319267.A3 319267	£4.01	£4.81
200 - SEAL LOCK HEX. SOCKET SET SCREW M5X6 HIT-319541.A11 319541	£1.67	£2.00
201 - COVER (A) HIT-319271.A1 319271	£18.55	£22.26
202 - PLATE (A) HIT-322291.A3 322291	£4.86	£5.83
203 - CAUTION LABEL (J) HIT-000000.A4171 000000	-
204 - BOLT WASHER M4 (10 PCS.) HIT-949429.A39 949429	£1.67	£2.00
205 - MACHINE SCREW M4X12 (10 PCS.) HIT-949217.A17 949217	£1.67	£2.00
206 - SPRING HIT-319267.A2 319267	£4.01	£4.81
207 - HOLDER (B) HIT-319269.A1 319269	-
231 - HANDLE (L) HIT-324460.A0 324460	£15.46	£18.55
232 - TAPPING SCREW (W/FLANGE) D5X25 (BLACK) HIT-305558.A41 305558	£1.67	£2.00
233A - SWITCHING POWER SUPPLY FOR USA HIT-371119.A0 371119	-
233A - SWITCHING POWER SUPPLY HIT-371121.A5 371121	£21.78	£26.13
*233A - SWITCHING POWER SUPPLY FOR GBR (110V) HIT-371120.A0 371120	-
234 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A94 984750	£1.67	£2.00
*235 - CORD (CORD ARMOR D10.1) HIT-500234Z.A42 500234Z	-
*235 - CORD (CORD ARMOR D10.1) FOR NOR HIT-500247Z.A18 500247Z	-
*235 - CORD (CORD ARMOR D10.1) FOR GBR (110V) HIT-500461Z.A63 500461Z	£15.56	£18.67
*235 - CORD (CORD ARMOR D10.1) FOR GBR (230V) HIT-500435Z.A87 500435Z	£14.14	£16.97
*235 - CORD (CORD ARMOR D10.1) FOR SUI HIT-500447Z.A15 500447Z	£7.92	£9.51
*235 - CORD (CORD ARMOR D10.1) FOR USA HIT-500453Z.A10 500453Z	-
*235 - CORD (CORD ARMOR D10.1) FOR AUS HIT-500439Z.A22 500439Z	-
*235 - CORD (CORD ARMOR D10.1) FOR CHN HIT-500456Z.A2 500456Z	-
*235 - CORD (CORD ARMOR D10.1) FOR TPE HIT-500474Z.A4 500474Z	-
*235 - CORD (CORD ARMOR D10.1) FOR SIN HIT-500423Z.A7 500423Z	-
*235 - CORD (CORD ARMOR D10.1) FOR THA HIT-500468Z.A5 500468Z	-
237 - CORD BUSH HIT-319349.A7 319349	£1.67	£2.00
238 - HANDLE (R) HIT-324461.A0 324461	£11.98	£14.38
239 - CORD ARMOR D10.1 HIT-938051.A22 938051	£1.67	£2.00
240 - CORD CLIP HIT-937631.A156 937631	£1.67	£2.00
241 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A104 301653	£1.67	£2.00
242 - MACHINE SCREW (W/WASHERS) M5X25 (BLACK) HIT-880734.A12 880734	£1.67	£2.00
243 - BRUSH CAP HIT-945161.A53 945161	£1.67	£2.00
*244 - CARBON BRUSH (1 PAIR) FOR 110V-120V HIT-999038.A20 999038	£5.54	£6.65
*244 - CARBON BRUSH (1 PAIR) FOR 220V-240V HIT-999065.A9 999065	£12.43	£14.92
245 - BRUSH HOLDER HIT-938241.A4 938241	£8.28	£9.94
246 - CAUTION LABEL (A) HIT-000000.A4172 000000	-
246 - FOR USA 1 HIT-000000.A4173 000000	-
247 - NAME PLATE HIT-000000.A4174 000000	-
248 - MACHINE SCREW (W/WASHERS) M5X16 HIT-990541.A0 990541	£1.67	£2.00
249 - TAIL COVER HIT-324445.A1 324445	£4.12	£4.94
250 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A86 938477	£1.67	£2.00
251 - HOUSING ASS'Y INCLUD.245 HIT-324459.A0 324459	£35.54	£42.65
252 - BRUSH TERMINAL HIT-937623.A1 937623	£1.67	£2.00
*253 - STATOR ASS'Y 110V INCLUD.252 HIT-340626D.A0 340626D	£50.47	£60.56
*253 - STATOR ASS'Y 120V INCLUD.252 HIT-340626C.A0 340626C	-
*253 - STATOR (B) ASS'Y 220V-230V INCLUD.252 HIT-340703E.A1 340703E	£55.70	£66.84
*253 - STATOR ASS'Y (C) 230V INCLUD.252 FOR NZL HIT-340693E.A0 340693E	-
*253 - STATOR (B) ASS'Y 240V INCLUD.252 HIT-340703F.A0 340703F	-
254 - END PLATE HIT-324397.A0 324397	-
255 - HEX. HD. TAPPING SCREW D5X50 HIT-953121.A1 953121	-
*256 - ARMATURE ASS'Y 220V-230V INCLUD.257 HIT-360790B.A1 360790B	£66.19	£79.43
*256 - ARMATURE ASS'Y 240V INCLUD.257 HIT-360790C.A0 360790C	-
256A - ARMATURE ASS'Y 110V-120V INCLUD.257 HIT-360711U.A1 360711U	£69.49	£83.39
257 - BALL BEARING 6000VVCMPS2L HIT-6000VV.A41 6000VV	£7.62	£9.15
258 - FAN GUIDE HIT-324442.A0 324442	£5.17	£6.20
259 - BALL BEARING 6201VV HIT-6201VV.A2 6201VV	£8.30	£9.96
262 - MACHINE SCREW (W/WASHERS) M5X10 HIT-976706.A4 976706	-
263 - SWITCH HANDLE (L) HIT-324448.A1 324448	£16.57	£19.88
264 - MACHINE SCREW (W/WASHERS) M5X12 (BLACK) HIT-996247.A9 996247	£1.67	£2.00
265 - SPINDLE COVER HIT-324462.A0 324462	£8.77	£10.52
266 - INTERNAL WIRE (A) HIT-324425.A0 324425	£8.47	£10.17
*266 - INTERNAL WIRE (A) FOR NZL HIT-326827.A0 326827	-
*267 - CONNECTOR 50092 (10 PCS.) HIT-959141.A3 959141	£7.12	£8.54
*267 - CONNECTOR 50092 (10 PCS.) FOR NZL HIT-959141.A4 959141	£7.12	£8.54
*267 - CONNECTOR 50092 (10 PCS.) FOR USA HIT-959141.A5 959141	£7.12	£8.54
268 - SWITCH (3P FASTON TYPE) W/O LOCK HIT-324424.A2 324424	£7.07	£8.48
269 - SWITCH HANDLE (R) HIT-324449.A0 324449	£20.01	£24.01
270 - KNOB BOLT M6X37 HIT-961468.A5 961468	£1.67	£2.00
271 - LOCK SPRING HIT-988821.A6 988821	£5.62	£6.75
272 - STOPPER HOLDER HIT-322314.A2 322314	£12.07	£14.48
273 - SPRING PLATE HIT-322313.A0 322313	-
274 - NYLOCK BOLT M8X40 HIT-303410.A2 303410	-
275 - GEAR CASE HIT-324437.A1 324437	£91.82	£110.19
276 - MACHINE SCREW M4X12 (10 PCS.) HIT-949217.A20 949217	£1.67	£2.00
277 - BOLT WASHER M4 (10 PCS.) HIT-949429.A45 949429	£1.67	£2.00
278 - NYLON CLIP HIT-973313.A0 973313	£1.67	£2.00
279 - MACHINE SCREW M6X25 (10 PCS.) HIT-949260.A8 949260	£1.67	£2.00
280 - BALL BEARING 606VV HIT-606ZZM.A9 606ZZM	£14.07	£16.88
281 - SPRING WASHER M6 (10 PCS.) HIT-949455.A57 949455	£1.67	£2.00
282 - WASHER M6 (10 PCS.) HIT-949425.A40 949425	£1.67	£2.00
283 - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) HIT-935196.A11 935196	£1.67	£2.00
284 - BOLT (A) M10 HIT-988101.A5 988101	£1.67	£2.00
285C - WASHER (B) EXCEPT FOR EUROPE HIT-339652.A0 339652	-
*286 - TCT SAW BLADE 305MM-D30 HOLE-NT60 HIT-328213.A2 328213	-
*286 - TCT SAW BLADE 305MM-D25.4 HOLE-NT60 HIT-328326.A0 328326	-
*286 - TCT SAW BLADE 305MM-D25.4 HOLE-NT120 HIT-324269.A0 324269	-
287 - WASHER (A) EXCEPT FOR EUROPE HIT-324452.A0 324452	-
288 - FLAT HD. SCREW M4X10 (10 PCS.) HIT-949322.A4 949322	£1.67	£2.00
289 - COVER HIT-307731.A3 307731	£4.07	£4.88
*290 - PROTECTIVE COVER HIT-324375.A0 324375	-
*290 - PROTECTIVE COVER TILL 8.2012 FOR EUROPE HIT-336341.A2 336341	£15.42	£18.50
290A - PROTECTIVE COVER SINCE 9.2012 FOR EUROPE HIT-336341.A0 336341	£15.42	£18.50
291A - RETURN SPRING (B) HIT-328188.A1 328188	£1.67	£2.00
292 - SPINDLE ASS'Y INCLUD.293-295 HIT-324438.A0 324438	£40.05	£48.06
293 - BALL BEARING 6003DD HIT-6003DD.A7 6003DD	£9.67	£11.60
294 - BEARING HOLDER HIT-324439.A2 324439	£14.69	£17.63
295 - BALL BEARING 608VVC2PS2L HIT-608VVM.A27 608VVM	£5.70	£6.84
296 - MACHINE SCREW M5X20 (10 PCS.) HIT-949241.A7 949241	£1.67	£2.00
297 - SPRING WASHER M5 (10 PCS.) HIT-949454.A93 949454	£1.67	£2.00
298 - DUST GUIDE HIT-321364.A0 321364	£1.67	£2.00
299 - GUIDE HOLDER HIT-312492.A5 312492	£6.09	£7.31
300 - PINION ASS'Y INCLUD.301-303 HIT-324440.A0 324440	£37.77	£45.32
301 - FEATHER KEY 4X4X15 HIT-948919.A1 948919	£1.67	£2.00
302 - BALL BEARING 6201VV HIT-6201VV.A1 6201VV	£8.30	£9.96
303 - COVER (C) HIT-322301.A1 322301	-
304 - FLAT HD. SCREW M4X10 (10 PCS.) HIT-949322.A5 949322	£1.67	£2.00
305 - PULLEY (B) HIT-324441.A1 324441	£10.35	£12.42
306 - BALL BEARING 608VVC2NS7L HIT-321399.A2 321399	£10.45	£12.54
307 - PULLEY (A) HIT-324443.A2 324443	-
308 - SUPER LOCK WASHER HIT-961157.A0 961157	-
309 - NUT M10 (10 PCS.) HIT-949560.A10 949560	£2.98	£3.57
310 - BELT (200H10) 16X508 HIT-324427.A2 324427	£31.73	£38.08
311 - NEEDLE ROLLER HIT-983545.A4 983545	£1.67	£2.00
312A - BEARING HOLDER (B) HIT-325259.A0 325259	-
313 - MACHINE SCREW (W/WASHERS) M5X20 (BLACK) HIT-995096.A11 995096	£1.67	£2.00
314 - STOPPER PIN HIT-307732.A3 307732	£6.61	£7.93
315 - BOLT WASHER M4 (10 PCS.) HIT-949429.A16 949429	£1.67	£2.00
316 - MACHINE SCREW M4X8 (10 PCS.) HIT-949215.A31 949215	£1.67	£2.00
317 - PULLEY COVER HIT-324450.A1 324450	£10.25	£12.30
318 - INTERNAL WIRE (C) HIT-324458.A1 324458	-
319 - SWITCH (W/COVER) HIT-319503.A2 319503	£21.46	£25.75
320 - GEAR COVER (B) EXCEPT FOR USA HIT-324821.A0 324821	£3.28	£3.93
*320 - GEAR COVER (B) CAN) HIT-324821.A1 324821	£3.28	£3.93
321 - GEAR COVER (C) HIT-324822.A1 324822	£5.23	£6.28
333 - NOISE SUPPRESSOR EXCEPT FOR USA HIT-930039.A20 930039	£3.85	£4.62
334 - PILLAR TERMINAL (A) EXCEPT FOR USA HIT-958308Z.A11 958308Z	£7.53	£9.04
335 - KNOB BOLT EXCEPT FOR USA HIT-998879.A2 998879	£1.67	£2.00
336 - GUARD EXCEPT FOR USA HIT-326828.A1 326828	£14.62	£17.54
337 - GUARD HOLDER EXCEPT FOR USA HIT-321394.A5 321394	£1.67	£2.00
338 - SUB COVER FOR EUROPE HIT-328521.A0 328521	-
339 - LEVER FOR EUROPE HIT-328518.A2 328518	£16.13	£19.36
340 - SPACER FOR EUROPE HIT-302757.A4 302757	£1.67	£2.00
341 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) FOR EUROPE HIT-307811.A2 307811	£2.49	£2.99
342 - MACHINE SCREW (W/WASHERS) M4X16 FOR EUROPE HIT-954878.A3 954878	£1.67	£2.00
343 - LEVER COVER FOR EUROPE HIT-328519.A0 328519	£3.12	£3.74
344 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) FOR EUROPE HIT-307811.A3 307811	£2.49	£2.99
345 - LEVER SPRING FOR EUROPE HIT-322457.A4 322457	£1.67	£2.00
346 - MACHINE SCREW (W/WASHERS) M5X16 (BLACK) FOR EUROPE HIT-307294.A8 307294	£1.67	£2.00
347 - FERRITE CORE EXCEPT FOR USA HIT-324518.A4 324518	-
348 - WASHER (D) FOR EUROPE HIT-324633.A2 324633	£8.74	£10.49
349 - WASHER (C) FOR EUROPE HIT-328520.A1 328520	£12.27	£14.72
350 - CAUTION LABEL (H) HIT-000000.A179 000000	-
351 - MACHINE SCREW (W/WASHERS) M5X10 (BLACK) SINCE 9.2012 FOR EUROPE HIT-336342.A1 336342	-
352 - GUARD (C) SINCE 9.2012 FOR EUROPE HIT-336343.A0 336343	£2.84	£3.41
501 - BOX WRENCH 17MM HIT-985051.A3 985051	£8.08	£9.69
502A - DUST BAG (BLACK) HIT-322955.A7 322955	£14.47	£17.36
*502A - DUST BAG (BLACK) FOR METABOHPT HIT-322955M.A4 322955M	-
601 - KNOB BOLT M6X32 HIT-960017.A3 960017	£1.67	£2.00
602 - CROWN MOLDING STOPPER HOLDER HIT-321390.A0 321390	-
603 - CROWN MOLDING STOPPER (L) HIT-000000.A183 000000	-
604 - WING BOLT M6X15 HIT-301806.A9 301806	£1.67	£2.00
605 - CROWN MOLDING STOPPER (L) ASS'Y INCLUD.601-604 HIT-321374.A0 321374	£40.26	£48.31
606 - KNOB BOLT M6X32 HIT-960017.A4 960017	£1.67	£2.00
607 - CROWN MOLDING STOPPER HOLDER HIT-321390.A1 321390	-
608 - CROWN MOLDING STOPPER (R) HIT-000000.A184 000000	-
609 - WING BOLT M6X15 HIT-301806.A8 301806	£1.67	£2.00
610 - CROWN MOLDING STOPPER (R) ASS'Y INCLUD.606-609 HIT-321373.A5 321373	£40.26	£48.31
611 - HOLDER HIT-321549.A3 321549	£23.30	£27.96
612 - WING NUT M6 (10 PCS.) HIT-949313.A7 949313	£6.28	£7.53
613 - NUT M6 (10 PCS.) HIT-949556.A73 949556	£1.67	£2.00
614 - VISE PLATE HIT-322047.A4 322047	-
615 - HIGH TENSION BOLT M6X95 HIT-324412.A2 324412	-
616 - HOLDER ASS'Y INCLUD.611-615 HIT-324464.A1 324464	£45.41	£54.49
617 - STOPPER HIT-974561.A3 974561	£8.64	£10.37
618 - WING BOLT M6X20 (10 PCS.) HIT-949404.A8 949404	£9.03	£10.84
619 - EXTENSION HOLDER AND STOPPER INCLUD.606 HIT-324369.A2 324369	£92.12	£110.55
620 - KNOB BOLT M6X11 HIT-998836.A4 998836	-
621 - MACHINE SCREW (W/WASHERS) M4X10 (BLACK) HIT-304043.A20 304043	£1.67	£2.00
622 - BASE RUBBER HIT-964851.A9 964851	£1.67	£2.00
623 - WASHER (H) HIT-306985.A5 306985	£1.67	£2.00
624 - SCREW HOLDER (B) HIT-000000.A185 000000	-
625 - KNOB BOLT M10X54 HIT-321551.A6 321551	£16.46	£19.75
626 - VISE (B) ASS'Y INCLUD.620-625 HIT-321388.A3 321388	£70.87	£85.04
627 - CROWN MOLDING VISE ASS'Y INCLUD.605 HIT-321434.A1 321434	-
628 - TCT SAW BLADE 305MM-D25.4 HOLE-NT60 HIT-305546.A0 305546	-
629 - TCT SAW BLADE 305MM-D25.4 HOLE-NT80 HIT-309418.A1 309418	-
630 - TCT SAW BLADE 305MM-D25.4 HOLE-NT90 HIT-301721.A1 301721	-
631 - TCT SAW BLADE 305MM-D25.4 HOLE-NT96 HIT-310875.A1 310875	-

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki C12RSH Slide Compound Miter Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

For further delivery and international shipping information please click here
