Hitachi / Hikoki C10FSH Slide Compound Saw Spare Parts

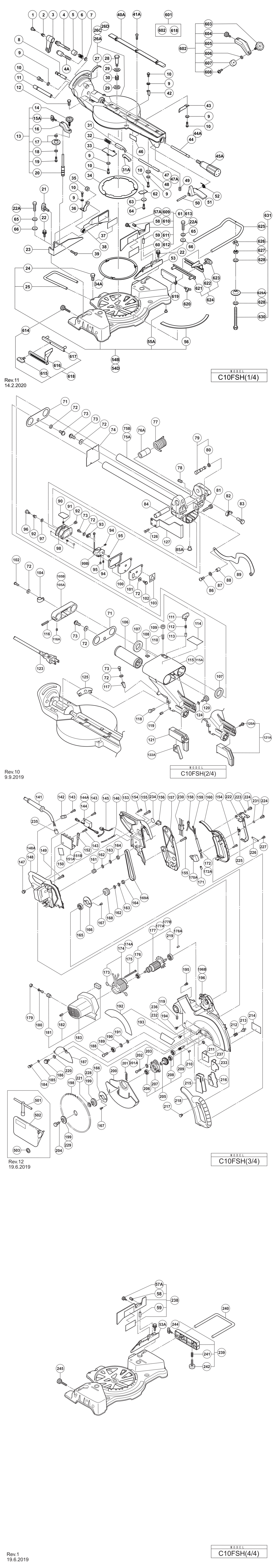

An exploded diagram and spare parts listing for the Hitachi / Hikoki C10FSH Slide Compound Saw

	Ex VAT	Inc VAT
1 - CLUTCH SCREW HIT-305180.A5 305180	£7.03	£8.44
2 - CLUTCH SPRING HIT-305179.A7 305179	£1.67	£2.00
3 - CLAMP LEVER HIT-312488.A4 312488	£12.02	£14.43
4 - BOLT (LEFT HAND) M10 (TILL 08.2010) HIT-307725.A1 307725	£16.46	£19.75
4A - BOLT (LEFT HAND) D10 (SINCE 09.2010) HIT-329409.A3 329409	£5.90	£7.08
5 - SLEEVE HIT-315195.A1 315195	£9.56	£11.47
*6 - METAL SPRING (A) EXCEPT FOR USA HIT-305190.A0 305190	£4.12	£4.95
7 - SPECIAL WASHER HIT-965077.A0 965077	£1.67	£2.00
8 - SET PIN (A) HIT-321330.A1 321330	-
*9 - BOLT WASHER M4 (10 PCS.) HIT-949429.A53 949429	£1.67	£2.00
*10 - MACHINE SCREW M4X8 (10 PCS.) HIT-949215.A3 949215	£1.67	£2.00
11 - HINGE SHAFT (A) HIT-320141.A4 320141	£13.09	£15.71
12 - NYLOCK BOLT M8X25 HIT-303409.A6 303409	£1.67	£2.00
13 - VISE ASS'Y INCLUD.14-20 HIT-321370.A0 321370	£39.42	£47.31
14 - KNOB BOLT M10 HIT-308396.A1 308396	-
15A - WING BOLT M6X12 HIT-307947.A4 307947	£1.67	£2.00
16 - SCREW HOLDER HIT-000000.A4785 000000	-
17 - VISE PLATE SET HIT-319974.A1 319974	£5.09	£6.11
18 - WASHER HIT-996722.A3 996722	-
19 - MACHINE SCREW (W/WASHERS) M5X12 (BLACK) HIT-996247.A5 996247	£1.67	£2.00
20 - VISE SHAFT HIT-321371.A1 321371	-
21 - WING BOLT M6X17 HIT-302459.A4 302459	£1.67	£2.00
22 - BOLT (W/WASHERS) M8X35 (BLACK) (TILL 08.2010) HIT-307221.A4 307221	£1.67	£2.00
22A - BOLT M8X35 (10 PCS.) (SINCE 09.2010) HIT-949678.A6 949678	£3.45	£4.14
23 - FENCE (B) HIT-321346.A0 321346	£38.98	£46.77
24 - BOLT M6X10 (10 PCS.) HIT-949610.A0 949610	£1.67	£2.00
25 - HOLDER HIT-998844.A3 998844	£7.15	£8.58
*26A - TABLE ASS'Y INCLUD.9 HIT-330768.A3 330768	-
*26C - TABLE ASS'Y INCLUD.9 HIT-336311.A0 336311	-
27 - SCALE (B) HIT-321343.A0 321343	-
28 - SHAFT (B) HIT-312480.A1 312480	-
29 - BOLT WASHER M12 (10 PCS.) HIT-949437.A9 949437	£1.67	£2.00
30 - SPRING HIT-312481.A0 312481	£4.12	£4.95
31 - STOPPER (A) (TILL 08.2008) HIT-321335.A0 321335	£9.96	£11.95
31A - STOPPER (A) (SINCE 09.2008) HIT-322280.A3 322280	£7.26	£8.71
32 - SPRING (E) HIT-321417.A6 321417	£5.09	£6.11
33 - PIN COVER HIT-321336.A1 321336	£1.67	£2.00
34 - LINER (TILL 08.2008) HIT-998811.A0 998811	£1.67	£2.00
34A - LINER (SINCE 09.2008) HIT-324400.A3 324400	£1.67	£2.00
35 - NYLON NUT M6 HIT-311144.A2 311144	£1.67	£2.00
36 - PLATE HIT-321331.A0 321331	£1.67	£2.00
37 - WARNING LABEL (H) HIT-321386.A1 321386	£7.57	£9.08
38 - SUB FENCE (B) ASS'Y INCLUD.37 HIT-321385.A0 321385	£40.76	£48.91
39 - FLAT HD. SCREW M6X25 (10 PCS.) HIT-949342.A14 949342	£1.67	£2.00
*40A - TABLE INSERT EXCEPT FOR USA HIT-337817.A0 337817	£2.77	£3.32
41A - MACHINE SCREW M6X16 (10 PCS.) HIT-949256.A1 949256	£1.67	£2.00
42 - INDICATOR HIT-321329.A1 321329	£1.67	£2.00
43 - SPACER (A) HIT-321342.A1 321342	£1.67	£2.00
44 - SHAFT (A) (TILL 08.2008) HIT-321341.A0 321341	£5.09	£6.11
44A - SHAFT (A) (SINCE 09.2008) HIT-329416.A1 329416	£1.67	£2.00
45A - SIDE HANDLE HIT-376050.A7 376050	£6.20	£7.44
46 - CAUTION LABEL (K) HIT-000000.A4791 000000	-
47 - SHAFT (C) (TILL 08.2008) HIT-321337.A0 321337	£3.88	£4.66
47A - SHAFT (C) (SINCE 09.2008) HIT-329415.A2 329415	£3.28	£3.93
48 - THRUST WASHER HIT-875249.A2 875249	£1.67	£2.00
49 - SEAL LOCK HEX. SOCKET SET SCREW M6X6 HIT-987860.A3 987860	£1.67	£2.00
50 - LEVER SHAFT HIT-321339.A6 321339	£1.67	£2.00
51 - LEVER HIT-321338.A1 321338	£1.67	£2.00
52 - SPRING (D) HIT-321340.A1 321340	£1.67	£2.00
*53 - FENCE (A) TILL 12.2018 FOR USA HIT-321345.A1 321345	£39.82	£47.78
54B - TABLE ASS'Y INCLUD.9 HIT-330768.A2 330768	-
*54D - TABLE ASS'Y INCLUD.9 HIT-336311.A1 336311	-
55A - BASE RUBBER HIT-323606.A16 323606	£1.67	£2.00
56 - SCALE (A) HIT-315210.A0 315210	£9.56	£11.47
*57A - KNOB BOLT M6X32 EXCEPT FOR USA HIT-960017.A13 960017	£1.67	£2.00
*58 - SEAL LOCK HEX. SOCKET SET SCREW M6X6 EXCEPT FOR USA HIT-987860.A2 987860	£1.67	£2.00
*59 - PIN EXCEPT FOR USA HIT-321552.A0 321552	£8.92	£10.70
*60 - CAUTION LABEL (Q) EXCEPT FOR USA AUS HIT-000000.A4796 000000	-
*61 - SUB FENCE (A) ASS'Y INCLUD.57-60 EXCEPT FOR USA HIT-322617.A0 322617	£47.12	£56.54
62 - COVER (B) (SINCE 09.2008) HIT-324395.A4 324395	£1.67	£2.00
63 - BOLT WASHER M4 (10 PCS.) (SINCE 09.2008) HIT-949429.A55 949429	£1.67	£2.00
64 - MACHINE SCREW M4X8 (10 PCS.) (SINCE 09.2008) HIT-949215.A2 949215	£1.67	£2.00
65 - SPRING WASHER M8 (10 PCS.) HIT-949457.A70 949457	£1.67	£2.00
66 - BOLT WASHER M8 (10 PCS.) HIT-949433.A8 949433	£1.67	£2.00
70 - MACHINE SCREW M4X8 (10 PCS.) HIT-949215.A1 949215	£1.67	£2.00
71 - PACKING COVER HIT-996227.A0 996227	£2.98	£3.57
72 - BOLT WASHER M4 (10 PCS.) HIT-949429.A54 949429	£1.67	£2.00
73 - MACHINE SCREW M4X8 (10 PCS.) HIT-949215.A0 949215	£1.67	£2.00
74 - COVER HIT-321349.A0 321349	-
*75A - HINGE (A) ASS'Y INCLUD.105A HIT-332815.A0 332815	-
76A - SLEEVE HIT-334337.A1 334337	-
77 - SPRING HIT-321332.A0 321332	£17.23	£20.68
78 - HEX. SOCKET SET SCREW M8X10 HIT-961554.A6 961554	£1.67	£2.00
79 - STOPPER PIN ASS'Y INCLUD.80 HIT-302518.A5 302518	£5.98	£7.18
80 - O-RING (P-6) HIT-984528.A15 984528	£1.67	£2.00
81 - ADJUSTER HIT-319270.A3 319270	£14.71	£17.65
82 - WING NUT M8 (10 PCS.) HIT-949312.A1 949312	£6.28	£7.53
83 - BOLT M8X50 (10 PCS.) HIT-949633.A1 949633	£5.43	£6.52
84 - HINGE SHAFT (A) HIT-320141.A5 320141	£13.09	£15.71
85A - BASE RUBBER HIT-323606.A17 323606	£1.67	£2.00
86 - MACHINE SCREW M5X12 (10 PCS.) HIT-949237.A23 949237	£1.67	£2.00
87 - SPRING WASHER M5 (10 PCS.) HIT-949454.A118 949454	£1.67	£2.00
88 - SPACER HIT-998980.A5 998980	£1.67	£2.00
*89 - LINK HIT-322199.A0 322199	£18.20	£21.84
90 - PLATE (B) HIT-319268.A3 319268	-
91 - SPRING HIT-319267.A5 319267	£4.01	£4.81
92 - CLUTCH SPRING HIT-305179.A8 305179	£1.67	£2.00
93 - NYLON CLIP HIT-980523.A0 980523	-
94 - SPRING HIT-319267.A4 319267	£4.01	£4.81
95 - SEAL LOCK HEX. SOCKET SET SCREW M5X6 HIT-319541.A0 319541	£1.67	£2.00
96 - CLUTCH SCREW HIT-305180.A4 305180	£7.03	£8.44
97 - ADJUSTING WASHER (B) T0.5 HIT-962614.A2 962614	-
98 - HOLDER (B) HIT-319269.A2 319269	-
99B - LASER MARKER HIT-329863.A2 329863	£41.65	£49.98
100 - COVER (A) HIT-319271.A2 319271	£18.55	£22.26
101 - PLATE (A) HIT-319272.A0 319272	£1.67	£2.00
102 - MACHINE SCREW M4X12 (10 PCS.) HIT-949217.A2 949217	£1.67	£2.00
103 - CAUTION LABEL (J) HIT-000000.A4797 000000	-
*104 - NYLON CLIP HIT-948614.A2 948614	£1.67	£2.00
*105A - SUPPORT EXCEPT FOR USA HIT-331419.A1 331419	-
106 - BALL BUSHING HIT-321347.A1 321347	-
107 - FELT HIT-996226.A0 996226	£1.67	£2.00
108 - BUSHING HIT-996223.A1 996223	£2.98	£3.57
109 - LOCK NUT M8 (10 PCS.) HIT-949568.A7 949568	£1.67	£2.00
110 - HEX. SOCKET SET SCREW M8X16 HIT-974500.A0 974500	£1.67	£2.00
111 - WING BOLT M6X17 HIT-302459.A7 302459	£1.67	£2.00
112 - LOCK SPRING HIT-947859.A19 947859	£1.67	£2.00
113 - CLAMP PIECE (B) HIT-963174.A1 963174	£1.67	£2.00
114 - CAUTION LABEL (A) HIT-320206.A1 320206	-
*115 - HOLDER (A) EXCEPT FOR USA HIT-321375.A1 321375	£85.81	£102.97
116 - ROLL PIN D6X40 (10 PCS.) (TILL 08.2010) HIT-949686.A2 949686	£8.48	£10.18
116A - HEX. SOCKET SET SCREW M8X10 (SINCE 09.2010) HIT-961554.A3 961554	£1.67	£2.00
117 - INDICATOR HIT-321329.A3 321329	£1.67	£2.00
118 - NYLOCK BOLT M8X25 HIT-303409.A8 303409	£1.67	£2.00
119 - SEAL LOCK HEX. SOCKET SET SCREW M6X10 HIT-307956.A16 307956	£1.67	£2.00
*120 - KNOB BOLT M6X22 SINCE 01.2019 FOR USA HIT-302503.A2 302503	£1.67	£2.00
*121 - GUARD (A) SINCE 01.2019 FOR USA HIT-321333.A1 321333	£15.21	£18.25
*122A - GUARD HOLDER SINCE 01.2019 FOR USA HIT-331845.A1 331845	£2.67	£3.20
*123 - CORD FOR GBR (230V) HIT-500435Z.A50 500435Z	£14.14	£16.97
*123 - CORD FOR GBR (110V) HIT-500463Z.A16 500463Z	£21.37	£25.64
125 - LINER (A) HIT-322210.A1 322210	£1.67	£2.00
*126 - FLAT HD. SCREW M5X12 (10 PCS.) EXCEPT FOR USA HIT-949332.A1 949332	£1.67	£2.00
*127 - SUB COVER EXCEPT FOR USA HIT-322206.A0 322206	£26.59	£31.91
141 - CORD ARMOR D10.1 HIT-938051.A11 938051	£1.67	£2.00
142 - CORD CLIP HIT-937631.A129 937631	£1.67	£2.00
143 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A20 984750	£1.67	£2.00
*144 - SWITCHING POWER SUPPLY FOR 110V-127V HIT-321378.A0 321378	£43.25	£51.90
*144A - SWITCHING POWER SUPPLY FOR 220V-240V HIT-322383.A0 322383	£43.25	£51.90
*145 - CONNECTOR (B) FOR GBR (110V) HIT-322450.A0 322450	-
147 - CORD BUSH HIT-319349.A6 319349	£1.67	£2.00
*148 - HANDLE (L) EXCEPT FOR USA HIT-321550.A0 321550	£13.60	£16.32
149 - TAPPING SCREW (W/FLANGE) D5X25 (BLACK) HIT-305558.A25 305558	£1.67	£2.00
150 - SHEET HIT-321355.A0 321355	-
*151A - CONTROLLER 100V-120V TILL 12.2018 FOR USA HIT-321354.A1 321354	£105.67	£126.80
*151A - CONTROLLER 220V-240V HIT-322200.A1 322200	£90.05	£108.06
152 - TERMINAL M4.0 (10 PCS.) HIT-930804.A26 930804	£3.64	£4.37
153 - HANDLE (R) HIT-321380.A0 321380	£10.45	£12.54
154 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A50 301653	£1.67	£2.00
155 - MACHINE SCREW (W/WASHERS) M5X25 (BLACK) HIT-880734.A7 880734	£1.67	£2.00
156 - SWITCH (W/COVER) HIT-319503.A5 319503	£21.46	£25.75
157 - PULLEY COVER HIT-321383.A0 321383	£9.96	£11.95
159 - TERMINAL HIT-980063.A112 980063	£1.67	£2.00
*160 - SWITCH HANDLE (L2).(R2) SET (SINCE 04.2007 FOR AUS HIT-322884.A1 322884	£11.57	£13.88
161 - PULLEY (A) HIT-321356.A1 321356	£12.27	£14.72
162 - WASHER M8 (10 PCS.) HIT-949426.A1 949426	£1.67	£2.00
163 - SUPER LOCK WASHER HIT-978559.A0 978559	£1.67	£2.00
164 - NUT M8 (10 PCS.) HIT-949558.A27 949558	£1.67	£2.00
165 - BALL BEARING 6201VV HIT-6201VV.A23 6201VV	£8.30	£9.96
166 - COVER HIT-307731.A2 307731	£4.07	£4.88
167 - FLAT HD. SCREW M4X10 (10 PCS.) HIT-949322.A2 949322	£1.67	£2.00
168 - PULLEY (B) HIT-321357.A0 321357	£17.23	£20.68
169A - BELT (10PH432) HIT-332810.A1 332810	£19.30	£23.16
*170A - SWITCH (2P PILLAR TYPE) W/O LOCK HIT-958400Z.A1 958400Z	£18.99	£22.79
*171 - TUBE (D) HIT-981373.A71 981373	£1.67	£2.00
*172 - INTERNAL WIRE (A) ASS'Y INCLUD.159 HIT-322207.A0 322207	-
173 - BRUSH TERMINAL HIT-930703.A48 930703	£3.28	£3.93
*174A - STATOR ASS'Y (A) 110V INCLUD.173 HIT-340779C.A1 340779C	-
*174A - STATOR ASS'Y (A) 220V-240V INCLUD.173 EXCEPT FOR EUROPE HIT-340779F.A0 340779F	-
*174A - STATOR ASS'Y (B) 230V INCLUD.173 SINCE 9.2010 FOR EUROPE HIT-340811E.A1 340811E	£29.14	£34.97
175 - HEX. HD. TAPPING SCREW D5X55 HIT-953174.A17 953174	£1.67	£2.00
176 - BALL BEARING 608VVC2NS7L HIT-321399.A1 321399	£10.45	£12.54
*177A - ARMATURE ASS'Y 110V INCLUD.176 HIT-360898U.A0 360898U	-
*177A - ARMATURE ASS'Y 220V-230V INCLUD.176 HIT-360898E.A1 360898E	£83.21	£99.85
*177A - ARMATURE ASS'Y 230V INCLUD.176 HIT-360924E.A1 360924E	-
178A - BEARING LOCK HIT-946362.A2 946362	£1.67	£2.00
179 - BRUSH CAP HIT-945161.A34 945161	£1.67	£2.00
180 - CARBON BRUSH (1 PAIR) HIT-999043.A44 999043	£5.54	£6.65
*181 - BRUSH HOLDER HIT-960685.A3 960685	£7.59	£9.11
182 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A116 938477	£1.67	£2.00
*183 - HOUSING ASS'Y INCLUD.181 HIT-322208.A0 322208	£35.52	£42.63
184 - MACHINE SCREW (W/WASHERS) M5X12 (BLACK) HIT-996247.A7 996247	£1.67	£2.00
185 - SPACER HIT-998980.A6 998980	£1.67	£2.00
186 - BOLT (W/WASHERS) M6X12 (BLACK) HIT-996577.A2 996577	£1.67	£2.00
187 - SPINDLE COVER HIT-318958.A1 318958	£8.12	£9.75
188 - MACHINE SCREW M6X20 (10 PCS.) HIT-949258.A9 949258	£1.67	£2.00
189 - BALL BEARING 606VV HIT-606ZZM.A3 606ZZM	£14.07	£16.88
190 - SPRING WASHER M6 (10 PCS.) HIT-949455.A24 949455	£1.67	£2.00
191 - WASHER M6 (10 PCS.) HIT-949425.A44 949425	£1.67	£2.00
192 - BRAND LABEL HIT-000000.A4803 000000	-
194 - MACHINE SCREW (W/WASHERS) M4X10 (BLACK) HIT-304043.A2 304043	£1.67	£2.00
195 - SEAL LOCK HEX. SOCKET HD. BOLT M5X10 HIT-877839.A5 877839	£1.67	£2.00
*196 - GEAR CASE EXCEPT FOR USA HIT-321384.A1 321384	£162.21	£194.65
*198 - TCT SAW BLADE 255MM-D30 HOLE-NT40 HIT-322443.A0 322443	-
*200 - LOWER GUARD (SINCE 04.2007 FOR AUS NZL) HIT-322452.A0 322452	£16.09	£19.31
*201 - RETURN SPRING (A) (SINCE 04.2007 FOR AUS HIT-322453.A1 322453	£1.67	£2.00
202 - MACHINE SCREW M5X20 (10 PCS.) HIT-949241.A3 949241	£1.67	£2.00
203 - SPRING WASHER M5 (10 PCS.) HIT-949454.A113 949454	£1.67	£2.00
204 - BOLT (LEFT HAND) W/WASHER M7X17.5 HIT-998335.A7 998335	£1.67	£2.00
205 - SPINDLE ASS'Y INCLUD.206-209 HIT-308787.A1 308787	£92.28	£110.73
206 - BALL BEARING 6003DD HIT-6003DD.A6 6003DD	£9.67	£11.60
207 - BEARING HOLDER HIT-308788.A1 308788	£33.82	£40.58
208 - BALL BEARING 608VVC2PS2L HIT-608VVM.A173 608VVM	£5.70	£6.84
209 - PINION HIT-000000.A49 000000	-
210 - FEATHER KEY 4X4X12 HIT-931008.A0 931008	-
*211 - NUT M5 (10 PCS.) TILL 12.2004 EXCEPT FOR NZL HIT-949555.A6 949555	£1.67	£2.00
212 - LOCK SPRING HIT-988821.A2 988821	£5.62	£6.75
213 - STOPPER PIN HIT-307732.A1 307732	£6.61	£7.93
214 - NAME PLATE HIT-000000.A50 000000	-
*215 - DUST GUIDE HIT-322454.A1 322454	£1.67	£2.00
216 - GUIDE HOLDER HIT-312492.A0 312492	£6.09	£7.31
219 - BALL BEARING 6201VVCMNS7S HIT-321398.A0 321398	-
220 - BOLT WASHER M6 (10 PCS.) HIT-949432.A16 949432	£1.67	£2.00
*222 - LEVER EXCEPT FOR USA HIT-322456.A0 322456	£14.51	£17.41
*223 - SPACER EXCEPT FOR USA HIT-302757.A1 302757	£1.67	£2.00
*224 - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) EXCEPT FOR USA HIT-935196.A48 935196	£1.67	£2.00
*225 - LEVER SPRING EXCEPT FOR USA HIT-322457.A1 322457	£1.67	£2.00
*226 - PLATE (C) EXCEPT FOR USA HIT-322458.A0 322458	£1.67	£2.00
*227 - TAPPING SCREW (W/FLANGE) D3X10 (BLACK) EXCEPT FOR USA HIT-306371.A5 306371	£1.67	£2.00
*228 - WASHER (A) EXCEPT FOR USA HIT-322459.A1 322459	£16.15	£19.38
*229 - WASHER (B) EXCEPT FOR USA HIT-318962.A1 318962	£8.12	£9.75
*230 - PILLAR TERMINAL (A) EXCEPT FOR USA HIT-958308Z.A12 958308Z	£7.53	£9.04
*231 - SPACER EXCEPT FOR USA HIT-305171.A1 305171	£1.67	£2.00
*232 - MACHINE SCREW (W/WASHERS) M4X10 (BLACK) EXCEPT FOR USA HIT-304043.A16 304043	£1.67	£2.00
*233 - SUB COVER (A) EXCEPT FOR USA HIT-322623.A1 322623	£8.66	£10.39
*234 - CAUTION LABEL (A) EXCEPT FOR USA HIT-320104.A0 320104	-
*235 - FERRITE CORE FOR EUROPE HIT-329755.A3 329755	-
*236 - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) SINCE 09.2012 FOR EUROPE HIT-935196.A49 935196	£1.67	£2.00
*237 - GUIDE HOLDER (B) SINCE 09.2012 FOR EUROPE HIT-336310.A1 336310	-
501 - BOX WRENCH 10MM HIT-940543.A27 940543	£7.34	£8.81
*502 - DUST BAG (BLACK) HIT-998845.A1 998845	£20.10	£24.12
601 - CROWN MOLDING VISE ASS'Y INCLUD.602 HIT-321434.A2 321434	-
602 - VISE (B) ASS'Y INCLUD.603-608 HIT-321388.A2 321388	£70.87	£85.04
603 - KNOB BOLT M10X54 HIT-321551.A8 321551	£16.46	£19.75
604 - KNOB BOLT M6X11 HIT-998836.A0 998836	-
605 - SCREW HOLDER (B) HIT-000000.A55 000000	-
606 - WASHER (H) HIT-306985.A7 306985	£1.67	£2.00
607 - BASE RUBBER HIT-964851.A12 964851	£1.67	£2.00
608 - MACHINE SCREW (W/WASHERS) M4X10 (BLACK) HIT-304043.A15 304043	£1.67	£2.00
614 - KNOB BOLT M6X32 HIT-960017.A7 960017	£1.67	£2.00
615 - WING BOLT M6X15 HIT-301806.A1 301806	£1.67	£2.00
616 - CROWN MOLDING STOPPER (L) HIT-000000.A56 000000	-
617 - CROWN MOLDING STOPPER HOLDER HIT-321390.A6 321390	-
618 - CROWN MOLDING STOPPER (L) ASS'Y INCLUD.614-617 HIT-321374.A1 321374	£40.26	£48.31
619 - STOPPER HIT-974561.A7 974561	£8.64	£10.37
620 - WING BOLT M6X20 (10 PCS.) HIT-949404.A12 949404	£9.03	£10.84
621 - CROWN MOLDING STOPPER HOLDER HIT-321390.A7 321390	-
622 - CROWN MOLDING STOPPER (R) HIT-000000.A57 000000	-
623 - WING BOLT M6X15 HIT-301806.A0 301806	£1.67	£2.00
624 - CROWN MOLDING STOPPER (R) ASS'Y INCLUD.614 HIT-321373.A4 321373	£40.26	£48.31
625 - HOLDER HIT-321549.A1 321549	£23.30	£27.96
626 - WING NUT M6 (10 PCS.) HIT-949313.A11 949313	£6.28	£7.53
627 - NUT M6 (10 PCS.) HIT-949556.A63 949556	£1.67	£2.00
628 - WASHER (H) HIT-967329.A6 967329	£1.67	£2.00
629A - VISE PLATE HIT-322047.A2 322047	-
630 - HIGH TENSION BOLT M6X65 HIT-996283.A3 996283	£1.67	£2.00
631 - GUIDE ASS'Y INCLUD.614 HIT-321553.A2 321553	£85.04	£102.05
*632 - TCT SAW BLADE 255MM-D30 HOLE-NT72 HIT-322444.A1 322444	£191.33	£229.60

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki C10FSH Slide Compound Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Hitachi / Hikoki C10FSH Slide Compound Saw Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Hitachi / Hikoki C10FSH Slide Compound Saw Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
