Hitachi / Hikoki C10FSB Slide Compound Saw Spare Parts

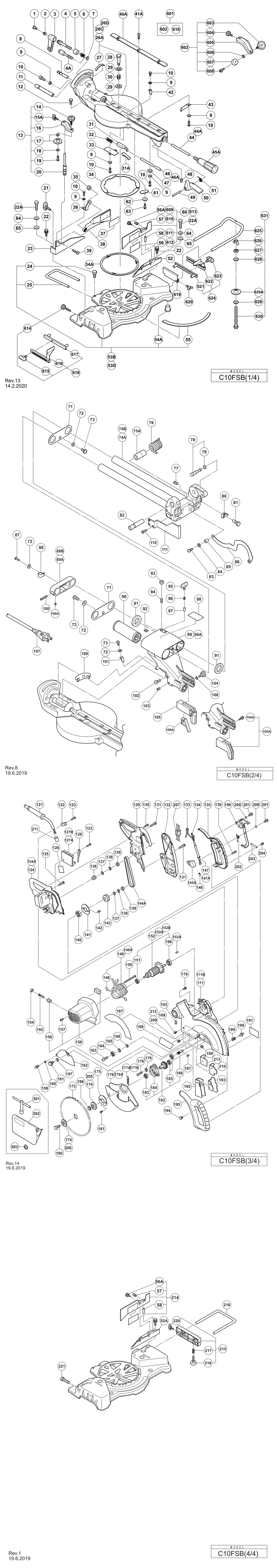

An exploded diagram and spare parts listing for the Hitachi / Hikoki C10FSB Slide Compound Saw

	Ex VAT	Inc VAT
1 - CLUTCH SCREW HIT-305180.A3 305180	£7.03	£8.44
2 - CLUTCH SPRING HIT-305179.A9 305179	£1.67	£2.00
3 - CLAMP LEVER HIT-312488.A3 312488	£12.02	£14.43
4 - BOLT (LEFT HAND) M10 (TILL 08.2010) HIT-307725.A0 307725	£16.46	£19.75
4A - BOLT (LEFT HAND) D10 (SINCE 09.2010) HIT-329409.A2 329409	£5.90	£7.08
5 - SLEEVE HIT-315195.A0 315195	£9.56	£11.47
*6 - METAL SPRING (A) EXCEPT FOR USA HIT-305190.A1 305190	£4.12	£4.95
7 - SPECIAL WASHER HIT-965077.A1 965077	£1.67	£2.00
8 - SET PIN (A) HIT-321330.A0 321330	-
9 - BOLT WASHER M4 (10 PCS.) HIT-949429.A58 949429	£1.67	£2.00
10 - MACHINE SCREW M4X8 (10 PCS.) HIT-949215.A6 949215	£1.67	£2.00
11 - HINGE SHAFT (A) HIT-320141.A7 320141	£13.09	£15.71
12 - NYLOCK BOLT M8X25 HIT-303409.A7 303409	£1.67	£2.00
13 - VISE ASS'Y INCLUD.14-20 HIT-321370.A1 321370	£39.42	£47.31
14 - KNOB BOLT M10 HIT-308396.A2 308396	-
15A - WING BOLT M6X12 HIT-307947.A5 307947	£1.67	£2.00
16 - SCREW HOLDER HIT-000000.A4755 000000	-
17 - VISE PLATE SET HIT-319974.A0 319974	£5.09	£6.11
18 - WASHER HIT-996722.A4 996722	-
19 - MACHINE SCREW (W/WASHERS) M5X12 (BLACK) HIT-996247.A4 996247	£1.67	£2.00
20 - VISE SHAFT HIT-321371.A0 321371	-
21 - WING BOLT M6X17 HIT-302459.A6 302459	£1.67	£2.00
22 - BOLT (W/WASHERS) M8X35 (BLACK) (TILL 08.2010) HIT-307221.A5 307221	£1.67	£2.00
22A - BOLT M8X35 (10 PCS.) (SINCE 09.2010) HIT-949678.A7 949678	£3.45	£4.14
23 - FENCE (B) HIT-321346.A1 321346	£38.98	£46.77
24 - BOLT M6X10 (10 PCS.) HIT-949610.A1 949610	£1.67	£2.00
25 - HOLDER HIT-998844.A4 998844	£7.15	£8.58
26A - TABLE ASS'Y INCLUD.9 HIT-330768.A1 330768	-
*26C - TABLE ASS'Y INCLUD.9 HIT-336311.A2 336311	-
27 - SCALE (B) HIT-321343.A1 321343	-
28 - SHAFT (B) HIT-312480.A0 312480	-
29 - BOLT WASHER M12 (10 PCS.) HIT-949437.A8 949437	£1.67	£2.00
30 - SPRING HIT-312481.A1 312481	£4.12	£4.95
31 - STOPPER (A) (TILL 08.2008) HIT-321335.A1 321335	£9.96	£11.95
31A - STOPPER (A) (SINCE 09.2008) HIT-322280.A4 322280	£7.26	£8.71
32 - SPRING (E) HIT-321417.A7 321417	£5.09	£6.11
33 - PIN COVER HIT-321336.A0 321336	£1.67	£2.00
34 - LINER (TILL 08.2008) HIT-998811.A1 998811	£1.67	£2.00
34A - LINER (SINCE 09.2008) HIT-324400.A4 324400	£1.67	£2.00
35 - NYLON NUT M6 HIT-311144.A1 311144	£1.67	£2.00
36 - PLATE HIT-321331.A1 321331	£1.67	£2.00
37 - WARNING LABEL (H) HIT-321386.A0 321386	£7.57	£9.08
38 - SUB FENCE (B) ASS'Y INCLUD.37 HIT-321385.A1 321385	£40.76	£48.91
39 - FLAT HD. SCREW M6X25 (10 PCS.) HIT-949342.A15 949342	£1.67	£2.00
*40A - TABLE INSERT EXCEPT FOR USA HIT-337816.A0 337816	£2.77	£3.32
41A - MACHINE SCREW M6X16 (10 PCS.) HIT-949256.A2 949256	£1.67	£2.00
42 - INDICATOR HIT-321329.A2 321329	£1.67	£2.00
43 - SPACER (A) HIT-321342.A0 321342	£1.67	£2.00
44 - SHAFT (A) (TILL 08.2008) HIT-321341.A1 321341	£5.09	£6.11
44A - SHAFT (A) (SINCE 09.2008) HIT-329416.A0 329416	£1.67	£2.00
45A - SIDE HANDLE HIT-376050.A6 376050	£6.20	£7.44
46 - SHAFT (C) (TILL 08.2008) HIT-321337.A1 321337	£3.88	£4.66
46A - SHAFT (C) (SINCE 09.2008) HIT-329415.A3 329415	£3.28	£3.93
47 - THRUST WASHER HIT-875249.A3 875249	£1.67	£2.00
48 - SEAL LOCK HEX. SOCKET SET SCREW M6X6 HIT-987860.A1 987860	£1.67	£2.00
49 - LEVER SHAFT HIT-321339.A7 321339	£1.67	£2.00
50 - LEVER HIT-321338.A0 321338	£1.67	£2.00
51 - SPRING (D) HIT-321340.A0 321340	£1.67	£2.00
*52 - FENCE (A) HIT-321345.A0 321345	£39.82	£47.78
53B - TABLE ASS'Y INCLUD.9-10 HIT-330768.A0 330768	-
*53D - TABLE ASS'Y INCLUD.9 HIT-336311.A3 336311	-
54A - BASE RUBBER HIT-323606.A15 323606	£1.67	£2.00
55 - SCALE (A) HIT-315210.A1 315210	£9.56	£11.47
*56A - KNOB BOLT M6X32 EXCEPT FOR USA HIT-960017.A11 960017	£1.67	£2.00
*57 - SEAL LOCK HEX. SOCKET SET SCREW M6X6 EXCEPT FOR USA HIT-987860.A0 987860	£1.67	£2.00
*58 - PIN EXCEPT FOR USA HIT-321552.A1 321552	£8.92	£10.70
59 - CAUTON LABEL (Q) HIT-000000.A4765 000000	-
*60 - SUB FENCE (A) ASS'Y INCLUD.56-59 EXCEPT FOR USA HIT-322617.A1 322617	£47.12	£56.54
61 - COVER (B) (SINCE 09.2008) HIT-324395.A3 324395	£1.67	£2.00
62 - BOLT WASHER M4 (10 PCS.) (SINCE .09.2008) HIT-949429.A57 949429	£1.67	£2.00
63 - MACHINE SCREW M4X8 (10 PCS.) (SINCE 09.2008) HIT-949215.A5 949215	£1.67	£2.00
64 - SPRING WASHER M8 (10 PCS.) HIT-949457.A71 949457	£1.67	£2.00
65 - BOLT WASHER M8 (10 PCS.) HIT-949433.A9 949433	£1.67	£2.00
71 - PACKING COVER HIT-996227.A1 996227	£2.98	£3.57
72 - BOLT WASHER M4 (10 PCS.) HIT-949429.A56 949429	£1.67	£2.00
73 - MACHINE SCREW M4X8 (10 PCS.) HIT-949215.A4 949215	£1.67	£2.00
*74A - HINGE (B) ASS'Y INCLUD.89A HIT-332818.A0 332818	-
75A - SLEEVE HIT-334337.A0 334337	-
76 - SPRING HIT-321332.A1 321332	£17.23	£20.68
77 - HEX. SOCKET SET SCREW M8X10 HIT-961554.A5 961554	£1.67	£2.00
78 - STOPPER PIN ASS'Y INCLUD.79 HIT-302518.A4 302518	£5.98	£7.18
79 - O-RING (P-6) HIT-984528.A14 984528	£1.67	£2.00
80 - WING NUT M8 (10 PCS.) HIT-949312.A0 949312	£6.28	£7.53
81 - BOLT M8X50 (10 PCS.) HIT-949633.A2 949633	£5.43	£6.52
82 - HINGE SHAFT (A) HIT-320141.A6 320141	£13.09	£15.71
83 - MACHINE SCREW M5X12 (10 PCS.) HIT-949237.A24 949237	£1.67	£2.00
84 - SPRING WASHER M5 (10 PCS.) HIT-949454.A120 949454	£1.67	£2.00
85 - SPACER HIT-998980.A4 998980	£1.67	£2.00
*86 - LINK HIT-322199.A1 322199	£18.20	£21.84
87 - MACHINE SCREW M4X12 (10 PCS.) HIT-949217.A1 949217	£1.67	£2.00
*88 - NYLON CLIP HIT-948614.A1 948614	£1.67	£2.00
*89A - SUPPORT EXCEPT FOR USA HIT-331419.A0 331419	-
90 - BALL BUSHING HIT-321347.A0 321347	-
91 - FELT HIT-996226.A1 996226	£1.67	£2.00
92 - BUSHING HIT-996223.A0 996223	£2.98	£3.57
93 - LOCK NUT M8 (10 PCS.) HIT-949568.A8 949568	£1.67	£2.00
94 - HEX. SOCKET SET SCREW M8X16 HIT-974500.A1 974500	£1.67	£2.00
95 - WING BOLT M6X17 HIT-302459.A5 302459	£1.67	£2.00
96 - LOCK SPRING HIT-947859.A20 947859	£1.67	£2.00
97 - CLAMP PIECE (B) HIT-963174.A0 963174	£1.67	£2.00
98 - CAUTION LABEL (A) HIT-320206.A0 320206	-
*99 - HOLDER (A) EXCEPT FOR USA HIT-321375.A0 321375	£85.81	£102.97
100 - ROLL PIN D6X40 (10 PCS.) (TILL 08.2010) HIT-949686.A3 949686	£8.48	£10.18
100A - HEX. SOCKET SET SCREW M8X10 (SINCE 09.2010) HIT-961554.A4 961554	£1.67	£2.00
101 - INDICATOR HIT-321329.A0 321329	£1.67	£2.00
102 - NYLOCK BOLT M8X25 HIT-303409.A5 303409	£1.67	£2.00
103 - SEAL LOCK HEX. SOCKET SET SCREW M6X10 HIT-307956.A15 307956	£1.67	£2.00
*104 - KNOB BOLT M6X22 EXCEPT FOR MEX (SINCE 01.2019 FOR HIT-302503.A3 302503	£1.67	£2.00
*105 - GUARD (A) EXCEPT FOR USA HIT-321333.A0 321333	£15.21	£18.25
106A - GUARD HOLDER SINCE 01.2019 FOR USA HIT-331845.A0 331845	£2.67	£3.20
*107 - CORD FOR GBR (230V) HIT-500435Z.A49 500435Z	£14.14	£16.97
*107 - CORD FOR GBR (110V) HIT-500463Z.A15 500463Z	£21.37	£25.64
109 - LINER (A) FOR USA HIT-322210.A0 322210	£1.67	£2.00
*110 - FLAT HD. SCREW M5X12 (10 PCS.) EXCEPT FOR USA HIT-949332.A2 949332	£1.67	£2.00
*111 - SUB COVER FOR AUS HIT-322206.A1 322206	£26.59	£31.91
121 - CORD ARMOR D10.1 HIT-938051.A12 938051	£1.67	£2.00
122 - CORD CLIP HIT-937631.A127 937631	£1.67	£2.00
123 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A16 984750	£1.67	£2.00
*124 - HANDLE (L) EXCEPT FOR USA HIT-321392.A0 321392	£12.67	£15.20
125 - TAPPING SCREW (W/FLANGE) D5X25 (BLACK) HIT-305558.A24 305558	£1.67	£2.00
126 - SHEET HIT-321355.A1 321355	-
*127A - CONTROLLER 100V-120V TILL 12.2018 FOR USA HIT-321354.A0 321354	£105.67	£126.80
*127A - CONTROLLER 220V-240V HIT-322200.A0 322200	£90.05	£108.06
128 - TERMINAL M4.0 (10 PCS.) HIT-930804.A25 930804	£3.64	£4.37
129 - HANDLE (R) HIT-321393.A0 321393	£9.14	£10.97
130 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A51 301653	£1.67	£2.00
131 - MACHINE SCREW (W/WASHERS) M5X25 (BLACK) HIT-880734.A8 880734	£1.67	£2.00
132 - PULLEY COVER HIT-321383.A1 321383	£9.96	£11.95
*135 - SWITCH HANDLE (L2).(R2) SET (SINCE 04.2007 FOR AUS HIT-322884.A0 322884	£11.57	£13.88
136 - PULLEY (A) HIT-321356.A0 321356	£12.27	£14.72
137 - WASHER M8 (10 PCS.) HIT-949426.A0 949426	£1.67	£2.00
138 - SUPER LOCK WASHER HIT-978559.A1 978559	£1.67	£2.00
139 - NUT M8 (10 PCS.) HIT-949558.A28 949558	£1.67	£2.00
140 - BALL BEARING 6201VV HIT-6201VV.A22 6201VV	£8.30	£9.96
141 - COVER HIT-307731.A1 307731	£4.07	£4.88
142 - FLAT HD. SCREW M4X10 (10 PCS.) HIT-949322.A0 949322	£1.67	£2.00
143 - PULLEY (B) HIT-321357.A1 321357	£17.23	£20.68
144A - BELT (10PH432) HIT-332810.A0 332810	£19.30	£23.16
*145A - SWITCH (2P PILLAR TYPE) W/O LOCK HIT-958400Z.A0 958400Z	£18.99	£22.79
*146 - TUBE (D) HIT-981373.A73 981373	£1.67	£2.00
*146 - TUBE (D) FOR USA HIT-981373.A74 981373	£1.67	£2.00
*148 - BRUSH TERMINAL INCLUD.134 HIT-930703.A47 930703	£3.28	£3.93
*149A - STATOR ASS'Y (A) 110V INCLUD.148 HIT-340779C.A0 340779C	-
*149A - STATOR ASS'Y (A) 220V-240V INCLUD.148 EXCEPT FOR EUROPE HIT-340779F.A1 340779F	-
*149A - STATOR ASS'Y (B) 230V INCLUD.148 SINCE 9.2010 FOR EUROPE HIT-340811E.A0 340811E	£29.14	£34.97
150 - HEX. HD. TAPPING SCREW D5X55 HIT-953174.A18 953174	£1.67	£2.00
151 - BALL BEARING 608VVC2NS7L HIT-321399.A0 321399	£10.45	£12.54
*152A - ARMATURE ASS'Y 110V INCLUD.151 HIT-360898U.A1 360898U	-
*152A - ARMATURE ASS'Y 220V-230V INCLUD.151 HIT-360898E.A0 360898E	£83.21	£99.85
*152A - ARMATURE ASS'Y 230V INCLUD.151 HIT-360924E.A0 360924E	-
153A - BEARING LOCK HIT-946362.A3 946362	£1.67	£2.00
154 - BRUSH CAP HIT-945161.A35 945161	£1.67	£2.00
155 - CARBON BRUSH (1 PAIR) HIT-999043.A45 999043	£5.54	£6.65
*156 - BRUSH HOLDER HIT-960685.A2 960685	£7.59	£9.11
157 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A115 938477	£1.67	£2.00
*158 - HOUSING ASS'Y INCLUD.156 HIT-322208.A1 322208	£35.52	£42.63
159 - MACHINE SCREW (W/WASHERS) M5X12 (BLACK) HIT-996247.A6 996247	£1.67	£2.00
160 - SPACER HIT-998980.A3 998980	£1.67	£2.00
161 - BOLT (W/WASHERS) M6X12 (BLACK) HIT-996577.A3 996577	£1.67	£2.00
162 - SPINDLE COVER HIT-318958.A0 318958	£8.12	£9.75
163 - MACHINE SCREW M6X20 (10 PCS.) HIT-949258.A8 949258	£1.67	£2.00
164 - BALL BEARING 606VV HIT-606ZZM.A2 606ZZM	£14.07	£16.88
165 - SPRING WASHER M6 (10 PCS.) HIT-949455.A18 949455	£1.67	£2.00
166 - WASHER M6 (10 PCS.) HIT-949425.A46 949425	£1.67	£2.00
167 - BRAND LABEL HIT-000000.A4774 000000	-
169 - MACHINE SCREW (W/WASHERS) M4X10 (BLACK) HIT-304043.A5 304043	£1.67	£2.00
170 - SEAL LOCK HEX. SOCKET HD. BOLT M5X10 HIT-877839.A9 877839	£1.67	£2.00
*171 - GEAR CASE EXCEPT FOR USA HIT-321384.A0 321384	£162.21	£194.65
*173 - TCT SAW BLADE 255MM-D30 HOLE-NT40 HIT-322443.A1 322443	-
175 - COVER HIT-307731.A0 307731	£4.07	£4.88
*176 - LOWER GUARD (SINCE 04.2007 FOR AUS NZL) HIT-322452.A1 322452	£16.09	£19.31
*177A - RETURN SPRING (A) EXCEPT FOR USA HIT-322453.A0 322453	£1.67	£2.00
178 - MACHINE SCREW M5X20 (10 PCS.) HIT-949241.A2 949241	£1.67	£2.00
179 - SPRING WASHER M5 (10 PCS.) HIT-949454.A119 949454	£1.67	£2.00
180 - BOLT (LEFT HAND) W/WASHER M7X17.5 HIT-998335.A6 998335	£1.67	£2.00
181 - FLAT HD. SCREW M4X10 (10 PCS.) HIT-949322.A1 949322	£1.67	£2.00
182 - SPINDLE ASS'Y INCLUD.183-186 HIT-308787.A0 308787	£92.28	£110.73
183 - BALL BEARING 6003DD HIT-6003DD.A5 6003DD	£9.67	£11.60
184 - BEARING HOLDER HIT-308788.A0 308788	£33.82	£40.58
185 - BALL BEARING 608VVC2PS2L HIT-608VVM.A73 608VVM	£5.70	£6.84
186 - PINION HIT-000000.A4776 000000	-
187 - FEATHER KEY 4X4X12 HIT-931008.A10 931008	-
*188 - NUT M5 (10 PCS.) TILL 12.2004 EXCEPT FOR NZL HIT-949555.A27 949555	£1.67	£2.00
189 - LOCK SPRING HIT-988821.A5 988821	£5.62	£6.75
190 - STOPPER PIN HIT-307732.A4 307732	£6.61	£7.93
191 - NAME PLATE HIT-000000.A4777 000000	-
*192 - DUST GUIDE HIT-322454.A0 322454	£1.67	£2.00
193 - GUIDE HOLDER HIT-312492.A3 312492	£6.09	£7.31
196 - BALL BEARING 6201VVCMNS7S HIT-321398.A1 321398	-
197 - BOLT WASHER M6 (10 PCS.) HIT-949432.A90 949432	£1.67	£2.00
*199 - LEVER EXCEPT FOR USA HIT-322456.A1 322456	£14.51	£17.41
*200 - SPACER EXCEPT FOR USA HIT-302757.A5 302757	£1.67	£2.00
*201 - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) EXCEPT FOR USA HIT-935196.A18 935196	£1.67	£2.00
*202 - LEVER SPRING EXCEPT FOR USA HIT-322457.A0 322457	£1.67	£2.00
*203 - PLATE (C) EXCEPT FOR USA HIT-322458.A1 322458	£1.67	£2.00
*204 - TAPPING SCREW (W/FLANGE) D3X10 (BLACK) EXCEPT FOR USA HIT-306371.A0 306371	£1.67	£2.00
*205 - WASHER (A) EXCEPT FOR USA HIT-322459.A0 322459	£16.15	£19.38
*206 - WASHER (B) EXCEPT FOR USA HIT-318962.A3 318962	£8.12	£9.75
*207 - PILLAR TERMINAL (A) EXCEPT FOR USA HIT-958308Z.A30 958308Z	£7.53	£9.04
*208 - SPACER EXCEPT FOR USA HIT-305171.A0 305171	£1.67	£2.00
*209 - MACHINE SCREW (W/WASHERS) M4X10 (BLACK) EXCEPT FOR USA HIT-304043.A4 304043	£1.67	£2.00
*210 - SUB COVER (A) EXCEPT FOR USA HIT-322623.A0 322623	£8.66	£10.39
*211 - FERRITE CORE FOR EUROPE HIT-329755.A1 329755	-
*212 - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) SINCE 09.2012 FOR EUROPE HIT-935196.A19 935196	£1.67	£2.00
*213 - GUIDE HOLDER (B) SINCE 09.2012 FOR EUROPE HIT-336310.A0 336310	-
501 - BOX WRENCH 10MM HIT-940543.A4 940543	£7.34	£8.81
*502 - DUST BAG (BLACK) HIT-998845.A0 998845	£20.10	£24.12
601 - CROWN MOLDING VISE ASS'Y INCLUD.602 HIT-321434.A0 321434	-
602 - VISE (B) ASS'Y INCLUD.603-608 HIT-321388.A0 321388	£70.87	£85.04
603 - KNOB BOLT M10X54 HIT-321551.A0 321551	£16.46	£19.75
604 - KNOB BOLT M6X11 HIT-998836.A11 998836	-
605 - SCREW HOLDER (B) HIT-000000.A4782 000000	-
606 - WASHER (H) HIT-306985.A0 306985	£1.67	£2.00
607 - BASE RUBBER HIT-964851.A0 964851	£1.67	£2.00
608 - MACHINE SCREW (W/WASHERS) M4X10 (BLACK) HIT-304043.A3 304043	£1.67	£2.00
614 - KNOB BOLT M6X32 HIT-960017.A12 960017	£1.67	£2.00
615 - WING BOLT M6X15 HIT-301806.A55 301806	£1.67	£2.00
616 - CROWN MOLDING STOPPER (L) HIT-000000.A4783 000000	-
617 - CROWN MOLDING STOPPER HOLDER HIT-321390.A18 321390	-
618 - CROWN MOLDING STOPPER (L) ASS'Y INCLUD.614-617 HIT-321374.A5 321374	£40.26	£48.31
619 - STOPPER HIT-974561.A0 974561	£8.64	£10.37
620 - WING BOLT M6X20 (10 PCS.) HIT-949404.A1 949404	£9.03	£10.84
621 - CROWN MOLDING STOPPER HOLDER HIT-321390.A19 321390	-
622 - CROWN HOLDING STOPPER (R) HIT-000000.A4784 000000	-
623 - WING BOLT M6X15 HIT-301806.A54 301806	£1.67	£2.00
624 - CROWN MOLDING STOPPER (R) ASS'Y INCLUD.614 HIT-321373.A0 321373	£40.26	£48.31
625 - HOLDER HIT-321549.A10 321549	£23.30	£27.96
626 - WING NUT M6 (10 PCS.) HIT-949313.A0 949313	£6.28	£7.53
627 - NUT M6 (10 PCS.) HIT-949556.A2 949556	£1.67	£2.00
628 - WASHER (H) HIT-967329.A2 967329	£1.67	£2.00
629A - VISE PLATE HIT-322047.A12 322047	-
630 - HIGH TENSION BOLT M6X65 HIT-996283.A1 996283	£1.67	£2.00
631 - GUIDE ASS'Y INCLUD.614 HIT-321553.A0 321553	£85.04	£102.05
*632 - TCT SAW BLADE 255MM-D30 HOLE-NT72 HIT-322444.A0 322444	£191.33	£229.60

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki C10FSB Slide Compound Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
