Hitachi / Hikoki C10FCE2 Miter Saw Spare Parts

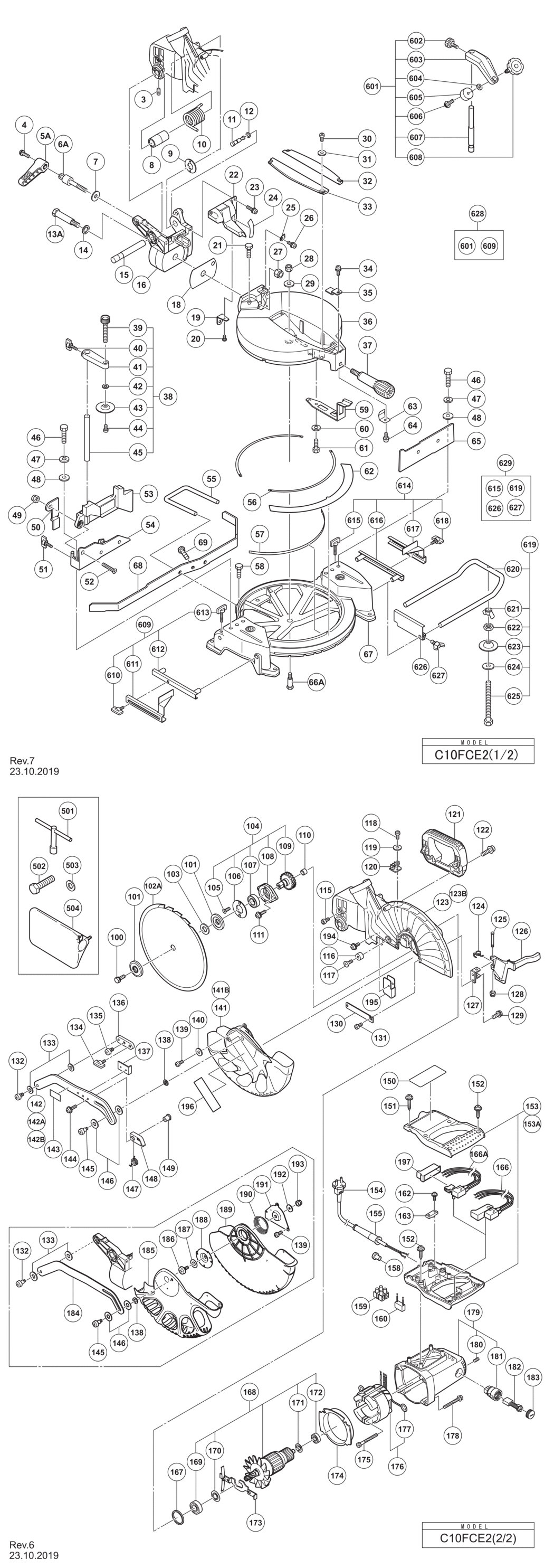

An exploded diagram and spare parts listing for the Hitachi / Hikoki C10FCE2 Miter Saw

	Ex VAT	Inc VAT
3 - SEAL LOCK HEX. SOCKET SET SCREW M6X10 HIT-307956.A12 307956	£1.67	£2.00
4 - MACHINE SCREW (W/WASHERS) M6X20 (BLACK) HIT-323208.A1 323208	£1.67	£2.00
5A - CLAMP LEVER HIT-371742.A0 371742	-
6A - BOLT (LEFT HAND) M10 HIT-371743.A1 371743	-
7 - SPECIAL WASHER HIT-318934.A0 318934	£1.67	£2.00
8 - SLEEVE HIT-322889.A1 322889	£1.67	£2.00
9 - LINER (D) HIT-322965.A1 322965	£1.67	£2.00
10 - SPRING HIT-322890.A0 322890	£6.61	£7.93
11 - STOPPER PIN ASS'Y INCLUD.12 HIT-302518.A6 302518	£5.98	£7.18
12 - O-RING (P-6) HIT-984528.A8 984528	£1.67	£2.00
13A - SHAFT (D) HIT-371740.A3 371740	-
14 - WASHER M16 HIT-322934.A0 322934	£1.67	£2.00
15 - SHAFT (C) HIT-322888.A0 322888	£7.62	£9.15
16 - HINGE HIT-322932.A1 322932	£19.43	£23.32
18 - LINER (B) HIT-322937.A1 322937	-
19 - DUST GUIDE HOLDER HIT-322963.A3 322963	£1.67	£2.00
20 - MACHINE SCREW M4X8 (10 PCS.) HIT-949215.A19 949215	£1.67	£2.00
21 - NYLOCK BOLT M8X25 HIT-303409.A0 303409	£1.67	£2.00
22 - DUST GUIDE ASS'Y INCLUD.19 HIT-322891.A1 322891	£6.61	£7.93
23 - MACHINE SCREW (W/SP. WASHER) M5X16 HIT-987512.A1 987512	£1.67	£2.00
24 - SCALE (B) HIT-322892.A0 322892	£1.67	£2.00
25 - INDICATOR (B) HIT-322893.A3 322893	-
26 - MACHINE SCREW (W/WASHERS) M4X10 (BLACK) HIT-304043.A9 304043	£1.67	£2.00
27 - NYLON NUT M12 HIT-680418.A0 680418	-
28 - NYLON NUT M8 HIT-975348.A2 975348	-
29 - WASHER (F) HIT-318929.A3 318929	£1.67	£2.00
30 - MACHINE SCREW M4X12 (10 PCS.) HIT-949217.A14 949217	£1.67	£2.00
31 - BOLT WASHER M4 (10 PCS.) HIT-949429.A44 949429	£1.67	£2.00
32 - TABLE INSERT (A) HIT-322929.A1 322929	£1.67	£2.00
33 - TABLE INSERT (B) HIT-322930.A0 322930	£1.67	£2.00
34 - MACHINE SCREW (W/WASHERS) M4X10 (BLACK) HIT-304043.A10 304043	£1.67	£2.00
35 - INDICATOR (A) HIT-322904.A1 322904	£1.67	£2.00
36 - TURN TABLE HIT-326695.A1 326695	£52.35	£62.82
37 - SIDE HANDLE HIT-376050.A8 376050	£6.20	£7.44
38 - VISE ASS'Y INCLUD.39-45 HIT-322952.A1 322952	£8.88	£10.66
39 - KNOB BOLT M10X66 HIT-302522.A4 302522	£14.02	£16.83
40 - WING BOLT M6X15 HIT-301806.A61 301806	£1.67	£2.00
41 - SCREW HOLDER HIT-000000.A4141 000000	-
42 - BOLT WASHER M6 (10 PCS.) HIT-949432.A53 949432	£1.67	£2.00
43 - VISE PLATE HIT-302532.A2 302532	£3.79	£4.55
44 - MACHINE SCREW M4X10 (10 PCS.) HIT-949216.A25 949216	£1.67	£2.00
45 - VISE SHAFT HIT-322954.A0 322954	£3.37	£4.04
46 - BOLT M8X35 (10 PCS.) HIT-949678.A10 949678	£3.45	£4.14
47 - SPRING WASHER M8 (10 PCS.) HIT-949457.A43 949457	£1.67	£2.00
48 - BOLT WASHER M8 (10 PCS.) HIT-949433.A29 949433	£1.67	£2.00
49 - NYLON NUT M6 HIT-963837.A6 963837	£1.67	£2.00
50 - PLATE (A) HIT-326711.A1 326711	£1.67	£2.00
51 - WING BOLT M6X15 HIT-301806.A62 301806	£1.67	£2.00
52 - FLAT HD. SCREW M6X25 (10 PCS.) HIT-949342.A8 949342	£1.67	£2.00
53 - SUB FENCE (B) HIT-326704.A0 326704	£10.27	£12.32
54 - FENCE (B) HIT-326698.A0 326698	£11.39	£13.67
55 - HOLDER HIT-326705.A1 326705	-
56 - LINER (A) HIT-322901.A1 322901	£1.67	£2.00
57 - LINER (C) HIT-322964.A0 322964	£1.67	£2.00
58 - BOLT M6X12 (10 PCS.) HIT-949611.A5 949611	-
59 - SPRING PLATE HIT-322903.A0 322903	£3.37	£4.04
60 - SPRING WASHER M8 (10 PCS.) HIT-949457.A42 949457	£1.67	£2.00
61 - HEX. SOCKET HD. BOLT M8X16 (10 PCS.) HIT-949655.A3 949655	£4.98	£5.97
62 - SCALE (A) HIT-326826.A1 326826	£3.12	£3.74
63 - SPACER (A) HIT-326696.A0 326696	£1.67	£2.00
64 - MACHINE SCREW (W/WASHERS) M4X8 (BLACK) HIT-317200.A2 317200	£1.67	£2.00
65 - FENCE (A) HIT-326697.A1 326697	£15.16	£18.19
66A - SHAFT (B) HIT-371738.A0 371738	-
67 - BASE ASS'Y INCLUD.62 HIT-326694.A0 326694	£59.47	£71.36
*68 - HOLDER (B) SINCE 10.2012 TILL 4.2019 FOR EUROPE HIT-336353.A1 336353	-
*69 - BOLT M6X12 (10 PCS.) SINCE 10.2012 TILL 4.2019 FOR EUROPE HIT-949611.A4 949611	-
100 - BOLT (LEFT HAND) W/WASHER M7X17.5 HIT-998335.A9 998335	£1.67	£2.00
*101 - WASHER (A) FOR EUROPE HIT-318961.A0 318961	£8.12	£9.75
*101 - WASHER (B) FOR EUROPE HIT-318962.A2 318962	£8.12	£9.75
*102 - TCT SAW BLADE 255MM-D30 HOLE-NT30 HIT-319107.A1 319107	-
*103 - COLLAR (A) FOR D30 HOLE FOR EUROPE HIT-974663Z.A1 974663Z	£7.30	£8.76
104 - SPINDLE ASS'Y INCLUD.105-109 HIT-323133.A1 323133	£31.02	£37.23
105 - SEAL LOCK FLAT HD. SCREW M4X10 HIT-990430.A14 990430	£1.67	£2.00
106 - BEARING COVER HIT-322919.A1 322919	£1.67	£2.00
107 - BALL BEARING 6003VVCMPS2L HIT-6003VV.A0 6003VV	£9.03	£10.84
108 - BEARING HOLDER HIT-322918.A0 322918	-
109 - SPINDLE AND GEAR SET HIT-322917.A1 322917	£15.12	£18.15
110 - NEEDLE BEARING (HK1010) HIT-982027.A0 982027	£13.09	£15.71
111 - MACHINE SCREW (W/SP. WASHER) M5X16 HIT-987512.A0 987512	£1.67	£2.00
115 - HEX. SOCKET HD. BOLT M5X10 (10 PCS.) HIT-949819.A10 949819	£2.98	£3.57
116 - CUSHION HIT-961729.A10 961729	£1.67	£2.00
117 - FLAT HD. SCREW M6X16 (10 PCS.) HIT-949340.A0 949340	£1.67	£2.00
118 - MACHINE SCREW M4X12 (10 PCS.) HIT-949217.A19 949217	£1.67	£2.00
119 - BOLT WASHER M4 (10 PCS.) HIT-949429.A42 949429	£1.67	£2.00
120 - HOOK HIT-322920.A0 322920	-
121 - HANDLE HIT-326708.A0 326708	£8.42	£10.10
122 - MACHINE SCREW (W/WASHERS) M6X20 (BLACK) HIT-323208.A0 323208	£1.67	£2.00
*123B - GEAR CASE INCLUD.110 SINCE 10.2012 FOR EUROPE HIT-336354.A0 336354	£66.72	£80.07
*124 - LEVER SPRING TILL 4.2019 FOR EUROPE HIT-323987.A1 323987	£1.67	£2.00
*125 - LEVER SHAFT TILL 4.2019 FOR EUROPE HIT-323990.A0 323990	£3.37	£4.04
*126 - LOCK LEVER (C) TILL 4.2019 FOR EUROPE HIT-323979.A1 323979	£4.99	£5.99
*127 - LEVER HOLDER TILL 4.2019 FOR EUROPE HIT-323982.A0 323982	£3.37	£4.04
*128 - NYLON NUT M5 TILL 4.2019 FOR EUROPE HIT-877371.A5 877371	£1.67	£2.00
*129 - MACHINE SCREW M5X10 (10 PCS.) TILL 4.2019 FOR EUROPE HIT-949236.A7 949236	£1.67	£2.00
*130 - SPINDLE COVER FOR EUROPE HIT-322951.A0 322951	£1.67	£2.00
*131 - MACHINE SCREW M4X8 (10 PCS.) FOR EUROPE HIT-949215.A26 949215	£1.67	£2.00
132 - SPECIAL SCREW M6 HIT-322950.A6 322950	£1.67	£2.00
133 - WASHER M7 HIT-322948.A0 322948	£1.67	£2.00
*137 - STOP PLATE TILL 4.2019 FOR EUROPE HIT-323985.A0 323985	£3.37	£4.04
138 - SPRING WASHER M5 (10 PCS.) HIT-949454.A89 949454	£1.67	£2.00
139 - MACHINE SCREW M4X8 (10 PCS.) HIT-949215.A25 949215	£1.67	£2.00
140 - BOLT WASHER M4 (10 PCS.) HIT-949429.A43 949429	£1.67	£2.00
*141B - PROTECTIVE COVER SINCE 10.2012 FOR EUROPE HIT-336356.A0 336356	£30.33	£36.40
*142A - LINK (A) ASS'Y INCLUD.137 HIT-336357.A0 336357	-
*142B - LINK (A) SINCE 5.2019 FOR EUROPE HIT-375674.A0 375674	-
*143 - CAUTION LABEL(F) HIT-000000.A4143 000000	-
*144 - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) TILL 4.2019 FOR EUROPE HIT-935196.A10 935196	£1.67	£2.00
145 - SPECIAL SCREW (C) M5 HIT-322947.A3 322947	£1.67	£2.00
146 - WASHER M10 HIT-322938.A0 322938	£1.67	£2.00
*147 - RETURN SPRING (A) TILL 4.2019 FOR EUROPE HIT-323984.A3 323984	£1.67	£2.00
*148 - RETURN PLATE TILL 4.2019 FOR EUROPE HIT-323989.A3 323989	£4.99	£5.99
*149 - RETURN SHAFT TILL 4.2019 FOR EUROPE HIT-323988.A0 323988	£3.37	£4.04
150 - NAME PLATE HIT-000000.A4144 000000	-
151 - TAPPING SCREW (W/FLANGE) D4X25 (BLACK) HIT-307028.A23 307028	£1.67	£2.00
152 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A103 301653	£1.67	£2.00
*153 - SWITCH HANDLE EXCEPT FOR EUROPE(TILL 4.2019 FOR EUROPE HIT-326703.A0 326703	£17.37	£20.84
*153A - SWITCH HANDLE SINCE 5.2019 FOR EUROPE HIT-375673.A0 375673	-
*154 - CORD FOR GBR (110V) HIT-500463Z.A12 500463Z	£21.37	£25.64
*154 - CORD FOR MAL HIT-500423Z.A33 500423Z	-
155 - CORD ARMOR D10.7 HIT-940778.A6 940778	£3.15	£3.78
*159 - PILLAR TERMINAL (A) EXCEPT FOR USA HIT-958308Z.A3 958308Z	£7.53	£9.04
*160 - NOISE SUPPRESSOR FOR AUS.AUT HIT-326709.A1 326709	-
*160 - NOISE SUPPRESSOR FOR GBR (110V) HIT-326710.A0 326710	-
162 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A241 984750	£1.67	£2.00
163 - CORD CLIP HIT-937631.A3 937631	£1.67	£2.00
*166 - SWITCH (3P FASTON TYPE) W/O LOCK EXCEPT FOR EUROPE HIT-326700.A1 326700	£10.88	£13.05
*166A - SWITCH (3P FASTON TYPE) W/O LOCK SINCE 5.2019 FOR EUROPE HIT-375672.A0 375672	-
167 - RUBBER RING HIT-303792.A8 303792	£1.67	£2.00
*168 - ARMATURE ASS'Y 110V-120V INCLUD.169-172 HIT-360656U.A0 360656U	£48.38	£58.06
*168 - ARMATURE ASS'Y 220V-230V INCLUD.169-172 HIT-360695E.A1 360695E	£48.38	£58.06
169 - BALL BEARING 6202VVCMPS2L HIT-6202VV.A5 6202VV	£7.02	£8.42
170 - DUST WASHER (B) HIT-980700.A15 980700	£1.67	£2.00
171 - WASHER (A) HIT-302428.A3 302428	£1.67	£2.00
172 - BALL BEARING 6000VVCMPS2L HIT-6000VV.A4 6000VV	£7.62	£9.15
173 - LOCK LEVER HIT-322916.A0 322916	-
174 - FAN GUIDE HIT-322915.A1 322915	-
175 - HEX. HD. TAPPING SCREW D5X50 HIT-953121.A21 953121	-
*176 - STATOR ASS'Y 110V INCLUD.177 HIT-340686D.A0 340686D	-
*176 - STATOR ASS'Y (B) 220V-230V INCLUD.177 HIT-340687E.A1 340687E	£38.63	£46.36
177 - BRUSH TERMINAL HIT-937623.A23 937623	£1.67	£2.00
178 - MACHINE SCREW (W/WASHERS) M5X40 (BLACK) HIT-322123.A9 322123	£1.67	£2.00
179 - HOUSING ASS'Y INCLUD.180 HIT-322914.A2 322914	£31.02	£37.23
180 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A59 938477	£1.67	£2.00
181 - BRUSH HOLDER HIT-938241.A18 938241	£8.28	£9.94
*182 - CARBON BRUSH (1 PAIR) FOR 110V-120V HIT-999038.A11 999038	£5.54	£6.65
*182 - CARBON BRUSH (1 PAIR) FOR 220V-240V HIT-999065.A0 999065	£12.43	£14.92
183 - BRUSH CAP HIT-945161.A3 945161	£1.67	£2.00
*194 - MACHINE SCREW (W/WASHERS) M4X10 (BLACK) SINCE 10.2012 TILL 4.2019 FOR EUROPE HIT-304043.A28 304043	£1.67	£2.00
*195 - GUARD SINCE 10.2012 TILL 4.2019 FOR EUROPE HIT-336358.A0 336358	-
196 - BRAND LABEL HIT-000000.A2718 000000	-
*197 - TRIGGER SINCE 5.2019 FOR EUROPE HIT-375116.A0 375116	-
501 - BOX WRENCH 10MM HIT-940543.A19 940543	£7.34	£8.81
502 - BOLT M10X35 (10 PCS.) HIT-949695.A4 949695	-
*504 - DUST BAG (BLACK) HIT-322955.A2 322955	£14.47	£17.36
601 - VISE (B) ASS'Y INCLUD.602-608 HIT-322957.A2 322957	£123.32	£147.98
602 - KNOB BOLT M6X11 HIT-998836.A6 998836	-
603 - SCREW HOLDER (B) HIT-000000.A2721 000000	-
604 - WASHER (H) HIT-306985.A2 306985	£1.67	£2.00
605 - BASE RUBBER HIT-964851.A3 964851	£1.67	£2.00
606 - MACHINE SCREW (W/WASHERS) M4X10 (BLACK) HIT-304043.A29 304043	£1.67	£2.00
607 - VISE SHAFT HIT-318967.A3 318967	£8.12	£9.75
608 - KNOB BOLT M10X54 HIT-321551.A2 321551	£16.46	£19.75
609 - CROWN MOLDING STOPPER (L) ASS'Y INCLUD.610-613 HIT-322713.A0 322713	£52.98	£63.58
610 - WING BOLT M6X15 HIT-301806.A40 301806	£1.67	£2.00
611 - CROWN MOLDING STOPPER (L) HIT-000000.A2722 000000	-
612 - CROWN MOLDING STOPPER HOLDER HIT-321390.A12 321390	-
613 - WING BOLT M6X52 HIT-316030.A1 316030	-
614 - CROWN MOLDING STOPPER (R) ASS'Y INCLUD.615-618 HIT-322714.A1 322714	-
615 - WING BOLT M6X52 HIT-316030.A0 316030	-
616 - CROWN MOLDING STOPPER HOLDER HIT-321390.A13 321390	-
617 - CROWN MOLDING STOPPER (R) HIT-000000.A2723 000000	-
618 - WING BOLT M6X15 HIT-301806.A41 301806	£1.67	£2.00
619 - HOLDER ASS'Y INCLUD.620-625 HIT-322956.A0 322956	£24.47	£29.36
620 - HOLDER HIT-321549.A8 321549	£23.30	£27.96
621 - WING NUT M6 (10 PCS.) HIT-949313.A4 949313	£6.28	£7.53
622 - NUT M6 (10 PCS.) HIT-949556.A44 949556	£1.67	£2.00
623 - VISE PLATE HIT-322047.A8 322047	-
624 - WASHER M6 (10 PCS.) HIT-949425.A32 949425	£1.67	£2.00
625 - HIGH TENSION BOLT M6X80 HIT-323134.A0 323134	-
626 - STOPPER HIT-974561.A11 974561	£8.64	£10.37
627 - WING BOLT M6X20 (10 PCS.) HIT-949404.A6 949404	£9.03	£10.84
628 - CROWN MOLDING VISE ASS'Y INCLUD.601 HIT-322712.A1 322712	-
629 - GUIDE ASS'Y INCLUD.615 HIT-322710.A0 322710	£40.02	£48.02

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki C10FCE2 Miter Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Hitachi / Hikoki C10FCE2 Miter Saw Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Hitachi / Hikoki C10FCE2 Miter Saw Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
