Hitachi / Hikoki BM60Y Automatic Magnetic Drill Press Spare Parts

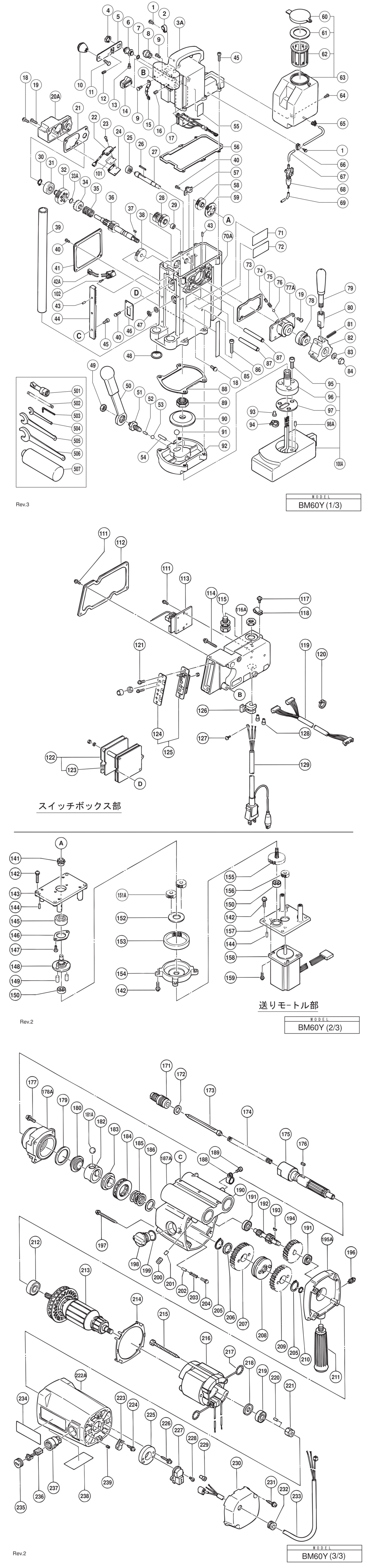

An exploded diagram and spare parts listing for the Hitachi / Hikoki BM60Y Automatic Magnetic Drill Press

	Ex VAT	Inc VAT
1 - SEAL LOCK SCREW (W/WASHERS) M4X10 (BLACK HIT-303851.A5 303851	£1.67	£2.00
2 - WIRE CLIP HIT-303270.A5 303270	-
3 - COLUMN COVER HIT-310517.A0 310517	-
4 - SPECIAL NUT M16 HIT-303294.A1 303294	-
5 - SWITCH LEVER (A) HIT-307070.A2 307070	-
6 - SLEEVE HIT-307069.A0 307069	-
7 - O-RING (P-9) HIT-872645.A29 872645	£1.67	£2.00
8 - RUBBER BUSHING (B) HIT-307073.A0 307073	-
9 - SEAL LOCK SCREW (W/SP. WASHER) M4X10 HIT-303255.A2 303255	£1.67	£2.00
10 - GRIP HIT-303296.A1 303296	-
11 - SEAL LOCK HIGH TENSION BOLT M8X16 HIT-956854.A1 956854	-
12 - PLUNGER HIT-303298.A1 303298	-
13 - HEX. SOCKET HD. BOLT M5X6 (10 PCS.) HIT-949817.A2 949817	-
14 - RUBBER BUSHING (A) HIT-307072.A2 307072	-
15 - GUIDE PLATE (A) HIT-307071.A0 307071	-
16 - SEAL LOCK HEX. SOCKET SET SCREW M6X6 HIT-987860.A8 987860	£1.67	£2.00
17 - ROTARY SWITCH HIT-307067.A1 307067	-
18 - SEAL LOCK SCREW (W/WASHERS) M4X16 (BLACK HIT-307109.A0 307109	£1.67	£2.00
19 - SEAL LOCK SCREW (W/SP. WASHER) M5X16 HIT-307046.A2 307046	£1.67	£2.00
21 - SHEET PACKING (E) HIT-310514.A0 310514	-
22 - SWITCH FOR AUTOMATIC FEED HIT-310542.A0 310542	-
23 - SEAL LOCK SCREW M3X14 HIT-997402.A0 997402	-
24 - SWITCH PLATE (A) HIT-995867.A0 995867	-
25 - BALL BEARING 608VVC2PS2L HIT-608VVM.A206 608VVM	£5.70	£6.84
26 - FEATHER KEY 2.5X2.5X28 HIT-307051.A1 307051	-
27 - GEAR SHAFT (A) HIT-307048.A0 307048	-
28 - FEED PINION (C) HIT-310512.A0 310512	-
29 - SLEEVE (A) HIT-307050.A0 307050	-
30 - RETAINING RING FOR D15 SHAFT (10 PCS.) HIT-939544.A9 939544	£3.64	£4.37
31 - BALL BEARING 6002VVCMPS2L HIT-6002VV.A15 6002VV	£9.32	£11.19
32 - CLUTCH GEAR HIT-307055.A0 307055	-
33A - RETAINING RING D12 HIT-339970.A1 339970	-
34 - CLUTCH (B) HIT-303217.A0 303217	-
35 - CLUTCH SPRING HIT-307057.A0 307057	-
36 - HANDLE SHAFT (A) HIT-310513.A1 310513	-
37 - FEATHER KEY 4X4X10 HIT-930511.A1 930511	£2.78	£3.34
38 - FEED PINION (D) HIT-307054.A2 307054	-
39 - COLUMN HIT-303565.A0 303565	-
40 - SEAL LOCK SCREW (W/SP. WASHER) M4X10 HIT-303255.A3 303255	£1.67	£2.00
41 - PANEL (D) HIT-310523.A0 310523	-
42A - MICRO SWITCH SET INCLUD.47 HIT-309474.A0 309474	-
43 - PIN D4X12 (10 PCS.) HIT-949756.A2 949756	-
44 - RACK HIT-310516.A0 310516	-
45 - SEAL LOCK HEX. SOCKET HD. BOLT M5X16 HIT-990079.A24 990079	£1.67	£2.00
46 - COVER PLATE HIT-307062.A0 307062	-
47 - DUST NUT HIT-308033.A1 308033	-
48 - RETAINING RING FOR D26 HOLE (10 PCS.) HIT-939554.A3 939554	-
49 - NUT M10 (10 PCS.) HIT-949560.A4 949560	£2.98	£3.57
50 - LOCK LEVER HIT-993493.A1 993493	-
51 - LOCK SHAFT ASS'Y INCLUD.52 HIT-310505.A0 310505	-
52 - NEEDLE D8X12 HIT-997231.A2 997231	-
53 - STEEL BALL D9.53 (10 PCS.) HIT-959152.A1 959152	-
54 - ROLL PIN D6X28 (10 PCS.) HIT-949505.A2 949505	-
55 - MARK PLATE (B) HIT-303308.A0 303308	-
56 - SHEET PACKING (F) HIT-310519.A0 310519	-
57 - CORD CLIP HIT-944788.A1 944788	-
58 - FEED PINION (A) HIT-307049.A1 307049	-
59 - GEAR HIT-301940.A0 301940	£23.02	£27.62
60 - CAP HIT-307077.A1 307077	-
61 - RUBBER PACKING HIT-307076.A1 307076	-
62 - FILTER HIT-307080.A1 307080	-
63 - OIL TANK (B) ASS'Y INCLUD.60-62 HIT-310520.A1 310520	-
64 - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) HIT-307081.A2 307081	-
65 - WIRE CLIP HIT-303852.A0 303852	-
66 - WIRE CLIP HIT-944232.A2 944232	-
67 - URETHANE TUBE (I.D.4XT1X310) HIT-310522.A1 310522	-
68 - OIL VALVE HIT-303257.A2 303257	-
69 - TUBE (I.D.4XT1X185) HIT-310521.A0 310521	-
71 - NAME PLATE HIT-000000.A3017 000000	-
72 - CAUTION PLATE HIT-310782.A1 310782	-
73 - SHEET PACKING (A) HIT-307087.A1 307087	-
74 - CAP SCREW HIT-984516.A1 984516	-
75 - SPRING (A) HIT-980262.A0 980262	-
76 - STEEL BALL D6.35 (10 PCS.) HIT-959150.A21 959150	£1.67	£2.00
77 - HANDLE BOSS HOLDER (B) HIT-307060.A0 307060	-
78 - HANDLE BOSS HOLDER (A) HIT-307059.A1 307059	-
79 - HANDLE ASS'Y HIT-303312.A0 303312	-
80 - HANDLE HOLDER HIT-303241.A0 303241	-
81 - ROLL PIN D6X25 (10 PCS.) HIT-949747.A2 949747	£5.61	£6.73
82 - HANDLE BOSS HIT-307061.A1 307061	-
83 - SPRING WASHER M10 (10 PCS.) HIT-949458.A24 949458	£1.67	£2.00
84 - CAP NUT M10 HIT-981708.A1 981708	-
85 - MARK PLATE (A) HIT-995894.A0 995894	-
86 - SEAL LOCK HEX. SOCKET HD. BOLT M8X25 HIT-303209.A0 303209	-
87 - GEAR SHAFT (B) HIT-307052.A0 307052	-
88 - SHEET PACKING (D) HIT-310506.A1 310506	-
89 - U-NUT M20 HIT-310504.A1 310504	-
90 - LOCK PLATE (A) HIT-310503.A0 310503	-
91 - STEEL BALL D12.7 (10 PCS.) HIT-959153.A3 959153	£7.12	£8.54
92 - BASE HIT-310502.A1 310502	-
93 - CONNECTOR 50091 (10 PCS.) HIT-959140.A36 959140	£4.98	£5.97
94 - WIRE BAND HIT-983684.A3 983684	-
95 - SEAL LOCK HEX. SOCKET HD. BOLT M8X12 HIT-310779.A1 310779	-
96 - RADIAL SHAFT (A) HIT-310538.A1 310538	-
97 - SEAL PACKING HIT-982139.A1 982139	-
98A - SLOTTED PIN HIT-303366.A0 303366	-
100A - MAGNET ASS'Y INCLUD.95-97 HIT-321963.A0 321963	-
101 - INSULATOR (S) HIT-314236.A0 314236	-
102 - MACHINE SCREW (STAINLESS) M3X10 HIT-321425.A1 321425	-
111 - SEAL LOCK SCREW (W/SP. WASHER) M4X10 HIT-303255.A1 303255	£1.67	£2.00
112 - PANEL (B) HIT-307084.A1 307084	-
113 - TRIAC CT 100V FOR TPE (110V) HIT-307111.A0 307111	-
113 - TRIAC CT 200V-230V FOR TPE (220V) HIT-309582.A0 309582	-
114 - SEAL LOCK SCREW (W/SP. WASHER) M5X30 HIT-307063.A1 307063	-
115 - CORD STOPPER (B) HIT-303300.A2 303300	-
116 - SWITCH BOX HIT-309577.A0 309577	-
117 - SEAL LOCK SCREW (W/WASHERS) M4X10 (BLACK HIT-303851.A6 303851	£1.67	£2.00
118 - WIRE CLIP HIT-303270.A7 303270	-
119 - CABLE HIT-310518.A2 310518	-
120 - WIRE BAND HIT-983684.A4 983684	-
121 - MACHINE SCREW (W/WASHERS) M4X10 (BLACK) HIT-304043.A46 304043	£1.67	£2.00
122 - CONTROLLER ASS'Y 100V INCLUD.123 FOR TPE (110V) HIT-310540.A0 310540	-
122 - CONTROLLER ASS'Y 200V-220V INCLUD.123 FOR TPE (220V) HIT-310541.A0 310541	-
123 - FUSE (2A) HIT-310547.A1 310547	-
124 - SWITCH PANEL HIT-310780.A0 310780	-
125 - SWITCH PANEL ASS'Y INCLUD.124 HIT-310539.A0 310539	-
126 - CORD STOPPER HIT-944784.A2 944784	-
127 - MACHINE SCREW (BRASS) M4X6 (10 PCS.) HIT-949292.A12 949292	-
128 - CONNECTOR 50092 (10 PCS.) HIT-959141.A76 959141	£7.12	£8.54
129 - CORD 100V-110V FOR TPE (110V) HIT-303299.A0 303299	-
129 - CORD FOR TPE (220V) HIT-500202Z.A4 500202Z	-
141 - PINION HIT-301939.A1 301939	-
142 - SEAL LOCK SCREW (W/SP. WASHER) M5X16 HIT-307046.A3 307046	£1.67	£2.00
143 - INNER COVER (C) HIT-310507.A0 310507	-
144 - PIN D4X12 (10 PCS.) HIT-949756.A1 949756	-
145 - BALL BEARING 6001VV HIT-6001VV.A2 6001VV	£8.68	£10.42
146 - BEARING COVER (B) HIT-984236.A0 984236	-
147 - SLOTTED HD. SCREW (SEAL LOCK) M4X10 HIT-301936.A1 301936	-
148 - FLANGE SHAFT (A) HIT-310510.A0 310510	-
149 - NEEDLE ROLLER HIT-985169.A3 985169	-
150 - BALL BEARING 626VVC2PS2L HIT-626VVM.A25 626VVM	£5.77	£6.92
151A - IDLE GEAR SET (2 PCS.) HIT-318447.A1 318447	-
152 - WASHER HIT-310509.A1 310509	-
153 - RING GEAR HIT-985980.A1 985980	-
154 - GEAR HOLDER HIT-310508.A0 310508	-
155 - FEED SECOND PINION HIT-310511.A1 310511	-
156 - FIRST PINION HIT-310545.A0 310545	-
157 - INNER COVER (D) HIT-310544.A0 310544	-
158 - FEED MOTOR HIT-310543.A0 310543	-
159 - SEAL LOCK SCREW (W/SP. WASHER) M4X12 HIT-987203.A15 987203	£1.67	£2.00
171 - CENTER PIN GUIDE HIT-993522.A1 993522	-
172 - THRUST WASHER HIT-995885.A1 995885	-
173 - CENTER PIN HIT-303309.A0 303309	-
174 - SPRING (STANDARD) HIT-303310.A1 303310	-
175 - SPINDLE HIT-310525.A1 310525	-
176 - FEATHER KEY 3X3X10 HIT-940533.A11 940533	£1.67	£2.00
177 - SEAL LOCK SCREW (W/SP. WASHER) M5X16 HIT-307046.A1 307046	£1.67	£2.00
178 - FRONT COVER HIT-303668.A1 303668	-
179 - WASHER (B) HIT-998954.A2 998954	-
180 - BALL SLEEVE (B) HIT-307094.A2 307094	-
181A - STEEL BALL D14.29 (10 PCS.) HIT-319536.A2 319536	-
182 - RETAINER (A) HIT-993535.A1 993535	-
183 - BALL SLEEVE (A) HIT-307095.A0 307095	-
184 - THRUST BEARING (51106) HIT-995854.A1 995854	-
185 - SPRING (A) HIT-995855.A1 995855	-
186 - WASHER (A) HIT-983620.A0 983620	-
187A - GEAR COVER ASS'Y (METALLIC SILVER GREEN) INCLUD.190 HIT-339314.A0 339314	-
188 - CLAMP HIT-303260.A0 303260	-
189 - SEAL LOCK HEX. SOCKET HD. BOLT M4X8 HIT-877838.A1 877838	£1.67	£2.00
190 - METAL (F) HIT-306665.A0 306665	-
191 - BALL BEARING 608VVC2PS2L HIT-608VVM.A204 608VVM	£5.70	£6.84
192 - SECOND PINION HIT-310528.A1 310528	-
193 - WOODRUFF KEY 3X10 HIT-932819.A6 932819	£1.67	£2.00
194 - FIRST GEAR HIT-310529.A0 310529	-
195A - INNER COVER ASS'Y (METALLIC SILVER GREEN) INCLUD.196 HIT-339311.A0 339311	-
196 - NIPPLE M5 HIT-993512.A1 993512	-
197 - TAPPING SCREW (W/SP. WASHER) D5X55(BLACK HIT-303281.A0 303281	£4.18	£5.02
198 - SHIFT LEVER ASS'Y INCLUD.199 HIT-310526.A0 310526	-
199 - O-RING (S-22) HIT-306353.A5 306353	£1.67	£2.00
200 - NYLOCK HEX. SOCKET SET SCREW M8X8 HIT-303252.A1 303252	-
201 - COLUMN BUSHING HIT-303251.A1 303251	-
202 - NEEDLE D3.5 HIT-310534.A0 310534	-
203 - VALVE SPRING HIT-874364.A0 874364	-
204 - SEAL LOCK SCREW (W/WASHERS) M5X8 (BLACK) HIT-310533.A0 310533	-
205 - RETAINING RING FOR D20 SHAFT (10 PCS.) HIT-939547.A16 939547	£4.61	£5.53
206 - SLEEVE HIT-310535.A1 310535	-
207 - LOW SPEED GEAR HIT-310531.A0 310531	-
208 - SLIDER (A) HIT-310532.A1 310532	-
209 - HIGH SPEED GEAR HIT-310530.A1 310530	-
210 - O-RING (1AP-10) HIT-872654.A11 872654	£1.67	£2.00
211 - SIDE HANDLE HIT-937089.A5 937089	-
212 - BALL BEARING 6201VV HIT-6201VV.A12 6201VV	£8.30	£9.96
213 - ARMATURE 100V-110V FOR TPE (110V) HIT-360366.A1 360366	-
213 - ARMATURE 200V-220V FOR TPE (220V) HIT-360367.A0 360367	-
214 - FAN GUIDE HIT-990851.A1 990851	-
215 - HEX. HD. TAPPING SCREW D5X70 HIT-961400.A3 961400	£1.67	£2.00
216 - STATOR ASS'Y 100V-110V INCLUD.217 FOR TPE (110V) HIT-340324.A1 340324	-
216 - STATOR ASS'Y 200V-220V INCLUD.217 FOR TPE (220V) HIT-340325.A0 340325	-
217 - BRUSH TERMINAL HIT-937623.A0 937623	£1.67	£2.00
218 - DUST WASHER (A) HIT-310546.A1 310546	-
219 - BALL BEARING 6000VVCMPS2L HIT-6000VV.A45 6000VV	£7.62	£9.15
220 - BEARING LOCK HIT-931701.A34 931701	£1.67	£2.00
221 - MAGNET HIT-301797.A4 301797	£8.28	£9.94
222A - HOUSING ASS'Y (METALLIC SILVER GREEN) INCLUD.237 HIT-339312.A0 339312	-
223 - WIRE CLIP HIT-303270.A3 303270	-
224 - TAPPING SCREW (W/WASHER) D4X12 HIT-982034.A3 982034	£1.67	£2.00
225 - SPACER (A) HIT-303271.A0 303271	-
226 - TAPPING SCREW (W/WASHER) D4X20 HIT-982095.A3 982095	£1.67	£2.00
227 - MAGNET PICK UP CASE HIT-995887.A1 995887	-
228 - BIND SCREW M4X6 HIT-303314.A0 303314	-
229 - CONNECTOR 50091 (10 PCS.) HIT-959140.A101 959140	£4.98	£5.97
230 - MOTOR COVER HIT-303272.A0 303272	-
231 - TAPPING SCREW (W/FLANGE) D5X16 HIT-303273.A0 303273	-
232 - CORD ARMOR HIT-303269.A1 303269	-
233 - PICK UP CABLE HIT-303268.A1 303268	-
234 - BRAND LABEL HIT-000000.A4371 000000	-
235 - BRUSH CAP HIT-945161.A55 945161	£1.67	£2.00
236 - CARBON BRUSH (1 PAIR) HIT-999038.A21 999038	£5.54	£6.65
237 - BRUSH HOLDER HIT-938241.A5 938241	£8.28	£9.94
238 - SETTING LABEL HIT-310781.A0 310781	-
239 - HEX. SOCKET SET SCREW M4X5 HIT-961681.A7 961681	£1.67	£2.00
501 - STEEL CORE BIT (N) D22 T50 HIT-316060.A2 316060	-
502 - SPRING FOR THIN PLATE HIT-303311.A2 303311	-
503 - HEX. BAR WRENCH 4MM HIT-944458.A78 944458	£1.67	£2.00
504 - WRENCH 13MM HIT-672873.A2 672873	£4.96	£5.95
505 - WRENCH 22MM HIT-993507.A0 993507	-
506 - WRENCH 27MM HIT-963164.A1 963164	-
507 - CUTTING OIL (500CC) HIT-000000.A4373 000000	-
601 - STEEL CORE BIT (N) D18 T50 HIT-316055.A1 316055	-
602 - STEEL CORE BIT (N) D19 T50 HIT-316056.A0 316056	-
604 - STEEL CORE BIT (N) D21 T50 HIT-316058.A1 316058	-
605 - STEEL CORE BIT (N) D21.5 T50 HIT-316059.A0 316059	-
607 - STEEL CORE BIT (N) D23 T50 HIT-316062.A0 316062	-
608 - STEEL CORE BIT (N) D23.5 T50 HIT-316063.A1 316063	-
609 - STEEL CORE BIT (N) D24 T50 HIT-316064.A0 316064	-
610 - STEEL CORE BIT (N) D24.5 T50 HIT-316065.A1 316065	-
611 - STEEL CORE BIT (N) D25 T50 HIT-316066.A0 316066	-
612 - STEEL CORE BIT (N) D25.5 T50 HIT-316067.A1 316067	-
613 - STEEL CORE BIT (N) D26 T50 HIT-316068.A0 316068	-
614 - STEEL CORE BIT (N) D26.5 T50 HIT-316069.A1 316069	-
615 - STEEL CORE BIT (N) D27 T50 HIT-316070.A0 316070	-
616 - STEEL CORE BIT (N) D28 T50 HIT-316071.A1 316071	-
617 - STEEL CORE BIT (N) D30 T50 HIT-316073.A1 316073	-
618 - STEEL CORE BIT (N) D32 T50 HIT-316075.A1 316075	-
619 - STEEL CORE BIT (N) D35 T50 HIT-316078.A0 316078	-
620 - STEEL CORE BIT (N) D38 T50 HIT-316080.A0 316080	-
621 - STEEL CORE BIT (N) D40 T50 HIT-316081.A1 316081	-
622 - STEEL CORE BIT (N) D42 T50 HIT-316082.A0 316082	-
623 - STEEL CORE BIT (N) D45 T50 HIT-316083.A1 316083	-
624 - STEEL CORE BIT (N) D48 T50 HIT-316084.A0 316084	-
625 - STEEL CORE BIT (N) D50 T50 HIT-316085.A1 316085	-
626 - STEEL CORE BIT (N) D52 T50 HIT-316086.A0 316086	-
627 - STEEL CORE BIT (N) D55 T50 HIT-316087.A1 316087	-
628 - STEEL CORE BIT (N) D58 T50 HIT-316088.A0 316088	-
629 - STEEL CORE BIT (N) D60 T50 HIT-316089.A1 316089	-
636 - CHAIN HIT-944786.A1 944786	-
637 - SPRING (FOR PLATE LESS THAN T16) HIT-310500.A0 310500	-
638 - CHUCK ADAPTER HIT-993579.A0 993579	-
639 - ADAPTER ASS'Y INCLUD.640 HIT-995898.A1 995898	-
640 - SPRING HIT-302528.A0 302528	-
641 - WASHER (B) HIT-943759.A1 943759	-
642 - TAPER SHANK ADAPTER HIT-998951.A0 998951	-
643 - JOCKEY (MADE OF POLYCARBONATE) HIT-305875.A0 305875	-
644A - OIL PUMP HIT-992765.A2 992765	-
645 - TANK KIT HIT-306204.A1 306204	-
646A - COSMO MOLYBDENUM GREASE (2.5 KG) HIT-317261.A2 317261	-
647 - STEEL CORE BIT (N) D29 T50 HIT-316072.A0 316072	-
648 - STEEL CORE BIT (N) D31 T50 HIT-316074.A0 316074	-
649 - STEEL CORE BIT (N) D33 T50 HIT-316076.A0 316076	-
650 - STEEL CORE BIT (N) D34 T50 HIT-316077.A1 316077	-
651 - STEEL CORE BIT (N) D36 T50 HIT-316079.A1 316079	-

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki BM60Y Automatic Magnetic Drill Press Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Hitachi / Hikoki BM60Y Automatic Magnetic Drill Press Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Hitachi / Hikoki BM60Y Automatic Magnetic Drill Press Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
