Hitachi / Hikoki BM60M Magnetic Drill Press Spare Parts

Home Details Reviews Delivery

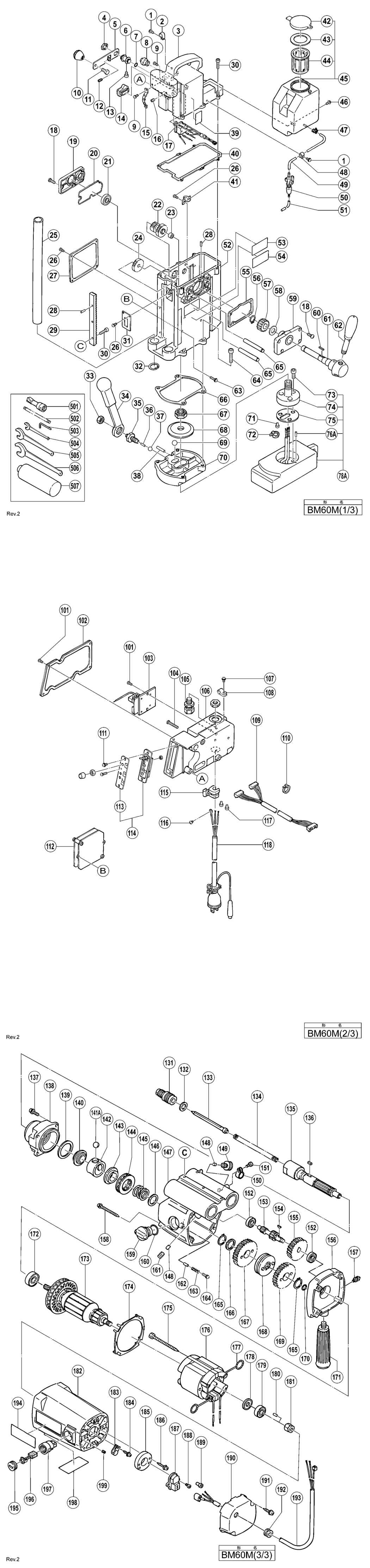

An exploded diagram and spare parts listing for the Hitachi / Hikoki BM60M Magnetic Drill Press

	Ex VAT	Inc VAT
1 - SEAL LOCK SCREW (W/WASHERS) M4X10 (BLACK HIT-303851.A1 303851	£1.67	£2.00
2 - WIRE CLIP HIT-303270.A2 303270	-
3 - COLUMN COVER HIT-310517.A1 310517	-
4 - SPECIAL NUT M16 HIT-303294.A0 303294	-
5 - SWITCH LEVER (A) HIT-307070.A0 307070	-
6 - SLEEVE HIT-307069.A2 307069	-
7 - O-RING (P-9) HIT-872645.A1 872645	£1.67	£2.00
8 - RUBBER BUSHING (B) HIT-307073.A2 307073	-
9 - SEAL LOCK SCREW (W/SP. WASHER) M4X10 HIT-303255.A12 303255	£1.67	£2.00
10 - GRIP HIT-303296.A2 303296	-
11 - SEAL LOCK HIGH TENSION BOLT M8X16 HIT-956854.A2 956854	-
12 - PLUNGER HIT-303298.A0 303298	-
13 - HEX. SOCKET HD. BOLT M5X6 (10 PCS.) HIT-949817.A0 949817	-
14 - RUBBER BUSHING (A) HIT-307072.A0 307072	-
15 - GUIDE PLATE (A) HIT-307071.A2 307071	-
16 - SEAL LOCK HEX. SOCKET SET SCREW M6X6 HIT-987860.A6 987860	£1.67	£2.00
17 - ROTARY SWITCH HIT-307705.A0 307705	-
18 - SEAL LOCK SCREW (W/SP. WASHER) M5X16 HIT-307046.A13 307046	£1.67	£2.00
20 - RUBBER PACKING HIT-307086.A0 307086	-
21 - BALL BEARING 6002VVCMPS2L HIT-6002VV.A5 6002VV	£9.32	£11.19
22 - FEED PINION (C) HIT-307053.A0 307053	-
23 - SLEEVE (A) HIT-307050.A2 307050	-
24 - FEED PINION (D) HIT-307054.A0 307054	-
25 - COLUMN HIT-303565.A1 303565	-
26 - SEAL LOCK SCREW (W/SP. WASHER) M4X10 HIT-303255.A13 303255	£1.67	£2.00
27 - PANEL (D) HIT-310523.A1 310523	-
28 - PIN D4X12 (10 PCS.) HIT-949756.A0 949756	-
29 - RACK HIT-311000.A0 311000	-
30 - SEAL LOCK HEX. SOCKET HD. BOLT M5X16 HIT-990079.A0 990079	£1.67	£2.00
31 - COVER PLATE HIT-307062.A2 307062	-
32 - RETAINING RING FOR D26 HOLE (10 PCS.) HIT-939554.A1 939554	-
33 - NUT M10 (10 PCS.) HIT-949560.A3 949560	£2.98	£3.57
34 - LOCK LEVER HIT-993493.A0 993493	-
35 - LOCK SHAFT ASS'Y INCLUD.36 HIT-310505.A1 310505	-
36 - NEEDLE D8X12 HIT-997231.A0 997231	-
37 - STEEL BALL D9.53 (10 PCS.) HIT-959152.A4 959152	-
38 - ROLL PIN D6X28 (10 PCS.) HIT-949505.A1 949505	-
39 - MARK PLATE HIT-000000.A3921 000000	-
40 - SHEET PACKING (F) HIT-310519.A1 310519	-
41 - CORD CLIP HIT-944788.A3 944788	-
42 - CAP HIT-307077.A0 307077	-
43 - RUBBER PACKING HIT-307076.A2 307076	-
44 - FILTER HIT-307080.A2 307080	-
45 - OIL TANK (B) ASS'Y INCLUD.42-44 HIT-310520.A0 310520	-
46 - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) HIT-307081.A0 307081	-
47 - WIRE CLIP HIT-303852.A2 303852	-
48 - WIRE CLIP HIT-944232.A0 944232	-
49 - URETHANE TUBE (I.D.4XT1X310) HIT-310522.A0 310522	-
50 - OIL VALVE HIT-303257.A0 303257	-
51 - TUBE (I.D.4XT1X185) HIT-310521.A1 310521	-
52 - BODY HIT-310999.A0 310999	-
53 - NAME PLATE HIT-000000.A3922 000000	-
54 - CAUTION PLATE HIT-310782.A0 310782	-
55 - SHEET PACKING (A) HIT-307087.A0 307087	-
56 - RETAINING RING FOR D15 SHAFT (10 PCS.) HIT-939544.A47 939544	£3.64	£4.37
57 - HANDLE PINION HIT-307695.A0 307695	-
58 - WASHER (B) HIT-933569.A0 933569	-
60 - FEATHER KEY 4X4X15 HIT-948919.A2 948919	£1.67	£2.00
61 - HANDLE SHAFT HIT-307693.A0 307693	-
62 - HANDLE ASS'Y HIT-983807.A0 983807	-
63 - SEAL LOCK SCREW (W/WASHERS) M4X16 (BLACK HIT-307109.A2 307109	£1.67	£2.00
64 - SEAL LOCK HEX. SOCKET HD. BOLT M8X25 HIT-303209.A1 303209	-
65 - GEAR SHAFT (B) HIT-307052.A2 307052	-
66 - SHEET PACKING (D) HIT-310506.A0 310506	-
67 - U-NUT M20 HIT-310504.A0 310504	-
68 - LOCK PLATE (A) HIT-310503.A1 310503	-
69 - STEEL BALL D12.7 (10 PCS.) HIT-959153.A0 959153	£7.12	£8.54
70 - BASE HIT-310502.A0 310502	-
71 - CONNECTOR 50091 (10 PCS.) HIT-959140.A93 959140	£4.98	£5.97
72 - WIRE BAND HIT-983684.A1 983684	-
73 - SEAL LOCK HEX. SOCKET HD. BOLT M8X12 HIT-310779.A0 310779	-
74 - RADIAL SHAFT (A) HIT-310538.A0 310538	-
75 - SEAL PACKING HIT-982139.A2 982139	-
76A - SLOTTED PIN HIT-303366.A2 303366	-
78A - MAGNET ASS'Y INCLUD.73-75 HIT-321963.A1 321963	-
101 - SEAL LOCK SCREW (W/SP. WASHER) M4X10 HIT-303255.A11 303255	£1.67	£2.00
102 - PANEL (B) HIT-307084.A2 307084	-
103 - TRIAC CT HIT-307703.A0 307703	-
104 - SEAL LOCK SCREW (W/SP. WASHER) M5X30 HIT-307063.A0 307063	-
105 - CORD STOPPER (B) HIT-303300.A0 303300	-
106 - SWITCH BOX HIT-309577.A2 309577	-
107 - SEAL LOCK SCREW (W/WASHERS) M4X10 (BLACK HIT-303851.A0 303851	£1.67	£2.00
108 - WIRE CLIP HIT-303270.A0 303270	-
109 - CABLE HIT-310518.A0 310518	-
110 - WIRE BAND HIT-983684.A0 983684	-
111 - MACHINE SCREW (W/WASHERS) M4X10 (BLACK) HIT-304043.A11 304043	£1.67	£2.00
112 - CONTROLLER 100V-110V HIT-311004.A0 311004	-
113 - SWITCH PANEL HIT-311003.A0 311003	-
114 - SWITCH PANEL ASS'Y INCLUD.113 HIT-311002.A0 311002	-
115 - CORD STOPPER HIT-944784.A3 944784	-
116 - MACHINE SCREW (BRASS) M4X6 (10 PCS.) HIT-949292.A7 949292	-
117 - CONNECTOR 50092 (10 PCS.) HIT-959141.A22 959141	£7.12	£8.54
118 - CORD 100V-110V HIT-303299.A2 303299	-
131 - CENTER PIN GUIDE HIT-993522.A0 993522	-
132 - THRUST WASHER HIT-995885.A2 995885	-
133 - CENTER PIN HIT-303309.A1 303309	-
134 - SPRING (STANDARD) HIT-303310.A0 303310	-
135 - SPINDLE HIT-310525.A0 310525	-
136 - FEATHER KEY 3X3X10 HIT-940533.A4 940533	£1.67	£2.00
137 - SEAL LOCK SCREW (W/SP. WASHER) M5X16 HIT-307046.A12 307046	£1.67	£2.00
138 - FRONT COVER HIT-303668.A2 303668	-
139 - WASHER (B) HIT-998954.A0 998954	-
140 - BALL SLEEVE (B) HIT-307094.A0 307094	-
141A - STEEL BALL D14.29 (10 PCS.) HIT-319536.A0 319536	-
142 - RETAINER (A) HIT-993535.A2 993535	-
143 - BALL SLEEVE (A) HIT-307095.A2 307095	-
144 - THRUST BEARING (51106) HIT-995854.A0 995854	-
145 - SPRING (A) HIT-995855.A2 995855	-
146 - WASHER (A) HIT-983620.A1 983620	-
148 - COLUMN BUSHING HIT-303251.A2 303251	-
149 - LOCK SCREW HIT-307698.A0 307698	-
150 - CLAMP HIT-303260.A1 303260	-
151 - SEAL LOCK HEX. SOCKET HD. BOLT M4X8 HIT-877838.A6 877838	£1.67	£2.00
152 - BALL BEARING 608VVC2PS2L HIT-608VVM.A43 608VVM	£5.70	£6.84
153 - SECOND PINION HIT-310528.A0 310528	-
154 - WOODRUFF KEY 3X10 HIT-932819.A4 932819	£1.67	£2.00
155 - FIRST GEAR HIT-310529.A1 310529	-
157 - NIPPLE M5 HIT-993512.A2 993512	-
158 - TAPPING SCREW (W/SP. WASHER) D5X55(BLACK HIT-303281.A2 303281	£4.18	£5.02
159 - SHIFT LEVER ASS'Y INCLUD.160 HIT-310526.A1 310526	-
160 - O-RING (S-22) HIT-306353.A0 306353	£1.67	£2.00
161 - NYLOCK HEX. SOCKET SET SCREW M8X8 HIT-303252.A0 303252	-
162 - NEEDLE D3.5 HIT-310534.A1 310534	-
163 - VALVE SPRING HIT-874364.A1 874364	-
164 - SEAL LOCK SCREW (W/WASHERS) M5X8 (BLACK) HIT-310533.A1 310533	-
165 - RETAINING RING FOR D20 SHAFT (10 PCS.) HIT-939547.A11 939547	£4.61	£5.53
166 - SLEEVE HIT-310535.A0 310535	-
167 - LOW SPEED GEAR HIT-310531.A1 310531	-
168 - SLIDER (A) HIT-310532.A0 310532	-
169 - HIGH SPEED GEAR HIT-310530.A0 310530	-
170 - O-RING (1AP-10) HIT-872654.A8 872654	£1.67	£2.00
171 - SIDE HANDLE HIT-937089.A4 937089	-
172 - BALL BEARING 6201VV HIT-6201VV.A18 6201VV	£8.30	£9.96
173 - ARMATURE 100V-110V HIT-360366.A0 360366	-
174 - FAN GUIDE HIT-990851.A0 990851	-
175 - HEX. HD. TAPPING SCREW D5X70 HIT-961400.A4 961400	£1.67	£2.00
176 - STATOR ASS'Y 100V-110V INCLUD.177 HIT-340324.A0 340324	-
177 - BRUSH TERMINAL HIT-937623.A2 937623	£1.67	£2.00
178 - DUST WASHER (A) HIT-310546.A0 310546	-
179 - BALL BEARING 6000VVCMPS2L HIT-6000VV.A53 6000VV	£7.62	£9.15
180 - BEARING LOCK HIT-931701.A41 931701	£1.67	£2.00
181 - MAGNET HIT-301797.A3 301797	£8.28	£9.94
183 - WIRE CLIP HIT-303270.A1 303270	-
184 - TAPPING SCREW (W/WASHER) D4X12 HIT-982034.A1 982034	£1.67	£2.00
185 - SPACER (A) HIT-303271.A1 303271	-
186 - TAPPING SCREW (W/WASHER) D4X20 HIT-982095.A10 982095	£1.67	£2.00
187 - MAGNET PICK UP CASE HIT-995887.A0 995887	-
188 - BIND SCREW M4X6 HIT-303314.A1 303314	-
189 - CONNECTOR 50091 (10 PCS.) HIT-959140.A94 959140	£4.98	£5.97
190 - MOTOR COVER HIT-306141.A0 306141	-
191 - TAPPING SCREW (W/FLANGE) D5X16 HIT-303273.A1 303273	-
192 - CORD ARMOR HIT-303269.A2 303269	-
193 - PICK UP CABLE HIT-303268.A0 303268	-
194 - BRAND LABEL HIT-000000.A3927 000000	-
195 - BRUSH CAP HIT-945161.A49 945161	£1.67	£2.00
196 - CARBON BRUSH (1 PAIR) HIT-999038.A22 999038	£5.54	£6.65
197 - BRUSH HOLDER HIT-938241.A7 938241	£8.28	£9.94
198 - SETTING LABEL HIT-311001.A0 311001	-
199 - HEX. SOCKET SET SCREW M4X5 HIT-961681.A9 961681	£1.67	£2.00
501 - STEEL CORE BIT (N) D22 T50 HIT-316060.A1 316060	-
502 - SPRING FOR THIN PLATE HIT-303311.A1 303311	-
503 - HEX. BAR WRENCH 4MM HIT-944458.A55 944458	£1.67	£2.00
504 - WRENCH 13MM HIT-672873.A1 672873	£4.96	£5.95
505 - WRENCH 22MM HIT-993507.A1 993507	-
506 - WRENCH 27MM HIT-963164.A2 963164	-
507 - CUTTING OIL (500 CC) HIT-000000.A3925 000000	-
601 - STEEL CORE BIT (N) D18 T50 HIT-316055.A0 316055	-
602 - STEEL CORE BIT (N) D19 T50 HIT-316056.A1 316056	-
604 - STEEL CORE BIT (N) D21 T50 HIT-316058.A0 316058	-
605 - STEEL CORE BIT (N) D21.5 T50 HIT-316059.A1 316059	-
606 - STEEL CORE BIT (N) D22 T50 HIT-316060.A0 316060	-
608 - STEEL CORE BIT (N) D23 T50 HIT-316062.A1 316062	-
609 - STEEL CORE BIT (N) D23.5 T50 HIT-316063.A0 316063	-
610 - STEEL CORE BIT (N) D24 T50 HIT-316064.A1 316064	-
611 - STEEL CORE BIT (N) D24.5 T50 HIT-316065.A0 316065	-
612 - STEEL CORE BIT (N) D25 T50 HIT-316066.A1 316066	-
613 - STEEL CORE BIT (N) D25.5 T50 HIT-316067.A0 316067	-
614 - STEEL CORE BIT (N) D26 T50 HIT-316068.A1 316068	-
615 - STEEL CORE BIT (N) D26.5 T50 HIT-316069.A0 316069	-
616 - STEEL CORE BIT (N) D27 T50 HIT-316070.A1 316070	-
617 - STEEL CORE BIT (N) D28 T50 HIT-316071.A0 316071	-
618 - STEEL CORE BIT (N) D30 T50 HIT-316073.A0 316073	-
619 - STEEL CORE BIT (N) D32 T50 HIT-316075.A0 316075	-
620 - STEEL CORE BIT (N) D35 T50 HIT-316078.A1 316078	-
621 - STEEL CORE BIT (N) D38 T50 HIT-316080.A1 316080	-
622 - STEEL CORE BIT (N) D40 T50 HIT-316081.A0 316081	-
623 - STEEL CORE BIT (N) D42 T50 HIT-316082.A1 316082	-
624 - STEEL CORE BIT (N) D45 T50 HIT-316083.A0 316083	-
625 - STEEL CORE BIT (N) D48 T50 HIT-316084.A1 316084	-
626 - STEEL CORE BIT (N) D50 T50 HIT-316085.A0 316085	-
627 - STEEL CORE BIT (N) D52 T50 HIT-316086.A1 316086	-
628 - STEEL CORE BIT (N) D55 T50 HIT-316087.A0 316087	-
629 - STEEL CORE BIT (N) D58 T50 HIT-316088.A1 316088	-
630 - STEEL CORE BIT (N) D60 T50 HIT-316089.A0 316089	-
637 - CHAIN HIT-944786.A0 944786	-
638 - SPRING (FOR PLATE LESS THAN T16) HIT-310500.A1 310500	-
639 - CHUCK ADAPTER HIT-993579.A1 993579	-
640 - ADAPTER ASS'Y INCLUD.641 HIT-995898.A2 995898	-
641 - SPRING HIT-302528.A1 302528	-
642 - WASHER (B) HIT-943759.A0 943759	-
643 - TAPER SHANK ADAPTER HIT-998951.A1 998951	-
644 - JOCKEY (MADE OF POLYCARBONATE) HIT-305875.A1 305875	-
645 - OIL PUMP HIT-992765.A1 992765	-
646 - TANK KIT HIT-306204.A0 306204	-
647A - COSMO MOLYBDENUM GREASE (2.5 KG) HIT-317261.A1 317261	-
648 - STEEL CORE BIT (N) D29 T50 HIT-316072.A1 316072	-
649 - STEEL CORE BIT (N) D31 T50 HIT-316074.A1 316074	-
650 - STEEL CORE BIT (N) D33 T50 HIT-316076.A1 316076	-
651 - STEEL CORE BIT (N) D34 T50 HIT-316077.A0 316077	-
652 - STEEL CORE BIT (N) D36 T50 HIT-316079.A0 316079	-

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki BM60M Magnetic Drill Press Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Hitachi / Hikoki BM60M Magnetic Drill Press Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Hitachi / Hikoki BM60M Magnetic Drill Press Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
