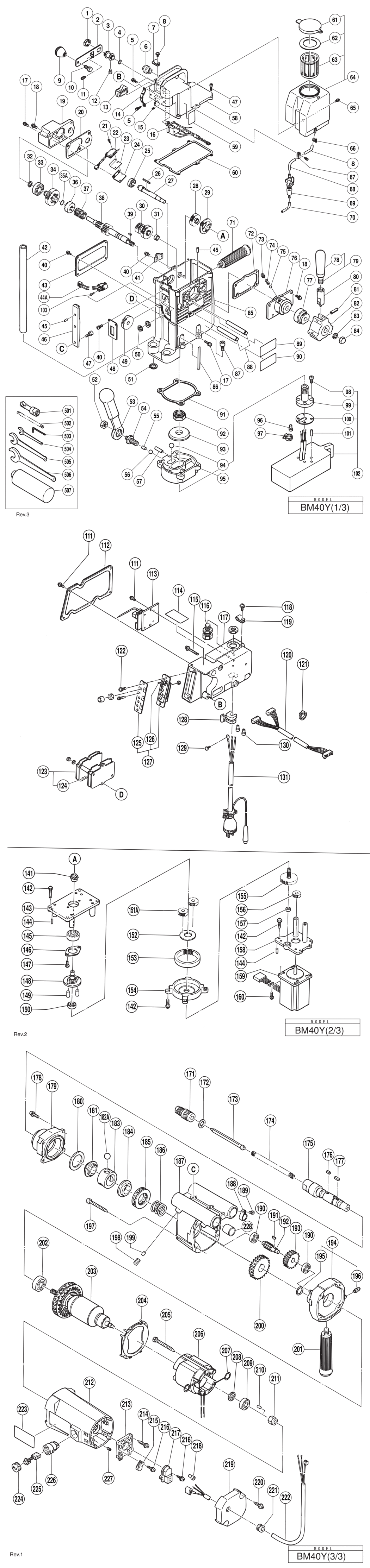

An exploded diagram and spare parts listing for the Hitachi / Hikoki BM40Y Automatic Magnetic Drill Press
Ex VAT Inc VAT
1 - SPECIAL NUT M16 HIT-303294.A2 303294 -
2 - SWITCH LEVER (A) HIT-307070.A1 307070 -
3 - SLEEVE HIT-307069.A1 307069 -
4 - O-RING (P-9) HIT-872645.A28 872645 £1.67 £2.00
5 - SEAL LOCK SCREW (W/SP. WASHER) M4X10 HIT-303255.A5 303255 £1.67 £2.00
6 - RUBBER BUSHING (B) HIT-307073.A1 307073 -
7 - WIRE CLIP HIT-303270.A8 303270 -
8 - SEAL LOCK SCREW (W/WASHERS) M4X10 (BLACK HIT-303851.A3 303851 £1.67 £2.00
9 - GRIP HIT-303296.A0 303296 -
10 - SEAL LOCK HIGH TENSION BOLT M8X16 HIT-956854.A0 956854 -
11 - PLUNGER HIT-303298.A2 303298 -
12 - HEX. SOCKET HD. BOLT M5X6 (10 PCS.) HIT-949817.A1 949817 -
13 - RUBBER BUSHING (A) HIT-307072.A1 307072 -
14 - GUIDE PLATE (A) HIT-307071.A1 307071 -
15 - HEX. SOCKET SET SCREW M6X4 HIT-986676.A0 986676 -
16 - ROTARY SWITCH HIT-307067.A0 307067 -
17 - SEAL LOCK SCREW (W/WASHERS) M4X16 (BLACK HIT-307109.A1 307109 £1.67 £2.00
18 - SEAL LOCK SCREW (W/SP. WASHER) M5X16 HIT-307046.A0 307046 £1.67 £2.00
20 - SHEET PACKING (E) HIT-310514.A1 310514 -
21 - SEAL LOCK SCREW M3X14 HIT-997402.A1 997402 -
22 - SWITCH FOR AUTOMATIC FEED HIT-310542.A1 310542 -
23 - INSULATOR (S) HIT-314236.A1 314236 -
24 - SWITCH PLATE (A) HIT-995867.A1 995867 -
25 - BALL BEARING 608VVC2PS2L HIT-608VVM.A202 608VVM £5.70 £6.84
26 - FEATHER KEY 2.5X2.5X28 HIT-307051.A0 307051 -
27 - GEAR SHAFT (A) HIT-307048.A1 307048 -
28 - FEED PINION (A) HIT-307049.A0 307049 -
29 - GEAR HIT-301940.A1 301940 £23.02 £27.62
30 - FEED PINION (C) HIT-310512.A1 310512 -
31 - SLEEVE (A) HIT-307050.A1 307050 -
32 - RETAINING RING FOR D15 SHAFT (10 PCS.) HIT-939544.A7 939544 £3.64 £4.37
33 - BALL BEARING 6002VVCMPS2L HIT-6002VV.A17 6002VV £9.32 £11.19
34 - CLUTCH GEAR HIT-315226.A0 315226 -
35A - RETAINING RING D12 HIT-339970.A0 339970 -
36 - CLUTCH HIT-314227.A0 314227 -
37 - CLUTCH SPRING HIT-307057.A1 307057 -
38 - HANDLE SHAFT (A) HIT-310513.A0 310513 -
39 - FEATHER KEY 4X4X10 HIT-930511.A3 930511 £2.78 £3.34
40 - SEAL LOCK SCREW (W/SP. WASHER) M4X10 HIT-303255.A4 303255 £1.67 £2.00
41 - CORD CLIP HIT-944788.A2 944788 -
42 - COLUMN (L) HIT-307065.A0 307065 -
43 - PANEL (C) HIT-314240.A0 314240 -
44A - MICRO SWITCH SET INCLUD.50 HIT-309474.A1 309474 -
45 - PIN D4X12 (10 PCS.) HIT-949756.A4 949756 -
46 - RACK HIT-314228.A0 314228 -
47 - SEAL LOCK HEX. SOCKET HD. BOLT M5X16 HIT-990079.A25 990079 £1.67 £2.00
48 - COVER PLATE HIT-307062.A1 307062 -
49 - FEED PINION (D) HIT-307054.A1 307054 -
50 - DUST NUT HIT-308033.A0 308033 -
51 - RETAINING RING FOR D20 HOLE HIT-311229.A2 311229 £1.67 £2.00
52 - NUT M10 (10 PCS.) HIT-949560.A5 949560 £2.98 £3.57
53 - LOCK LEVER HIT-314221.A0 314221 -
54 - LOCK SHAFT ASS'Y INCLUD.55 HIT-314220.A0 314220 -
55 - NEEDLE D8X12 HIT-997231.A1 997231 -
56 - STEEL BALL D9.53 (10 PCS.) HIT-959152.A0 959152 -
57 - ROLL PIN D6X28 (10 PCS.) HIT-949505.A3 949505 -
58 - COLUMN COVER HIT-307066.A0 307066 -
59 - MARK PLATE (B) HIT-303308.A1 303308 -
60 - SHEET PACKING (B) HIT-307088.A0 307088 -
61 - CAP HIT-307077.A2 307077 -
62 - RUBBER PACKING HIT-307076.A0 307076 -
63 - FILTER HIT-307080.A0 307080 -
64 - TANK (A) ASS'Y INCLUD.61-63 HIT-307075.A0 307075 -
65 - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) HIT-307081.A3 307081 -
66 - WIRE CLIP HIT-303852.A1 303852 -
67 - WIRE CLIP HIT-944232.A3 944232 -
68 - URETHANE TUBE 250L HIT-307078.A0 307078 -
69 - OIL VALVE HIT-303257.A1 303257 -
70 - TUBE HIT-307079.A0 307079 -
71 - SIDE HANDLE HIT-937089.A2 937089 -
72 - SHEET PACKING (A) HIT-307087.A2 307087 -
73 - CAP SCREW HIT-984516.A0 984516 -
74 - SPRING (A) HIT-980262.A1 980262 -
75 - STEEL BALL D6.35 (10 PCS.) HIT-959150.A20 959150 £1.67 £2.00
76 - HANDLE BOSS HOLDER (B) HIT-307060.A1 307060 -
77 - HANDLE BOSS HOLDER (A) HIT-307059.A0 307059 -
78 - GRIP HIT-316132.A0 316132 -
79 - HANDLE ASS'Y INCLUD.78 HIT-307118.A0 307118 -
80 - HANDLE HOLDER HIT-303241.A1 303241 -
81 - ROLL PIN D6X25 (10 PCS.) HIT-949747.A1 949747 £5.61 £6.73
82 - HANDLE BOSS HIT-307061.A0 307061 -
83 - SPRING WASHER M10 (10 PCS.) HIT-949458.A23 949458 £1.67 £2.00
84 - CAP NUT M10 HIT-981708.A2 981708 -
85 - BODY ASS'Y INCLUD.33 HIT-314224.A0 314224 -
86 - MARK PLATE HIT-307113.A0 307113 -
87 - SEAL LOCK HEX. SOCKET HD. BOLT M8X16 HIT-307038.A0 307038 -
88 - GEAR SHAFT (B) HIT-307052.A1 307052 -
89 - NAME PLATE HIT-000000.A3008 000000 -
90 - CAUTION PLATE HIT-310782.A2 310782 -
91 - SHEET PACKING HIT-314223.A0 314223 -
92 - U-NUT M20 HIT-310504.A2 310504 -
93 - LOCK PLATE HIT-314222.A0 314222 -
94 - STEEL BALL D12.7 (10 PCS.) HIT-959153.A4 959153 £7.12 £8.54
95 - BASE HIT-314219.A0 314219 -
96 - CONNECTOR 50091 (10 PCS.) HIT-959140.A44 959140 £4.98 £5.97
97 - WIRE BAND HIT-983684.A5 983684 -
98 - SEAL LOCK HEX. SOCKET HD. BOLT M6X12 HIT-314242.A0 314242 -
99 - RADIAL SHAFT HIT-314233.A0 314233 -
100 - SEAL PACKING HIT-314234.A0 314234 -
101 - SLOTTED PIN HIT-303366.A1 303366 -
102 - MAGNET ASS'Y INCLUD.98-100 HIT-314232.A0 314232 -
103 - MACHINE SCREW (STAINLESS) M3X10 HIT-321425.A0 321425 -
111 - SEAL LOCK SCREW (W/SP. WASHER) M4X10 HIT-303255.A0 303255 £1.67 £2.00
112 - PANEL (B) HIT-307084.A0 307084 -
113 - TRIAC CT 100V HIT-307111.A1 307111 -
114 - SETTING LABEL (TPE) HIT-317981.A0 317981 -
115 - SEAL LOCK SCREW (W/SP. WASHER) M5X30 HIT-307063.A2 307063 -
116 - CORD STOPPER (B) HIT-303300.A1 303300 -
117 - SWITCH BOX HIT-309577.A1 309577 -
118 - SEAL LOCK SCREW (W/WASHERS) M4X10 (BLACK HIT-303851.A4 303851 £1.67 £2.00
119 - WIRE CLIP HIT-303270.A6 303270 -
120 - CABLE HIT-310518.A1 310518 -
121 - WIRE BAND HIT-983684.A2 983684 -
122 - MACHINE SCREW (W/WASHERS) M4X10 (BLACK) HIT-304043.A47 304043 £1.67 £2.00
123 - CONTROLLER ASS'Y INCLUD.124 HIT-314235.A0 314235 -
124 - FUSE (2A) HIT-310547.A0 310547 -
125 - SWITCH PANEL HIT-310780.A1 310780 -
126 - SWITCH (TOGGLE) HIT-317913.A0 317913 -
127 - SWITCH PANEL ASS'Y INCLUD.125 HIT-310539.A1 310539 -
128 - CORD STOPPER HIT-944784.A1 944784 -
129 - MACHINE SCREW (BRASS) M4X6 (10 PCS.) HIT-949292.A11 949292 -
130 - CONNECTOR 50092 (10 PCS.) HIT-959141.A77 959141 £7.12 £8.54
131 - CORD 100V-110V HIT-303299.A1 303299 -
141 - PINION HIT-301939.A0 301939 -
142 - SEAL LOCK SCREW (W/SP. WASHER) M5X16 HIT-307046.A4 307046 £1.67 £2.00
143 - INNER COVER (C) HIT-314225.A0 314225 -
144 - PIN D4X12 (10 PCS.) HIT-949756.A3 949756 -
145 - BALL BEARING 6001VV HIT-6001VV.A3 6001VV £8.68 £10.42
146 - BEARING COVER (B) HIT-984236.A1 984236 -
147 - SLOTTED HD. SCREW (SEAL LOCK) M4X10 HIT-301936.A2 301936 -
148 - FLANGE SHAFT (A) HIT-310510.A1 310510 -
149 - NEEDLE ROLLER HIT-985169.A2 985169 -
150 - BALL BEARING 626VVC2PS2L HIT-626VVM.A24 626VVM £5.77 £6.92
151A - IDLE GEAR SET (2 PCS.) HIT-318447.A0 318447 -
152 - WASHER HIT-310509.A0 310509 -
153 - RING GEAR HIT-985980.A2 985980 -
154 - GEAR HOLDER HIT-310508.A1 310508 -
155 - FEED SECOND PINION HIT-310511.A0 310511 -
156 - FIRST PINION HIT-310545.A1 310545 -
157 - METAL HIT-314239.A0 314239 -
158 - FEED INNER COVER HIT-314238.A0 314238 -
159 - FEED MOTOR HIT-314237.A0 314237 -
160 - SEAL LOCK SCREW (W/SP. WASHER) M4X12 HIT-987203.A14 987203 £1.67 £2.00
171 - CENTER PIN GUIDE HIT-993522.A2 993522 -
172 - THRUST WASHER HIT-995885.A0 995885 -
173 - CENTER PIN HIT-307117.A0 307117 -
174 - SPRING (STANDARD) HIT-303310.A2 303310 -
175 - SPINDLE HIT-303276.A0 303276 -
176 - FEATHER KEY 3X3X10 HIT-940533.A10 940533 £1.67 £2.00
177 - FEATHER KEY 4X4X12 HIT-931008.A3 931008 -
178 - SEAL LOCK SCREW (W/SP. WASHER) M5X16 HIT-307046.A5 307046 £1.67 £2.00
179 - FRONT COVER HIT-303668.A0 303668 -
180 - WASHER (B) HIT-998954.A1 998954 -
181 - BALL SLEEVE (B) HIT-307094.A1 307094 -
182A - STEEL BALL D14.29 (10 PCS.) HIT-319536.A1 319536 -
183 - RETAINER (A) HIT-993535.A0 993535 -
184 - BALL SLEEVE (A) HIT-307095.A1 307095 -
185 - THRUST BEARING (51106) HIT-995854.A2 995854 -
186 - SPRING (A) HIT-995855.A0 995855 -
187 - GEAR COVER ASS'Y INCLUD.228 HIT-314241.A0 314241 -
188 - CLAMP (A) HIT-307082.A0 307082 -
189 - SEAL LOCK HEX. SOCKET HD. BOLT M4X8 HIT-877838.A2 877838 £1.67 £2.00
190 - BALL BEARING 608VVC2PS2L HIT-608VVM.A207 608VVM £5.70 £6.84
191 - WOODRUFF KEY 3X10 HIT-932819.A7 932819 £1.67 £2.00
192 - SECOND PINION HIT-314229.A0 314229 -
193 - FIRST GEAR HIT-314230.A0 314230 -
194 - INNER COVER ASS'Y INCLUD.195 HIT-307092.A0 307092 -
195 - O-RING (P-16) HIT-873095.A0 873095 £1.67 £2.00
196 - NIPPLE M5 HIT-993512.A0 993512 -
197 - TAPPING SCREW D5X50 HIT-307100.A2 307100 -
198 - NYLOCK HEX. SOCKET SET SCREW M8X8 HIT-303252.A2 303252 -
199 - COLUMN BUSHING HIT-303251.A0 303251 -
200 - FINAL GEAR HIT-314231.A0 314231 -
201 - SIDE HANDLE HIT-937089.A3 937089 -
202 - BALL BEARING 6201VV HIT-6201VV.A34 6201VV £8.30 £9.96
203 - ARMATURE 100V HIT-360429.A0 360429 -
204 - FAN GUIDE HIT-305561.A1 305561 -
205 - HEX. HD. TAPPING SCREW D5X60 HIT-961501.A10 961501 £1.67 £2.00
206 - STATOR ASS'Y 100V INCLUD.207 HIT-340376.A0 340376 -
207 - BRUSH TERMINAL HIT-930703.A23 930703 £3.28 £3.93
208 - WASHER (A) HIT-982631.A15 982631 £1.67 £2.00
209 - BALL BEARING 608VVC2PS2L HIT-608VVM.A208 608VVM £5.70 £6.84
210 - BEARING LOCK HIT-931701.A2 931701 £1.67 £2.00
211 - MAGNET HIT-307093.A0 307093 £15.83 £19.00
212 - HOUSING ASS'Y INCLUD.226 HIT-307091.A0 307091 -
213 - SPACER HIT-307102.A0 307102 -
214 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A269 984750 £1.67 £2.00
215 - WIRE CLIP HIT-303270.A4 303270 -
216 - TAPPING SCREW (W/FLANGE) D4X8 (BLACK) HIT-307101.A0 307101 -
217 - MAGNET PICK UP CASE HIT-995887.A2 995887 -
218 - CONNECTOR 50091 (10 PCS.) HIT-959140.A35 959140 £4.98 £5.97
219 - MOTOR COVER HIT-314625.A0 314625 -
220 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK) HIT-302089.A1 302089 £1.67 £2.00
221 - CORD ARMOR HIT-303269.A0 303269 -
222 - PICK UP CABLE HIT-303268.A2 303268 -
223 - BRAND LABEL HIT-000000.A3012 000000 -
224 - BRUSH CAP HIT-945161.A7 945161 £1.67 £2.00
225 - CARBON BRUSH (1 PAIR) HIT-999043.A12 999043 £5.54 £6.65
226 - BRUSH HOLDER HIT-958900.A4 958900 £8.24 £9.89
227 - HEX. SOCKET SET SCREW M4X6 HIT-985114.A0 985114 £1.67 £2.00
228 - METAL HIT-318766.A0 318766 -
501 - STEEL CORE BIT (N) D22 T35 HIT-314195.A0 314195 -
502 - SPRING FOR THIN PLATE HIT-303311.A0 303311 -
503 - HEX. BAR WRENCH 4MM HIT-944458.A94 944458 £1.67 £2.00
504 - WRENCH 13MM HIT-672873.A3 672873 £4.96 £5.95
505 - WRENCH 22MM HIT-993507.A2 993507 -
506 - WRENCH 27MM HIT-963164.A0 963164 -
507 - CUTTING OIL (500CC) HIT-000000.A3014 000000 -
601 - STEEL CORE BIT (N) D14 T25 HIT-316050.A0 316050 -
602 - STEEL CORE BIT (N) D14.5 T25 HIT-316051.A0 316051 -
603 - STEEL CORE BIT (N) D15 T25 HIT-316052.A0 316052 -
604 - STEEL CORE BIT (N) D16 T25 HIT-316053.A0 316053 -
605 - STEEL CORE BIT (N) D17.5 T25 HIT-316054.A0 316054 -
606 - STEEL CORE BIT (N) D18 T35 HIT-314190.A0 314190 -
607 - STEEL CORE BIT (N) D19 T35 HIT-314191.A0 314191 -
608 - STEEL CORE BIT (N) D20 T35 HIT-314192.A0 314192 -
609 - STEEL CORE BIT (N) D21 T35 HIT-314193.A0 314193 -
610 - STEEL CORE BIT (N) D21.5 T35 HIT-314194.A0 314194 -
611 - STEEL CORE BIT (N) D22.5 T35 HIT-314196.A0 314196 -
612 - STEEL CORE BIT (N) D23 T35 HIT-314197.A0 314197 -
613 - STEEL CORE BIT (N) D23.5 T35 HIT-314198.A0 314198 -
614 - STEEL CORE BIT (N) D24 T35 HIT-314199.A0 314199 -
615 - STEEL CORE BIT (N) D24.5 T35 HIT-314200.A0 314200 -
616 - STEEL CORE BIT (N) D25 T35 HIT-314201.A0 314201 -
617 - STEEL CORE BIT (N) D25.5 T35 HIT-314202.A0 314202 -
618 - STEEL CORE BIT (N) D26 T35 HIT-314203.A0 314203 -
619 - STEEL CORE BIT (N) D26.5 T35 HIT-314204.A0 314204 -
620 - STEEL CORE BIT (N) D27 T35 HIT-314205.A0 314205 -
621 - STEEL CORE BIT (N) D28 T35 HIT-314206.A0 314206 -
622 - STEEL CORE BIT (N) D29 T35 HIT-314207.A0 314207 -
623 - STEEL CORE BIT (N) D30 T35 HIT-314208.A0 314208 -
624 - STEEL CORE BIT (N) D31 T35 HIT-314209.A0 314209 -
625 - STEEL CORE BIT (N) D32 T35 HIT-314210.A0 314210 -
626 - STEEL CORE BIT (N) D33 T35 HIT-314211.A0 314211 -
627 - STEEL CORE BIT (N) D34 T35 HIT-314212.A0 314212 -
628 - STEEL CORE BIT (N) D35 T35 HIT-314213.A0 314213 -
629 - STEEL CORE BIT (N) D36 T35 HIT-314214.A0 314214 -
630 - STEEL CORE BIT (N) D38 T35 HIT-314215.A0 314215 -
631 - STEEL CORE BIT (N) D40 T35 HIT-314216.A0 314216 -
632 - CHAIN HIT-944786.A2 944786 -
633 - CHUCK ADAPTER HIT-993579.A2 993579 -
634 - ADAPTER ASS'Y INCLUD.635 HIT-995898.A0 995898 -
635 - HEX. SOCKET SET SCREW M10X10 HIT-947867.A0 947867 -
636 - WASHER (B) HIT-943759.A2 943759 -
639 - OIL PUMP HIT-992765.A0 992765 -
640 - TANK KIT HIT-306204.A2 306204 -
641 - JOCKEY (MADE OF POLYCARBONATE) HIT-305875.A2 305875 -
642 - COSMO MOLYBDENUM GREASE (2.5 KG) HIT-317261.A0 317261 -

Recently Viewed


x
Powered by kartris
