Hitachi / Hikoki BM25 Magnetic Drill Press Spare Parts

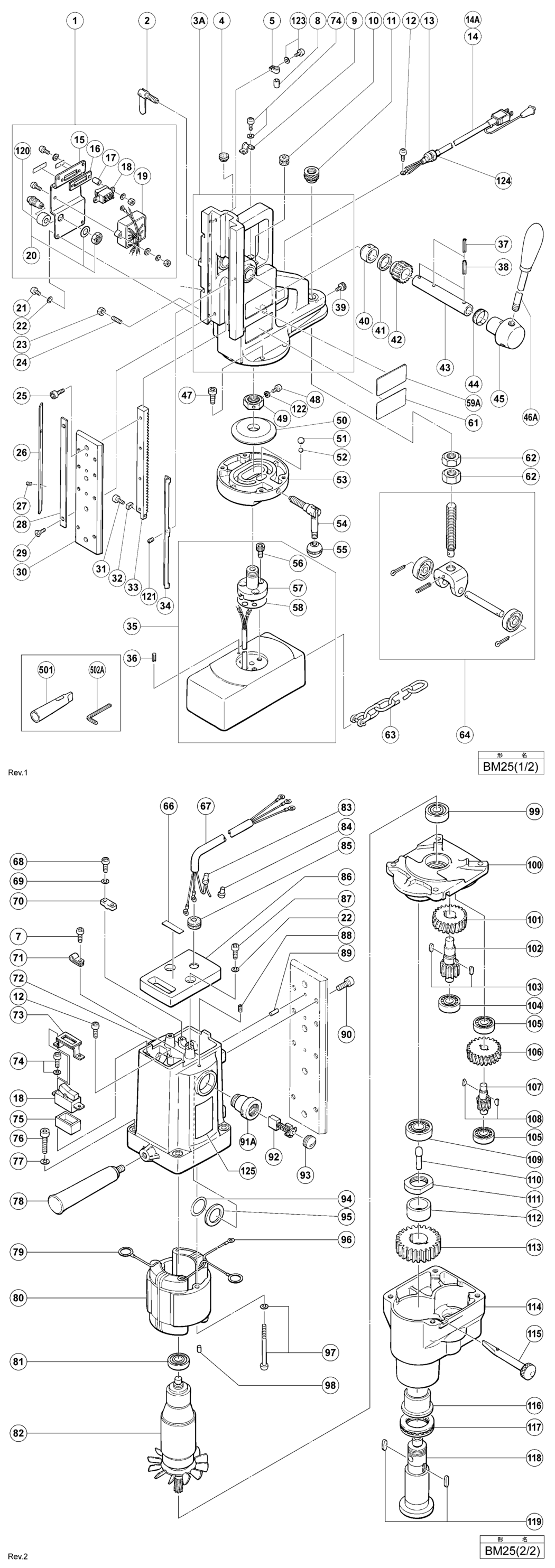

An exploded diagram and spare parts listing for the Hitachi / Hikoki BM25 Magnetic Drill Press

	Ex VAT	Inc VAT
1 - RECTIFIER PANEL ASS'Y 220V-230V INCLUD.15-20 HIT-982171.A0 982171	-
2 - LOCK HANDLE (B) HIT-944775.A0 944775	-
4 - CAP HIT-944982.A0 944982	-
5 - CORD CLIP (A) HIT-964516.A0 964516	-
7 - MACHINE SCREW M4X8 (10 PCS.) HIT-949215.A43 949215	£1.67	£2.00
8 - VINYL TUBE (I.D.10XT0.5X15) HIT-000000.A1652 000000	-
9 - CORD CLIP HIT-944788.A0 944788	-
10 - CORD ARMOR D8.5 HIT-944773.A0 944773	-
11 - STOP SCREW HIT-982134.A0 982134	-
12 - MACHINE SCREW (BRASS) M4X6 (10 PCS.) HIT-949292.A9 949292	-
13 - CORD STOPPER HIT-944784.A0 944784	-
*14 - CORD FOR INA HIT-500398Z.A2 500398Z	-
14A - CORD FOR SIN HIT-500428Z.A0 500428Z	-
15 - PANEL HIT-982154.A0 982154	-
16 - DUST COVER (B) HIT-982163.A0 982163	-
17 - SLEEVE HIT-982156.A0 982156	-
18 - SWITCH (2P SCREW TYPE) HIT-956789.A0 956789	£20.13	£24.16
19 - RECTIFIER HIT-982155.A0 982155	-
20 - NEON LAMP 200V-240V HIT-982158.A0 982158	-
21 - MACHINE SCREW M5X10 (10 PCS.) HIT-949236.A54 949236	£1.67	£2.00
22 - SPRING WASHER M5 (10 PCS.) HIT-949454.A67 949454	£1.67	£2.00
23 - NUT (A) HIT-997181.A0 997181	-
24 - HEX. SOCKET SET SCREW M5X25 HIT-982167.A0 982167	-
25 - HEX. SOCKET HD. BOLT M5X14 (10 PCS.) HIT-949665.A18 949665	£3.15	£3.78
26 - LINER (A) HIT-982127.A0 982127	-
27 - HEX. SOCKET SET SCREW M5X12 HIT-982169.A0 982169	-
28 - LINER (B) HIT-982128.A0 982128	-
29 - FLAT HD. SCREW M4X10 (10 PCS.) HIT-949322.A13 949322	£1.67	£2.00
30 - SLIDE BASE HIT-982136.A0 982136	-
31 - HEX. SOCKET HD. BOLT M6X15 (10 PCS.) HIT-949831.A0 949831	-
32 - STOP PIECE HIT-944774.A0 944774	-
33 - RACK HIT-982137.A0 982137	-
34 - LINER (C) HIT-982129.A0 982129	-
35 - MAGNET ASS'Y INCLUD.56-58 HIT-982138.A0 982138	-
36 - ROLL PIN D5X16 (10 PCS.) HIT-949546.A0 949546	-
37 - ROLL PIN D3.5X32 (10 PCS.) HIT-949868.A0 949868	-
38 - ROLL PIN D6X32 (10 PCS.) HIT-949576.A2 949576	-
39 - HEX. SOCKET HD. BOLT M5X10 (10 PCS.) HIT-949819.A28 949819	£6.66	£7.99
40 - SHAFT CAP HIT-982125.A0 982125	-
41 - THRUST WASHER HIT-982124.A0 982124	-
42 - PINION HIT-982123.A0 982123	-
43 - HANDLE SHAFT HIT-982121.A0 982121	-
44 - SCALE HIT-982122.A0 982122	-
45 - HANDLE BOSS HIT-982126.A0 982126	-
46A - HANDLE ASS'Y HIT-982165.A0 982165	-
47 - HEX. SOCKET HD. BOLT M8X25 (10 PCS.) HIT-949760.A13 949760	£6.62	£7.95
48 - MACHINE SCREW M6X12 (10 PCS.) HIT-949255.A6 949255	£1.67	£2.00
49 - SPECIAL NUT HIT-944770.A0 944770	-
50 - LOCK PLATE HIT-982133.A0 982133	-
51 - STEEL BALL D12.7 (10 PCS.) HIT-959153.A2 959153	£7.12	£8.54
52 - STEEL BALL D9.53 (10 PCS.) HIT-959152.A2 959152	-
53 - BASE HIT-982132.A0 982132	-
54 - LOCK HANDLE (A) ASS'Y INCLUD.55 HIT-982135.A0 982135	-
55 - GRIP (A) HIT-944772.A0 944772	-
56 - HEX. SOCKET HD. BOLT M10X16 (10 PCS.) HIT-949843.A0 949843	-
57 - RADIAL SHAFT HIT-982140.A0 982140	-
58 - SEAL PACKING HIT-982139.A0 982139	-
59A - NAME PLATE HIT-000000.A1653 000000	-
61 - CAUTION PLATE HIT-000000.A1654 000000	-
62 - LOCK NUT M20 HIT-982131.A0 982131	-
63 - CHAIN HIT-944786.A3 944786	-
64 - STABILIZER HIT-982130.A0 982130	-
66 - SWITCH NAME PLATE (C) HIT-000000.A1655 000000	-
67 - CORD (A) HIT-982150.A0 982150	-
68 - MACHINE SCREW M4X14 (10 PCS.) HIT-949218.A1 949218	£1.67	£2.00
69 - WASHER M4 (10 PCS.) HIT-949423.A17 949423	£1.67	£2.00
70 - CORD CLIP HIT-937631.A45 937631	£1.67	£2.00
71 - WIRE CLIP HIT-944232.A1 944232	-
72 - HOUSING ASS'Y INCLUD.88 HIT-982141.A0 982141	-
73 - SWITCH COVER HIT-982162.A0 982162	-
74 - MACHINE SCREW (W/SP. WASHER) M4X12 HIT-951039.A2 951039	£1.67	£2.00
75 - SWITCH INSULATOR HIT-982148.A0 982148	-
76 - HEX. SOCKET HD. BOLT M8X60 (10 PCS.) HIT-949839.A0 949839	-
77 - SPRING WASHER M8 (10 PCS.) HIT-949457.A27 949457	£1.67	£2.00
78 - SIDE HANDLE HIT-937089.A0 937089	-
79 - BRUSH TERMINAL HIT-948242.A1 948242	-
80 - STATOR ASS'Y 220V-230V INCLUD.79 HIT-982143E.A0 982143E	-
81 - BALL BEARING 6200VVCMPS2L HIT-6200VV.A32 6200VV	£7.36	£8.83
82 - ARMATURE 220V-230V HIT-982147E.A0 982147E	-
83 - CONNECTOR 50092 (10 PCS.) HIT-959141.A71 959141	£7.12	£8.54
84 - CONNECTOR 50091 (10 PCS.) HIT-959140.A52 959140	£4.98	£5.97
85 - CORD ARMOR D8.5 HIT-944803.A0 944803	-
86 - COVER HIT-982149.A0 982149	-
87 - MACHINE SCREW M5X12 (10 PCS.) HIT-949237.A8 949237	£1.67	£2.00
88 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A29 938477	£1.67	£2.00
89 - PIN D5X14 (10 PCS.) HIT-949491.A0 949491	-
90 - HEX. SOCKET HD. BOLT M8X20 (10 PCS.) HIT-949656.A3 949656	£6.62	£7.95
91A - BRUSH HOLDER HIT-956984.A2 956984	£11.55	£13.86
92 - CARBON BRUSH (1 PAIR) HIT-999044.A9 999044	£5.54	£6.65
93 - BRUSH CAP HIT-940540.A3 940540	£1.67	£2.00
94 - STOP PLATE HIT-956683.A2 956683	-
95 - RUBBER WASHER HIT-956943.A0 956943	-
96 - TERMINAL M4.0 (10 PCS.) HIT-930804.A0 930804	£3.64	£4.37
97 - MACHINE SCREW (W/SP. WASHER) M5X70 HIT-987410.A0 987410	-
98 - BEARING LOCK HIT-931701.A4 931701	£1.67	£2.00
99 - BALL BEARING 6301VVCMPS2L HIT-6301VV.A9 6301VV	£9.32	£11.19
101 - SECOND GEAR HIT-931238.A0 931238	-
102 - THIRD PINION HIT-931237.A0 931237	-
103 - FEATHER KEY 4X4X12 HIT-931008.A1 931008	-
104 - BALL BEARING 6201VV HIT-6201VV.A46 6201VV	£8.30	£9.96
105 - BALL BEARING 6200VVCMPS2L HIT-6200VV.A31 6200VV	£7.36	£8.83
106 - FIRST GEAR HIT-931236.A0 931236	-
107 - SECOND PINION HIT-931235.A0 931235	-
108 - WOODRUFF KEY 3X10 HIT-932819.A9 932819	£1.67	£2.00
109 - BALL BEARING 6203VVCMPS2L HIT-6203VV.A5 6203VV	£9.32	£11.19
110 - DRIFT PIN HIT-931242.A0 931242	-
111 - NUT HIT-931443.A0 931443	-
112 - SLEEVE HIT-931241.A0 931241	-
113 - FINAL GEAR HIT-931240.A0 931240	-
114 - GEAR COVER ASS'Y INCLUD.116 HIT-982145.A0 982145	-
115 - DRIFT KEY HIT-931243.A0 931243	-
116 - METAL (B) HIT-931440.A0 931440	-
117 - THRUST BEARING (51107) HIT-939397.A0 939397	-
118 - SPINDLE HIT-931239.A0 931239	-
119 - FEATHER KEY 5X5X15 HIT-945072.A0 945072	-
120 - LAMP COVER HIT-982166.A0 982166	-
121 - HEX. SOCKET SET SCREW M5X16 HIT-931228.A0 931228	-
122 - SPRING WASHER M6 (10 PCS.) HIT-949455.A85 949455	£1.67	£2.00
123 - MACHINE SCREW (W/SP. WASHER) M4X8 HIT-958523.A1 958523	£1.67	£2.00
124 - VINYL TUBE (I.D.8XT1.0X25) FOR INA HIT-950744.A1 950744	-
125 - BRAND LABEL HIT-303910.A0 303910	-
501 - DRILL SLEEVE HIT-931223.A0 931223	-
502A - HEX. BAR WRENCH 2.5MM HIT-990666.A1 990666	£5.98	£7.18
