Hitachi / Hikoki B13S Bench Drill Spare Parts

Home Details Reviews Delivery

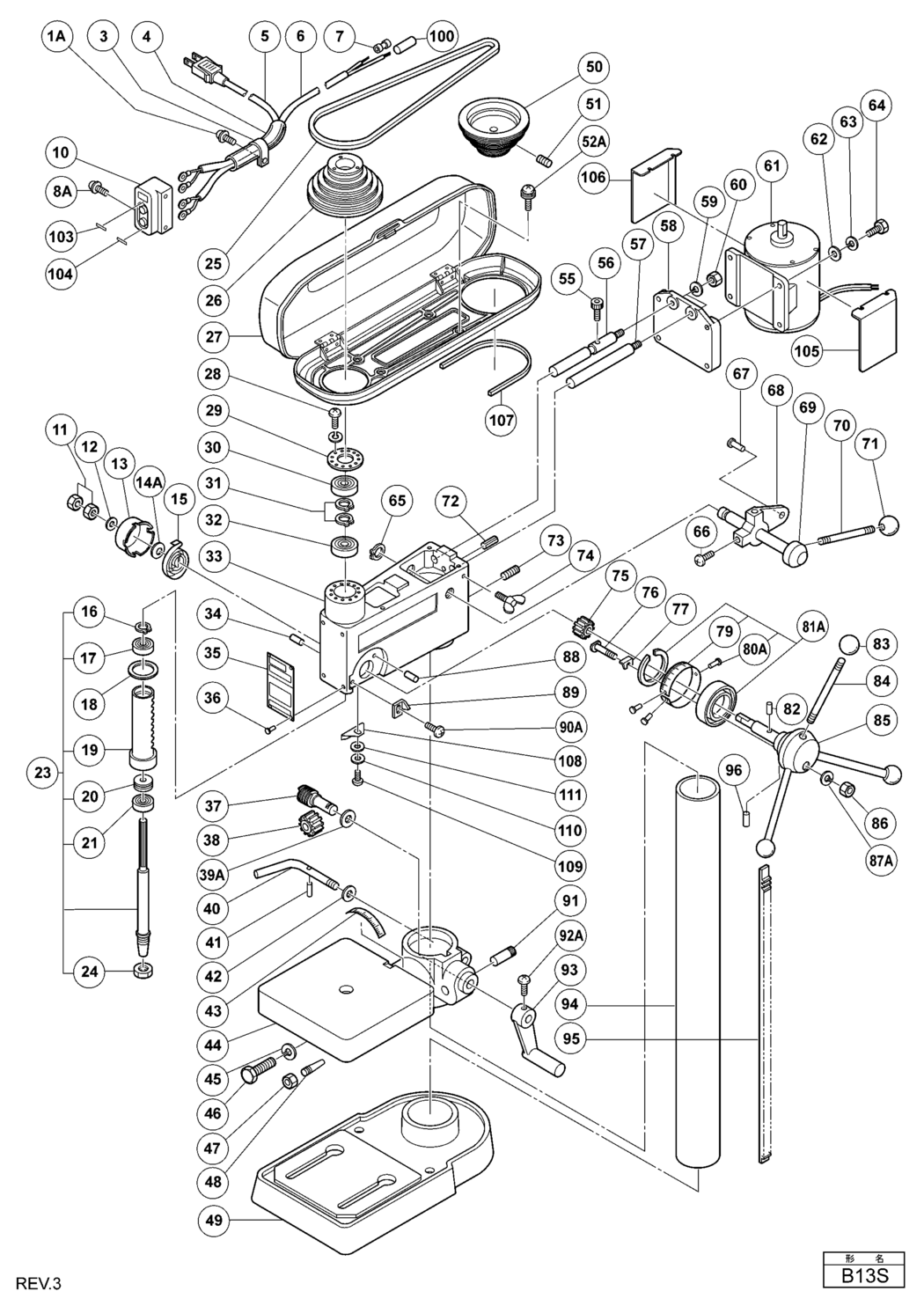

An exploded diagram and spare parts listing for the Hitachi / Hikoki B13S Bench Drill

	Ex VAT	Inc VAT
1A - MACHINE SCREW (W/WASHERS) M4X10 (BLACK) HIT-304043.A48 304043	£1.67	£2.00
*3 - NYLON CLIP HIT-968300.A0 968300	-
*3 - CORD CLIP FOR INA HIT-932361.A0 932361	-
4 - VINYL TUBE (ID12XT0.5X180) HIT-000000.A3023 000000	-
4 - VINYL TUBE (ID12XT0.5X460) HIT-000000.A3024 000000	-
*5 - CORD (A) FOR SINGLE-PHASE 110V-125V HIT-951113.A1 951113	-
*5 - CORD FOR SINGLE-PHASE 127V-240V HIT-500201Z.A4 500201Z	-
*5 - CORD FOR SINGLE-PHASE FOR SUR HIT-305832.A0 305832	-
*5 - CORD FOR SINGLE-PHASE FOR HOL HIT-305828.A0 305828	-
*5 - CORD FOR SINGLE-PHASE FOR HKG HIT-305831.A1 305831	-
*5 - CORD FOR SINGLE-PHASE 220V FOR INA HIT-305834.A0 305834	-
*5 - CORD FOR SINGLE-PHASE FOR SAU HIT-305833.A1 305833	-
*5 - CORD FOR SINGLE-PHASE FOR AUS HIT-305830.A0 305830	-
*5 - CORD FOR SINGLE-PHASE 110V/220V FOR INA HIT-305835.A1 305835	-
*5 - CORD FOR THREE-PHASE HIT-951164.A0 951164	-
*6 - CORD (A) FOR SINGLE-PHASE HIT-951116.A0 951116	-
*6 - CORD (C) FOR SINGLE-PHASE FOR INA HIT-305840.A0 305840	-
*6 - CORD (C) FOR SINGLE-PHASE FOR HOL HIT-305839.A0 305839	-
*6 - CORD (B) FOR THREE-PHASE HIT-951117.A1 951117	-
*6 - CORD (D) FOR THREE-PHASE FOR INA HIT-305843.A0 305843	-
*7 - CONNECTOR 50091 (10 PCS.) FOR SINGLE-PHASE HIT-959140.A37 959140	£4.98	£5.97
*7 - CONNECTOR 50091 (10 PCS.) FOR THREE-PHASE HIT-959140.A38 959140	£4.98	£5.97
8A - MACHINE SCREW (W/WASHERS) M6X12 (BLACK) HIT-307232.A0 307232	£1.67	£2.00
*10 - SWITCH (2P SCREW TYPE) FOR SINGLE-PHASE HIT-951111.A1 951111	-
*10 - SWITCH (3P SCREW TYPE) FOR THREE-PHASE HIT-951112.A1 951112	-
11 - LOCK NUT M12 (10 PCS.) HIT-949574.A4 949574	£3.64	£4.37
12 - BOLT WASHER M12 (10 PCS.) HIT-949437.A16 949437	£1.67	£2.00
13 - SPRING CASE HIT-932350.A0 932350	-
14A - WASHER (D) HIT-932364.A1 932364	-
15 - SPRING HIT-932351.A1 932351	-
16 - RETAINING RING FOR D15 SHAFT (10 PCS.) HIT-939544.A8 939544	£3.64	£4.37
17 - BALL BEARING 6002VVCMPS2L HIT-6002VV.A16 6002VV	£9.32	£11.19
18 - RUBBER WASHER HIT-951102.A1 951102	-
19 - QUILL HIT-000000.A3025 000000	-
20 - THRUST BEARING (51103) HIT-939286.A0 939286	-
21 - BALL BEARING 6203VVCMPS2L HIT-6203VV.A4 6203VV	£9.32	£11.19
*23 - SPINDLE ASS'Y INCLUD.16 HIT-951121.A1 951121	-
*23 - SPINDLE ASS'Y INCLUD.16 HIT-951535.A0 951535	-
24 - NUT (D) HIT-950067.A0 950067	-
25 - V-BELT (3V-425) HIT-973230.A1 973230	-
26 - PULLEY (B) HIT-951104.A1 951104	-
27 - BELT COVER HIT-950138.A1 950138	-
28 - MACHINE SCREW (W/SP. WASHER) M4X14 HIT-951122.A0 951122	-
29 - BEARING COVER HIT-951103.A0 951103	-
30 - BALL BEARING 6005VVPS2L HIT-6005VV.A1 6005VV	£11.82	£14.18
31 - RETAINING RING FOR D25 SHAFT HIT-965469.A9 965469	£1.67	£2.00
32 - BALL BEARING 6005VVPS2L HIT-6005VV.A2 6005VV	£11.82	£14.18
*33 - HEAD HIT-951160.A1 951160	-
33 - HEAD HIT-000000.A3026 000000	-
34 - PIN (E) HIT-975984.A1 975984	-
35 - NAME PLATE HIT-000000.A3028 000000	-
36 - RIVET D2.5X4.8 (10 PCS.) HIT-949510.A29 949510	£1.67	£2.00
37 - WORM HIT-932313.A3 932313	-
38 - PINION HIT-932112.A2 932112	-
39A - WASHER HIT-975081.A1 975081	-
40 - CLAMP SCREW HIT-950124.A0 950124	-
41 - ROLL PIN D5X25 (10 PCS.) HIT-949681.A11 949681	-
42 - BOLT WASHER M12 (10 PCS.) HIT-949437.A17 949437	£1.67	£2.00
43 - SCALE (B) HIT-932324.A0 932324	-
44 - TABLE (B) ASS'Y INCLUD.43 HIT-305660.A0 305660	-
45 - SPRING WASHER M16 (10 PCS.) HIT-949464.A2 949464	-
46 - BOLT (A) HIT-932322.A1 932322	-
47 - NUT M6 (10 PCS.) HIT-949556.A48 949556	£1.67	£2.00
48 - SPECIAL TAPER PIN HIT-932323.A0 932323	-
49 - BASE ASS'Y INCLUD.94 HIT-951120.A0 951120	-
50 - PULLEY (A) HIT-951530.A1 951530	-
51 - HEX. SOCKET SET SCREW M6X10 HIT-968247.A11 968247	-
52A - MACHINE SCREW (W/WASHERS) M6X16 HIT-300197.A1 300197	-
55 - HEX. SOCKET HD. BOLT M6X12 (10 PCS.) HIT-949657.A4 949657	-
56 - ROD (B) HIT-951161.A0 951161	-
57 - ROD HIT-951107.A0 951107	-
58 - MOTOR BASE HIT-951106.A1 951106	-
59 - SPRING WASHER M12 (10 PCS.) HIT-949463.A1 949463	£1.67	£2.00
60 - LOCK NUT M12 (10 PCS.) HIT-949574.A3 949574	£3.64	£4.37
61 - MOTOR HIT-000000.A3029 000000	-
62 - WASHER M6 (10 PCS.) HIT-949425.A30 949425	£1.67	£2.00
63 - SPRING WASHER M6 (10 PCS.) HIT-949455.A100 949455	£1.67	£2.00
64 - BOLT M6X12 (10 PCS.) HIT-949611.A2 949611	-
65 - RETAINING RING FOR D10 SHAFT (10 PCS.) HIT-939540.A41 939540	£1.67	£2.00
66 - MACHINE SCREW M6X20 (10 PCS.) HIT-949258.A1 949258	£1.67	£2.00
67 - PIN (C) HIT-932147.A0 932147	-
68 - CAM HIT-932158.A0 932158	-
69 - HANDLE SHAFT HIT-951162.A1 951162	-
70 - HANDLE (C) HIT-932461.A1 932461	-
71 - GRIP (C) HIT-932462.A1 932462	-
72 - ROLL PIN D8X25 (10 PCS.) HIT-949879.A1 949879	-
73 - HEX. SOCKET SET SCREW M10X10 HIT-950141.A0 950141	-
74 - WING BOLT M8X25 (10 PCS.) HIT-949413.A0 949413	£12.46	£14.95
75 - PINION HIT-932112.A3 932112	-
76 - LOCK BOLT (A) HIT-932348.A1 932348	-
77 - WASHER HIT-950087.A0 950087	-
79 - SCALE (A) HIT-950086.A1 950086	-
80A - RIVET D2.5X4.8 (10 PCS.) HIT-949510.A30 949510	£1.67	£2.00
81A - STOPPER RING ASS'Y INCLUD.79 HIT-333924.A0 333924	-
82 - PIN D4X8 (10 PCS.) HIT-949483.A0 949483	-
83 - GRIP (A) HIT-932344.A0 932344	-
84 - HANDLE HIT-950135.A0 950135	-
85 - HANDLE BOSS INCLUD.96 HIT-951105.A0 951105	-
86 - SPECIAL NUT M8 HIT-932593.A1 932593	-
87A - BOLT WASHER M8 (10 PCS.) HIT-949433.A34 949433	£1.67	£2.00
88 - PIN HIT-951534.A1 951534	-
89 - INDICATOR (B) HIT-950088.A1 950088	-
90A - MACHINE SCREW M5X16 (10 PCS.) HIT-949239.A5 949239	£1.67	£2.00
91 - GEAR SHAFT HIT-950125.A1 950125	-
92A - MACHINE SCREW M6X16 (10 PCS.) HIT-949256.A20 949256	£1.67	£2.00
93 - HANDLE (B) HIT-305661.A1 305661	-
94 - COLUMN HIT-000000.A3030 000000	-
95 - RACK HIT-950121.A0 950121	-
96 - ROLL PIN D6X40 (10 PCS.) HIT-949686.A12 949686	£8.48	£10.18
100 - CORD LOCK (NC-1) FOR HOL HIT-974265.A1 974265	-
103 - SWITCH NAME PLATE (B) HIT-000000.A3031 000000	-
104 - SWITCH NAME PLATE (C) HIT-000000.A3033 000000	-
105 - MOTOR COVER (A) FOR HOL HIT-310169.A0 310169	-
106 - MOTOR COVER (B) FOR HOL HIT-310170.A0 310170	-
107 - PACKING (A) FOR HOL HIT-307438.A0 307438	-
108 - PLATE HIT-323094.A0 323094	-
109 - MACHINE SCREW M5X12 (10 PCS.) HIT-949237.A10 949237	£1.67	£2.00
110 - SPRING WASHER M5 (10 PCS.) HIT-949454.A39 949454	£1.67	£2.00
111 - WASHER M5 (10 PCS.) HIT-949424.A17 949424	£1.67	£2.00
