Hitachi / Hikoki A25EB Engine Pump Spare Parts

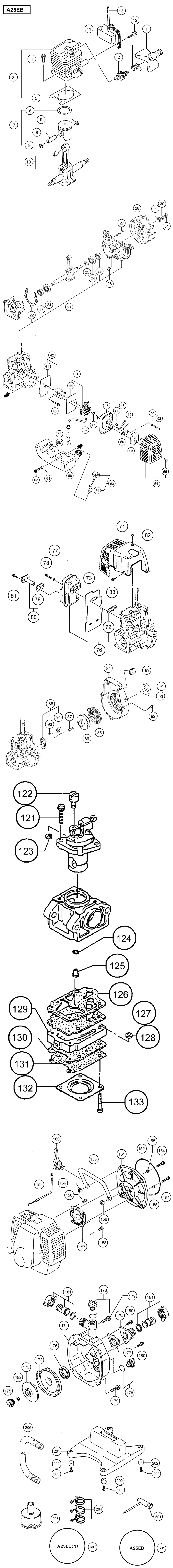

An exploded diagram and spare parts listing for the Hitachi / Hikoki A25EB Engine Pump

	Ex VAT	Inc VAT
1 - SPARK PLUG CAP HIT-6687476.A12 6687476	-
2 - SPARK PLUG ASS'Y BPMR7A HIT-6699320.A16 6699320	-
3 - CYLINDER ASS'Y HIT-6685480.A8 6685480	£47.88	£57.46
4 - HEX.HOLE BOLT M5X20/S HIT-6684668.A69 6684668	-
5 - CYLINDER GASKET HIT-6685744.A13 6685744	£1.67	£2.00
6 - PISTON RING HIT-6686118.A15 6686118	£6.94	£8.33
7 - PISTON SET HIT-6685892.A1 6685892	£33.09	£39.71
8 - PISTON PIN HIT-6696944.A24 6696944	£5.61	£6.73
9 - PISTON PIN CIRCLIP HIT-6686028.A7 6686028	-
10 - CRANK SHAFT COMP. HIT-6686206.A0 6686206	-
11 - IGNITION COIL COMP HIT-6695939.A6 6695939	£34.64	£41.57
12 - HIGH TENSION SCREW 4X18WS HIT-6695407.A15 6695407	-
13 - INSULATOR TUBE 50L HIT-6684597.A5 6684597	-
21 - CRANK CASE ASS'Y HIT-6686576.A0 6686576	-
22 - CRANK CASE GASKET HIT-6686720.A10 6686720	-
23 - OIL SEAL TB 12227 HIT-6684607.A112 6684607	£4.07	£4.88
24 - BALL BEARING 6001 C3 HIT-6684608.A88 6684608	£5.70	£6.84
*25 - GEAR SHAFT SHIM 0.20 HIT-6684604.A22 6684604	-
*25 - GEAR SHAFT SHIM 0.30 HIT-6684605.A59 6684605	-
27 - HEX. SOCKET HD. BOLT M5X30 S HIT-6684786.A22 6684786	£1.67	£2.00
28 - MAGNETO ROTOR COMP. HIT-6687389.A7 6687389	-
29 - BOLT WASHER M8 HIT-6684611.A36 6684611	-
30 - S.WASHER 8 HIT-6684971.A5 6684971	-
31 - HEX. NUT M8 HIT-6684612.A89 6684612	-
41 - INTAKE PIPE GASKET HIT-6689891.A21 6689891	£3.38	£4.06
42 - CARB. INSULATOR SET 1 HIT-6689966.A13 6689966	£13.22	£15.87
43 - MACHINE SCREW (W/WASHERS) M5X25 (BLACK) HIT-6696988.A15 6696988	-
44 - CARBURETOR GASKET HIT-6689839.A3 6689839	£2.98	£3.57
45 - O-RING P-15 HIT-6698966.A16 6698966	£1.67	£2.00
46 - CLEANER BODY COMP. HIT-6690119.A11 6690119	£8.95	£10.74
47 - COLLAR 7.5 HIT-6690804.A6 6690804	£1.67	£2.00
48 - CHOKE VALVE HIT-6691272.A8 6691272	£1.67	£2.00
49 - WAVE WASHER 8 HIT-6684658.A46 6684658	£1.67	£2.00
50 - BLOW OVER CHECK BOARD HIT-6690843.A10 6690843	£1.67	£2.00
51 - S.WASHER 5 HIT-6684662.A90 6684662	£1.67	£2.00
52 - SCREW M5X60 HIT-6684660.A28 6684660	-
53 - CLEANER SPONGE HIT-6690364.A14 6690364	£1.67	£2.00
54 - CLEANER COVER ASS'Y HIT-6690415.A4 6690415	£5.70	£6.84
55 - SPECIAL SCREW HIT-6689737.A15 6689737	-
56 - CARBURETOR SET WYL81 HIT-6690483.A1 6690483	-
57 - SHIELD TUBE HIT-6685247.A7 6685247	£4.32	£5.19
58 - CLIP D6 HIT-6685198.A58 6685198	-
59A - PUMP FILTER BODY COMP HIT-66A3864.A69 66A3864	-
60 - FUEL TANK 1 HIT-6691569.A1 6691569	£11.12	£13.35
61 - COLLAR 5.8 HIT-6692244.A31 6692244	£1.67	£2.00
62 - HEX. HOLE BOLT 5X18PS HIT-6695505.A3 6695505	-
63 - TANK CAP D ASS'Y 1 HIT-6691763.A6 6691763	£13.46	£16.15
64 - TANK CAP CHAIN HIT-6684625.A21 6684625	-
71 - MUFFLER PROTECTOR HIT-6692796.A1 6692796	£12.98	£15.57
72 - MUFFLER GASKET HIT-6692744.A0 6692744	£1.67	£2.00
73 - HEAT SHIELD HIT-6687252.A1 6687252	£2.82	£3.39
76 - MUFFLER SET HIT-6692478.A0 6692478	-
77 - WASHER 5 HIT-6684661.A6 6684661	£1.67	£2.00
78 - HEX. SOCKET HD. BOLT M5X50 HIT-6685114.A30 6685114	£1.67	£2.00
79 - MUFFLER SPECIAL GASKET HIT-6692883.A17 6692883	-
80 - TALE PIPE SET HIT-6692663.A1 6692663	-
81 - SCREW 4X8/S HIT-6695325.A13 6695325	-
82 - TAPPING SCREW D4.5X16 HIT-6684636.A34 6684636	£1.67	£2.00
83 - BOLT 4X12PS HIT-6695441.A21 6695441	-
84 - FANCASE COMP. 1 HIT-6687012.A1 6687012	£28.22	£33.86
85 - RECOIL SPRING HIT-6684675.A13 6684675	£8.82	£10.58
86 - STARTER ROPE REEL HIT-6693066.A7 6693066	£5.17	£6.20
87 - SET SCREW HIT-6693633.A8 6693633	£1.67	£2.00
88 - STARTER PULLEY ASS'Y HIT-6693405.A11 6693405	£7.75	£9.30
89 - GROMMET HIT-6688050.A16 6688050	£1.67	£2.00
90 - ROPE HIT-6693168.A44 6693168	£2.82	£3.39
91 - STARTER HANDLE HIT-6693237.A27 6693237	£4.55	£5.46
92 - SCREW 4X16/PS HIT-6695374.A0 6695374	£1.67	£2.00
93 - STARTER PAWL SPRING HIT-6684684.A15 6684684	£3.29	£3.95
94 - STARTER PAWL HIT-6693319.A2 6693319	£3.29	£3.95
121 - THROTTLE SET SCREW HIT-6684698.A9 6684698	-
122 - SWIVEL HIT-6684697.A145 6684697	-
123 - STOP RING HIT-6684696.A16 6684696	-
124 - O-RING HIT-6684695.A178 6684695	£1.67	£2.00
125 - MAIN JET #40 HIT-6691845.A3 6691845	-
126 - PUMP GASKET HIT-6691457.A32 6691457	£8.48	£10.18
127 - PUMP DIAPHRAGM HIT-6684693.A15 6684693	£5.70	£6.84
128 - INLET SCREEN HIT-6684700.A9 6684700	-
129 - PUMP BODY COMP. HIT-6691432.A7 6691432	-
130 - DIAPHRAGM PACKING-METERING HIT-6685220.A62 6685220	£2.81	£3.37
131 - METERING DIAPHRAGM COMP. HIT-6690827.A66 6690827	£14.02	£16.83
132 - DIAPHRAGM COVER-METERING HIT-6685222.A117 6685222	£5.70	£6.84
133 - SET SCREW HIT-6691312.A62 6691312	-
151 - END PLATE A HIT-6688640.A1 6688640	-
152 - O-RING G140 HIT-6695688.A0 6695688	-
153 - HANDLE A HIT-6686732.A2 6686732	-
154 - BOLT 5X25 HIT-6694976.A1 6694976	-
155 - WASHER A HIT-6689684.A2 6689684	-
156 - FLANGE NUT 8 HIT-6695171.A2 6695171	-
157 - COUPLING FLANGE HIT-6689247.A0 6689247	-
158 - SCREW 6X16/S HIT-6695358.A0 6695358	-
159 - THROTTLE WIRE COMP. 4T HIT-6693909.A3 6693909	-
160 - THROTTLE LEVER 1 HIT-6693683.A3 6693683	-
171 - CASING A HIT-6689180.A2 6689180	£81.32	£97.59
172 - VOLUTE CHAMBER A HIT-6689002.A2 6689002	-
173 - IMPELLER A HIT-6685958.A2 6685958	-
174 - SUCTION PLATE A HIT-6689132.A2 6689132	£15.03	£18.04
175 - MECHANICAL SEAL ASS'Y A HIT-6687496.A0 6687496	-
176 - VOLUTE CHAMBER GASKET A HIT-6689039.A0 6689039	-
177 - SUCTION PLATE PACKING HIT-6689535.A0 6689535	£18.04	£21.65
178 - PRIMING PLUG ASS'Y HIT-6689660.A0 6689660	-
179 - FLANGE BOLT 8X35 HIT-6695480.A2 6695480	-
180 - FLANGE BOLT 6X16 HIT-6695477.A2 6695477	-
181 - WATER COUPLING ASS'Y A HIT-6686258.A2 6686258	£25.96	£31.15
182 - IMPELLER SHAFT SHIM A 0.3 HIT-6685978.A3 6685978	-
201 - BED A HIT-6686629.A0 6686629	-
202 - CUSHION RUBBER A HIT-6689060.A2 6689060	-
203 - TAPPING SCREW 5X14 HIT-6695251.A2 6695251	-
204 - WIRE BAND 33 HIT-6687218.A3 6687218	-
205 - FILTER COMP. A HIT-6686782.A1 6686782	-
206 - SUCTION HOSE A 3M EXCEPT FOR A25EB(N) HIT-6687937.A0 6687937	-
501 - COMBI BOX SPANNER 13X19 PLUS HIT-6684979.A5 6684979	-
601 - NAME PLATE A25EB HIT-6695731.A0 6695731	-
602 - NAME PLATE A25EB(N) HIT-6695730.A0 6695730	-

Attribute Name	Value
Brand	Hikoki
