Bosch GHP 5-65 X / 3600J10600 / EU 230 Volt Spare Parts

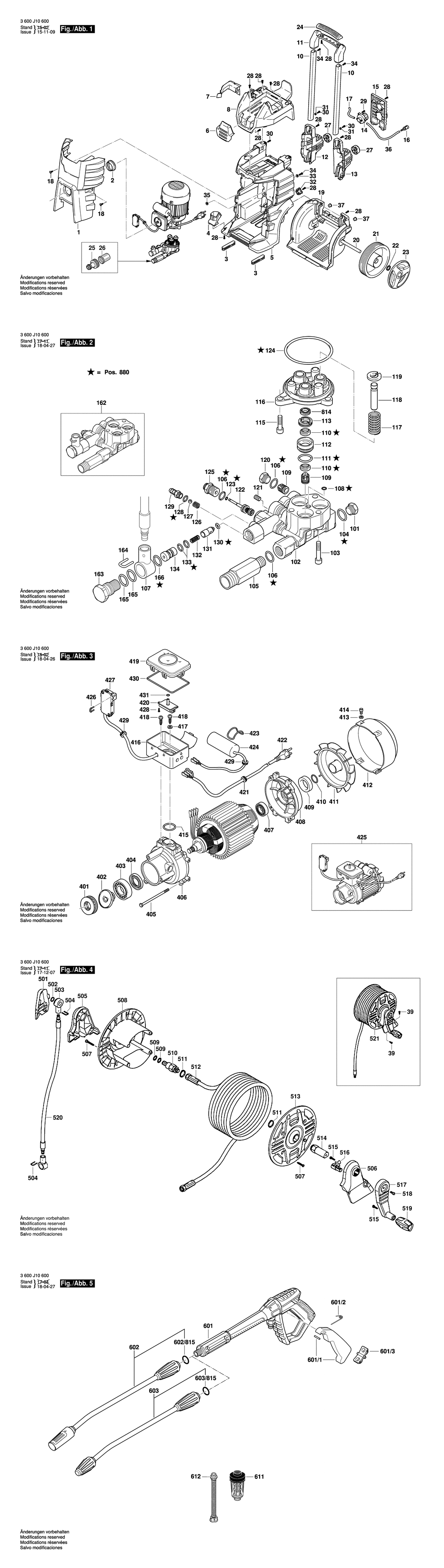

An exploded drawing and listing for the Bosch GHP 5-65 X / 3600J10600 / EU 230 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-F016L73355.A1 F016L73355	£23.86	£28.63
2 - KNOB BSD-F016L72008.A7 F016L72008	£5.30	£6.36
3 - RUBBER BASE BSD-F016L73028.A4 F016L73028	£8.67	£10.41
4 - ACCESSORY DEPOSIT BSD-F016L73029.A7 F016L73029	£7.36	£8.83
5 - HOUSING BSD-F016L73030.A4 F016L73030	£48.38	£58.06
6 - COVER BSD-F016L73031.A7 F016L73031	£7.36	£8.83
7 - ACCESSORY DEPOSIT BSD-F016L73032.A4 F016L73032	£5.30	£6.36
8 - HOUSING PART BSD-F016L73033.A7 F016L73033	£21.68	£26.01
10 - ROD BSD-F016L73356.A1 F016L73356	£16.41	£19.69
11 - HANDLE BSD-F016L73036.A8 F016L73036	£14.91	£17.89
12 - ACCESSORY DEPOSIT BSD-F016L73037.A3 F016L73037	£13.12	£15.75
13 - ACCESSORY DEPOSIT BSD-F016L73038.A8 F016L73038	£12.04	£14.45
14 - ADJUSTMENT KNOB BSD-F016L73039.A3 F016L73039	£8.67	£10.41
15 - COVER PLATE BSD-F016L73040.A8 F016L73040	£12.04	£14.45
16 - WATER FILTER BSD-F016L73041.A3 F016L73041	£8.67	£10.41
17 - SUCTION PIPE BSD-F016L73239.A6 F016L73239	£3.72	£4.47
18 - SCREW BSD-F016L73053.A13 F016L73053	£1.75	£2.10
19 - HOUSING BSD-F016L73044.A8 F016L73044	£21.68	£26.01
20 - WHEEL SHAFT BSD-F016L73045.A3 F016L73045	£12.04	£14.45
21 - WHEEL BSD-F016L73046.A8 F016L73046	£21.52	£25.83
22 - PLAIN WASHER BSD-F016L73047.A3 F016L73047	£2.80	£3.36
23 - COVER BSD-F016L73048.A8 F016L73048	£12.04	£14.45
24 - SAFETY COVER BSD-F016L72122.A7 F016L72122	£11.30	£13.56
25 - ADAPTER BSD-F016L72010.A10 F016L72010	£2.80	£3.36
26 - FILTER BSD-F016L73591.A4 F016L73591	£2.16	£2.59
27 - RUBBER BASE BSD-F016L72119.A7 F016L72119	£7.36	£8.83
28 - SCREW BSD-F016L72012.A7 F016L72012	£1.75	£2.10
29 - SCREW BSD-F016L72187.A1 F016L72187	£1.75	£2.10
30 - PLASTIC-CUTTING SCREW BSD-F016L73337.A4 F016L73337	£1.75	£2.10
31 - PLAIN WASHER BSD-F016L73051.A3 F016L73051	£3.72	£4.47
32 - GROMMET BSD-F016L72109.A3 F016L72109	£1.75	£2.10
33 - PLAIN WASHER BSD-F016L72120.A7 F016L72120	£2.61	£3.13
34 - SCREW BSD-F016L73711.A7 F016L73711	£1.75	£2.10
35 - VIBRATION DAMPER BSD-F016L73100.A4 F016L73100	£2.61	£3.13
36 - SUCTION PIPE BSD-F016L73338.A7 F016L73338	£5.30	£6.36
37 - PLUG BSD-F016L73278.A1 F016L73278	£1.75	£2.10
39 - SCREW BSD-F016L73710.A0 F016L73710	£1.75	£2.10
101 - PLUG BSD-F016L72124.A4 F016L72124	£6.52	£7.83
102 - PUMP HEAD BSD-F016L73054.A3 F016L73054	£33.74	£40.49
103 - SCREW BSD-F016L72126.A7 F016L72126	£2.16	£2.59
104 - O-RING BSD-F016L72035.A19 F016L72035	£1.75	£2.10
105 - ADAPTER BSD-F016F04381.A7 F016F04381	£18.96	£22.75
106 - O-RING BSD-F016L72014.A15 F016L72014	£1.75	£2.10
107 - ADAPTER BSD-F016L73357.A5 F016L73357	£21.52	£25.83
108 - O-RING BSD-F016L73055.A2 F016L73055	£1.75	£2.10
109 - VALVE BSD-F016L72129.A7 F016L72129	£8.67	£10.41
110 - SEAL BSD-F016L72130.A7 F016L72130	£4.26	£5.11
111 - O-RING BSD-F016L72131.A7 F016L72131	£1.75	£2.10
112 - BUSHING BSD-F016L72132.A7 F016L72132	£12.04	£14.45
113 - BUSHING BSD-F016L72133.A7 F016L72133	£7.36	£8.83
115 - SCREW BSD-F016L72134.A7 F016L72134	£2.80	£3.36
116 - PISTON GUIDE BSD-F016L73057.A3 F016L73057	£16.41	£19.69
117 - SPRING BSD-F016L72136.A3 F016L72136	£5.30	£6.36
118 - PISTON 3 StÃ¼ck BSD-F016F04323.A7 F016F04323	£18.96	£22.75
119 - WOBBLE PLATE BSD-F016L72137.A11 F016L72137	£2.61	£3.13
120 - PLUG BSD-F016L72138.A3 F016L72138	£7.36	£8.83
121 - SCREW BSD-F016L73058.A4 F016L73058	£8.67	£10.41
122 - SPRING BSD-F016L72140.A6 F016L72140	£23.86	£28.63
123 - O-RING BSD-F016L72065.A9 F016L72065	£1.75	£2.10
124 - O-RING BSD-F016L72141.A7 F016L72141	£1.75	£2.10
125 - ADAPTER BSD-F016L72142.A6 F016L72142	£12.04	£14.45
126 - SPRING BSD-F016L72072.A12 F016L72072	£1.75	£2.10
127 - BALL BSD-F016L72073.A5 F016L72073	£1.75	£2.10
128 - O-RING BSD-F016L72074.A21 F016L72074	£1.75	£2.10
129 - NIPPLE BSD-F016L72143.A7 F016L72143	£6.52	£7.83
130 - O-RING BSD-F016L73059.A3 F016L73059	£2.61	£3.13
131 - VALVE INSERT BSD-F016L72018.A11 F016L72018	£10.10	£12.12
132 - SPRING BSD-F016L72017.A5 F016L72017	£2.16	£2.59
133 - O-RING BSD-F016L72016.A11 F016L72016	£1.75	£2.10
134 - INJECTOR BSD-F016L73358.A0 F016L73358	£13.12	£15.75
162 - PUMP HEAD BSD-F016L73359.A3 F016L73359	£120.11	£144.13
163 - PLUG BSD-F016L73361.A3 F016L73361	£18.96	£22.75
164 - CLAMP BSD-F016L73360.A0 F016L73360	£5.58	£6.70
165 - O-RING BSD-F016L72219.A1 F016L72219	£1.75	£2.10
166 - O-RING BSD-F016L73709.A5 F016L73709	£1.75	£2.10
401 - BALL BEARING BSD-F016L72144.A7 F016L72144	£16.41	£19.69
402 - WOBBLE PLATE BSD-F016L72145.A1 F016L72145	£14.91	£17.89
403 - BALL BEARING BSD-F016L72146.A7 F016L72146	£18.96	£22.75
404 - ROTARY SHAFT LIP SEAL BSD-F016L73063.A11 F016L73063	£5.58	£6.70
405 - SCREW BSD-F016L72148.A2 F016L72148	£2.80	£3.36
406 - PUMP HOUSING BSD-F016L73064.A0 F016L73064	£21.52	£25.83
407 - BALL BEARING BSD-F016L72150.A7 F016L72150	£12.04	£14.45
408 - COVER BSD-F016L72151.A7 F016L72151	£18.96	£22.75
409 - SEAL BSD-F016L72152.A7 F016L72152	£2.16	£2.59
410 - O-RING BSD-F016L72153.A7 F016L72153	£1.75	£2.10
411 - FAN BSD-F016L72154.A7 F016L72154	£10.10	£12.12
412 - AIR DUCT BSD-F016L73065.A11 F016L73065	£12.04	£14.45
413 - PLAIN WASHER BSD-F016L72156.A3 F016L72156	£1.75	£2.10
414 - SCREW BSD-F016L72157.A11 F016L72157	£1.75	£2.10
415 - O-RING BSD-F016L72158.A3 F016L72158	£1.75	£2.10
416 - HOUSING BSD-F016L72159.A11 F016L72159	£8.67	£10.41
417 - PLAIN WASHER BSD-F016L72160.A3 F016L72160	£1.75	£2.10
418 - SCREW BSD-F016L72161.A11 F016L72161	£1.75	£2.10
419 - COVER BSD-F016L73339.A4 F016L73339	£7.36	£8.83
420 - SWITCH BSD-F016L72087.A7 F016L72087	£16.41	£19.69
421 - GROMMET BSD-F016L72092.A13 F016L72092	£5.30	£6.36
422 - POWER SUPPLY CORD BSD-F016L73340.A3 F016L73340	£27.23	£32.68
423 - O-RING BSD-F016L72163.A3 F016L72163	£1.75	£2.10
424 - CONDENSER BSD-F016L72164.A7 F016L72164	£21.52	£25.83
425 - MOTOR BSD-F016L73280.A0 F016L73280	£357.27	£428.72
426 - CLAMP BSD-F016L72094.A6 F016L72094	£8.67	£10.41
427 - SWITCH BSD-F016L73067.A5 F016L73067	£13.12	£15.75
428 - SCREW BSD-F016L72086.A9 F016L72086	£1.75	£2.10
429 - GROMMET BSD-F016L72092.A14 F016L72092	£5.30	£6.36
430 - O-RING BSD-F016L72260.A1 F016L72260	£5.58	£6.70
431 - O-RING BSD-F016L73343.A4 F016L73343	£1.75	£2.10
501 - COVER BSD-F016L73367.A5 F016L73367	£5.30	£6.36
502 - RING BSD-F016L73368.A0 F016L73368	£1.75	£2.10
503 - ADAPTER BSD-F016L73369.A5 F016L73369	£21.52	£25.83
504 - CLAMP BSD-F016L73370.A0 F016L73370	£5.58	£6.70
505 - COVER BSD-F016L73371.A5 F016L73371	£11.30	£13.56
506 - COVER BSD-F016L73372.A0 F016L73372	£11.30	£13.56
507 - SCREW BSD-F016L73373.A5 F016L73373	£1.75	£2.10
508 - COVER BSD-F016L73374.A0 F016L73374	£16.41	£19.69
509 - O-RING BSD-F016L72101.A5 F016L72101	£1.75	£2.10
510 - ADAPTER BSD-F016L73375.A5 F016L73375	£21.52	£25.83
511 - RING BSD-F016L72286.A1 F016L72286	£1.75	£2.10
512 - HIGH-PRESSURE HOSE BSD-F016L73376.A0 F016L73376	£72.18	£86.62
513 - COVER BSD-F016L73377.A5 F016L73377	£14.91	£17.89
514 - HUB BSD-F016L73378.A0 F016L73378	£23.86	£28.63
515 - SCREW BSD-F016L73053.A14 F016L73053	£1.75	£2.10
516 - HOOK BSD-F016L72282.A1 F016L72282	£6.52	£7.83
517 - LEVER BSD-F016L73379.A5 F016L73379	£11.30	£13.56
518 - SCREW BSD-F016L72203.A2 F016L72203	£1.75	£2.10
519 - KNOB BSD-F016L73380.A0 F016L73380	£3.72	£4.47
520 - HIGH-PRESSURE HOSE BSD-F016L73381.A5 F016L73381	£21.52	£25.83
521 - HOSE REEL CARRIER BSD-F016L73382.A0 F016L73382	£195.26	£234.31
601 - HANDLE BSD-F016L73068.A5 F016L73068	£37.27	£44.72
601/1 - TRIGGER BSD-1619PA9742.A4 1619PA9742	£18.96	£22.75
601/2 - SPRING BSD-1619PA9743.A7 1619PA9743	£8.67	£10.41
601/3 - LOCK BSD-1619PA9744.A4 1619PA9744	£11.30	£13.56
602 - JET PIPE BSD-F016L73281.A2 F016L73281	£37.27	£44.72
602/815 - O-RING 9.5x1.5 BSD-1619PB2119.A0 1619PB2119	£2.16	£2.59
603 - JET PIPE BSD-F016L73282.A1 F016L73282	£63.50	£76.20
603/815 - O-RING 9.5x1.5 BSD-1619PB2119.A1 1619PB2119	£2.16	£2.59
611 - FILTER BSD-F016L73351.A7 F016L73351	£21.68	£26.01
612 - FILTER BSD-F016L73352.A4 F016L73352	£21.68	£26.01
814 - SEAL BSD-F016F04324.A8 F016F04324	£14.91	£17.89
880 - WEAR AND TEAR PART SET BSD-F016L73387.A3 F016L73387	£21.52	£25.83
