Bosch GHP 5-13 C / 3600J10000 / EU 230 Volt Spare Parts

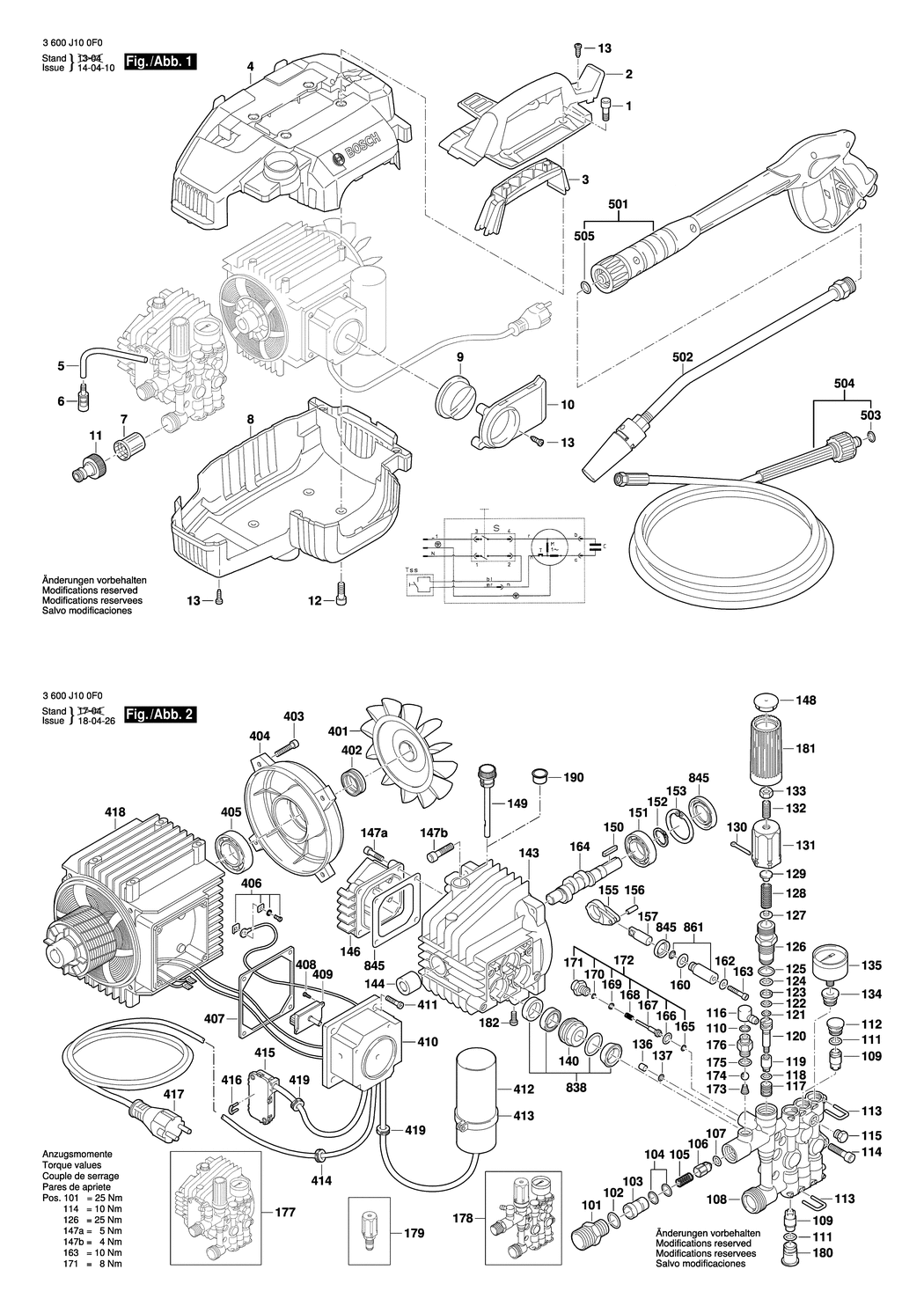

An exploded drawing and listing for the Bosch GHP 5-13 C / 3600J10000 / EU 230 Volt

	Ex VAT	Inc VAT
1 - SCREW BSD-F016L72000.A0 F016L72000	£1.75	£2.10
2 - HANDLE BSD-F016L72001.A1 F016L72001	£11.30	£13.56
3 - COVER BSD-F016L72002.A0 F016L72002	£8.67	£10.41
4 - HOUSING BSD-F016L72003.A1 F016L72003	£18.96	£22.75
5 - HOSE BSD-F016L72004.A0 F016L72004	£5.58	£6.70
6 - FILTER BSD-F016L72005.A1 F016L72005	£5.30	£6.36
7 - FILTER BSD-F016L73591.A17 F016L73591	£2.16	£2.59
8 - HOUSING BSD-F016L72007.A1 F016L72007	£18.96	£22.75
9 - KNOB BSD-F016L72008.A0 F016L72008	£5.30	£6.36
10 - SAFETY COVER BSD-F016L72009.A1 F016L72009	£8.49	£10.19
11 - ADAPTER BSD-F016L72010.A0 F016L72010	£2.80	£3.36
12 - SCREW BSD-F016L72011.A1 F016L72011	£1.75	£2.10
13 - SCREW BSD-F016L72012.A0 F016L72012	£1.75	£2.10
101 - ADAPTER BSD-F016F04380.A1 F016F04380	£16.41	£19.69
102 - O-RING BSD-F016L72014.A24 F016L72014	£1.75	£2.10
103 - INJECTOR BSD-F016L72015.A0 F016L72015	£12.04	£14.45
104 - O-RING BSD-F016L72016.A17 F016L72016	£1.75	£2.10
105 - SPRING BSD-F016L72017.A0 F016L72017	£2.16	£2.59
106 - VALVE INSERT BSD-F016L72018.A16 F016L72018	£10.10	£12.12
107 - O-RING BSD-F016L72019.A0 F016L72019	£1.75	£2.10
108 - PUMP HEAD BSD-F016L72020.A1 F016L72020	£93.88	£112.65
109 - VALVE BSD-F016L72021.A0 F016L72021	£5.30	£6.36
110 - O-RING BSD-F016L72022.A1 F016L72022	£1.75	£2.10
111 - O-RING BSD-F016L72023.A0 F016L72023	£1.75	£2.10
112 - PLUG BSD-F016L72024.A1 F016L72024	£7.36	£8.83
113 - RETAINING CLIP BSD-F016L72025.A0 F016L72025	£4.26	£5.11
114 - SCREW BSD-F016L72026.A1 F016L72026	£1.75	£2.10
115 - PLUG BSD-F016L72027.A0 F016L72027	£4.26	£5.11
116 - NIPPLE BSD-F016L72028.A1 F016L72028	£2.61	£3.13
117 - PLUG BSD-F016L72029.A0 F016L72029	£12.04	£14.45
118 - O-RING BSD-F016L72030.A18 F016L72030	£2.16	£2.59
119 - PISTON BSD-F016L72031.A0 F016L72031	£16.41	£19.69
120 - PISTON BSD-F016L72032.A6 F016L72032	£16.41	£19.69
121 - O-RING BSD-F016L72033.A0 F016L72033	£2.16	£2.59
122 - O-RING BSD-F016L72030.A19 F016L72030	£2.16	£2.59
123 - SPACER RING BSD-F016L72034.A7 F016L72034	£1.75	£2.10
124 - O-RING BSD-F016L72035.A0 F016L72035	£1.75	£2.10
125 - O-RING BSD-F016L72014.A23 F016L72014	£1.75	£2.10
126 - PISTON GUIDE BSD-F016L72036.A6 F016L72036	£18.96	£22.75
127 - WOBBLE PLATE BSD-F016L72037.A0 F016L72037	£4.26	£5.11
128 - SPRING BSD-F016L72038.A6 F016L72038	£5.30	£6.36
129 - WOBBLE PLATE BSD-F016L72039.A0 F016L72039	£2.16	£2.59
130 - PIN BSD-F016L72040.A7 F016L72040	£1.75	£2.10
131 - INSERT BSD-F016L72041.A0 F016L72041	£16.41	£19.69
132 - PLUG BSD-F016L72042.A7 F016L72042	£1.75	£2.10
133 - NUT BSD-F016L72043.A0 F016L72043	£1.75	£2.10
134 - PLUG BSD-F016L72044.A1 F016L72044	£16.41	£19.69
135 - PRESSURE GAUGE BSD-F016L72045.A0 F016L72045	£16.41	£19.69
136 - PLUG BSD-F016L72046.A1 F016L72046	£5.30	£6.36
137 - O-RING BSD-F016L72047.A0 F016L72047	£1.75	£2.10
140 - PISTON GUIDE BSD-F016L72048.A1 F016L72048	£8.67	£10.41
143 - PUMP UNIT BSD-F016L72049.A0 F016L72049	£54.42	£65.30
144 - BUSHING BSD-F016L72050.A1 F016L72050	£14.91	£17.89
146 - COVER BSD-F016L72051.A0 F016L72051	£13.12	£15.75
147 - SCREW BSD-F016L72052.A1 F016L72052	£1.75	£2.10
148 - PLUG BSD-F016L72053.A0 F016L72053	£1.75	£2.10
149 - PLUG BSD-F016L72054.A1 F016L72054	£11.30	£13.56
150 - KEY BSD-F016L72055.A0 F016L72055	£2.16	£2.59
151 - BALL BEARING BSD-F016L72056.A1 F016L72056	£12.04	£14.45
152 - RETAINING RING BSD-F016L72057.A0 F016L72057	£1.75	£2.10
153 - RETAINING RING BSD-F016L72058.A1 F016L72058	£2.80	£3.36
155 - CONNECTING ROD BSD-F016L72059.A0 F016L72059	£8.67	£10.41
156 - PIN BSD-F016L72060.A1 F016L72060	£1.75	£2.10
157 - PIN BSD-F016L72061.A0 F016L72061	£12.04	£14.45
160 - WASHER BSD-F016F04356.A1 F016F04356	£1.95	£2.34
162 - PLAIN WASHER BSD-F016L72062.A0 F016L72062	£1.75	£2.10
163 - SCREW BSD-F016L72063.A1 F016L72063	£2.16	£2.59
164 - CRANKSHAFT BSD-F016L72064.A0 F016L72064	£27.23	£32.68
165 - O-RING BSD-F016L72065.A1 F016L72065	£1.75	£2.10
166 - O-RING BSD-F016L72030.A20 F016L72030	£2.16	£2.59
167 - PIN BSD-F016L72066.A6 F016L72066	£11.30	£13.56
168 - SPRING BSD-F016L72067.A0 F016L72067	£2.80	£3.36
169 - PLAIN WASHER BSD-F016L72068.A6 F016L72068	£1.75	£2.10
170 - O-RING BSD-F016L72069.A0 F016L72069	£1.75	£2.10
171 - ADAPTER BSD-F016L72070.A6 F016L72070	£10.10	£12.12
172 - ADAPTER BSD-F016L72071.A0 F016L72071	£12.04	£14.45
173 - SPRING BSD-F016L72072.A17 F016L72072	£1.75	£2.10
174 - BALL BSD-F016L72073.A0 F016L72073	£1.75	£2.10
175 - O-RING BSD-F016L72074.A26 F016L72074	£1.75	£2.10
176 - ADAPTER BSD-F016L72075.A0 F016L72075	£16.41	£19.69
177 - PUMP BSD-F016F04328.A0 F016F04328	£458.51	£550.21
178 - PUMP HEAD BSD-F016F04329.A1 F016F04329	£283.50	£340.20
179 - VALVE BSD-F016F04330.A0 F016F04330	£45.67	£54.80
180 - PLUG BSD-F016L72076.A1 F016L72076	£11.30	£13.56
181 - ROTARY HANDLE BSD-F016L72077.A0 F016L72077	£3.72	£4.47
182 - SCREW BSD-F016L72078.A1 F016L72078	£5.30	£6.36
190 - PLUG BSD-1619PB2107.A0 1619PB2107	£1.75	£2.10
401 - FAN BSD-F016L72079.A0 F016L72079	£7.36	£8.83
402 - SEAL BSD-F016L72080.A1 F016L72080	£2.16	£2.59
403 - SCREW BSD-F016L72081.A0 F016L72081	£1.75	£2.10
404 - COVER BSD-F016L72082.A1 F016L72082	£18.96	£22.75
405 - BALL BEARING BSD-F016L72083.A0 F016L72083	£14.91	£17.89
406 - CLAMP BSD-F016L72084.A1 F016L72084	£4.26	£5.11
407 - SEAL BSD-F016L72085.A0 F016L72085	£3.34	£4.01
408 - SCREW BSD-F016L72086.A1 F016L72086	£1.75	£2.10
409 - SWITCH BSD-F016L72087.A15 F016L72087	£16.41	£19.69
410 - HOUSING BSD-F016L72088.A1 F016L72088	£7.78	£9.33
411 - SCREW BSD-F016L72089.A0 F016L72089	£1.75	£2.10
412 - CONDENSER BSD-F016L72090.A1 F016L72090	£18.96	£22.75
413 - CLAMP BSD-F016L72091.A0 F016L72091	£2.80	£3.36
414 - GROMMET BSD-F016L72092.A1 F016L72092	£5.30	£6.36
415 - ELECTRONIC MODULE BSD-F016L72093.A5 F016L72093	£21.52	£25.83
416 - CLAMP BSD-F016L72094.A1 F016L72094	£8.67	£10.41
417 - POWER SUPPLY CORD BSD-F016L72302.A2 F016L72302	£14.72	£17.67
418 - MOTOR BSD-F016F04335.A0 F016F04335	£458.51	£550.21
419 - GROMMET BSD-F016L72096.A6 F016L72096	£5.30	£6.36
501 - HANDLE BSD-F016L72097.A1 F016L72097	£45.67	£54.80
502 - JET PIPE BSD-F016L72098.A0 F016L72098	£48.38	£58.06
503 - O-RING BSD-F016L72099.A1 F016L72099	£1.75	£2.10
504 - HOSE 8 m BSD-F016F04475.A0 F016F04475	-
505 - O-RING BSD-F016L72101.A11 F016L72101	£1.75	£2.10
838 - SEAL BSD-F016F04320.A1 F016F04320	£21.52	£25.83
845 - SEAL BSD-F016F04321.A0 F016F04321	£14.91	£17.89
861 - PISTON 3 StÃ¼ck BSD-F016F04322.A1 F016F04322	£21.52	£25.83
