Bosch AQUATAK GO PLUS / 3600H76J30 / CH 230 Volt Spare Parts

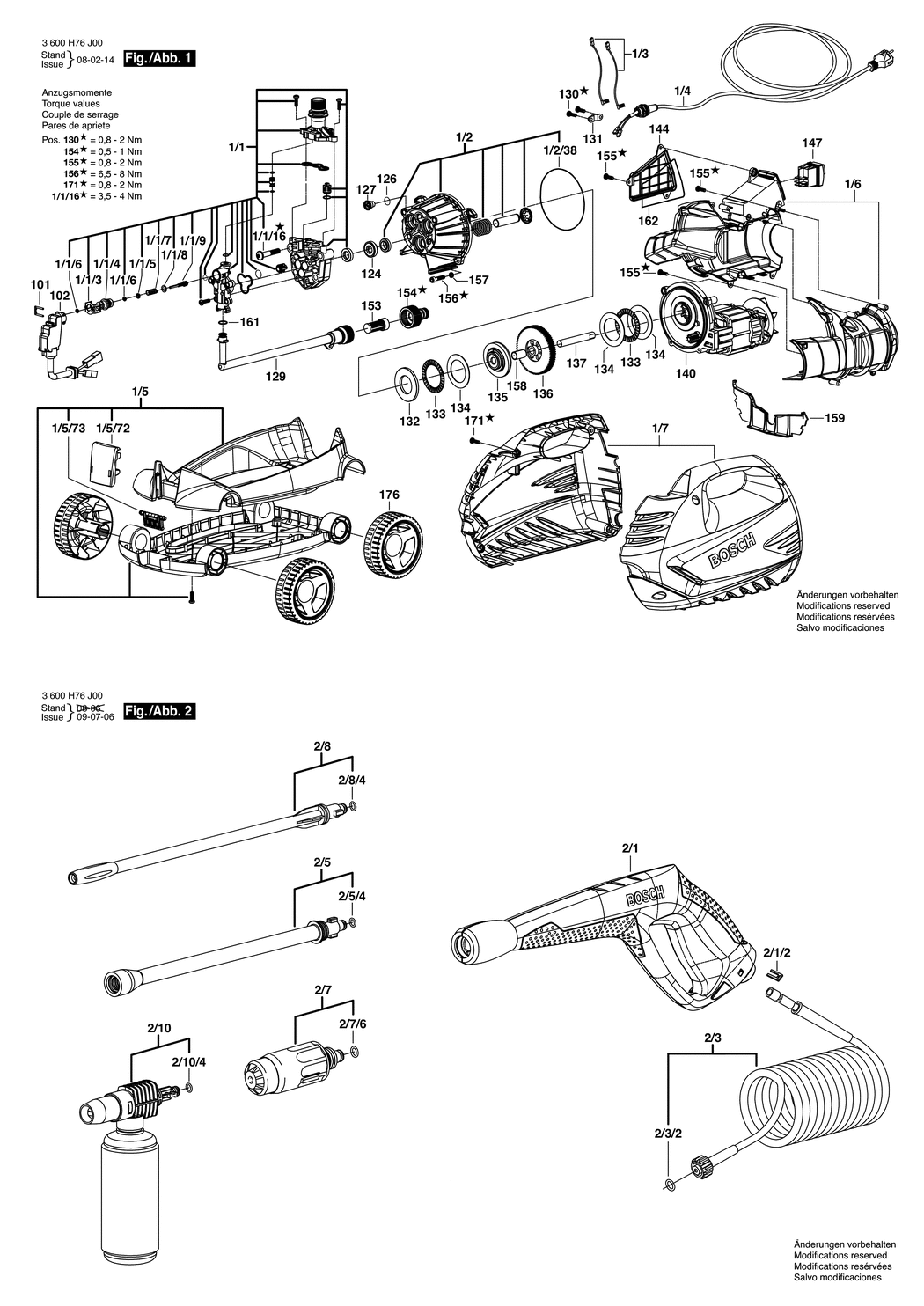

An exploded drawing and listing for the Bosch AQUATAK GO PLUS / 3600H76J30 / CH 230 Volt

	Ex VAT	Inc VAT
1/1 - CYLINDER HEAD BSD-F016F03855.A10 F016F03855	£36.62	£43.95
1/1/3 - CLAMPING PIECE BSD-F016F03864.A0 F016F03864	£1.32	£1.58
1/1/4 - NIPPLE BSD-F016F03865.A19 F016F03865	£1.75	£2.10
1/1/5 - SPACER BSD-F016F03866.A0 F016F03866	£1.32	£1.58
1/1/6 - O-RING BSD-F016F03867.A25 F016F03867	£1.32	£1.58
1/1/7 - COMPRESSION SPRING BSD-F016F03868.A0 F016F03868	£1.32	£1.58
1/1/8 - O-RING BSD-F016F03869.A11 F016F03869	£1.75	£2.10
1/1/9 - PISTON BSD-F016F03870.A0 F016F03870	£1.32	£1.58
1/1/16 - SCREW BSD-F016F03900.A0 F016F03900	£1.32	£1.58
1/2 - PUMP FLANGE BSD-F016F03856.A1 F016F03856	£21.52	£25.83
1/2/38 - O-RING BSD-F016F03901.A10 F016F03901	£1.32	£1.58
1/3 - CONNECTION CABLE BSD-F016F03857.A10 F016F03857	£3.72	£4.47
1/4 - CONNECTION CABLE BSD-F016F03895.A3 F016F03895	-
1/5 - TROLLEY BSD-F016F03859.A8 F016F03859	£14.91	£17.89
1/5/72 - FASTENING CLAMP BSD-F016F03902.A1 F016F03902	£1.32	£1.58
1/5/73 - HINGE PART BSD-F016F03903.A10 F016F03903	£1.32	£1.58
1/6 - FAN HOUSING BSD-F016F03861.A10 F016F03861	£7.36	£8.83
1/7 - HOUSING SET BSD-F016F03896.A0 F016F03896	£19.45	£23.34
2/1 - SPRAY GUN BSD-2609003235.A8 2609003235	£23.86	£28.63
2/1/2 - CLIP BSD-F016F03914.A1 F016F03914	£1.75	£2.10
2/3 - HIGH-PRESSURE HOSE BSD-2609003236.A3 2609003236	-
2/3/2 - O-RING BSD-F016F03509.A2 F016F03509	£1.75	£2.10
2/5 - EXTENSION TUBE BSD-F016F02932.A15 F016F02932	-
2/5/4 - O-RING BSD-F016F03541.A16 F016F03541	-
2/7 - NOZZLE BSD-F016F03898.A5 F016F03898	£13.12	£15.75
2/7/6 - O-RING BSD-F016F03887.A14 F016F03887	£1.75	£2.10
2/8 - JET PIPE BSD-F016F03892.A2 F016F03892	-
2/8/4 - O-RING BSD-F016F03541.A11 F016F03541	-
2/10 - FOAM SPRAY DEVICE BSD-F016F03893.A9 F016F03893	£7.78	£9.33
2/10/4 - O-RING BSD-F016F03541.A12 F016F03541	-
101 - HOOK BSD-F016F03862.A2 F016F03862	£1.75	£2.10
102 - MICROSWITCH BSD-F016F03863.A17 F016F03863	£10.82	£12.99
124 - BUSHING BSD-F016F03871.A9 F016F03871	£2.16	£2.59
126 - O-RING BSD-F016F03873.A9 F016F03873	£1.32	£1.58
127 - OIL DRAIN PLUG BSD-F016F03872.A1 F016F03872	£1.75	£2.10
129 - SUCTION PIPE BSD-F016F03874.A1 F016F03874	£3.34	£4.01
130 - SCREW 4.2x13 BSD-F016F03006.A15 F016F03006	£1.75	£2.10
131 - O-RING BSD-F016F03761.A10 F016F03761	£1.75	£2.10
132 - WASHER BSD-F016F03875.A9 F016F03875	£2.52	£3.02
133 - BEARING BSD-F016F03876.A2 F016F03876	£2.61	£3.13
134 - WASHER BSD-F016F03877.A9 F016F03877	£1.75	£2.10
135 - WOBBLE PLATE BSD-F016F03878.A2 F016F03878	£3.72	£4.47
136 - CONVERSION GEAR BSD-F016F03879.A9 F016F03879	£6.61	£7.93
137 - PIN BSD-F016F03880.A2 F016F03880	£1.75	£2.10
140 - CONNECTING FLANGE BSD-F016F03881.A9 F016F03881	£33.45	£40.14
144 - COVER BSD-F016F03882.A2 F016F03882	£2.33	£2.80
147 - ON-OFF SWITCH BSD-F016F03883.A9 F016F03883	£2.33	£2.80
153 - FILTER BSD-F016F03884.A2 F016F03884	£1.75	£2.10
154 - THREADED CONNECTION BSD-F016F03359.A48 F016F03359	£3.34	£4.01
155 - SCREW 4x16 BSD-F016F03079.A12 F016F03079	£1.32	£1.58
156 - SCREW M5x20 BSD-F016F03022.A12 F016F03022	£1.75	£2.10
157 - WASHER BSD-F016F03490.A3 F016F03490	-
158 - BUSHING BSD-F016F03885.A10 F016F03885	£1.32	£1.58
159 - COVER BSD-F016F03886.A1 F016F03886	£1.75	£2.10
161 - O-RING BSD-F016F03887.A13 F016F03887	£1.75	£2.10
162 - MAT SEAL BSD-F016F03888.A1 F016F03888	£1.32	£1.58
171 - SCREW BSD-F016F03768.A9 F016F03768	£1.32	£1.58
176 - ROLLER BSD-F016F03889.A10 F016F03889	£1.95	£2.34
