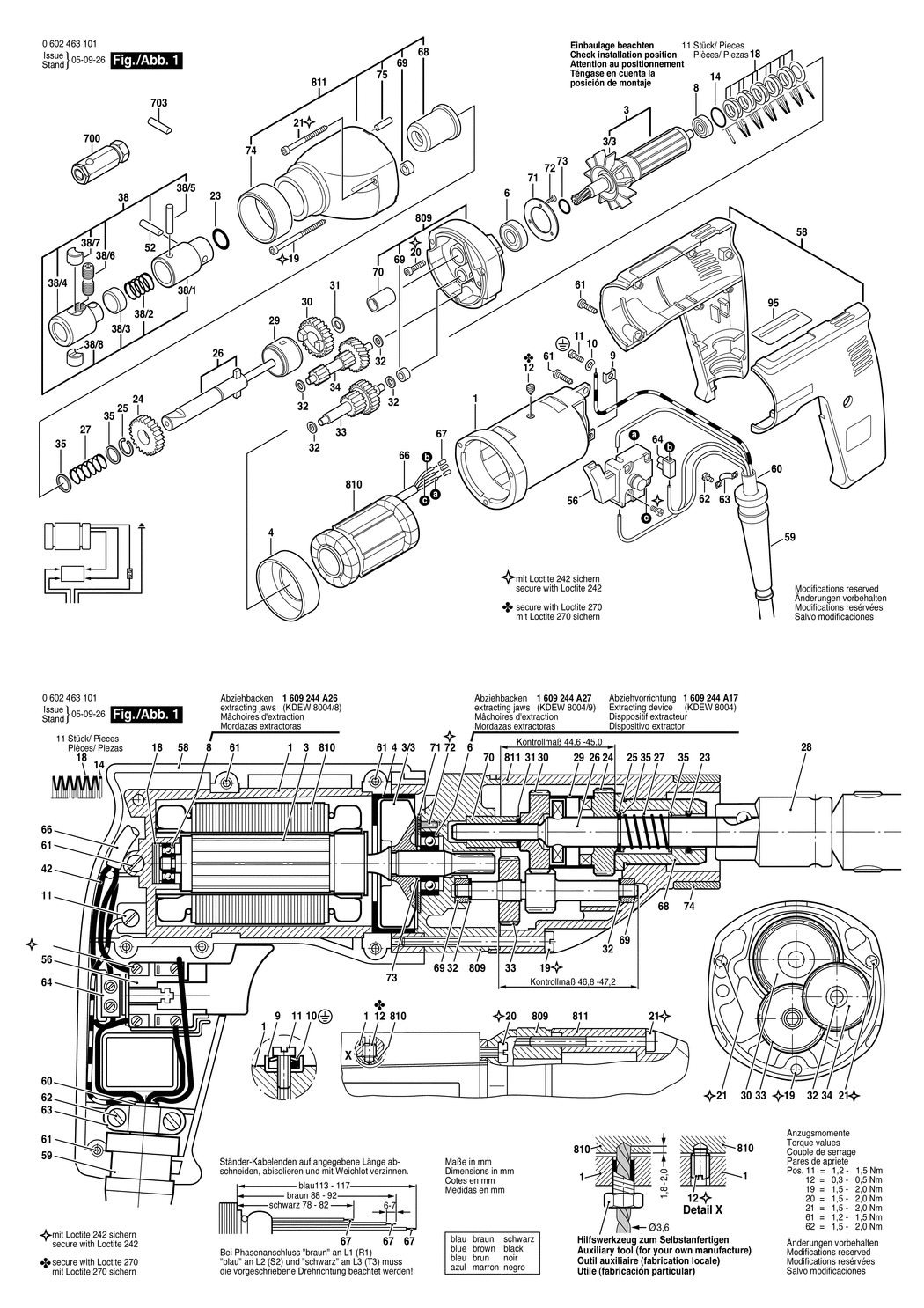

1 - MOTOR HOUSING
BSD-3605102044.A16
3605102044
|
£218.41
|
£262.09
|
|
|
3 - ROTOR
BSD-3604080020.A128
3604080020
|
-
|
|
|
|
3/3 - FAN
BSD-1606610105.A161
1606610105
|
£15.65
|
£18.78
|
|
|
4 - AIR-DEFLECTOR RING
BSD-1600502005.A159
1600502005
|
£2.61
|
£3.13
|
|
|
6 - GROOVE BALL BEARING 9x24x7
BSD-1610905011.A54
1610905011
|
£14.91
|
£17.89
|
|
|
8 - GROOVE BALL BEARING 625-2Z DIN 625
BSD-1900905015.A141
1900905015
|
£30.42
|
£36.51
|
|
|
9 - CLAMPING SADDLE
BSD-3601321001.A207
3601321001
|
£3.72
|
£4.47
|
|
|
10 - SPRING WASHER dia4.2 MM
BSD-3600150006.A373
3600150006
|
£2.74
|
£3.29
|
|
|
11 - PAN HEAD SCREW DIN 85-AM4x10-MS
BSD-2910110120.A360
2910110120
|
£1.84
|
£2.21
|
|
|
12 - SET SCREW
BSD-3603402000.A311
3603402000
|
£1.84
|
£2.21
|
|
|
14 - O-RING 12.0x2.25 MM
BSD-3600210039.A1
3600210039
|
£7.36
|
£8.83
|
|
|
18 - DISC SPRING
BSD-3600150013.A172
3600150013
|
£3.91
|
£4.69
|
|
|
19 - HEX SOCKET HEAD CAP SCREW
BSD-3603414001.A70
3603414001
|
-
|
|
|
|
20 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x12-8.8
BSD-2910141122.A231
2910141122
|
£2.27
|
£2.72
|
|
|
21 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x45-8.8
BSD-2910141140.A80
2910141140
|
£1.75
|
£2.10
|
|
|
23 - O-RING 12x2 MM
BSD-1900210009.A32
1900210009
|
-
|
|
|
|
24 - CYLINDRICAL GEAR Z=40
BSD-1606325010.A6
1606325010
|
-
|
|
|
|
25 - RETAINING RING
BSD-1600224025.A5
1600224025
|
£2.61
|
£3.13
|
|
|
26 - DRIVE SHAFT
BSD-2603124066.A6
2603124066
|
-
|
|
|
|
27 - COMPRESSION SPRING
BSD-2604630000.A24
2604630000
|
-
|
|
|
|
29 - SPACER BUSHING
BSD-2600400023.A22
2600400023
|
-
|
|
|
|
30 - CYLINDRICAL GEAR Z=37
BSD-1606325011.A0
1606325011
|
-
|
|
|
|
31 - SHIM 0.5 MM
BSD-1600100631.A18
1600100631
|
£1.75
|
£2.10
|
|
|
32 - SHIM 0.50 MM
BSD-2600100613.A130
2600100613
|
£1.75
|
£2.10
|
|
|
33 - SPINDLE WITH GEAR Z=18/35
BSD-1606328092.A6
1606328092
|
-
|
|
|
|
34 - SPINDLE WITH GEAR Z=11/12/34
BSD-1606328093.A0
1606328093
|
-
|
|
|
|
35 - PLAIN WASHER
BSD-2600101513.A18
2600101513
|
£1.75
|
£2.10
|
|
|
38 - TWO-JAW DRILL JUCK M4-M12
BSD-2608573000.A12
2608573000
|
£134.16
|
£160.99
|
|
|
38/1 - CARRIER
BSD-1600328021.A5
1600328021
|
£71.84
|
£86.21
|
|
|
38/2 - COMPRESSION SPRING
BSD-1604617002.A6
1604617002
|
£2.94
|
£3.53
|
|
|
38/3 - SPRING RETAINER
BSD-1600506000.A4
1600506000
|
£8.49
|
£10.19
|
|
|
38/4 - CARRIER
BSD-1603219006.A5
1603219006
|
£121.96
|
£146.35
|
|
|
38/5 - STRAIGHT PIN
BSD-1613100012.A99
1613100012
|
£2.61
|
£3.13
|
|
|
38/6 - STUD BOLT
BSD-1603502000.A28
1603502000
|
£22.60
|
£27.12
|
|
|
38/7 - CLAMPING JAWS M 12x1.5
BSD-1600390002.A4
1600390002
|
-
|
|
|
|
38/8 - CLAMPING JAWS M 12x1.5
BSD-1600390003.A29
1600390003
|
-
|
|
|
|
52 - GRIPPING WEDGE 5x18 MM
BSD-3603111003.A2
3603111003
|
£6.52
|
£7.83
|
|
|
52 - GRIPPING WEDGE dia 5x18 MM/3.0 MM
BSD-1603110003.A12
1603110003
|
-
|
|
|
|
52 - GRIPPING WEDGE dia 5x18 MM/3.3 MM
BSD-1603110004.A4
1603110004
|
-
|
|
|
|
56 - SWITCH
BSD-3607200003.A30
3607200003
|
£28.59
|
£34.31
|
|
|
58 - HANDLE
BSD-3605132039.A0
3605132039
|
-
|
|
|
|
59 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A385
3600703011
|
£2.94
|
£3.53
|
|
|
60 - ELEC. CABLE W/CONNECTION
BSD-3604462050.A60
3604462050
|
£28.59
|
£34.31
|
|
|
61 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A239
2603490023
|
£1.84
|
£2.21
|
|
|
62 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8
BSD-2910021116.A718
2910021116
|
£2.27
|
£2.72
|
|
|
63 - FASTENING CLAMP
BSD-1601302014.A133
1601302014
|
£2.74
|
£3.29
|
|
|
64 - SOCKET-TERMINAL STRIP 1x1.5 MM/2
BSD-1901091012.A81
1901091012
|
£5.57
|
£6.68
|
|
|
66 - SHRINKABLE TUBE
BSD-3600707032.A17
3600707032
|
£2.64
|
£3.17
|
|
|
67 - END SPLICE
BSD-3604477008.A356
3604477008
|
£1.75
|
£2.10
|
|
|
68 - BUSHING
BSD-2600322043.A24
2600322043
|
-
|
|
|
|
69 - BUSHING
BSD-2600300058.A30
2600300058
|
-
|
|
|
|
70 - BUSHING
BSD-3600328036.A28
3600328036
|
-
|
|
|
|
71 - RETAINING WASHER
BSD-3600190012.A130
3600190012
|
-
|
|
|
|
72 - COUNTERSUNK-HEAD SCREW DIN 963-M3x8-8.8
BSD-2910780050.A57
2910780050
|
-
|
|
|
|
73 - O-RING 8.0x1.0 MM
BSD-1600210045.A85
1600210045
|
£1.84
|
£2.21
|
|
|
74 - LOCATING RING
BSD-2600400026.A9
2600400026
|
-
|
|
|
|
75 - STRAIGHT PIN DIN 7-5h8x16-ST
BSD-2917500120.A6
2917500120
|
-
|
|
|
|
95 - NAMEPLATE
BSD-3601106053.A923
3601106053
|
£5.57
|
£6.68
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A783
3601119236
|
£3.91
|
£4.69
|
|
|
700 - TAP CHUCK
BSD-3608502000.A11
3608502000
|
-
|
|
|
|
703 - GRIPPING WEDGE dia 5x18 MM/3.6 MM
BSD-1603110000.A3
1603110000
|
-
|
|
|
|
809 - BEARING HOUSING
BSD-1605820179.A5
1605820179
|
-
|
|
|
|
810 - STATOR 200V/300HZ.135V/200HZ
BSD-1604229201.A40
1604229201
|
£431.32
|
£517.59
|
|
|
811 - GEAR HOUSING
BSD-2605806097.A13
2605806097
|
-
|
|
|
