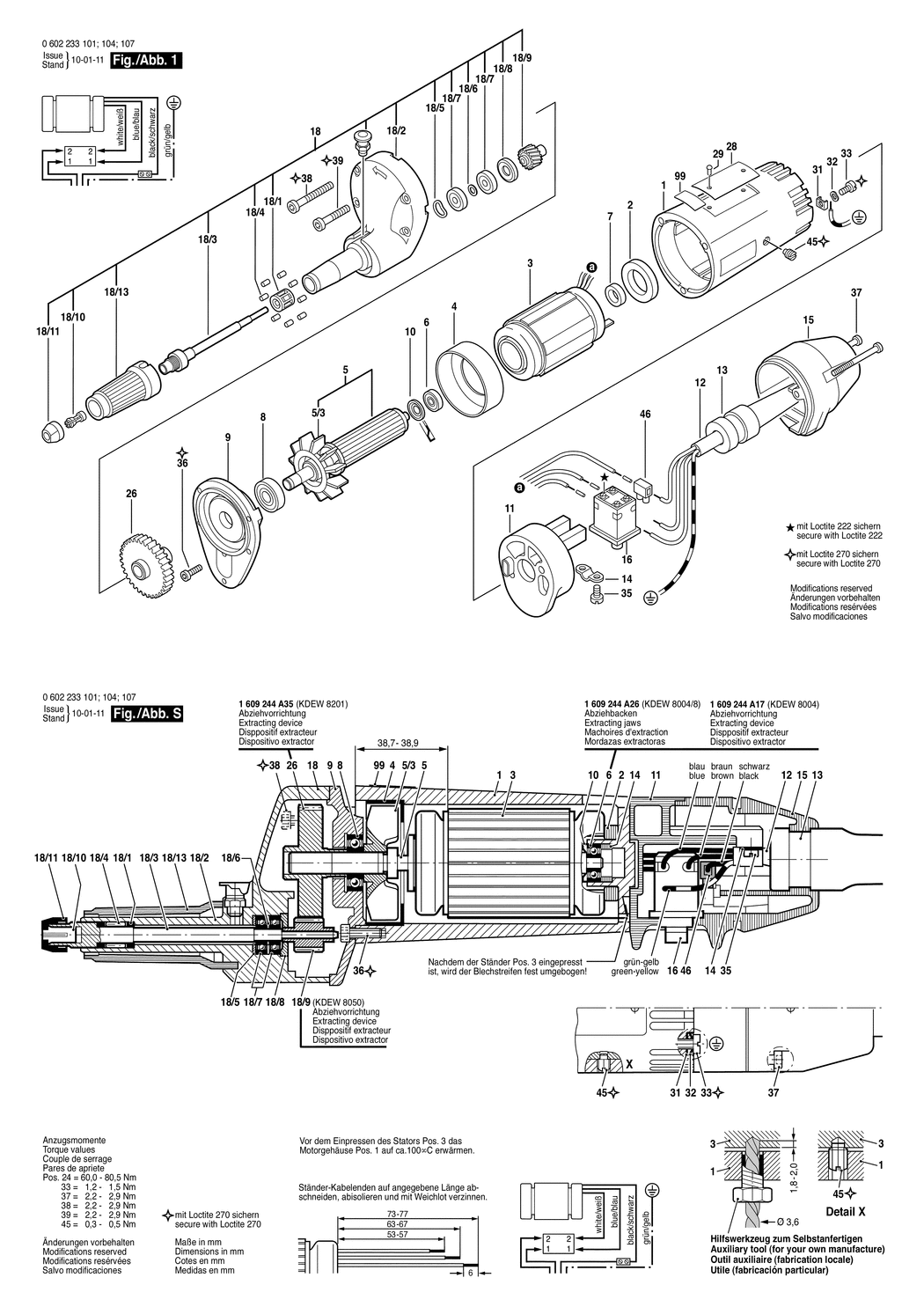

1 - MOTOR HOUSING
BSD-3605102058.A32
3605102058
|
£120.11
|
£144.13
|
|
|
2 - SEAL RING
BSD-1600209011.A94
1600209011
|
£2.80
|
£3.36
|
|
|
3 - STATOR 72V/200HZ.110V/300HZ
BSD-1604229202.A17
1604229202
|
£306.65
|
£367.98
|
|
|
4 - AIR-DEFLECTOR RING
BSD-1600502005.A319
1600502005
|
£2.61
|
£3.13
|
|
|
5 - ROTOR WITHOUT WINDING
BSD-3604080003.A35
3604080003
|
£179.37
|
£215.24
|
|
|
6 - GROOVE BALL BEARING 625-2Z DIN 625
BSD-1900905015.A345
1900905015
|
£30.42
|
£36.51
|
|
|
7 - RUBBER RING 6MM.dia12xdia16.4x3MM
BSD-3600206002.A70
3600206002
|
-
|
|
|
|
8 - GROOVE BALL BEARING 9x24x7
BSD-1900905017.A27
1900905017
|
£23.86
|
£28.63
|
|
|
9 - BEARING FLANGE
BSD-3605820059.A10
3605820059
|
£63.50
|
£76.20
|
|
|
10 - INTERMEDIATE RING
BSD-3600202008.A68
3600202008
|
£2.61
|
£3.13
|
|
|
11 - CONNECTION HOUSING
BSD-3600099004.A121
3600099004
|
£21.68
|
£26.01
|
|
|
12 - PVC-INSULATED CABLE
BSD-3604462052.A13
3604462052
|
£54.42
|
£65.30
|
|
|
13 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A1219
3600703011
|
£2.80
|
£3.36
|
|
|
14 - FASTENING CLAMP
BSD-1601302014.A729
1601302014
|
£2.61
|
£3.13
|
|
|
15 - SEALING CAP
BSD-3605500074.A22
3605500074
|
£21.68
|
£26.01
|
|
|
16 - SWITCH
BSD-3607200001.A16
3607200001
|
£68.42
|
£82.10
|
|
|
18 - GRINDING SPINDLE
BSD-1606120006.A2
1606120006
|
-
|
|
|
|
18/1 - CAGE
BSD-1600913000.A2
1600913000
|
-
|
|
|
|
18/2 - SPINDLE BEARING
BSD-1605806332.A1
1605806332
|
-
|
|
|
|
18/3 - DRILLING SPINDLE
BSD-1603523052.A1
1603523052
|
-
|
|
|
|
18/4 - ROLLER
BSD-1603201002.A1
1603201002
|
-
|
|
|
|
18/4 - ROLLER
BSD-1603201003.A1
1603201003
|
-
|
|
|
|
18/5 - SPRING WASHER
BSD-1600150003.A2
1600150003
|
-
|
|
|
|
18/6 - PLAIN WASHER
BSD-3600100003.A6
3600100003
|
£1.75
|
£2.10
|
|
|
18/7 - MAGNETO BALL BEARING DIN 615-E 5 T
BSD-1900900102.A2
1900900102
|
-
|
|
|
|
18/8 - THREADED RING
BSD-1603343001.A1
1603343001
|
-
|
|
|
|
18/9 - CYLINDRICAL GEAR Z=12
BSD-1606329002.A14
1606329002
|
-
|
|
|
|
18/10 - COLLET dia 3 MM
BSD-1608570010.A21
1608570010
|
£33.74
|
£40.49
|
|
|
18/10 - COLLET dia 3/32 (2.35)
BSD-1608570011.A2
1608570011
|
-
|
|
|
|
18/10 - COLLET dia 1/8 (3.175 MM)
BSD-1608570012.A6
1608570012
|
-
|
|
|
|
18/11 - UNION NUT
BSD-1603314001.A20
1603314001
|
£63.50
|
£76.20
|
|
|
18/13 - PROTECTION SLEEVE
BSD-1600329003.A6
1600329003
|
-
|
|
|
|
26 - CYLINDRICAL GEAR Z=58
BSD-1606329026.A2
1606329026
|
-
|
|
|
|
28 - NAMEPLATE
BSD-3601106053.A188
3601106053
|
£5.30
|
£6.36
|
|
|
29 - GROOVED NAIL
BSD-3603133000.A100
3603133000
|
£2.61
|
£3.13
|
|
|
31 - CLAMPING SADDLE
BSD-3601321001.A691
3601321001
|
£3.72
|
£4.47
|
|
|
32 - SPRING WASHER dia4.2 MM
BSD-3600150006.A534
3600150006
|
£2.61
|
£3.13
|
|
|
33 - PAN HEAD SCREW DIN 85-AM4x10-MS
BSD-2910110120.A158
2910110120
|
£1.75
|
£2.10
|
|
|
35 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8
BSD-2910021116.A103
2910021116
|
£2.16
|
£2.59
|
|
|
36 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x12-8.8
BSD-2910141122.A65
2910141122
|
£2.16
|
£2.59
|
|
|
37 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x45-8.8
BSD-2910141140.A127
2910141140
|
£1.75
|
£2.10
|
|
|
38 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x35-8.8
BSD-2910141136.A75
2910141136
|
£2.80
|
£3.36
|
|
|
39 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x22-8.8
BSD-2910141131.A37
2910141131
|
£2.16
|
£2.59
|
|
|
45 - SET SCREW
BSD-3603402000.A159
3603402000
|
£1.75
|
£2.10
|
|
|
46 - SOCKET-TERMINAL STRIP 1x1.5 MM/2
BSD-1901091012.A225
1901091012
|
£5.30
|
£6.36
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1744
3601119236
|
£3.72
|
£4.47
|
|
