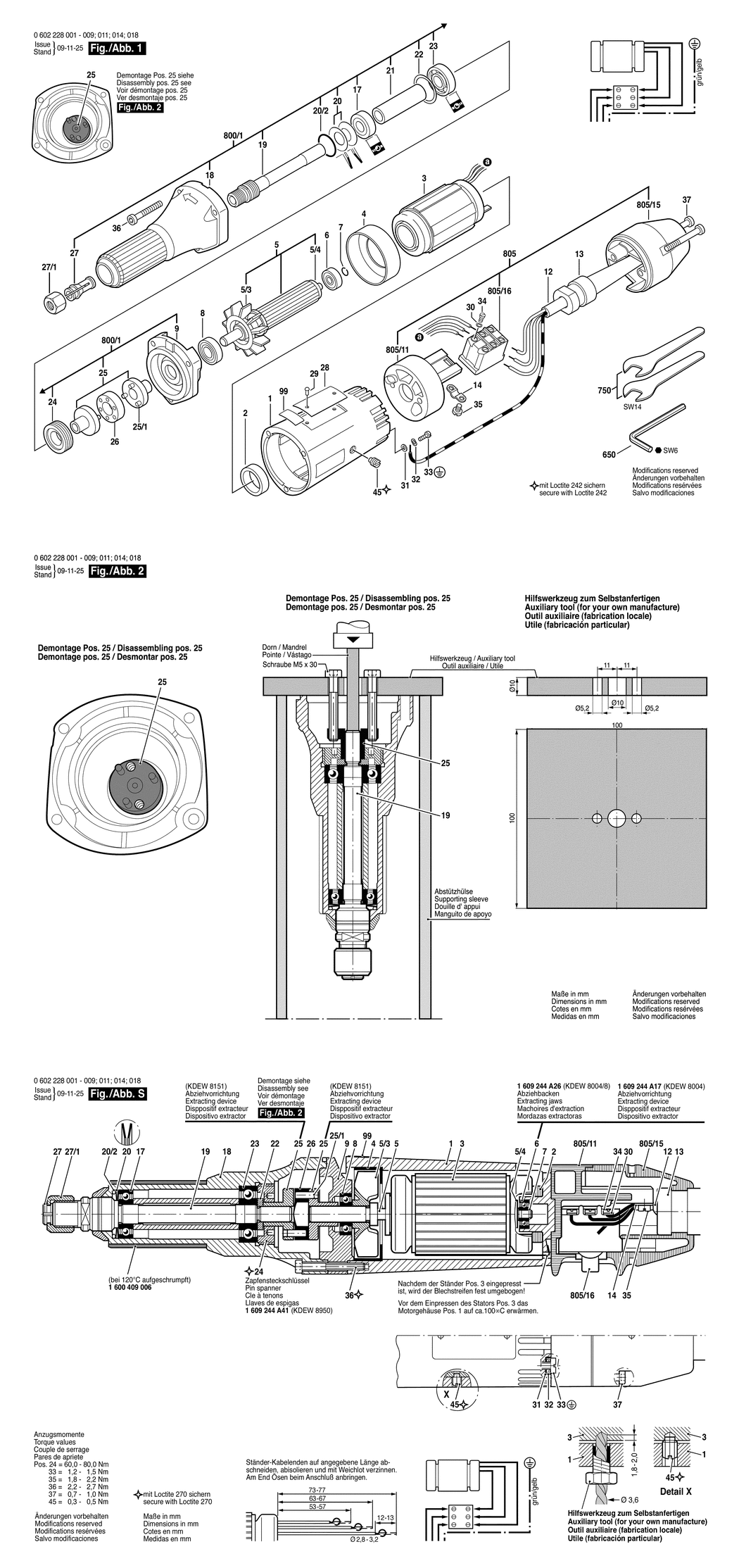

1 - MOTOR HOUSING
BSD-1605102085.A30
1605102085
|
-
|
|
|
|
2 - SEAL RING
BSD-1600209011.A147
1600209011
|
£2.80
|
£3.36
|
|
|
3 - STATOR 265V/200HZ. 200V/150HZ
BSD-1604229200.A3
1604229200
|
£458.51
|
£550.21
|
|
|
4 - AIR-DEFLECTOR RING
BSD-1600502005.A185
1600502005
|
£2.61
|
£3.13
|
|
|
5 - ROTOR WITHOUT WINDING
BSD-3604080003.A111
3604080003
|
£179.37
|
£215.24
|
|
|
5/4 - INTERMEDIATE RING
BSD-3600202008.A81
3600202008
|
£2.61
|
£3.13
|
|
|
6 - GROOVE BALL BEARING 5x16x5
BSD-1900900232.A176
1900900232
|
£16.74
|
£20.09
|
|
|
7 - RETAINING RING 5 DIN 9045
BSD-2916600002.A23
2916600002
|
-
|
|
|
|
8 - GROOVE BALL BEARING 9x24x7
BSD-1900905017.A164
1900905017
|
£23.86
|
£28.63
|
|
|
9 - BEARING FLANGE
BSD-3605820058.A13
3605820058
|
£33.74
|
£40.49
|
|
|
12 - PVC-INSULATED CABLE
BSD-3604462052.A58
3604462052
|
£54.42
|
£65.30
|
|
|
13 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A804
3600703011
|
£2.80
|
£3.36
|
|
|
14 - FASTENING CLAMP
BSD-1601302014.A1138
1601302014
|
£2.61
|
£3.13
|
|
|
17 - GROOVE BALL BEARING 609-ZY DIN 625
BSD-1900905007.A75
1900905007
|
-
|
|
|
|
18 - SPINDLE BEARING
BSD-1605806293.A9
1605806293
|
-
|
|
|
|
19 - DRILLING SPINDLE
BSD-1603523067.A17
1603523067
|
-
|
|
|
|
20 - DISC SPRING
BSD-1600550007.A25
1600550007
|
-
|
|
|
|
20/2 - O-RING 19.0x3.0 MM
BSD-1600210029.A33
1600210029
|
£5.87
|
£7.04
|
|
|
21 - GUIDE SLEEVE
BSD-1600700018.A30
1600700018
|
-
|
|
|
|
22 - SHIM WASHER
BSD-1600101015.A15
1600101015
|
-
|
|
|
|
23 - BALL BEARING 9x26x8
BSD-1900905025.A187
1900905025
|
£21.52
|
£25.83
|
|
|
24 - THREADED RING
BSD-3603344059.A66
3603344059
|
£39.17
|
£47.00
|
|
|
25 - CARRIER
BSD-1600320028.A24
1600320028
|
£37.27
|
£44.72
|
|
|
25/1 - STRAIGHT PIN 4 H 8x12 DIN 7
BSD-2917500095.A57
2917500095
|
£1.75
|
£2.10
|
|
|
26 - CARRIER
BSD-1606442000.A109
1606442000
|
£5.58
|
£6.70
|
|
|
27 - COLLET
BSD-2608570016.A1
2608570016
|
£37.27
|
£44.72
|
|
|
27/1 - ROUND NUT
BSD-3603342009.A55
3603342009
|
£14.91
|
£17.89
|
|
|
28 - NAMEPLATE
BSD-3601106053.A625
3601106053
|
£5.30
|
£6.36
|
|
|
29 - GROOVED NAIL
BSD-3603133000.A382
3603133000
|
£2.61
|
£3.13
|
|
|
30 - SPRING WASHER A 3 DIN 137-ST
BSD-2916060003.A482
2916060003
|
£1.32
|
£1.58
|
|
|
31 - PLAIN WASHER DIN 46 255-DPG 9
BSD-2916010409.A325
2916010409
|
-
|
|
|
|
32 - SPRING WASHER dia4.2 MM
BSD-3600150006.A782
3600150006
|
£2.61
|
£3.13
|
|
|
33 - PAN HEAD SCREW DIN 85 AM 4x6-MS
BSD-2910110116.A43
2910110116
|
£1.75
|
£2.10
|
|
|
34 - PAN HEAD SCREW DIN 85-AM3x6-CUZN
BSD-2910110048.A312
2910110048
|
£1.75
|
£2.10
|
|
|
35 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8
BSD-2910021116.A314
2910021116
|
£2.16
|
£2.59
|
|
|
36 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x35-8.8
BSD-2910141136.A5
2910141136
|
£2.80
|
£3.36
|
|
|
37 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x45-8.8
BSD-2910141140.A275
2910141140
|
£1.75
|
£2.10
|
|
|
45 - SET SCREW
BSD-3603402000.A9
3603402000
|
£1.75
|
£2.10
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1267
3601119236
|
£3.72
|
£4.47
|
|
|
650 - OFFSET SCREWDRIVER
BSD-1607950001.A17
1607950001
|
£21.52
|
£25.83
|
|
|
750 - SINGLE-HEAD ENG. WRENCH SW 14
BSD-1907950508.A67
1907950508
|
£14.91
|
£17.89
|
|
|
800/1 - GEAR HOUSING
BSD-1605806921.A0
1605806921
|
-
|
|
|
|
805 - HANDLE
BSD-3607031145.A111
3607031145
|
-
|
|
|
|
805/11 - CONNECTION HOUSING
BSD-3600099004.A74
3600099004
|
£21.68
|
£26.01
|
|
|
805/15 - SEALING CAP
BSD-3605500074.A92
3605500074
|
£21.68
|
£26.01
|
|
|
805/16 - SWITCH
BSD-3607200001.A99
3607200001
|
£68.42
|
£82.10
|
|
