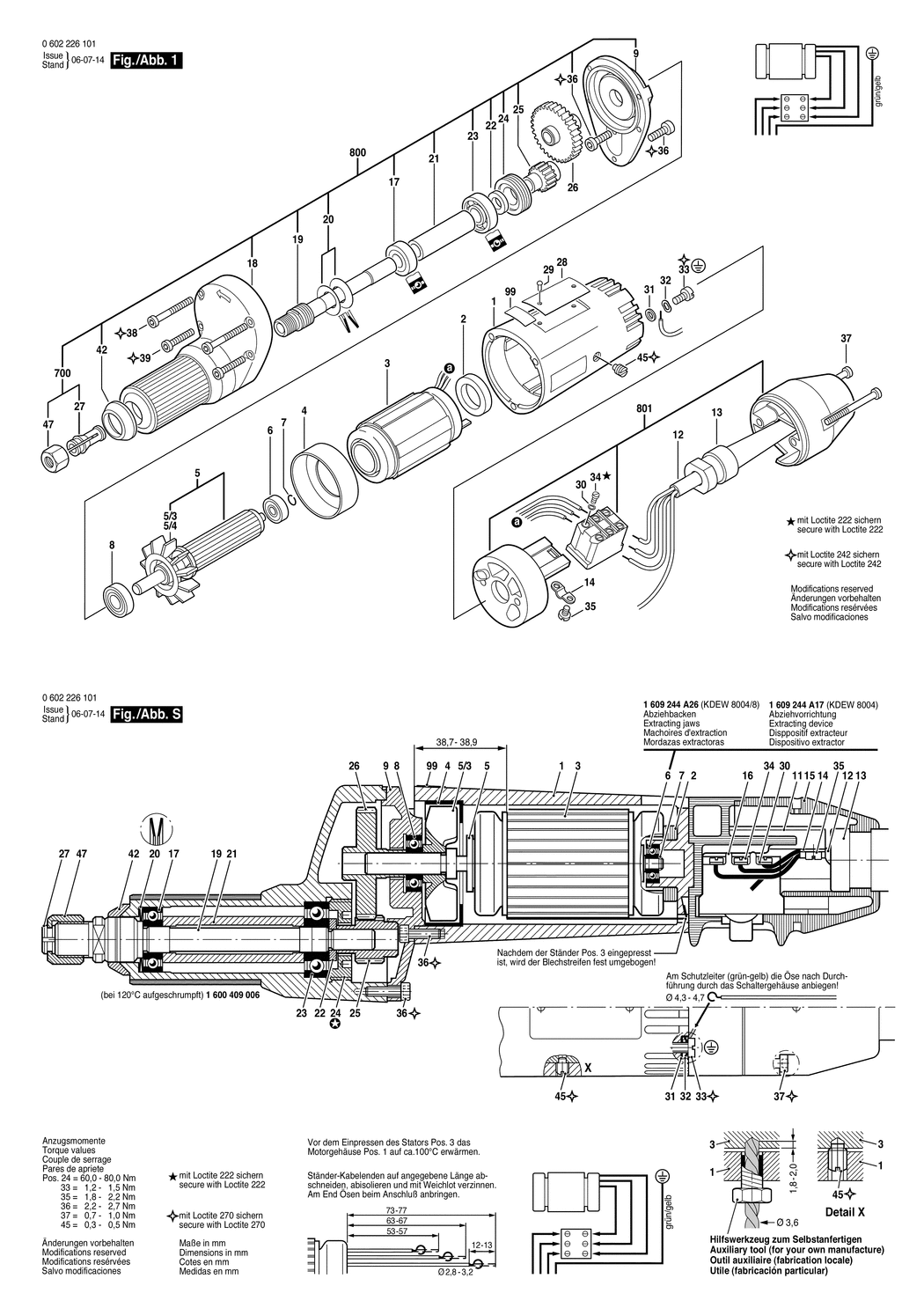

1 - MOTOR HOUSING
BSD-1605102085.A21
1605102085
|
-
|
|
|
|
2 - SEAL RING
BSD-1600209011.A264
1600209011
|
£2.80
|
£3.36
|
|
|
3 - STATOR 200V/300HZ.135V/200HZ
BSD-1604229201.A19
1604229201
|
£410.78
|
£492.94
|
|
|
4 - AIR-DEFLECTOR RING
BSD-1600502005.A100
1600502005
|
£2.61
|
£3.13
|
|
|
5 - ROTOR WITHOUT WINDING
BSD-3604080003.A23
3604080003
|
£179.37
|
£215.24
|
|
|
5/4 - INTERMEDIATE RING
BSD-3600202008.A24
3600202008
|
£2.61
|
£3.13
|
|
|
6 - GROOVE BALL BEARING 625-2Z DIN 625
BSD-1900905015.A86
1900905015
|
£30.42
|
£36.51
|
|
|
7 - RETAINING RING 5 DIN 9045
BSD-2916600002.A10
2916600002
|
-
|
|
|
|
8 - GROOVE BALL BEARING 9x24x7
BSD-1900905017.A222
1900905017
|
£23.86
|
£28.63
|
|
|
9 - INTERMEDIATE BEARING
BSD-3605820062.A9
3605820062
|
£120.11
|
£144.13
|
|
|
10 - INTERMEDIATE RING
BSD-3600202008.A25
3600202008
|
£2.61
|
£3.13
|
|
|
12 - CABLE
BSD-3604462056.A11
3604462056
|
-
|
|
|
|
13 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A311
3600703011
|
£2.80
|
£3.36
|
|
|
14 - FASTENING CLAMP
BSD-1601302014.A70
1601302014
|
£2.61
|
£3.13
|
|
|
15 - SEALING CAP
BSD-3605500074.A115
3605500074
|
£21.68
|
£26.01
|
|
|
16 - SWITCH
BSD-3607200001.A117
3607200001
|
£68.42
|
£82.10
|
|
|
17 - GROOVE BALL BEARING
BSD-3600905038.A33
3600905038
|
£14.91
|
£17.89
|
|
|
18 - SPINDLE BEARING
BSD-3605806120.A8
3605806120
|
£283.50
|
£340.20
|
|
|
19 - GRINDING SPINDLE
BSD-1603523082.A3
1603523082
|
£179.37
|
£215.24
|
|
|
20 - DISC SPRING
BSD-1600550008.A29
1600550008
|
£2.80
|
£3.36
|
|
|
21 - SPACER BUSHING
BSD-1600300083.A28
1600300083
|
£18.96
|
£22.75
|
|
|
22 - SHIM WASHER
BSD-1600103027.A5
1600103027
|
£27.23
|
£32.68
|
|
|
23 - GROOVE BALL BEARING 12x32x10
BSD-1900905225.A9
1900905225
|
£10.10
|
£12.12
|
|
|
24 - THREADED RING
BSD-1603344053.A3
1603344053
|
£54.42
|
£65.30
|
|
|
25 - CYLINDRICAL GEAR Z=22
BSD-1606329019.A3
1606329019
|
£135.25
|
£162.30
|
|
|
26 - CYLINDRICAL GEAR Z=54
BSD-1606329015.A14
1606329015
|
£120.11
|
£144.13
|
|
|
27 - COLLET dia 6 MM
BSD-2608570129.A4
2608570129
|
£18.96
|
£22.75
|
|
|
28 - NAMEPLATE
BSD-3601106053.A828
3601106053
|
£5.30
|
£6.36
|
|
|
29 - GROOVED NAIL
BSD-3603133000.A681
3603133000
|
£2.61
|
£3.13
|
|
|
31 - CLAMPING SADDLE
BSD-3601321001.A325
3601321001
|
£3.72
|
£4.47
|
|
|
32 - SPRING WASHER dia4.2 MM
BSD-3600150006.A319
3600150006
|
£2.61
|
£3.13
|
|
|
33 - PAN HEAD SCREW DIN 85-AM4x10-MS
BSD-2910110120.A271
2910110120
|
£1.75
|
£2.10
|
|
|
35 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8
BSD-2910021116.A657
2910021116
|
£2.16
|
£2.59
|
|
|
36 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x12-8.8
BSD-2910141122.A155
2910141122
|
£2.16
|
£2.59
|
|
|
37 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x45-8.8
BSD-2910141140.A31
2910141140
|
£1.75
|
£2.10
|
|
|
38 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x35-8.8
BSD-2910141136.A146
2910141136
|
£2.80
|
£3.36
|
|
|
39 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x22-8.8
BSD-2910141131.A88
2910141131
|
£2.16
|
£2.59
|
|
|
42 - PROTECTIVE RING
BSD-3600250007.A9
3600250007
|
£21.52
|
£25.83
|
|
|
45 - SET SCREW
BSD-3603402000.A373
3603402000
|
£1.75
|
£2.10
|
|
|
47 - ROUND NUT
BSD-3603342009.A109
3603342009
|
£14.91
|
£17.89
|
|
|
57 - END SPLICE
BSD-3604477008.A407
3604477008
|
£1.75
|
£2.10
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A682
3601119236
|
£3.72
|
£4.47
|
|
|
700 - COLLET dia 6 MM
BSD-2608570084.A6
2608570084
|
£36.68
|
£44.02
|
|
|
800 - SPINDLE BEARING
BSD-1606120008.A7
1606120008
|
-
|
|
|
|
801 - HANDLE
BSD-3607031145.A24
3607031145
|
-
|
|
|
