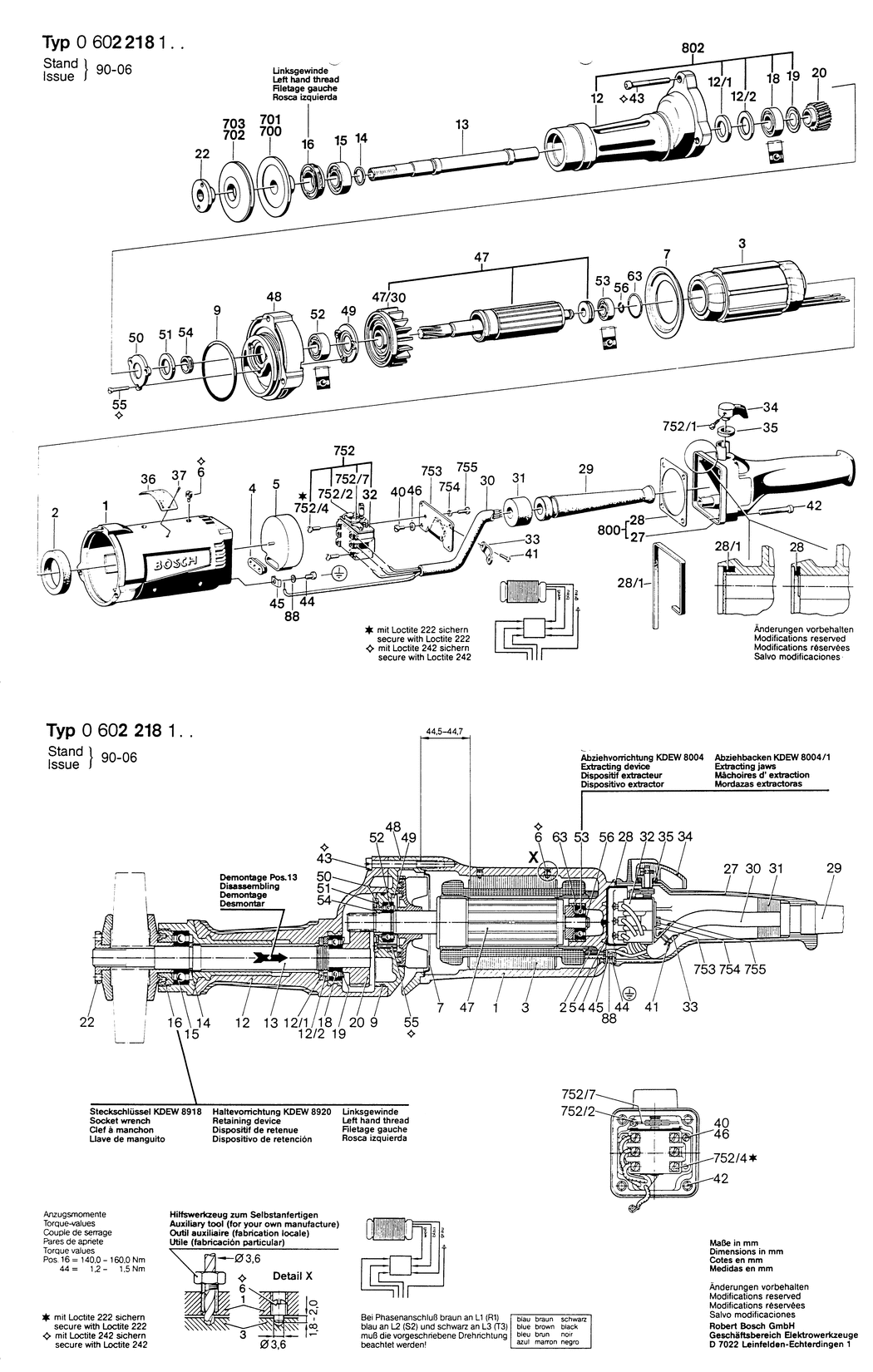

1 - MOTOR HOUSING
BSD-1605102106.A1
1605102106
|
-
|
|
|
|
2 - SEAL RING
BSD-1600209009.A76
1600209009
|
£6.52
|
£7.83
|
|
|
3 - STATOR 200V/300HZ
BSD-1604229161.A46
1604229161
|
-
|
|
|
|
4 - GROMMET
BSD-1600306000.A83
1600306000
|
£1.95
|
£2.34
|
|
|
5 - PROTECTIVE COVER
BSD-1600502004.A49
1600502004
|
£4.26
|
£5.11
|
|
|
6 - SET SCREW
BSD-1603402004.A4
1603402004
|
£2.61
|
£3.13
|
|
|
7 - GUIDE PULLEY
BSD-1600500014.A91
1600500014
|
-
|
|
|
|
9 - O-RING 74.0x3.0 MM
BSD-1600210006.A72
1600210006
|
£1.75
|
£2.10
|
|
|
12 - SPINDLE BEARING
BSD-1605806118.A42
1605806118
|
-
|
|
|
|
12/1 - SEAL RING
BSD-1600108043.A37
1600108043
|
-
|
|
|
|
12/2 - SEALING DISK 6203 ZAV NILOS-RI
BSD-3600290004.A50
3600290004
|
-
|
|
|
|
13 - GRINDING SPINDLE M16x1.5
BSD-1603052007.A1
1603052007
|
-
|
|
|
|
14 - SHIM WASHER
BSD-1600114035.A42
1600114035
|
-
|
|
|
|
15 - GROOVE BALL BEARING 6204-Y DIN 625
BSD-1900900306.A27
1900900306
|
-
|
|
|
|
16 - THREADED RING
BSD-1603344005.A29
1603344005
|
£27.23
|
£32.68
|
|
|
18 - GROOVE BALL BEARING 6203 RSY DIN 625
BSD-1900905253.A51
1900905253
|
-
|
|
|
|
19 - SEALING DISK 6203 ZAV NILOS-RI
BSD-3600290004.A49
3600290004
|
-
|
|
|
|
20 - CYLINDRICAL GEAR Z=36
BSD-1606320018.A2
1606320018
|
-
|
|
|
|
22 - ROUND NUT
BSD-1603345027.A30
1603345027
|
-
|
|
|
|
27 - HANDLE
BSD-3605132035.A36
3605132035
|
£40.80
|
£48.96
|
|
|
28 - SEAL
BSD-1601015011.A8
1601015011
|
£3.80
|
£4.56
|
|
|
28/1 - SEAL
BSD-1601015011.A9
1601015011
|
£3.80
|
£4.56
|
|
|
29 - GROMMET dia11.5-dia15.0x150 MM
BSD-1600703009.A416
1600703009
|
£5.58
|
£6.70
|
|
|
31 - SEALING PLATE
BSD-1600113003.A45
1600113003
|
£2.80
|
£3.36
|
|
|
33 - FASTENING CLAMP
BSD-1601303003.A280
1601303003
|
£2.16
|
£2.59
|
|
|
34 - CONTROL LEVER
BSD-1602026038.A131
1602026038
|
£5.30
|
£6.36
|
|
|
35 - SEALING DISK dia18xdia10x4 MM
BSD-1600108024.A22
1600108024
|
£1.75
|
£2.10
|
|
|
36 - NAMEPLATE
BSD-3601106053.A157
3601106053
|
£5.30
|
£6.36
|
|
|
37 - GROOVED NAIL DIN 1476-2x5 MM
BSD-3603133001.A686
3603133001
|
£2.61
|
£3.13
|
|
|
40 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A1741
2910021118
|
£1.75
|
£2.10
|
|
|
41 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A738
2910021122
|
£2.16
|
£2.59
|
|
|
42 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x40-8.8
BSD-2910141209.A6
2910141209
|
£2.61
|
£3.13
|
|
|
43 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x55-8.8
BSD-2910141215.A84
2910141215
|
£3.72
|
£4.47
|
|
|
44 - PAN HEAD SCREW DIN 85-MS-M 4x12
BSD-2910110122.A133
2910110122
|
£1.75
|
£2.10
|
|
|
45 - CLAMPING SADDLE
BSD-3601321001.A663
3601321001
|
£3.72
|
£4.47
|
|
|
46 - SPRING WASHER DIN 137-A4
BSD-1600150006.A10
1600150006
|
-
|
|
|
|
47 - ROTOR WITHOUT WINDING
BSD-1604080078.A7
1604080078
|
-
|
|
|
|
48 - BEARING HOUSING
BSD-1605820147.A18
1605820147
|
-
|
|
|
|
49 - BEARING COVER
BSD-1600501019.A373
1600501019
|
£23.86
|
£28.63
|
|
|
50 - COVER DISC
BSD-1600501024.A121
1600501024
|
£16.41
|
£19.69
|
|
|
51 - FELT DISC
BSD-1600108018.A27
1600108018
|
£2.61
|
£3.13
|
|
|
52 - GROOVE BALL BEARING 6003 Y DIN 625
BSD-1900900273.A40
1900900273
|
£21.68
|
£26.01
|
|
|
53 - GROOVE BALL BEARING 12x28x8
BSD-1900905121.A289
1900905121
|
£18.96
|
£22.75
|
|
|
54 - THREADED RING
BSD-1603344042.A25
1603344042
|
-
|
|
|
|
55 - TORX FLAT-HEAD SCREW M4x20
BSD-3603435051.A61
3603435051
|
£1.75
|
£2.10
|
|
|
56 - RETAINING RING 12 DIN 9045
BSD-2916600007.A98
2916600007
|
£2.80
|
£3.36
|
|
|
63 - O-RING
BSD-1120210000.A1
1120210000
|
-
|
|
|
|
88 - SPRING WASHER dia4.2 MM
BSD-3600150006.A560
3600150006
|
£2.61
|
£3.13
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1763
3601119236
|
£3.72
|
£4.47
|
|
|
651 - OFFSET SCREWDRIVER SW8
BSD-1607950009.A7
1607950009
|
-
|
|
|
|
651 - OFFSET SCREWDRIVER DIN 911;SW6
BSD-1907950007.A545
1907950007
|
£5.30
|
£6.36
|
|
|
652 - SINGLE-HEAD ENG. WRENCH DIN 894 SW24
BSD-1907950513.A113
1907950513
|
£16.41
|
£19.69
|
|
|
700 - CLAMPING-FLANGE dia 75 MM
BSD-1605703007.A1
1605703007
|
-
|
|
|
|
702 - CONICAL SPRING WASHER dia 75 MM
BSD-1600114032.A1
1600114032
|
-
|
|
|
|
752 - ON-OFF SWITCH
BSD-1607200006.A90
1607200006
|
£81.81
|
£98.17
|
|
|
752/1 - SOCKET HEAD CAP SCREW DIN 84-AM3x10-4.8
BSD-2910001052.A27
2910001052
|
£2.16
|
£2.59
|
|
|
752/2 - EXTENSION SPRING
BSD-1604650009.A52
1604650009
|
£1.75
|
£2.10
|
|
|
752/4 - PAN HEAD SCREW DIN 85-AM4x8-4.8
BSD-2910091118.A309
2910091118
|
£1.75
|
£2.10
|
|
|
752/7 - DETENT ROLLER
BSD-1603200007.A33
1603200007
|
-
|
|
|
|
753 - FIXING PLATE
BSD-3601023015.A162
3601023015
|
£21.68
|
£26.01
|
|
|
754 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A480
2916690003
|
£1.75
|
£2.10
|
|
|
755 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A1738
2910021118
|
£1.75
|
£2.10
|
|
|
800 - HANDLE
BSD-1605132067.A81
1605132067
|
-
|
|
|
|
802 - SPINDLE BEARING
BSD-1607000056.A24
1607000056
|
-
|
|
|
