Bosch ---- / 0602211116 / --- 72 Volt Spare Parts

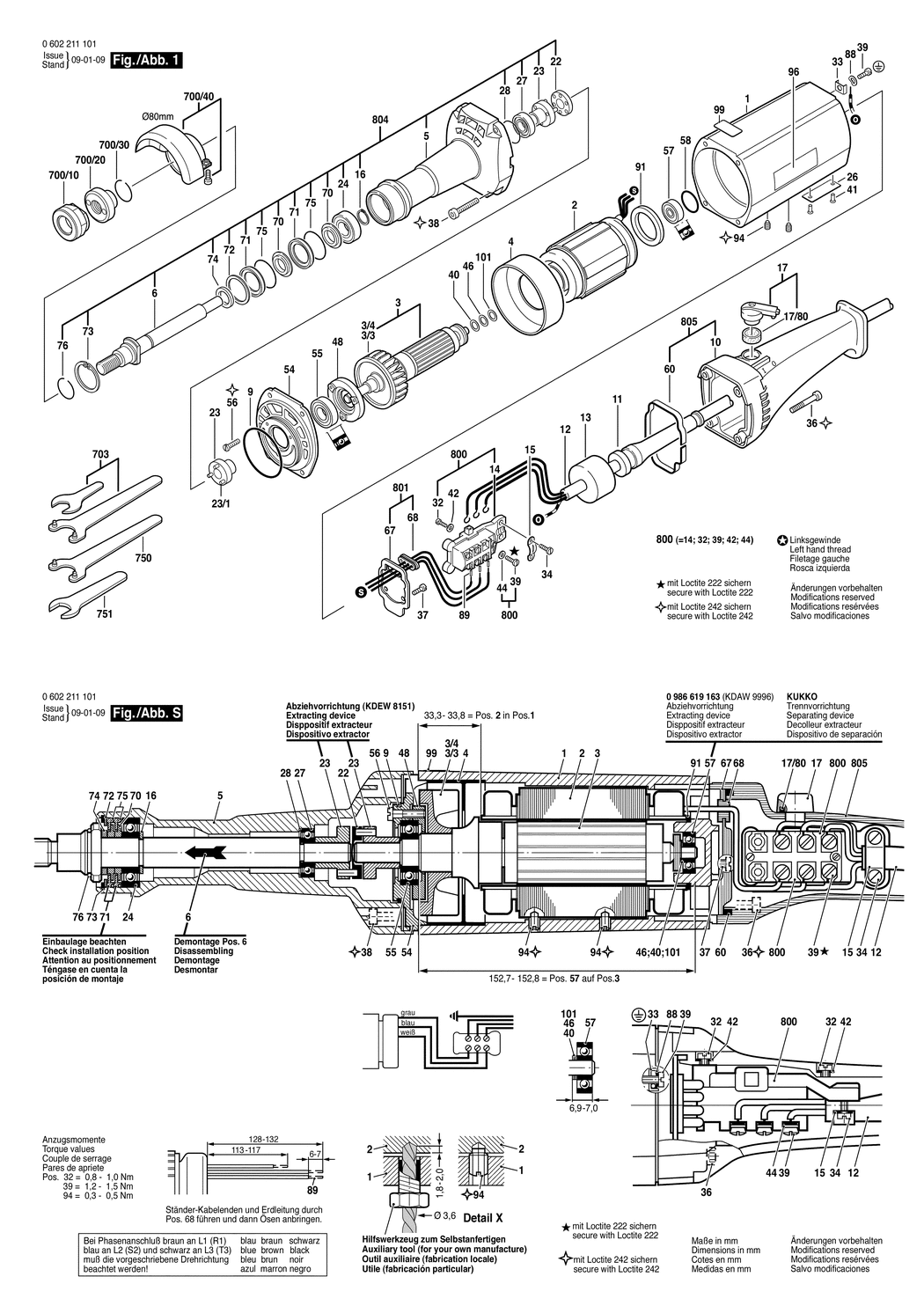

An exploded drawing and listing for the Bosch ---- / 0602211116 / --- 72 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3605102081.A35 3605102081	£156.22	£187.46
2 - STATOR 72V/200HZ BSD-1604229100.A3 1604229100	-
3 - ROTOR WITHOUT WINDING BSD-1604080032.A23 1604080032	£195.26	£234.31
4 - AIR-DEFLECTOR RING BSD-1600209002.A250 1600209002	£5.30	£6.36
5 - SPINDLE BEARING BSD-3605806142.A10 3605806142	£553.99	£664.79
6 - GRINDING SPINDLE BSD-3603050012.A23 3603050012	£156.22	£187.46
9 - O-RING 45x3MM BSD-1900210146.A228 1900210146	£4.26	£5.11
10 - HANDLE BSD-3605132024.A29 3605132024	£27.23	£32.68
11 - GROMMET dia11.5-dia15.0x150 MM BSD-1600703009.A233 1600703009	£5.58	£6.70
12 - ELEC. CABLE W/CONNECTION BSD-3604462037.A6 3604462037	£57.05	£68.46
13 - SEALING PLATE BSD-1600113003.A315 1600113003	£2.80	£3.36
14 - SWITCH BSD-1607200020.A43 1607200020	-
15 - FASTENING CLAMP BSD-1601303003.A68 1601303003	£2.16	£2.59
16 - SPRING RETAINING RING DIN 471 17x1 MM BSD-2916650008.A234 2916650008	£1.75	£2.10
17 - CONTROL LEVER BSD-1602026030.A420 1602026030	£10.10	£12.12
17/80 - FELT WASHER BSD-1600205008.A391 1600205008	£1.75	£2.10
22 - CARRIER BSD-1606442000.A37 1606442000	£5.58	£6.70
23 - CARRIER BSD-1600320026.A60 1600320026	£48.38	£58.06
23/2 - STRAIGHT PIN 4 H 8x12 DIN 7 BSD-2917500095.A136 2917500095	£1.75	£2.10
24 - GROOVE BALL BEARING BSD-3600905058.A53 3600905058	£21.52	£25.83
26 - NAMEPLATE BSD-3601106053.A1090 3601106053	£5.30	£6.36
27 - GROOVE BALL BEARING BSD-3608870093.A8 3608870093	£18.96	£22.75
28 - O-RING 28x2 MM BSD-1900210127.A59 1900210127	£5.30	£6.36
32 - TAPPING SCREW DIN 7971-BZ2.9x13 BSD-2910211006.A407 2910211006	£1.75	£2.10
33 - CLAMPING SADDLE BSD-3601321001.A126 3601321001	£3.72	£4.47
34 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A524 2910021118	£1.75	£2.10
36 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x30-8.8 BSD-2910141166.A28 2910141166	£1.75	£2.10
37 - SOCKET HEAD CAP SCREW BSD-3603450008.A156 3603450008	£2.16	£2.59
38 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x25-8.8 BSD-2910141164.A173 2910141164	£2.16	£2.59
39 - PAN HEAD SCREW DIN 85-AM4x10-MS BSD-2910110120.A443 2910110120	£1.75	£2.10
40 - SHIM 0.2 MM BSD-1600100632.A245 1600100632	£1.75	£2.10
41 - GROOVED NAIL DIN 1476-2x5 MM BSD-3603133001.A212 3603133001	£2.61	£3.13
42 - PLAIN WASHER DIN 433-3.2-ST 50 BSD-2916011005.A245 2916011005	£1.75	£2.10
44 - SPRING WASHER dia4.2 MM BSD-3600150006.A81 3600150006	£2.61	£3.13
46 - SHIM 0.10 MM BSD-1420100023.A291 1420100023	-
48 - BEARING COVER BSD-1600501019.A65 1600501019	£23.86	£28.63
54 - BEARING FLANGE BSD-3605820064.A104 3605820064	£68.42	£82.10
55 - GROOVE BALL BEARING 15x35x11 BSD-1900905234.A253 1900905234	£31.64	£37.97
56 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8 BSD-2910021125.A651 2910021125	£1.75	£2.10
57 - GROOVE BALL BEARING 7x22x7 BSD-3600905147.A13 3600905147	£13.12	£15.75
58 - O-RING 22x2 MM BSD-1900210321.A36 1900210321	£5.30	£6.36
60 - SEALING CORD BSD-1601014000.A326 1601014000	£2.80	£3.36
67 - SEALING PLATE BSD-1602388006.A124 1602388006	£5.58	£6.70
68 - GROMMET BSD-1600306001.A14 1600306001	£2.61	£3.13
70 - PROTECTIVE RING BSD-3600222004.A21 3600222004	£27.23	£32.68
71 - SPACER RING BSD-3600200057.A14 3600200057	£27.23	£32.68
72 - SHIM BSD-3600150019.A21 3600150019	£2.16	£2.59
73 - SPRING RETAINING RING DIN472-35x1.5 BSD-2916669114.A25 2916669114	£2.16	£2.59
74 - SPACER RING BSD-3600202015.A21 3600202015	£21.68	£26.01
75 - O-RING 32.0x1.5 MM BSD-3600210057.A37 3600210057	£2.61	£3.13
76 - RETAINING RING 24x2 DIN9045-24 BSD-2916609112.A70 2916609112	£2.61	£3.13
88 - SPRING WASHER dia4.2 MM BSD-3600150006.A80 3600150006	£2.61	£3.13
89 - END SPLICE BSD-3604477009.A143 3604477009	£2.61	£3.13
91 - SEAL RING BSD-1600209004.A137 1600209004	£2.80	£3.36
94 - SET SCREW BSD-1603402002.A250 1603402002	£1.75	£2.10
96 - MANUFACTURER'S NAMEPLATE BSD-3601110047.A95 3601110047	£2.80	£3.36
99 - REFERENCE PLATE BSD-3601119236.A269 3601119236	£3.72	£4.47
101 - SHIM 0.05 MM BSD-1600100601.A18 1600100601	-
650 - PIN-TYPE FACE-WRENCH BSD-2607950022.A50 2607950022	£31.64	£37.97
651 - SINGLE-HEAD ENG. WRENCH SW32 BSD-2607950021.A19 2607950021	£27.23	£32.68
700/30 - RETAINING RING 24x2 DIN9045-24 BSD-2916609112.A71 2916609112	£2.61	£3.13
703 - ACCESSORY SET BSD-3607000036.A8 3607000036	£54.42	£65.30
753/10 - PROTECTIVE COVER dia 80 MM BSD-3605510033.A41 3605510033	£93.88	£112.65
754/10 - CLAMPING-FLANGE BSD-3605703089.A72 3605703089	£63.50	£76.20
755/10 - CLAMPING RING BSD-3605703074.A23 3605703074	£21.68	£26.01
800 - SWITCH KIT BSD-1607000036.A31 1607000036	-
801 - SEALING PLATE BSD-1602388007.A63 1602388007	£12.04	£14.45
804 - ASSEMBLY OF SERVICE PARTS BSD-3607031220.A26 3607031220	£653.78	£784.53
805 - HANDLE BSD-3605132048.A337 3605132048	£63.50	£76.20
