Bosch ---- / 0602211016 / --- 72 Volt Spare Parts

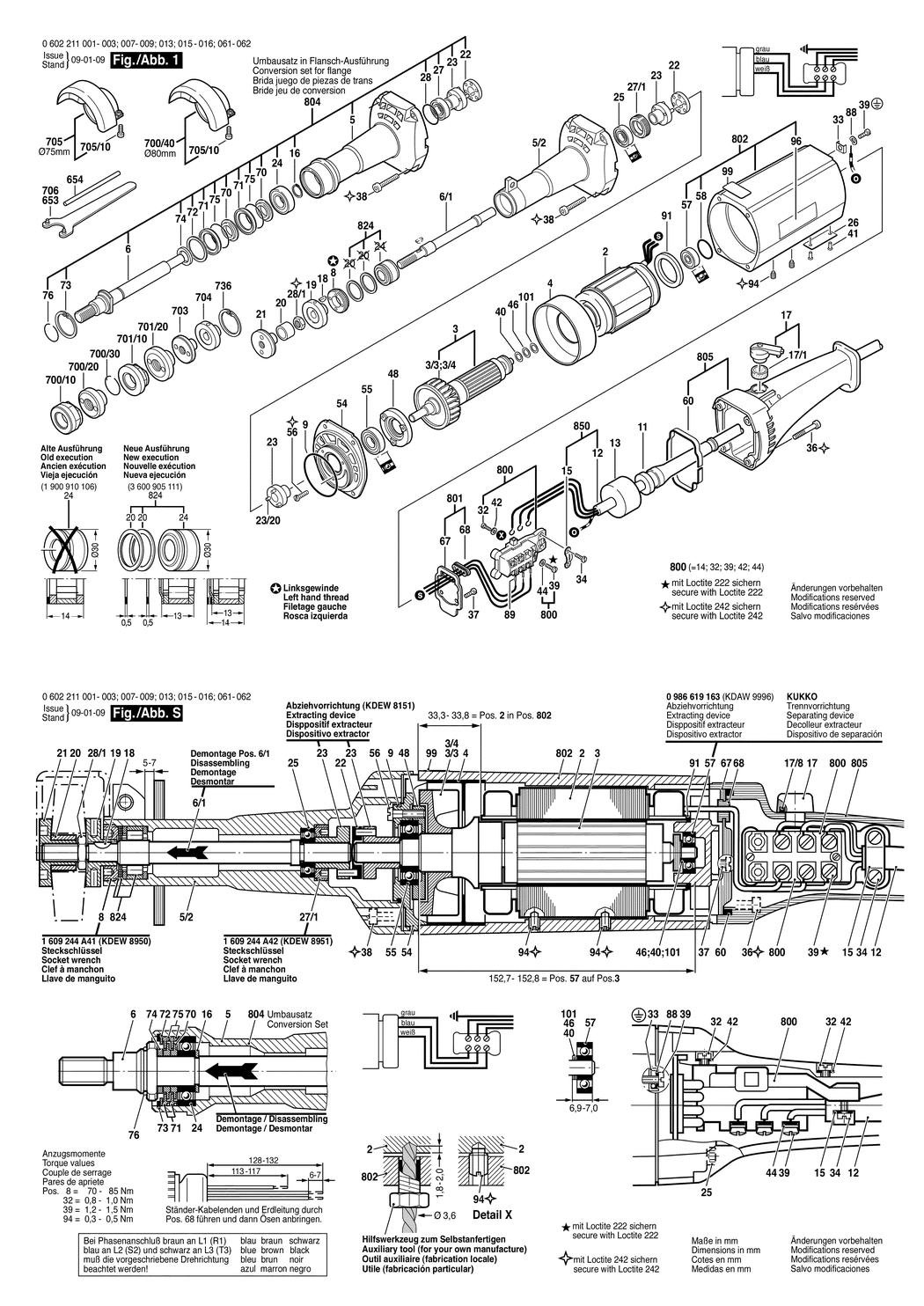

An exploded drawing and listing for the Bosch ---- / 0602211016 / --- 72 Volt

	Ex VAT	Inc VAT
2 - STATOR 72V/200HZ BSD-1604229100.A11 1604229100	-
3 - ROTOR WITHOUT WINDING BSD-1604080032.A86 1604080032	£195.26	£234.31
4 - AIR-DEFLECTOR RING BSD-1600209002.A40 1600209002	£5.30	£6.36
5 - SPINDLE BEARING BSD-3605806142.A18 3605806142	£553.99	£664.79
5/2 - SPINDLE BEARING BSD-3605806112.A24 3605806112	£283.50	£340.20
6 - GRINDING SPINDLE BSD-3603050012.A13 3603050012	£156.22	£187.46
6/1 - ARMATURE SHAFT BSD-1603050014.A4 1603050014	-
8 - THREADED BUSHING M 32x1 BSD-1600362018.A44 1600362018	£68.42	£82.10
9 - O-RING 45x3MM BSD-1900210146.A111 1900210146	£4.26	£5.11
11 - GROMMET dia11.5-dia15.0x150 MM BSD-1600703009.A585 1600703009	£5.58	£6.70
12 - POWER SUPPLY CORD BSD-3604462038.A0 3604462038	-
13 - SEALING PLATE BSD-1600113003.A220 1600113003	£2.80	£3.36
15 - FASTENING CLAMP BSD-1601303003.A369 1601303003	£2.16	£2.59
16 - SPRING RETAINING RING DIN 471 17x1 MM BSD-2916650008.A372 2916650008	£1.75	£2.10
17 - CONTROL LEVER BSD-1602026030.A139 1602026030	£10.10	£12.12
17/1 - FELT WASHER BSD-1600205008.A220 1600205008	£1.75	£2.10
18 - WOODRUFF KEY BSD-1900023003.A4 1900023003	-
19 - CLAMPING-FLANGE BSD-1600240000.A4 1600240000	-
20 - PLAIN WASHER BSD-1600102013.A9 1600102013	£3.72	£4.47
21 - COLLET dia 8. M 8. SW 14 BSD-2608570009.A28 2608570009	£40.80	£48.96
22 - CARRIER BSD-1606442000.A119 1606442000	£5.58	£6.70
23 - CARRIER BSD-1600320026.A22 1600320026	£48.38	£58.06
23/20 - STRAIGHT PIN 4 H 8x12 DIN 7 BSD-2917500095.A40 2917500095	£1.75	£2.10
24 - GROOVE BALL BEARING BSD-3600905058.A7 3600905058	£21.52	£25.83
25 - GROOVE BALL BEARING 12x28x8 BSD-1900905121.A332 1900905121	£18.96	£22.75
26 - NAMEPLATE BSD-3601106053.A614 3601106053	£5.30	£6.36
27 - GROOVE BALL BEARING BSD-3608870093.A23 3608870093	£18.96	£22.75
27/1 - THREADED RING M30x1 BSD-1603344024.A50 1603344024	£23.86	£28.63
28 - O-RING 28x2 MM BSD-1900210127.A27 1900210127	£5.30	£6.36
32 - TAPPING SCREW DIN 7971-BZ2.9x13 BSD-2910211006.A570 2910211006	£1.75	£2.10
33 - CLAMPING SADDLE BSD-3601321001.A461 3601321001	£3.72	£4.47
34 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A1332 2910021118	£1.75	£2.10
36 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x30-8.8 BSD-2910141166.A193 2910141166	£1.75	£2.10
37 - SOCKET HEAD CAP SCREW BSD-3603450008.A89 3603450008	£2.16	£2.59
38 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x25-8.8 BSD-2910141164.A4 2910141164	£2.16	£2.59
39 - PAN HEAD SCREW DIN 85-AM4x10-MS BSD-2910110120.A58 2910110120	£1.75	£2.10
40 - SHIM 0.2 MM BSD-1600100632.A64 1600100632	£1.75	£2.10
41 - GROOVED NAIL DIN 1476-2x5 MM BSD-3603133001.A494 3603133001	£2.61	£3.13
42 - PLAIN WASHER DIN 433-3.2-ST 50 BSD-2916011005.A395 2916011005	£1.75	£2.10
44 - SPRING WASHER dia4.2 MM BSD-3600150006.A766 3600150006	£2.61	£3.13
46 - SHIM 0.10 MM BSD-1420100023.A26 1420100023	-
48 - BEARING COVER BSD-1600501019.A546 1600501019	£23.86	£28.63
54 - BEARING FLANGE BSD-3605820064.A51 3605820064	£68.42	£82.10
55 - GROOVE BALL BEARING 15x35x11 BSD-1900905234.A108 1900905234	£31.64	£37.97
56 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8 BSD-2910021125.A284 2910021125	£1.75	£2.10
57 - GROOVE BALL BEARING 7x22x7 BSD-3600905147.A96 3600905147	£13.12	£15.75
58 - O-RING 22x2 MM BSD-1900210321.A91 1900210321	£5.30	£6.36
60 - SEALING CORD BSD-1601014000.A75 1601014000	£2.80	£3.36
67 - SEALING PLATE BSD-1602388006.A77 1602388006	£5.58	£6.70
68 - GROMMET BSD-1600306001.A273 1600306001	£2.61	£3.13
70 - PROTECTIVE RING BSD-3600222004.A49 3600222004	£27.23	£32.68
71 - SPACER RING BSD-3600200057.A48 3600200057	£27.23	£32.68
72 - SHIM BSD-3600150019.A36 3600150019	£2.16	£2.59
73 - SPRING RETAINING RING DIN472-35x1.5 BSD-2916669114.A37 2916669114	£2.16	£2.59
74 - SPACER RING BSD-3600202015.A36 3600202015	£21.68	£26.01
75 - O-RING 32.0x1.5 MM BSD-3600210057.A3 3600210057	£2.61	£3.13
76 - RETAINING RING 24x2 DIN9045-24 BSD-2916609112.A240 2916609112	£2.61	£3.13
88 - SPRING WASHER dia4.2 MM BSD-3600150006.A765 3600150006	£2.61	£3.13
89 - END SPLICE BSD-3604477008.A33 3604477008	£1.75	£2.10
91 - SEAL RING BSD-1600209004.A42 1600209004	£2.80	£3.36
94 - SET SCREW BSD-1603402002.A159 1603402002	£1.75	£2.10
96 - MANUFACTURER'S NAMEPLATE BSD-3601110047.A258 3601110047	£2.80	£3.36
99 - REFERENCE PLATE BSD-3601119236.A1256 3601119236	£3.72	£4.47
101 - SHIM 0.05 MM BSD-1600100601.A36 1600100601	-
653 - PIN-TYPE FACE-WRENCH SW6-HL8-N6 BSD-1607950007.A9 1607950007	-
700/10 - CLAMPING-FLANGE 80 MM Z.80 M/S BSD-3605703028.A8 3605703028	£54.42	£65.30
700/20 - CLAMPING RING BSD-3605703074.A82 3605703074	£21.68	£26.01
700/30 - RETAINING RING 24x2 DIN9045-24 BSD-2916609112.A239 2916609112	£2.61	£3.13
700/40 - PROTECTIVE COVER dia 80 MM BSD-3605510033.A51 3605510033	£93.88	£112.65
701/10 - CLAMPING-FLANGE BSD-3605703069.A47 3605703069	-
701/20 - CLAMPING RING BSD-3605703065.A0 3605703065	-
705 - PROTECTIVE COVER dia 80 MM BSD-3605510033.A50 3605510033	£93.88	£112.65
705/10 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x25-8.8 BSD-2910141244.A143 2910141244	£1.75	£2.10
736 - SPRING RETAINING RING DIN472-35x1.5 BSD-2916669114.A38 2916669114	£2.16	£2.59
800 - SWITCH KIT BSD-1607000036.A128 1607000036	-
801 - SEALING PLATE BSD-1602388007.A186 1602388007	£12.04	£14.45
802 - MOTOR HOUSING BSD-3605102079.A31 3605102079	£179.37	£215.24
804 - ASSEMBLY OF SERVICE PARTS BSD-3607031220.A4 3607031220	£653.78	£784.53
805 - HANDLE BSD-3605132048.A75 3605132048	£63.50	£76.20
824 - CYL. ROLLER BEARING BSD-3600905111.A27 3600905111	£68.42	£82.10
