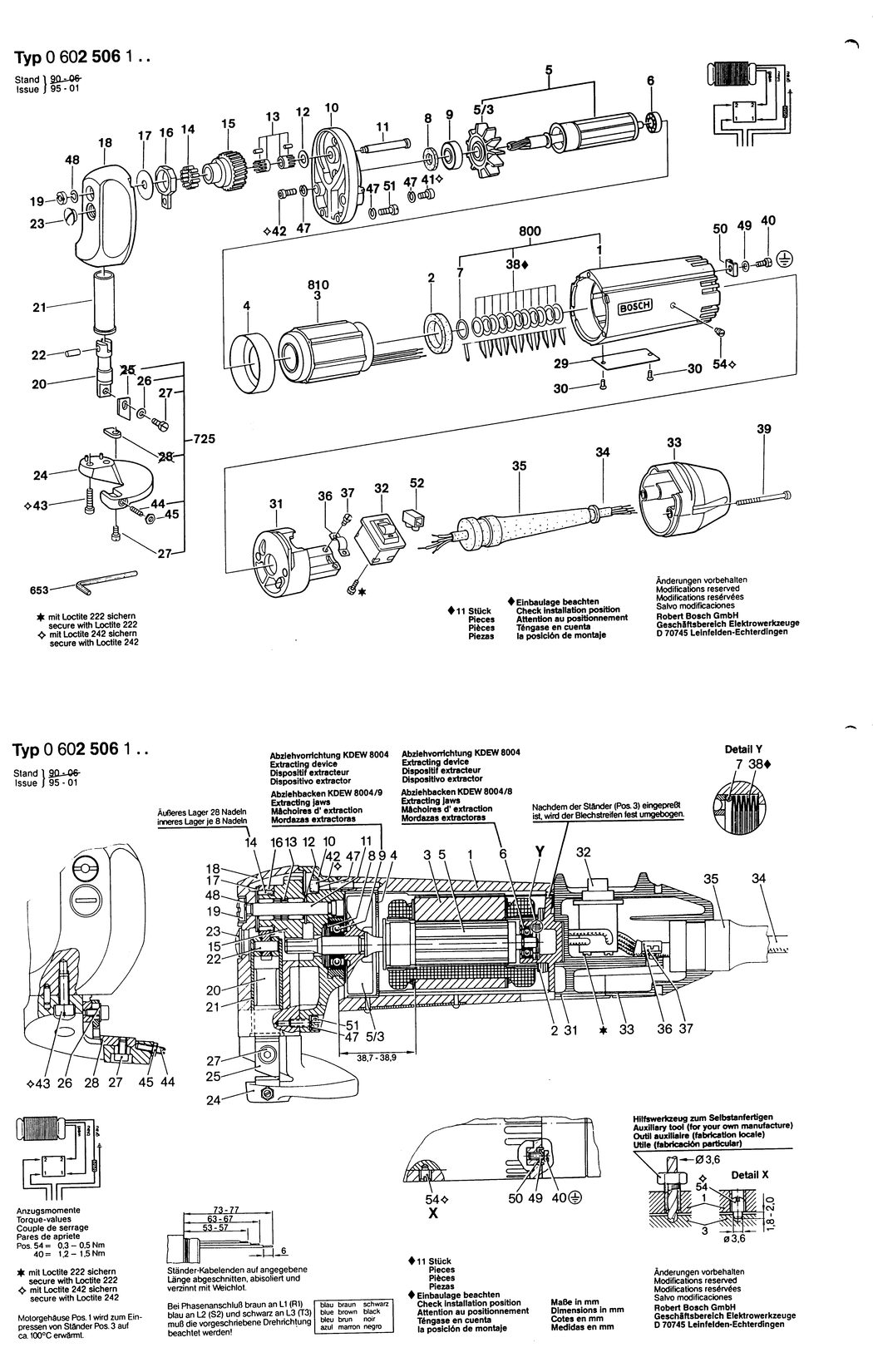

2 - SEAL RING
BSD-1600209011.A111
1600209011
|
£2.94
|
£3.53
|
|
|
4 - AIR-DEFLECTOR RING
BSD-1600502005.A258
1600502005
|
£2.61
|
£3.13
|
|
|
5 - ROTOR
BSD-3604080020.A86
3604080020
|
-
|
|
|
|
5/3 - FAN
BSD-1606610105.A64
1606610105
|
£15.65
|
£18.78
|
|
|
6 - O-RING 12.0x2.25 MM
BSD-3600210039.A102
3600210039
|
£7.36
|
£8.83
|
|
|
7 - GROOVE BALL BEARING 625-2Z DIN 625
BSD-1900905015.A283
1900905015
|
£30.42
|
£36.51
|
|
|
8 - SEALING DISK
BSD-1600108053.A13
1600108053
|
-
|
|
|
|
9 - GROOVE BALL BEARING 9x24x7
BSD-1900905017.A73
1900905017
|
£23.86
|
£28.63
|
|
|
10 - BEARING FLANGE
BSD-3605820060.A3
3605820060
|
-
|
|
|
|
11 - BEARING BOLT
BSD-2603520001.A14
2603520001
|
-
|
|
|
|
12 - SHIM 0.5 MM
BSD-1600100624.A1
1600100624
|
-
|
|
|
|
13 - NEEDLE-ROLLER CAGE
BSD-2600913034.A17
2600913034
|
-
|
|
|
|
14 - PARTS SET
BSD-3607010031.A9
3607010031
|
-
|
|
|
|
15 - ECCENTRIC COG WHEEL Z=43
BSD-2606319040.A12
2606319040
|
-
|
|
|
|
16 - CONNECTING ROD
BSD-2602001000.A24
2602001000
|
-
|
|
|
|
17 - SHIM
BSD-2600100519.A5
2600100519
|
-
|
|
|
|
18 - GEAR HOUSING
BSD-3605806161.A0
3605806161
|
-
|
|
|
|
19 - ROUND NUT
BSD-2603341002.A9
2603341002
|
-
|
|
|
|
20 - LIFTING ROD
BSD-2603070005.A7
2603070005
|
-
|
|
|
|
21 - GUIDE SLEEVE
BSD-2600422000.A21
2600422000
|
-
|
|
|
|
22 - STRAIGHT PIN
BSD-2603100000.A21
2603100000
|
-
|
|
|
|
24 - BLADE HOLDER
BSD-2608042000.A22
2608042000
|
£154.03
|
£184.84
|
|
|
26 - PLAIN WASHER DIN 125-A4.3-ST
BSD-2916011010.A3
2916011010
|
£1.84
|
£2.21
|
|
|
27 - HEX SOCKET HEAD CAP SCREW DIN 912-M4x8-12.8
BSD-2910405118.A9
2910405118
|
£1.32
|
£1.58
|
|
|
29 - NAMEPLATE
BSD-3601106053.A39
3601106053
|
£5.57
|
£6.68
|
|
|
30 - GROOVED NAIL
BSD-3603133000.A196
3603133000
|
£2.61
|
£3.13
|
|
|
31 - CONNECTION HOUSING
BSD-3600099004.A130
3600099004
|
£21.68
|
£26.01
|
|
|
32 - SWITCH
BSD-3607200001.A0
3607200001
|
£71.84
|
£86.21
|
|
|
33 - SEALING CAP
BSD-3605500074.A3
3605500074
|
£22.76
|
£27.31
|
|
|
34 - PVC-INSULATED CABLE
BSD-3604462052.A22
3604462052
|
£57.14
|
£68.57
|
|
|
35 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A1265
3600703011
|
£2.94
|
£3.53
|
|
|
36 - FASTENING CLAMP
BSD-1601302014.A688
1601302014
|
£2.74
|
£3.29
|
|
|
37 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8
BSD-2910021116.A174
2910021116
|
£2.27
|
£2.72
|
|
|
38 - DISC SPRING
BSD-3600150013.A33
3600150013
|
£3.91
|
£4.69
|
|
|
39 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x45-8.8
BSD-2910141140.A108
2910141140
|
£1.75
|
£2.10
|
|
|
40 - PAN HEAD SCREW DIN 85-AM4x8-MS
BSD-2910110118.A235
2910110118
|
£1.84
|
£2.21
|
|
|
41 - HEX SOCKET HEAD CAP SCREW M 4x10 DIN 912-8.8
BSD-2910141120.A14
2910141120
|
£1.75
|
£2.10
|
|
|
42 - HEX SOCKET HEAD CAP SCREW DIN 912-M4x18-8.8
BSD-2910141128.A8
2910141128
|
£1.75
|
£2.10
|
|
|
43 - HEX SOCKET HEAD CAP SCREW DIN 912-M5X16-8.8
BSD-2910141158.A54
2910141158
|
£1.84
|
£2.21
|
|
|
44 - SET SCREW DIN 551-M3.x12-5.8
BSD-2912031084.A13
2912031084
|
£1.75
|
£2.10
|
|
|
47 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A430
2916690003
|
£1.75
|
£2.10
|
|
|
48 - SPRING LOCK WASHER DIN 127-B 5
BSD-2916680006.A378
2916680006
|
-
|
|
|
|
49 - SPRING WASHER dia4.2 MM
BSD-3600150006.A414
3600150006
|
£2.74
|
£3.29
|
|
|
50 - CLAMPING SADDLE
BSD-3601321001.A754
3601321001
|
£3.72
|
£4.47
|
|
|
51 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x12-8.8
BSD-2910141122.A8
2910141122
|
£2.27
|
£2.72
|
|
|
52 - SOCKET-TERMINAL STRIP 1x1.5 MM/2
BSD-1901091012.A274
1901091012
|
£5.57
|
£6.68
|
|
|
54 - SET SCREW
BSD-3603402000.A104
3603402000
|
£1.84
|
£2.21
|
|
|
650 - FEELER GAUGE
BSD-2607970009.A23
2607970009
|
-
|
|
|
|
653 - OFFSET SCREWDRIVER DIN 911. SW3
BSD-1907950004.A180
1907950004
|
£5.87
|
£7.04
|
|
|
725 - SET OF KNIVES
BSD-3607010028.A39
3607010028
|
£28.87
|
£34.64
|
|
|
800 - MOTOR HOUSING
BSD-3605102028.A15
3605102028
|
£156.22
|
£187.46
|
|
|
810 - STATOR 265V/200HZ. 200V/150HZ
BSD-1604229200.A34
1604229200
|
£481.43
|
£577.72
|
|
