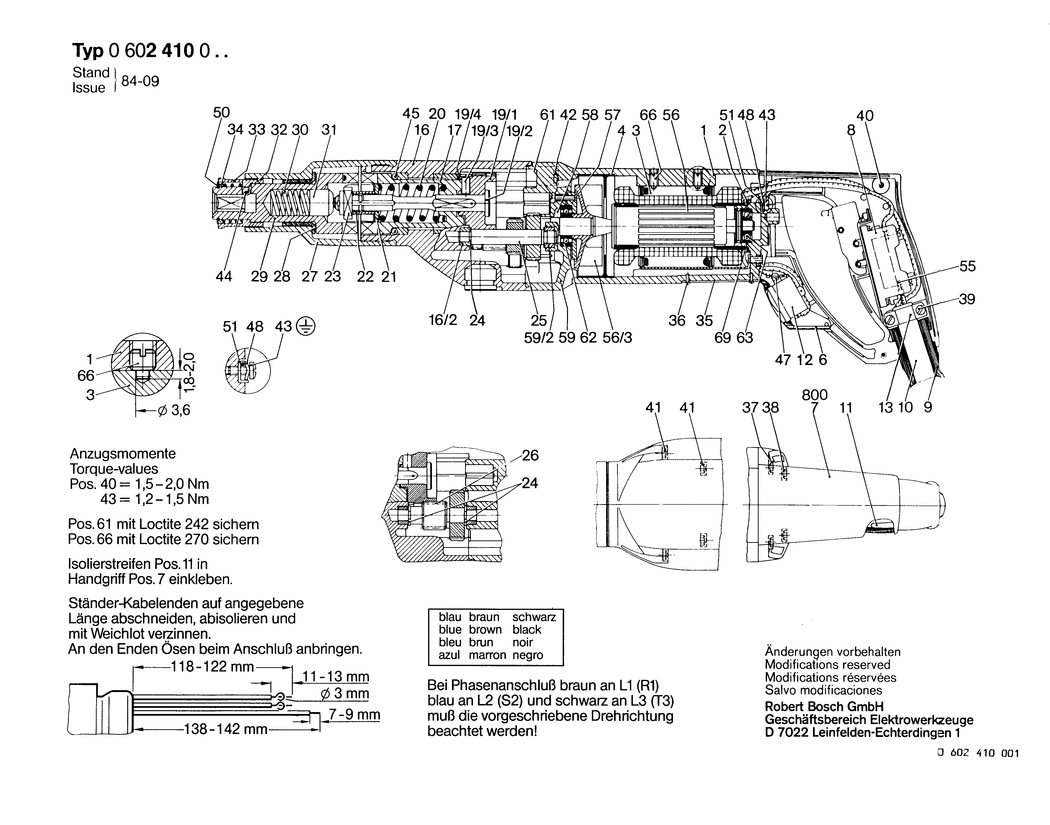

1 - MOTOR HOUSING
BSD-3605102077.A0
3605102077
|
£179.37
|
£215.24
|
|
|
2 - SEAL RING
BSD-1600209006.A126
1600209006
|
£2.94
|
£3.53
|
|
|
3 - STATOR 72V/300HZ
BSD-1604229091.A13
1604229091
|
-
|
|
|
|
4 - AIR-DEFLECTOR RING
BSD-1600209003.A131
1600209003
|
£8.13
|
£9.76
|
|
|
6 - SWITCH HOUSING
BSD-3605130029.A22
3605130029
|
-
|
|
|
|
8 - SWITCH
BSD-1607200038.A32
1607200038
|
£57.14
|
£68.57
|
|
|
9 - GROMMET dia11.5-dia15.0x150 MM
BSD-1600703009.A528
1600703009
|
£5.87
|
£7.04
|
|
|
10 - ASSEMBLY OF SERVICE PARTS
BSD-3607030231.A7
3607030231
|
-
|
|
|
|
11 - INSULATING STRIP 33x10x6 MM
BSD-1602381001.A403
1602381001
|
-
|
|
|
|
12 - REVERSING SWITCH
BSD-1607200031.A15
1607200031
|
-
|
|
|
|
13 - FASTENING CLAMP
BSD-1601303003.A354
1601303003
|
£2.27
|
£2.72
|
|
|
16 - SPINDLE BEARING
BSD-3605806110.A0
3605806110
|
-
|
|
|
|
16/2 - NEEDLE BEARING
BSD-1600910013.A93
1600910013
|
£5.58
|
£6.70
|
|
|
17 - COUPLING HALF
BSD-1606432013.A5
1606432013
|
-
|
|
|
|
19 - SPINDLE WITH GEAR
BSD-1606100036.A2
1606100036
|
-
|
|
|
|
19/1 - CYLINDRICAL GEAR Z=39
BSD-1606317057.A5
1606317057
|
-
|
|
|
|
19/2 - AXLE
BSD-1603520003.A2
1603520003
|
-
|
|
|
|
19/3 - ROLLER
BSD-1603100011.A9
1603100011
|
-
|
|
|
|
19/4 - RETAINING SNAP RING
BSD-1600209007.A0
1600209007
|
-
|
|
|
|
20 - COMPRESSION SPRING
BSD-1604619008.A0
1604619008
|
-
|
|
|
|
21 - PLAIN WASHER
BSD-1600101011.A5
1600101011
|
-
|
|
|
|
22 - BUSHING
BSD-1600300010.A0
1600300010
|
-
|
|
|
|
23 - ROUND NUT
BSD-1603345000.A7
1603345000
|
-
|
|
|
|
24 - SHIM 0.5 MM
BSD-1600100631.A364
1600100631
|
£1.75
|
£2.10
|
|
|
25 - SPINDLE WITH GEAR Z=22/29
BSD-1606100035.A0
1606100035
|
-
|
|
|
|
26 - SPINDLE WITH GEAR Z=16/32
BSD-1606328066.A2
1606328066
|
-
|
|
|
|
27 - BEARING SLEEVE
BSD-1600460012.A5
1600460012
|
-
|
|
|
|
28 - SEALING DISK
BSD-1600110005.A7
1600110005
|
-
|
|
|
|
29 - COUPLING HALF
BSD-1606455023.A7
1606455023
|
-
|
|
|
|
30 - COMPRESSION SPRING
BSD-1604616012.A2
1604616012
|
-
|
|
|
|
31 - PRESSURE SPINDLE
BSD-1603219019.A0
1603219019
|
-
|
|
|
|
32 - PROTECTION SLEEVE
BSD-1600328001.A9
1600328001
|
-
|
|
|
|
33 - COMPRESSION SPRING
BSD-1604616006.A19
1604616006
|
£7.72
|
£9.27
|
|
|
34 - THRUST RING
BSD-1600200000.A5
1600200000
|
-
|
|
|
|
35 - NAMEPLATE
BSD-3601106053.A391
3601106053
|
£5.57
|
£6.68
|
|
|
36 - GROOVED NAIL DIN 1476-2x5 MM
BSD-3603133001.A377
3603133001
|
£2.61
|
£3.13
|
|
|
37 - HEX SOCKET HEAD CAP SCREW DIN 912-M5X16-8.8
BSD-2910141158.A25
2910141158
|
£1.84
|
£2.21
|
|
|
38 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x25-8.8
BSD-2910141164.A42
2910141164
|
£2.16
|
£2.59
|
|
|
39 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8
BSD-2910021116.A297
2910021116
|
£2.27
|
£2.72
|
|
|
40 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A789
2910211021
|
£1.75
|
£2.10
|
|
|
41 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x60-8.8
BSD-2910141178.A59
2910141178
|
-
|
|
|
|
42 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x30-8.8
BSD-2910141166.A156
2910141166
|
£1.84
|
£2.21
|
|
|
43 - PAN HEAD SCREW DIN 85-MS-M 4x12
BSD-2910110122.A167
2910110122
|
£1.84
|
£2.21
|
|
|
44 - BALL DIN 5401-6 G28
BSD-1903230011.A208
1903230011
|
£2.74
|
£3.29
|
|
|
45 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A213
1903230007
|
£1.84
|
£2.21
|
|
|
47 - SOCKET HEAD CAP SCREW DIN 84-AM3x4-5.8
BSD-2910011046.A15
2910011046
|
-
|
|
|
|
48 - SPRING WASHER dia4.2 MM
BSD-3600150006.A657
3600150006
|
£2.74
|
£3.29
|
|
|
50 - RETAINING RING
BSD-1600116001.A15
1600116001
|
-
|
|
|
|
51 - CLAMPING SADDLE
BSD-3601321001.A416
3601321001
|
£3.72
|
£4.47
|
|
|
55 - END SPLICE DIN 46 228-A2.5-7
BSD-1900452003.A108
1900452003
|
£2.61
|
£3.13
|
|
|
56 - ROTOR WITHOUT WINDING
BSD-1604080082.A9
1604080082
|
-
|
|
|
|
57 - CONICAL SPRING WASHER
BSD-1600501025.A75
1600501025
|
£35.42
|
£42.51
|
|
|
58 - SEALING DISK
BSD-1600108030.A9
1600108030
|
£3.72
|
£4.47
|
|
|
59 - BEARING HOUSING
BSD-3605820050.A7
3605820050
|
-
|
|
|
|
59/2 - NEEDLE BEARING
BSD-1600910013.A94
1600910013
|
£5.58
|
£6.70
|
|
|
61 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A267
2910021125
|
£1.75
|
£2.10
|
|
|
62 - GROOVE BALL BEARING 12x28x8
BSD-2600905013.A18
2600905013
|
-
|
|
|
|
63 - GROOVE BALL BEARING 7x22x7
BSD-1610900025.A8
1610900025
|
£16.41
|
£19.69
|
|
|
64 - CABLE CLIP
BSD-3601025001.A0
3601025001
|
-
|
|
|
|
66 - SET SCREW
BSD-1603402002.A91
1603402002
|
£1.75
|
£2.10
|
|
|
69 - O-RING 22.0x1.5 MM
BSD-3600210016.A35
3600210016
|
£1.84
|
£2.21
|
|
|
651 - STRAIGHT PIN 4x60 MM
BSD-2603101035.A157
2603101035
|
£2.94
|
£3.53
|
|
|
652 - SINGLE-HEAD ENG. WRENCH DIN 894 SW17
BSD-1907950510.A0
1907950510
|
-
|
|
|
|
800 - HANDLE
BSD-3605133009.A4
3605133009
|
£31.79
|
£38.15
|
|
|
801 - MOTOR HOUSING
BSD-3605102040.A91
3605102040
|
£229.32
|
£275.19
|
|
|
850 - ASSEMBLY OF SERVICE PARTS
BSD-3607030231.A6
3607030231
|
-
|
|
|
