Bosch ---- / 0602370301 / --- 265 Volt Spare Parts

Home Details Reviews Delivery

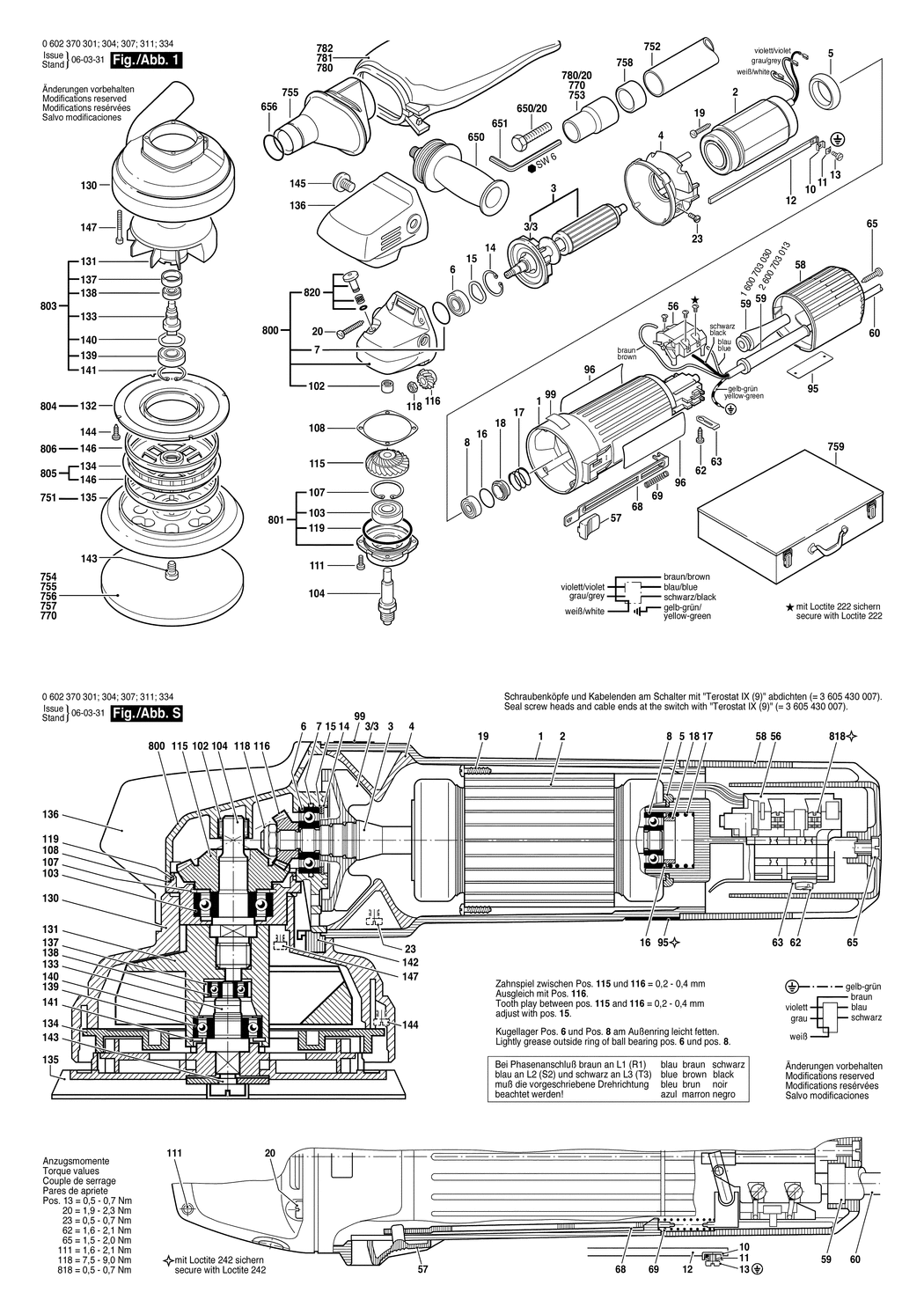

An exploded drawing and listing for the Bosch ---- / 0602370301 / --- 265 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3605102076.A24 3605102076	£50.80	£60.96
2 - STATOR 265V/200HZ BSD-3604229113.A4 3604229113	£410.78	£492.94
3 - ROTOR WITHOUT WINDING BSD-3604080053.A24 3604080053	£156.22	£187.46
3/3 - FAN BSD-3606610010.A55 3606610010	£4.48	£5.37
4 - AIR-DEFLECTOR RING BSD-3600209010.A24 3600209010	£16.41	£19.69
5 - SEAL RING BSD-1600209006.A114 1600209006	£2.94	£3.53
6 - GROOVE BALL BEARING BSD-3600905090.A28 3600905090	£22.76	£27.31
7 - O-RING 26.0x1.5 MM BSD-2600210018.A23 2600210018	£3.72	£4.47
8 - GROOVE BALL BEARING BSD-3608870327.A2 3608870327	£13.78	£16.54
10 - CLAMPING SADDLE BSD-3601321004.A62 3601321004	£2.16	£2.59
11 - SPRING WASHER BSD-3600150009.A79 3600150009	£2.80	£3.36
12 - CONNECTING ROD BSD-3602300011.A4 3602300011	£16.41	£19.69
13 - PAN HEAD SCREW DIN 85-AM3x6-CUZN BSD-2910110048.A268 2910110048	£1.84	£2.21
14 - SPRING RETAINING RING DIN 472-26x1.2 MM BSD-2916660010.A241 2916660010	£1.75	£2.10
15 - SHIM 19.3 X 25.8 X 0.35 BSD-3600119016.A0 3600119016	£3.72	£4.47
16 - O-RING 18.77x1.78 MM BSD-3600210082.A9 3600210082	£2.27	£2.72
17 - COMPRESSION SPRING BSD-3604610038.A0 3604610038	£3.91	£4.69
18 - LOCATING RING BSD-3600203005.A28 3600203005	£12.04	£14.45
19 - TAPPING SCREW BSD-3603435002.A4 3603435002	£1.75	£2.10
20 - LENS HEAD SCREW 4x32 BSD-2603490026.A57 2603490026	£1.84	£2.21
23 - THREAD-FORMING TAP. SCREW BSD-2603435042.A200 2603435042	£1.75	£2.10
56 - SWITCH BSD-3607200024.A18 3607200024	£25.05	£30.06
57 - SWITCH HANDLE BSD-1602026057.A226 1602026057	£2.07	£2.48
58 - SWITCH COVER BSD-3600508035.A25 3600508035	£15.65	£18.78
59 - GROMMET dia7.6-dia8.2x95 MM BSD-2600703013.A368 2600703013	£2.74	£3.29
59 - GROMMET dia6.4-dia7.2x67 MM BSD-1600703030.A95 1600703030	£2.74	£3.29
60 - ELEC. CABLE W/CONNECTION BSD-3604422066.A4 3604422066	£57.14	£68.57
62 - TORX OVAL-HEAD SCREW 4x12 BSD-2603490021.A286 2603490021	£1.84	£2.21
63 - FASTENING CLAMP BSD-1601302017.A438 1601302017	£1.84	£2.21
65 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A885 2603490023	£1.84	£2.21
68 - ADJUSTING SLIDE BSD-3602319014.A24 3602319014	£5.57	£6.68
69 - COMPRESSION SPRING BSD-1604611026.A449 1604611026	£1.84	£2.21
95 - NAMEPLATE BSD-3601106054.A64 3601106054	£5.30	£6.36
96 - MANUFACTURER'S NAMEPLATE BSD-3601110246.A24 3601110246	£3.91	£4.69
99 - REFERENCE PLATE BSD-3601119236.A1016 3601119236	£3.91	£4.69
102 - NEEDLE BEARING dia8xdia12x8 MM BSD-1600910018.A746 1600910018	£5.57	£6.68
103 - GROOVE BALL BEARING BSD-3600905069.A27 3600905069	£17.22	£20.67
104 - GRINDING SPINDLE M14. SW17 BSD-3603523014.A9 3603523014	£28.68	£34.41
107 - RETAINING CLIP DIN 472-32x1.2 MM BSD-2916660013.A306 2916660013	£2.16	£2.59
108 - SHIM 0.2 MM BSD-1600136010.A50 1600136010	£2.61	£3.13
108 - SHIM 0.3 MM BSD-1600136011.A273 1600136011	£2.16	£2.59
108 - SHIM 0.1 MM BSD-1600136012.A50 1600136012	£1.75	£2.10
111 - THREAD-FORMING TAP. SCREW DIN 7500-TM4x12 BSD-2914471401.A40 2914471401	£1.75	£2.10
115 - CROWN GEAR Z=35 BSD-3606334087.A1 3606334087	£120.11	£144.13
116 - BEVEL GEAR BSD-3606333058.A2 3606333058	£71.84	£86.21
118 - HEX NUT M7. SW10 BSD-1603300016.A4 1603300016	£1.84	£2.21
119 - O-RING 46.0x1.1 MM BSD-3600210124.A232 3600210124	£2.94	£3.53
130 - FAN HOUSING BSD-3605500076.A1 3605500076	£41.62	£49.95
131 - FAN BSD-3606610006.A1 3606610006	-
132 - WASHER BSD-3608601004.A0 3608601004	-
133 - ECCENTRIC SHAFT BSD-3606110006.A5 3606110006	£59.87	£71.84
134 - WASHER BSD-3608601010.A1 3608601010	-
135 - BACKING PAD BSD-2608601026.A1 2608601026	£35.42	£42.51
136 - HANDLE COVER BSD-3605132047.A5 3605132047	£9.97	£11.96
137 - TOLERANCE RING BSD-3600290033.A9 3600290033	£3.51	£4.21
138 - GROOVE BALL BEARING DIN 625-7x19x6 BSD-3600905148.A1 3600905148	£8.92	£10.70
139 - GROOVE BALL BEARING 12x28x8 BSD-1600905031.A48 1600905031	£6.85	£8.22
140 - RETAINING RING 12 DIN 9045 BSD-2916600007.A148 2916600007	£2.80	£3.36
141 - SPRING RETAINING RING DIN 472-28x1.2 MM BSD-2916660011.A33 2916660011	£1.75	£2.10
143 - HEX SOCKET HEAD CAP SCREW BSD-3603414017.A0 3603414017	£2.27	£2.72
144 - TAPPING SCREW DIN 7971-BZ3.5x13 BSD-2910211011.A161 2910211011	£1.84	£2.21
145 - PAN HEAD SCREW M 10x12 MM BSD-3603490015.A13 3603490015	£4.48	£5.37
146 - RING dia 88x5.7 MM BSD-3600290034.A0 3600290034	£5.57	£6.68
147 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x35-8.8 BSD-2910141136.A63 2910141136	£2.80	£3.36
650 - AUXILIARY HANDLE M10. dia32.5x105 MM BSD-160202509T.A781 160202509T	£3.91	£4.69
650/20 - HEX SCREW DIN 933 M10x35-5.6 BSD-2911051295.A4 2911051295	-
651 - OFFSET SCREWDRIVER DIN 911;SW6 BSD-1907950007.A457 1907950007	£5.57	£6.68
656 - O-RING 20.0x1.5 MM BSD-1610210075.A31 1610210075	£2.74	£3.29
751 - BACKING PAD dia 150 MM BSD-3608601006.A4 3608601006	£21.72	£26.06
751 - BACKING PAD dia 150 MM BSD-3608601007.A0 3608601007	-
751 - BACKING PAD dia 150 MM BSD-3608601008.A4 3608601008	-
752 - AIR HOSE dia19 MM. L=5M. 3/4 BSD-1610793002.A33 1610793002	£36.74	£44.09
753 - REDUCTION SLEEVE dia 49/35 MM+3/4 BSD-1609200933.A158 1609200933	£7.57	£9.08
754 - POLISHING CAP dia 150-160 MM BSD-3608610000.A0 3608610000	£20.39	£24.47
755 - POLISHING SPONGE dia 160x15 MM BSD-3608613000.A4 3608613000	-
756 - POLISHING DISC dia 150-160 MM BSD-3608604000.A4 3608604000	£20.99	£25.19
756 - POLISHING DISC dia 150-160 MM BSD-3608604001.A0 3608604001	£14.74	£17.69
757 - ABRASIVE WEB dia 150 MM BSD-3608604023.A4 3608604023	£43.36	£52.03
757 - ABRASIVE WEB dia 150 MM BSD-3608604024.A0 3608604024	£39.72	£47.66
757 - ABRASIVE WEB dia 150 MM BSD-3608604025.A4 3608604025	£29.44	£35.33
758 - SEALING CAP BSD-3600508024.A4 3600508024	-
759 - CARRYING CASE BSD-3605438004.A4 3605438004	-
770 - COMBI POLISHING ACCESS. BSD-2607001125.A3 2607001125	-
770 - ADAPTER BSD-2608613010.A0 2608613010	-
770 - POLISHING CAP BSD-2608610007.A4 2608610007	-
780 - DUST BAG BSD-2605411027.A29 2605411027	-
780/20 - ADAPTER BSD-3605702003.A4 3605702003	-
781 - DUST BAG BSD-2605411068.A19 2605411068	£14.69	£17.63
782 - DUST BAG BSD-1605411028.A22 1605411028	£15.74	£18.89
800 - TRANSMISSION CASE BSD-3607030251.A0 3607030251	£102.57	£123.08
801 - PARTS SET BSD-3607030406.A4 3607030406	-
803 - ASSEMBLY OF SERVICE PARTS BSD-3607031209.A0 3607031209	£134.16	£160.99
804 - WASHER BSD-3608601004.A1 3608601004	-
805 - ECCENTRIC DISC BSD-3607031532.A4 3607031532	£50.80	£60.96
806 - ASSEMBLY OF SERVICE PARTS BSD-3607031533.A0 3607031533	£9.49	£11.39
820 - PUSH-BUTTON BSD-1607000253.A44 1607000253	£2.49	£2.99
