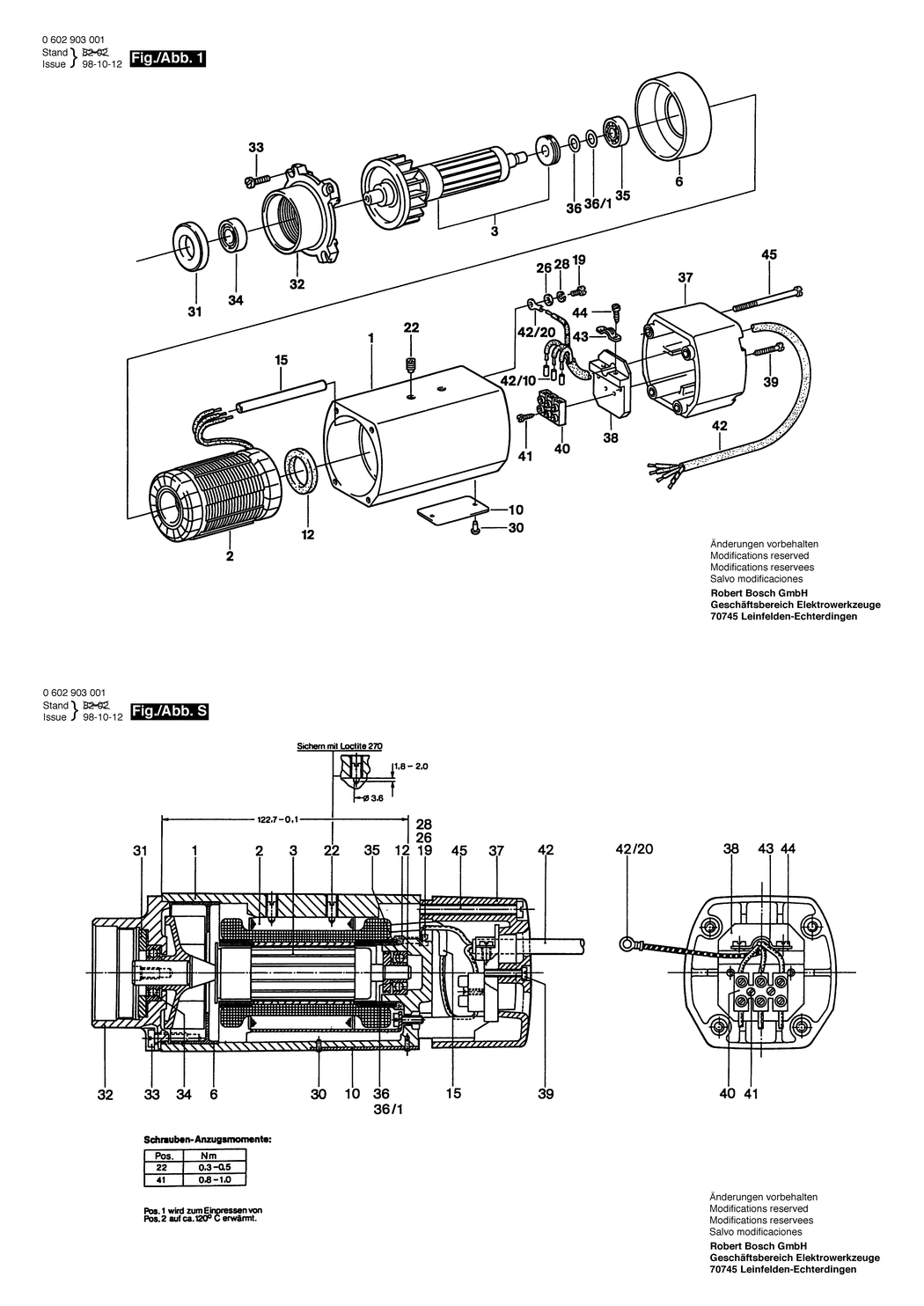

1 - MOTOR HOUSING
BSD-3605102040.A0
3605102040
|
£229.32
|
£275.19
|
|
|
3 - ROTOR
BSD-3604080009.A0
3604080009
|
-
|
|
|
|
6 - AIR-DEFLECTOR RING
BSD-1600209003.A36
1600209003
|
£8.13
|
£9.76
|
|
|
8 - END SPLICE A 0.5-6 DIN 46 228
BSD-1900452000.A38
1900452000
|
-
|
|
|
|
10 - NAMEPLATE
BSD-3601106053.A926
3601106053
|
£5.57
|
£6.68
|
|
|
12 - SEAL RING
BSD-1600209006.A129
1600209006
|
£2.94
|
£3.53
|
|
|
19 - PAN HEAD SCREW DIN 85-MS-M 4x12
BSD-2910110122.A37
2910110122
|
£1.84
|
£2.21
|
|
|
22 - SET SCREW
BSD-1603402003.A2
1603402003
|
-
|
|
|
|
26 - CLAMPING SADDLE
BSD-3601321001.A11
3601321001
|
£3.72
|
£4.47
|
|
|
28 - SPRING WASHER dia4.2 MM
BSD-3600150006.A179
3600150006
|
£2.74
|
£3.29
|
|
|
30 - ROUND-HEAD GROOVED PIN DIN 1476-2x5-ST
BSD-2917721033.A0
2917721033
|
-
|
|
|
|
31 - STOP DISC
BSD-3600102013.A5
3600102013
|
-
|
|
|
|
32 - INTERMEDIATE BEARING
BSD-3605700050.A0
3605700050
|
-
|
|
|
|
33 - SOCKET HEAD CAP SCREW DIN 84-AM5x15-5.8
BSD-2910011157.A415
2910011157
|
-
|
|
|
|
34 - GROOVE BALL BEARING 12x28x8
BSD-1900905121.A191
1900905121
|
£18.96
|
£22.75
|
|
|
35 - GROOVE BALL BEARING 7x22x7
BSD-1610900025.A220
1610900025
|
£16.41
|
£19.69
|
|
|
37 - SEALING CAP
BSD-1605500097.A6
1605500097
|
-
|
|
|
|
38 - CONNECTION PLATE
BSD-3602309001.A0
3602309001
|
-
|
|
|
|
39 - TAPPING SCREW DIN 7971-BZ3.5x19
BSD-2910211013.A24
2910211013
|
-
|
|
|
|
40 - STRIP TERMINAL
BSD-1901091110.A76
1901091110
|
£1.84
|
£2.21
|
|
|
41 - TAPPING SCREW DIN 7971-BZ2.9x16
BSD-2910211007.A146
2910211007
|
£1.75
|
£2.10
|
|
|
42 - ELEC. CABLE W/CONNECTION
BSD-3604462055.A5
3604462055
|
-
|
|
|
|
43 - SCREWED CABLE GLAND
BSD-3603386007.A6
3603386007
|
-
|
|
|
|
45 - SOCKET HEAD CAP SCREW DIN 84-BM5x55-5.8
BSD-2910011176.A5
2910011176
|
-
|
|
|
|
69 - O-RING 22.0x1.5 MM
BSD-3600210016.A92
3600210016
|
£1.84
|
£2.21
|
|
|
73 - PARTS SET
BSD-2609201067.A6
2609201067
|
-
|
|
|
|
810 - STATOR 265V/200HZ
BSD-1604229088.A19
1604229088
|
£357.27
|
£428.72
|
|
