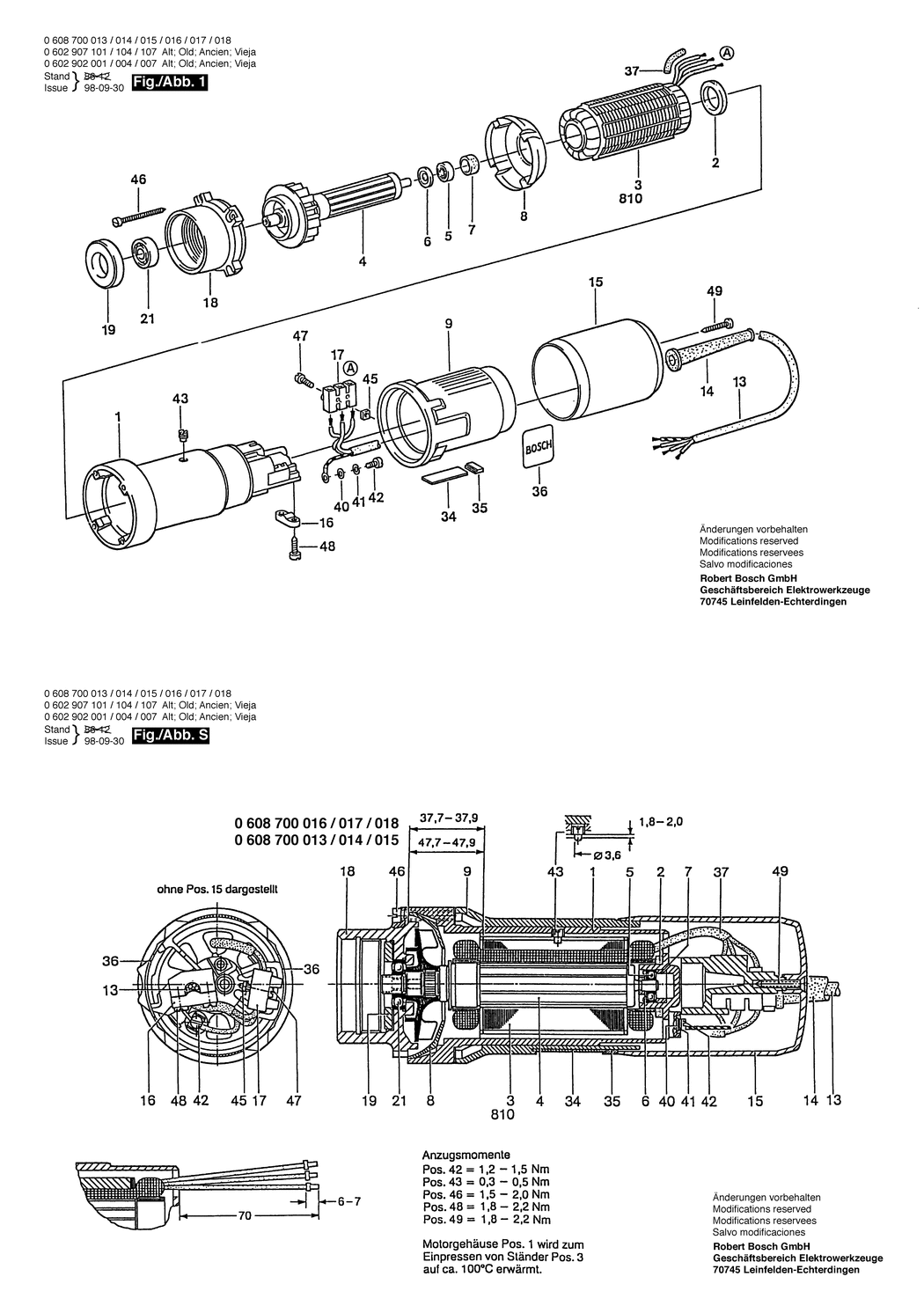

1 - MOTOR HOUSING
BSD-3605102018.A3
3605102018
|
-
|
|
|
|
2 - SEAL RING
BSD-1600209011.A341
1600209011
|
£2.94
|
£3.53
|
|
|
4 - ROTOR
BSD-3604080008.A1
3604080008
|
-
|
|
|
|
5 - GROOVE BALL BEARING 625-2Z DIN 625
BSD-1900905015.A22
1900905015
|
£30.42
|
£36.51
|
|
|
6 - INTERMEDIATE RING
BSD-3600202008.A2
3600202008
|
£2.74
|
£3.29
|
|
|
7 - RUBBER RING 6MM.dia12xdia16.4x3MM
BSD-3600206002.A146
3600206002
|
-
|
|
|
|
8 - COVER DISC
BSD-3601328000.A2
3601328000
|
-
|
|
|
|
9 - MOTOR HOUSING
BSD-3605108111.A1
3605108111
|
-
|
|
|
|
13 - ELEC. CABLE W/CONNECTION
BSD-3604462055.A6
3604462055
|
-
|
|
|
|
14 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A735
2600703013
|
£2.74
|
£3.29
|
|
|
15 - INTERMEDIATE RING
BSD-3600202008.A3
3600202008
|
£2.74
|
£3.29
|
|
|
16 - CABLE CLIP
BSD-2601035001.A2083
2601035001
|
£1.84
|
£2.21
|
|
|
17 - SOCKET-TERMINAL STRIP 3x6 MM
BSD-1901091013.A25
1901091013
|
-
|
|
|
|
18 - INTERMEDIATE BEARING
BSD-3605700049.A0
3605700049
|
-
|
|
|
|
19 - STOP DISC
BSD-3600102014.A1
3600102014
|
-
|
|
|
|
21 - GROOVE BALL BEARING 9x24x7
BSD-1900905017.A264
1900905017
|
£23.86
|
£28.63
|
|
|
34 - NAMEPLATE
BSD-3601100003.A1
3601100003
|
-
|
|
|
|
35 - INTERMEDIATE PIECE
BSD-1600026000.A58
1600026000
|
£1.84
|
£2.21
|
|
|
36 - STICKER
BSD-3601103000.A17
3601103000
|
£2.74
|
£3.29
|
|
|
37 - PVC HOSE
BSD-1600712026.A5
1600712026
|
-
|
|
|
|
40 - CLAMPING SADDLE
BSD-3601321001.A12
3601321001
|
£3.72
|
£4.47
|
|
|
41 - SPRING WASHER dia4.2 MM
BSD-3600150006.A177
3600150006
|
£2.74
|
£3.29
|
|
|
42 - PAN HEAD SCREW DIN 85-AM4x10-MS
BSD-2910110120.A431
2910110120
|
£1.84
|
£2.21
|
|
|
43 - SET SCREW
BSD-3603402000.A244
3603402000
|
£1.84
|
£2.21
|
|
|
45 - SQUARE NUT DIN 562-M3-04
BSD-2915121003.A4
2915121003
|
-
|
|
|
|
46 - TAPPING SCREW DIN 7971-B3.9x45
BSD-2910211283.A66
2910211283
|
£2.74
|
£3.29
|
|
|
47 - SOCKET HEAD CAP SCREW DIN 84-AM3x15-4.8
BSD-2910001057.A3
2910001057
|
-
|
|
|
|
48 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1061
2910211019
|
£1.84
|
£2.21
|
|
|
49 - TAPPING SCREW BZ 3.9x25 DIN 7972
BSD-2910601022.A27
2910601022
|
-
|
|
|
|
810 - STATOR 72V/200HZ
BSD-3604229007.A8
3604229007
|
£306.65
|
£367.98
|
|
