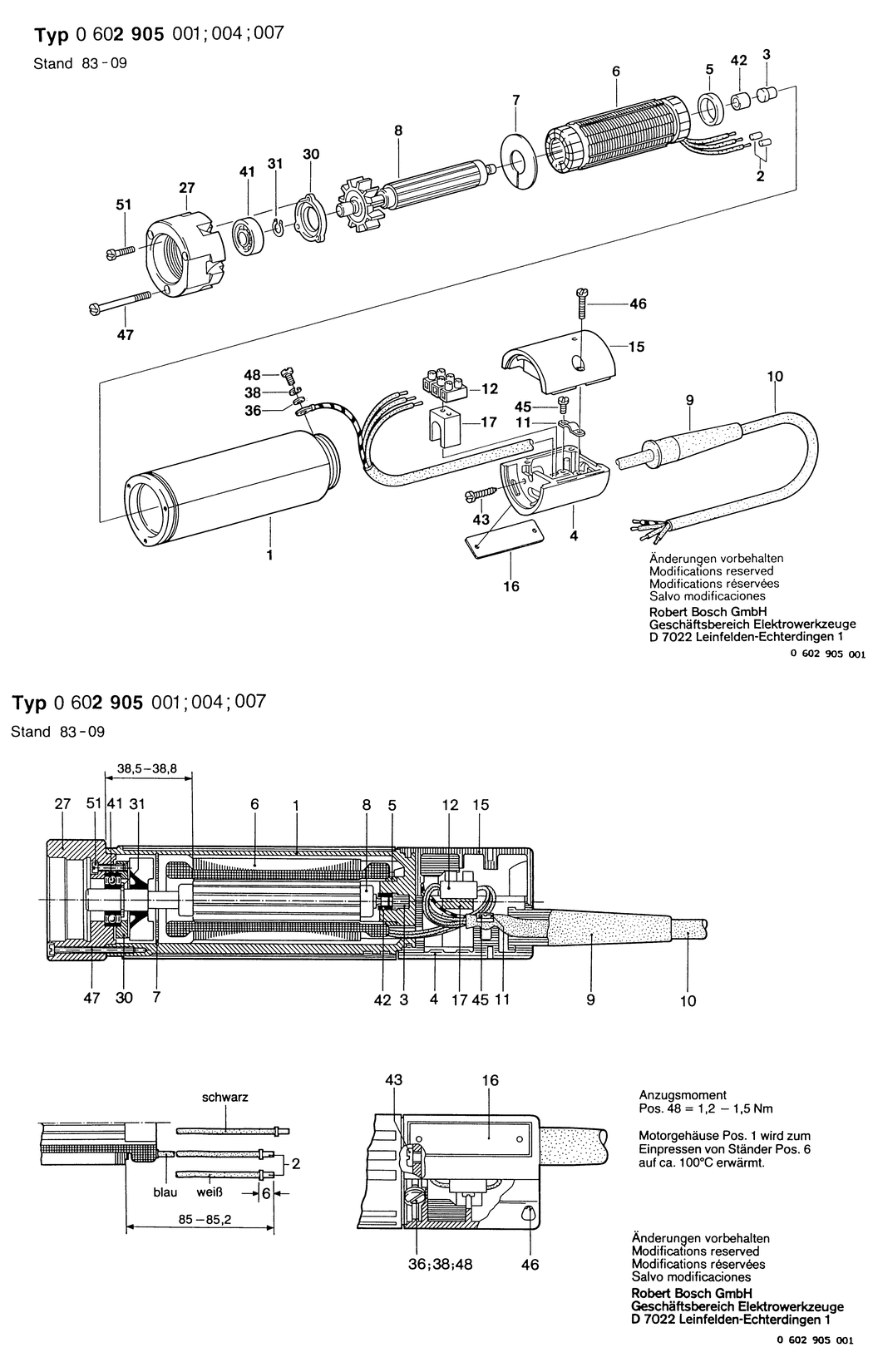

1 - MOTOR HOUSING
BSD-3605102048.A7
3605102048
|
£108.30
|
£129.96
|
|
|
2 - END SPLICE A 0.5-6 DIN 46 228
BSD-1900452000.A37
1900452000
|
-
|
|
|
|
3 - LUBRICATING FELT
BSD-1603212000.A27
1603212000
|
-
|
|
|
|
4 - SWITCH HOUSING
BSD-3605130031.A21
3605130031
|
£13.41
|
£16.09
|
|
|
5 - FELT WASHER
BSD-1600205026.A160
1600205026
|
£2.74
|
£3.29
|
|
|
6 - STATOR 72V/200HZ.110V/300HZ
BSD-1604229183.A16
1604229183
|
£321.98
|
£386.38
|
|
|
7 - AIR-DEFLECTOR RING
BSD-1600117001.A12
1600117001
|
£2.16
|
£2.59
|
|
|
8 - ROTOR WITHOUT WINDING
BSD-3604080014.A0
3604080014
|
-
|
|
|
|
9 - GROMMET dia5.5-dia8.3x75 MM
BSD-1600703012.A89
1600703012
|
£2.52
|
£3.02
|
|
|
10 - ELEC. CABLE W/CONNECTION
BSD-3604462060.A5
3604462060
|
-
|
|
|
|
11 - FASTENING CLAMP
BSD-1601302001.A125
1601302001
|
£1.75
|
£2.10
|
|
|
12 - STRIP TERMINAL
BSD-1901091014.A14
1901091014
|
-
|
|
|
|
15 - HOUSING COVER
BSD-3605130033.A7
3605130033
|
-
|
|
|
|
16 - NAMEPLATE
BSD-3601106054.A23
3601106054
|
£5.30
|
£6.36
|
|
|
17 - CONNECTION PLATE
BSD-3602305008.A8
3602305008
|
-
|
|
|
|
27 - INTERMEDIATE BEARING
BSD-3605700098.A5
3605700098
|
-
|
|
|
|
30 - CONICAL SPRING WASHER
BSD-3600190004.A16
3600190004
|
-
|
|
|
|
31 - SPRING RETAINING RING DIN 471 9x1MM
BSD-2916640006.A24
2916640006
|
£1.84
|
£2.21
|
|
|
36 - CLAMPING SADDLE
BSD-3601321002.A95
3601321002
|
£2.64
|
£3.17
|
|
|
38 - SPRING WASHER
BSD-3600150009.A23
3600150009
|
£2.80
|
£3.36
|
|
|
41 - GROOVE BALL BEARING 9x24x7
BSD-1900905017.A259
1900905017
|
£23.86
|
£28.63
|
|
|
42 - SINTERED-METAL BUSHING J4G7x8R6x6DIN1850
BSD-1900301003.A57
1900301003
|
-
|
|
|
|
43 - TAPPING SCREW DIN 7971-BZ4.2x13
BSD-2910211025.A135
2910211025
|
£1.84
|
£2.21
|
|
|
45 - SOCKET HEAD CAP SCREW DIN 84-AM3x6-5.8
BSD-2910011048.A122
2910011048
|
£1.75
|
£2.10
|
|
|
46 - SOCKET HEAD CAP SCREW DIN 84-AM3x12-8.8
BSD-2910021054.A11
2910021054
|
£1.75
|
£2.10
|
|
|
47 - SOCKET HEAD CAP SCREW DIN 84-AM3x20-8.8
BSD-2910021062.A13
2910021062
|
£1.75
|
£2.10
|
|
|
48 - PAN HEAD SCREW DIN 85-AM3x8-MS
BSD-2910110050.A51
2910110050
|
£1.84
|
£2.21
|
|
|
51 - SOCKET HEAD CAP SCREW DIN 84-AM3x12-5.8
BSD-2910011054.A18
2910011054
|
£2.33
|
£2.80
|
|
